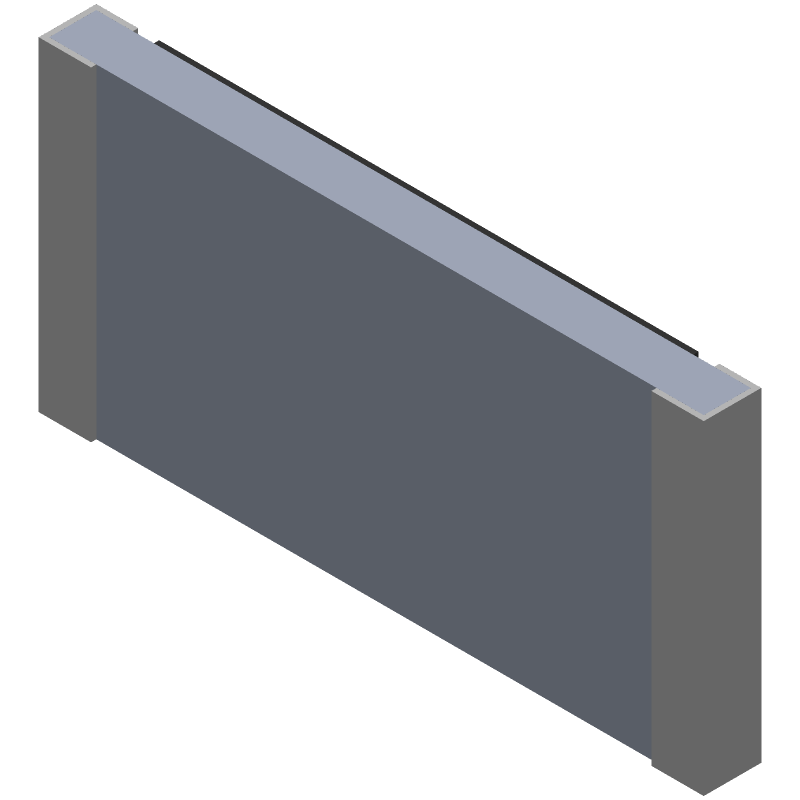

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for MCPWR12FTEA1300 by SPC Multicomp
Results Overview of MCPWR12FTEA1300 by SPC Multicomp
- Distributor Offerings: (0 listings)
- Number of FFF Equivalents: (10 replacements)
- Tariff Estimator: (Not Available)
- Number of Functional Equivalents: (0 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
MCPWR12FTEA1300 Information
MCPWR12FTEA1300 by SPC Multicomp is a Fixed Resistor.
Fixed Resistors are under the broader part category of Resistors.
Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.
Part Details for MCPWR12FTEA1300
MCPWR12FTEA1300 CAD Models
MCPWR12FTEA1300 Part Data Attributes
|
|
MCPWR12FTEA1300
SPC Multicomp
Buy Now
Datasheet
|
Compare Parts:
MCPWR12FTEA1300
SPC Multicomp
Fixed Resistor, Metal Glaze/thick Film, 1.5W, 130ohm, 500V, 1% +/-Tol, 100ppm/Cel, 2512
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Reach Compliance Code | Unknown | |
| ECCN Code | EAR99 | |
| Construction | Chip | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 155 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Height | 0.55 Mm | |
| Package Length | 6.35 Mm | |
| Package Style | Smt | |
| Package Width | 3.1 Mm | |
| Packing Method | Tape, Embossed | |
| Rated Power Dissipation (P) | 1.5 W | |
| Resistance | 130 Ω | |
| Resistor Type | Fixed Resistor | |
| Size Code | 2512 | |
| Technology | Metal Glaze/Thick Film | |
| Temperature Coefficient | 100 Ppm/°C | |
| Tolerance | 1% | |
| Working Voltage | 500 V |
Alternate Parts for MCPWR12FTEA1300
This table gives cross-reference parts and alternative options found for MCPWR12FTEA1300. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of MCPWR12FTEA1300, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| PWR12FTEA1300N | Viking Tech Corp | Check for Price | Fixed Resistor, Metal Glaze/thick Film, 1.5W, 130ohm, 500V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 2512, CHIP | MCPWR12FTEA1300 vs PWR12FTEA1300N |
| CPR2512A1300FE | MERITEK Electronics Corporation | Check for Price | Fixed Resistor, Metal Glaze/thick Film, 1.5W, 130ohm, 500V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 2512, CHIP | MCPWR12FTEA1300 vs CPR2512A1300FE |
| PWR12FTEA1300A | Viking Tech Corp | Check for Price | Fixed Resistor, Metal Glaze/thick Film, 1.5W, 130ohm, 500V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 2512, CHIP | MCPWR12FTEA1300 vs PWR12FTEA1300A |
| CRCW2512-HP100130R1%E82E3 | Vishay Intertechnologies | Check for Price | Fixed Resistor, Metal Glaze/thick Film, 1.5W, 130ohm, 500V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 2512, | MCPWR12FTEA1300 vs CRCW2512-HP100130R1%E82E3 |
| PWR12FVEA1300N | Viking Tech Corp | Check for Price | Fixed Resistor, Metal Glaze/thick Film, 1.5W, 130ohm, 500V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 2512, CHIP | MCPWR12FTEA1300 vs PWR12FVEA1300N |
| PWR12FTGA1300A | Viking Tech Corp | Check for Price | Fixed Resistor, Metal Glaze/thick Film, 1.5W, 130ohm, 500V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 2512, CHIP | MCPWR12FTEA1300 vs PWR12FTGA1300A |
| MCPWR12FTEA1300N | SPC Multicomp | Check for Price | Fixed Resistor, Metal Glaze/thick Film, 1.5W, 130ohm, 500V, 1% +/-Tol, -100,100ppm/Cel, 2512, | MCPWR12FTEA1300 vs MCPWR12FTEA1300N |
| PWR12FVEA1300NA | Viking Tech Corp | Check for Price | Fixed Resistor, Metal Glaze/thick Film, 1.5W, 130ohm, 500V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 2512, CHIP | MCPWR12FTEA1300 vs PWR12FVEA1300NA |
| PWR25F1300CTEA | Cal-Chip Electronics | Check for Price | Fixed Resistor, Metal Glaze/thick Film, 1.5W, 130ohm, 500V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 2512 | MCPWR12FTEA1300 vs PWR25F1300CTEA |
| CRCW2512130RFKEGHP | Vishay Intertechnologies | Check for Price | Fixed Resistor, Metal Glaze/thick Film, 1.5W, 130ohm, 500V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 2512 | MCPWR12FTEA1300 vs CRCW2512130RFKEGHP |
