Part Details for MCS04020D1001BE100 by Vishay Intertechnologies
Results Overview of MCS04020D1001BE100 by Vishay Intertechnologies
- Distributor Offerings: (24 listings)
- Number of FFF Equivalents: (10 replacements)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (0 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Internet of Things (IoT)
Computing and Data Storage
Aerospace and Defense
Healthcare
Telecommunications
Automotive
MCS04020D1001BE100 Information
MCS04020D1001BE100 by Vishay Intertechnologies is a Fixed Resistor.
Fixed Resistors are under the broader part category of Resistors.
Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.
Price & Stock for MCS04020D1001BE100
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
67AK8255
|
Newark | Res, 1K, 0.1%, 0.063W, Thin Film, 0402, Resistance:1Kohm, Resistance Tolerance:± 0.1%, Power Rating:63Mw, Resistor Case/Package:0402 [1005 Metric], Resistor Technology:Thin Film, Resistor Type:Precision, Sulfur Resistant Rohs Compliant: Yes |Vishay MCS04020D1001BE100 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 670 |
|
$0.1520 | Buy Now |
|
DISTI #
12N1431
|
Newark | Res, 1K, 0.1%, 0.063W, Thin Film, 0402, Resistance:1Kohm, Resistance Tolerance:± 0.1%, Power Rating:63Mw, Resistor Case/Package:0402 [1005 Metric], Resistor Technology:Thin Film, Resistor Type:Precision, Sulfur Resistant Rohs Compliant: Yes |Vishay MCS04020D1001BE100 RoHS: Compliant Min Qty: 1000 Package Multiple: 1 Date Code: 0 Container: Tape & Reel | 0 |
|
$0.1800 / $0.2400 | Buy Now |
|
DISTI #
26AM3822
|
Newark | Mcs 0402-25 0.1% E1 1K0 Rohs Compliant: Yes |Vishay MCS04020D1001BE100 RoHS: Compliant Min Qty: 1000 Package Multiple: 1 Date Code: 0 Container: Tape & Reel | 0 |
|
$0.1800 / $0.2400 | Buy Now |
|
DISTI #
BC3233CT-ND
|
DigiKey | RES 1K OHM 0.1% 1/16W 0402 Min Qty: 1 Lead time: 11 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
4051 In Stock |
|
$0.1954 / $0.3800 | Buy Now |
|
DISTI #
MCS04020D1001BE100
|
Avnet Americas | SMD Chip Resistor, 1 kohm, ? 0.1%, 62.5 mW, 0402 [1005 Metric], Thin Film - Tape and Reel (Alt: MCS04020D1001BE100) COO: Israel RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 9 Weeks, 0 Days Container: Tape & Reel | 11000 |
|
$0.1177 / $0.1274 | Buy Now |
|
DISTI #
67AK8255
|
Avnet Americas | SMD Chip Resistor, 1 kohm, ? 0.1%, 62.5 mW, 0402 [1005 Metric], Thin Film - Product that comes on tape, but is not reeled (Alt: 67AK8255) COO: Israel RoHS: Compliant Min Qty: 1 Package Multiple: 1 Container: Ammo Pack | 670 Partner Stock |
|
$0.2460 / $0.3800 | Buy Now |
|
DISTI #
594-MCS04020D1001BE1
|
Mouser Electronics | Thin Film Resistors - SMD .016W 1Kohms .1% 0402 25ppm RoHS: Compliant | 7027 |
|
$0.1950 / $0.3400 | Buy Now |
|
DISTI #
V72:2272_09271208
|
Arrow Electronics | Res Thin Film 0402 1K Ohm 0.1% 0.063W(1/16W) ±25ppm/°C Sulfur Resistant Pad SMD T/R Medical COO: Israel RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 9 Weeks Date Code: 2141 Container: Cut Strips | Americas - 151 |
|
$0.0374 / $0.1287 | Buy Now |
|
|
Future Electronics | 0402 0402 1K Ohm 0.1% 25PPM thin film resistor RoHS: Compliant pbFree: Yes Min Qty: 1000 Package Multiple: 1000 Lead time: 9 Weeks Container: Reel | 1000Reel |
|
$0.1560 / $0.1640 | Buy Now |
|
DISTI #
86234298
|
Verical | Res Thin Film 0402 1K Ohm 0.1% 0.063W(1/16W) ±25ppm/°C Sulfur Resistant Pad SMD T/R Medical RoHS: Compliant Min Qty: 329 Package Multiple: 1 | Americas - 670 |
|
$0.2128 | Buy Now |
US Tariff Estimator: MCS04020D1001BE100 by Vishay Intertechnologies
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for MCS04020D1001BE100
MCS04020D1001BE100 CAD Models
-
Part Symbol
-
Footprint
-

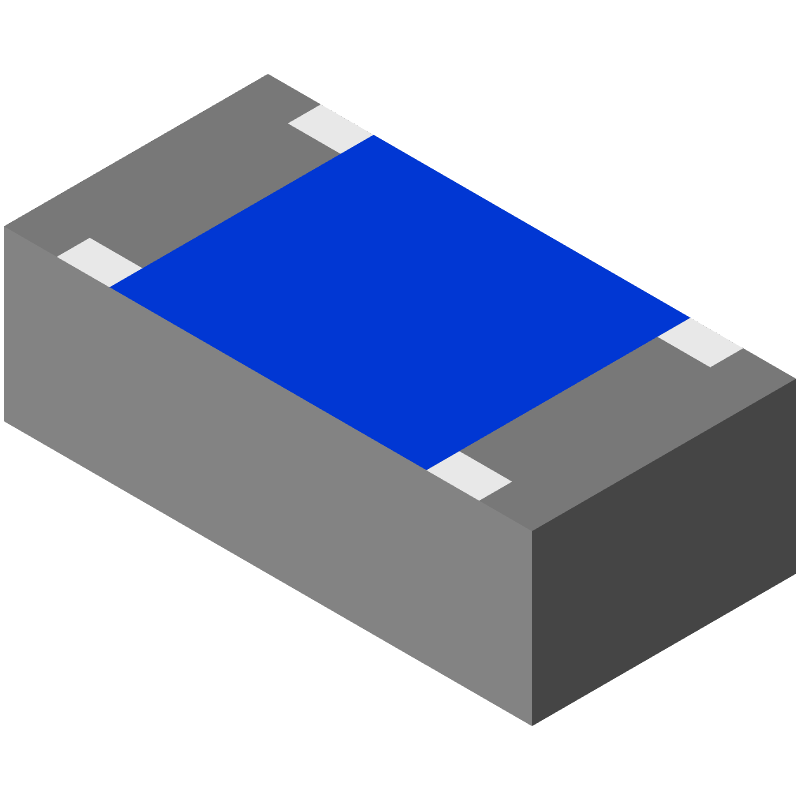

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
MCS04020D1001BE100 Part Data Attributes
|
|
MCS04020D1001BE100
Vishay Intertechnologies
Buy Now
Datasheet
|
Compare Parts:
MCS04020D1001BE100
Vishay Intertechnologies
Fixed Resistor, Thin Film, 0.063W, 1000ohm, 50V, 0.1% +/-Tol, 25ppm/Cel, Surface Mount, 0402, CHIP
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Package Description | Chip | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8533.21.00.30 | |
| Additional Feature | Anti-Sulfur, Laser Trimmable, Precision, Rated Ac Voltage: 50v | |
| Construction | Rectangular | |
| JESD-609 Code | e3 | |
| Mounting Feature | Surface Mount | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Height | 0.32 Mm | |
| Package Length | 1 Mm | |
| Package Style | Smt | |
| Package Width | 0.5 Mm | |
| Packing Method | Tr, Paper, 7 Inch | |
| Rated Power Dissipation (P) | 0.063 W | |
| Rated Temperature | 70 °C | |
| Reference Standard | Cecc40401-801 | |
| Resistance | 1000 Ω | |
| Resistor Type | Fixed Resistor | |
| Size Code | 0402 | |
| Surface Mount | Yes | |
| Technology | Thin Film | |
| Temperature Coefficient | 25 Ppm/°C | |
| Terminal Finish | Matte Tin Over Nickel | |
| Terminal Shape | Wraparound | |
| Tolerance | 0.1% | |
| Working Voltage | 50 V |
Alternate Parts for MCS04020D1001BE100
This table gives cross-reference parts and alternative options found for MCS04020D1001BE100. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of MCS04020D1001BE100, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| MCS0402MD1001BE5 | Vishay Intertechnologies | Check for Price | Fixed Resistor, Thin Film, 0.063W, 1000ohm, 50V, 0.1% +/-Tol, 25ppm/Cel, Surface Mount, 0402, CHIP | MCS04020D1001BE100 vs MCS0402MD1001BE5 |
| MCS04020D1001BE00S | Vishay Intertechnologies | Check for Price | Fixed Resistor, Thin Film, 0.063W, 1000ohm, 50V, 0.1% +/-Tol, 25ppm/Cel, Surface Mount, 0402, CHIP | MCS04020D1001BE100 vs MCS04020D1001BE00S |
| 239062741002L | YAGEO Corporation | Check for Price | Fixed Resistor, Thin Film, 0.0625W, 1000ohm, 50V, 0.1% +/-Tol, -25,25ppm/Cel, 0402, | MCS04020D1001BE100 vs 239062741002L |
| HART02BTC-1001A | Hitano Enterprise Corp | Check for Price | Fixed Resistor, Thin Film, 0.063W, 1000ohm, 50V, 0.1% +/-Tol, 25ppm/Cel, Surface Mount, 0402, CHIP | MCS04020D1001BE100 vs HART02BTC-1001A |
| MCS04020D1001BE500 | Vishay Intertechnologies | Check for Price | Fixed Resistor, Thin Film, 0.063W, 1000ohm, 50V, 0.1% +/-Tol, 25ppm/Cel, Surface Mount, 0402, CHIP | MCS04020D1001BE100 vs MCS04020D1001BE500 |
| MCS0402-250.1%E01K00 | Vishay Intertechnologies | Check for Price | Fixed Resistor, Thin Film, 0.063W, 1000ohm, 50V, 0.1% +/-Tol, 25ppm/Cel, Surface Mount, 0402, CHIP | MCS04020D1001BE100 vs MCS0402-250.1%E01K00 |
| MCS04020D1001BE1 | Vishay Intertechnologies | Check for Price | Fixed Resistor, Thin Film, 0.063W, 1000ohm, 50V, 0.1% +/-Tol, 25ppm/Cel, Surface Mount, 0402, CHIP | MCS04020D1001BE100 vs MCS04020D1001BE1 |
| MCS0402MD1001BE100 | Vishay Beyschlag | Check for Price | RES,SMT,THIN FILM,1K OHMS,50WV,.1% +/-TOL,-25,25PPM TC,0402 CASE | MCS04020D1001BE100 vs MCS0402MD1001BE100 |
| MCS0402MD1001BE1 | Vishay Intertechnologies | Check for Price | Fixed Resistor, Thin Film, 0.063W, 1000ohm, 50V, 0.1% +/-Tol, 25ppm/Cel, Surface Mount, 0402, CHIP | MCS04020D1001BE100 vs MCS0402MD1001BE1 |
| MCS0402MD1001BE500 | Vishay Intertechnologies | Check for Price | Fixed Resistor, Thin Film, 0.07W, 1000ohm, 50V, 0.1% +/-Tol, 25ppm/Cel, Surface Mount, 0402, CHIP | MCS04020D1001BE100 vs MCS0402MD1001BE500 |
MCS04020D1001BE100 Frequently Asked Questions (FAQ)
-
The recommended storage condition for MCS04020D1001BE100 is in a dry, cool place, away from direct sunlight, and in its original packaging or anti-static bag to prevent electrostatic discharge damage.
-
While the MCS04020D1001BE100 is rated for operation up to 150°C, it's essential to consider the derating curves and thermal management to ensure reliable operation in high-temperature environments.
-
Handle the MCS04020D1001BE100 by the body, avoiding touching the leads or electrical contacts to prevent damage from electrostatic discharge or contamination. Use anti-static wrist straps, mats, or other ESD protection methods during assembly.
-
The recommended soldering profile for the MCS04020D1001BE100 is a peak temperature of 260°C for 10-15 seconds, with a ramp-up rate of 3°C/s and a ramp-down rate of 6°C/s. However, it's essential to consult the datasheet and follow the manufacturer's recommended soldering guidelines.
-
While the MCS04020D1001BE100 is designed to be robust, it's crucial to consider the vibration specifications and ensure the component is properly secured to the PCB to prevent mechanical stress and damage.
