MJ802 Information
MJ802 by STMicroelectronics is a Power Bipolar Transistor.
Power Bipolar Transistors are under the broader part category of Transistors.
A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.
Price & Stock for MJ802
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
497-6713-ND
|
DigiKey | TRANS NPN 90V 30A TO-3 Min Qty: 400 Container: Bulk |
0 Bulk |
|
$1.9505 | Buy Now |
US Tariff Estimator: MJ802 by STMicroelectronics
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for MJ802
MJ802 CAD Models
-
Part Symbol
-

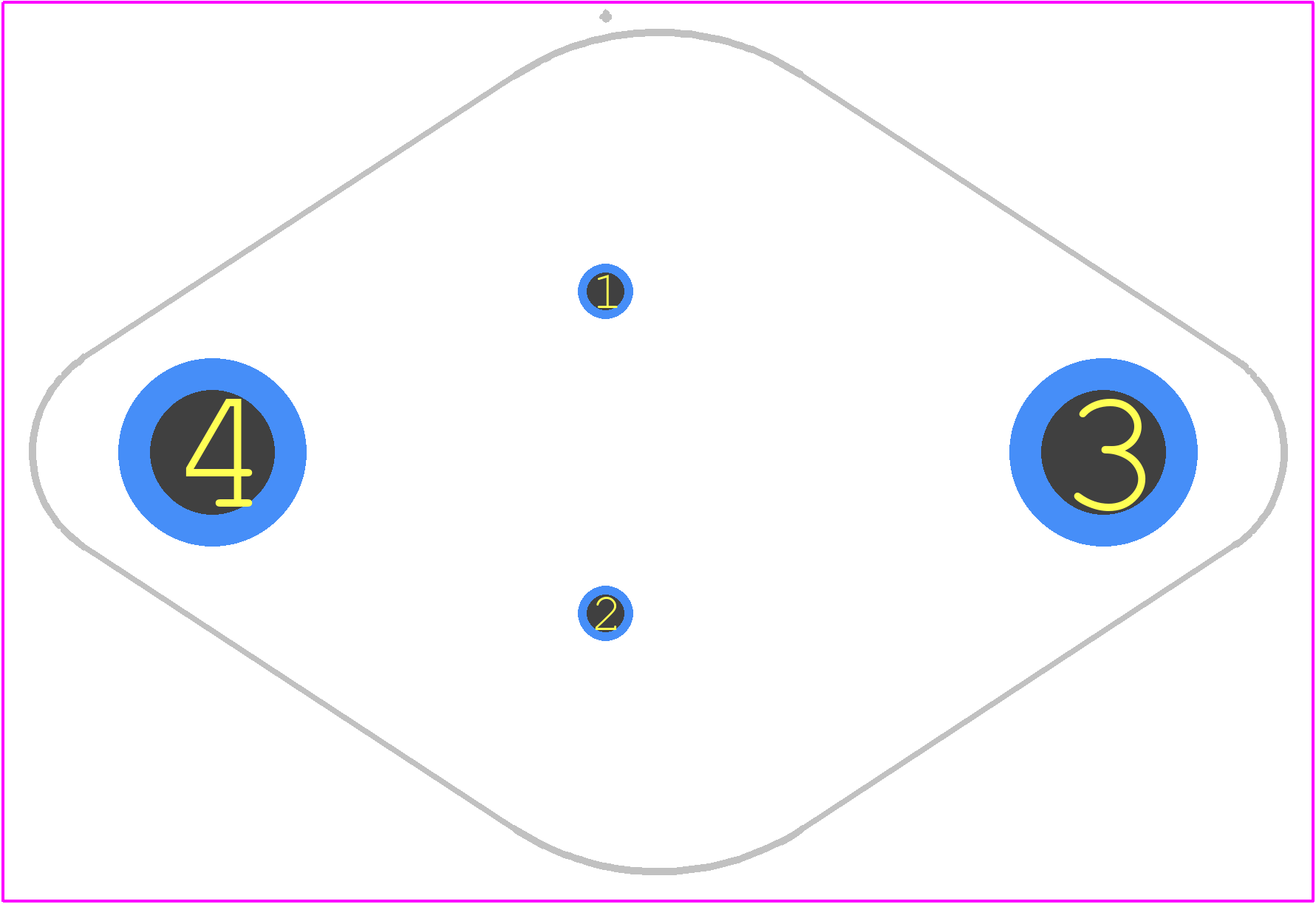

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
MJ802 Part Data Attributes
|
|
MJ802
STMicroelectronics
Buy Now
Datasheet
|
Compare Parts:
MJ802
STMicroelectronics
Power Bipolar Transistor, 30A I(C), 90V V(BR)CEO, 1-Element, NPN, Silicon, TO-3, Metal, 2 Pin
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Part Package Code | TO-204AA | |
| Package Description | Metal Package-2 | |
| Pin Count | 2 | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.29.00.95 | |
| Case Connection | Collector | |
| Collector Current-Max (IC) | 30 A | |
| Collector-Emitter Voltage-Max | 90 V | |
| Configuration | Single | |
| DC Current Gain-Min (hFE) | 25 | |
| JEDEC-95 Code | TO-3 | |
| JESD-30 Code | O-MBFM-P2 | |
| JESD-609 Code | e3 | |
| Number of Elements | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 200 °C | |
| Package Body Material | Metal | |
| Package Shape | Round | |
| Package Style | Flange Mount | |
| Peak Reflow Temperature (Cel) | Not Specified | |
| Polarity/Channel Type | Npn | |
| Power Dissipation Ambient-Max | 200 W | |
| Power Dissipation-Max (Abs) | 200 W | |
| Qualification Status | Not Qualified | |
| Surface Mount | No | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | Pin/Peg | |
| Terminal Position | Bottom | |
| Time@Peak Reflow Temperature-Max (s) | Not Specified | |
| Transistor Application | Switching | |
| Transistor Element Material | Silicon | |
| Transition Frequency-Nom (fT) | 2 Mhz | |
| VCEsat-Max | 0.8 V |
Alternate Parts for MJ802
This table gives cross-reference parts and alternative options found for MJ802. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of MJ802, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| MJ802 | Rochester Electronics LLC | Check for Price | 30A, 90V, NPN, Si, POWER TRANSISTOR, TO-204AA, CASE 1-07, TO-3, 2 PIN | MJ802 vs MJ802 |
MJ802 Frequently Asked Questions (FAQ)
-
The recommended operating voltage range for the MJ802 is 4.5V to 18V, with a typical voltage of 12V.
-
To ensure proper biasing, connect the base of the transistor to a voltage divider network that provides a stable voltage reference, and ensure the collector-emitter voltage is within the recommended range.
-
The maximum collector current rating for the MJ802 is 10A, but it's recommended to derate the current to 5A or less for reliable operation.
-
To prevent overheating, ensure proper heat sinking, use a heat sink with a thermal resistance of 1°C/W or less, and maintain a maximum junction temperature of 150°C.
-
While the MJ802 can be used as a switch, it's not recommended for high-frequency applications due to its relatively slow switching times (tf ≈ 10μs, tr ≈ 20μs). Consider using a faster-switching transistor or a dedicated high-frequency switch.
