MMS-133-01-L-DV by: Samtec Inc

Board Connector, 66 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Solder Terminal, Locking, Black Insulator, Socket, ROHS COMPLIANT

Part Details for MMS-133-01-L-DV by Samtec Inc

Results Overview of MMS-133-01-L-DV by Samtec Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Education and Research Aerospace and Defense Agriculture Technology Robotics and Drones

MMS-133-01-L-DV Information

MMS-133-01-L-DV by Samtec Inc is a Header and Edge Type Connector.
Headers and Edge Type Connectors are under the broader part category of Connectors.

Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.

Price & Stock for MMS-133-01-L-DV

Part # Distributor Description Stock Price Buy
DISTI # 11P5708
Newark Socket, 2.0Mm, Vert, 2X33 Position, Connector Systems:Board-To-Board, Wire-To-Board, Pitch Spacing:2Mm, No. Of Rows:2Rows, No. Of Contacts:66Contacts, Connector Mounting:Through Hole Mount, Product Range:Mms Series, Gender:Receptaclerohs Compliant: Yes |Samtec MMS-133-01-L-DV RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk 0
  • 1 $9.0700
  • 10 $8.4700
  • 25 $7.8200
  • 50 $7.5400
  • 100 $6.8400
$6.8400 / $9.0700 Buy Now
DISTI # SAM1228-33-ND
DigiKey CONN RCPT 66POS 0.079 GOLD PCB Min Qty: 1 Lead time: 2 Weeks Container: Bulk Temporarily Out of Stock
  • 1 $11.8700
  • 10 $10.0900
  • 100 $8.8938
$8.8938 / $11.8700 Buy Now
DISTI # MMS-133-01-L-DV
Avnet Americas PCB Receptacle, Board-to-Board, Wire-to-Board, 2 mm, 2 Rows, 66 Contacts, Through Hole Mount - Rail/Tube (Alt: MMS-133-01-L-DV) COO: Malaysia RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 2 Weeks, 5 Days Container: Tube 0
  • 1 $9.4374
  • 100 $7.5075
  • 500 $6.2049
  • 1,000 $5.0292
  • 2,000 $4.9344
$4.9344 / $9.4374 Buy Now
DISTI # MMS-133-01-L-DV
Avnet Americas PCB Receptacle, Board-to-Board, Wire-to-Board, 2 mm, 2 Rows, 66 Contacts, Through Hole Mount - Rail/Tube (Alt: MMS-133-01-L-DV) COO: Malaysia RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 2 Weeks, 5 Days Container: Tube 0
  • 1 $9.4374
  • 100 $7.5075
  • 500 $6.2049
  • 1,000 $5.0292
  • 2,000 $4.9344
$4.9344 / $9.4374 Buy Now
DISTI # 200-MMS13301LDV
Mouser Electronics Headers & Wire Housings Classic Socket Strips RoHS: Compliant 0
  • 1 $9.6300
  • 24 $9.0000
  • 56 $8.0100
  • 104 $7.2700
  • 504 $6.4100
  • 1,000 $5.1400
$5.1400 / $9.6300 Order Now
Onlinecomponents.com 2.00 mm Tiger Claw™ Socket Strip COO: Malaysia RoHS: Compliant 0
  • 5 $9.8100
  • 25 $8.8900
  • 50 $8.4900
  • 100 $7.7000
  • 250 $7.2700
  • 500 $6.5900
  • 1,000 $5.2800
$5.2800 / $9.8100 Buy Now
DISTI # 5cd8ff23cd7c1c4c385314ee
Samtec Classic Socket Strips, 2.00 mm (.0787") Pitch RoHS: Compliant Min Qty: 1 Lead time: 1 Weeks, 3 Days Container: Tube 0
  • 1 $9.6300
  • 10 $9.0000
  • 25 $8.3100
  • 50 $8.0100
  • 100 $7.2700
  • 500 $6.4100
  • 1,000 $5.1400
  • 2,000 $4.1600
$4.1600 / $9.6300 Buy Now
DISTI # 000000000000711874
Sager Headers & Wire Housings Classic Socket Strips, 2.00 mm (.0787) Pitch Min Qty: 1 0
  • 1 $9.6300
  • 10 $9.0000
  • 25 $8.3100
  • 50 $8.0100
  • 100 $7.2700
  • 500 $6.4100
$6.4100 / $9.6300 Buy Now
Master Electronics 2.00 mm Tiger Claw™ Socket Strip COO: Malaysia RoHS: Compliant 0
  • 5 $9.8100
  • 25 $8.8900
  • 50 $8.4900
  • 100 $7.7000
  • 250 $7.2700
  • 500 $6.5900
  • 1,000 $5.2800
$5.2800 / $9.8100 Buy Now

US Tariff Estimator: MMS-133-01-L-DV by Samtec Inc

Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

MMS-133-01-L-DV
Samtec Inc
Please specify a country of origin.
$
Please specify an import value in USD.
Estimator Results:
Tariff Percentage Tariff Calculation
Import Value
$.
Total Duty
$.
Total Estimate
$.
$.
Based on tariff data from

Part Details for MMS-133-01-L-DV

MMS-133-01-L-DV CAD Models

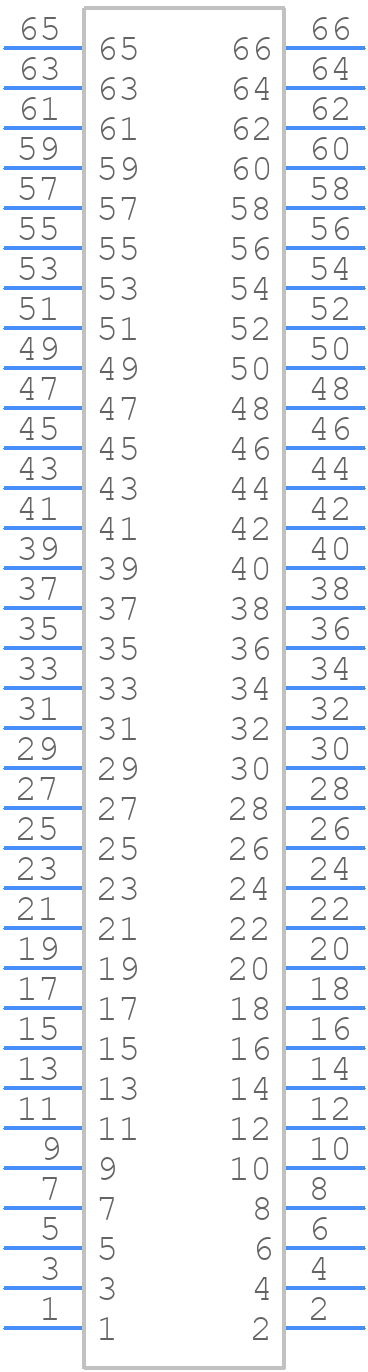

  • Part Symbol

    schematic symbol

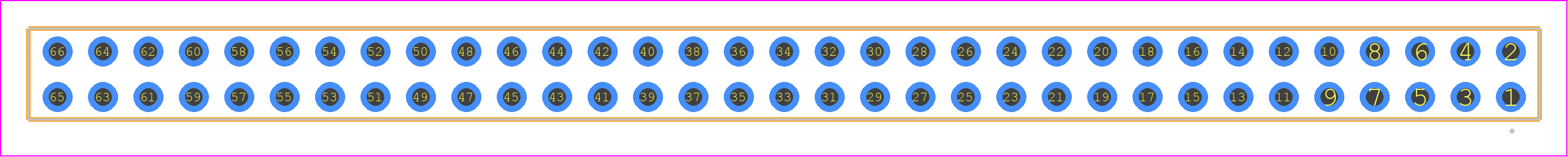

  • Footprint

    pcb footprint

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

MMS-133-01-L-DV Part Data Attributes

Parametric Data
MMS-133-01-L-DV Samtec Inc
Buy Now Datasheet
Compare Parts:
MMS-133-01-L-DV Samtec Inc Board Connector, 66 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Solder Terminal, Locking, Black Insulator, Socket, ROHS COMPLIANT
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Package Description Rohs Compliant
Reach Compliance Code Compliant
ECCN Code EAR99
HTS Code 8536.69.40.40
Factory Lead Time 2 Weeks, 5 Days
Additional Feature Top Entry; Bottom Entry
Body Breadth 0.157 Inch
Body Depth 0.175 Inch
Body Length 2.629 Inch
Body/Shell Style Socket
Connector Type Board Connector
Contact Finish Mating Gold (10) Over Nickel (50)
Contact Finish Termination Matte Tin (Sn) - With Nickel (Ni) Barrier
Contact Gender Female
Contact Material Phosphor Bronze
Contact Pattern Rectangular
Contact Resistance 10 MΩ
Contact Style Sq Pin-Skt
DIN Conformance No
Filter Feature No
IEC Conformance No
Insertion Force-Max 1.0286 N
Insulator Color Black
Insulator Material Liquid Crystal Polymer
JESD-609 Code e3
MIL Conformance No
Mating Contact Pitch 0.079 Inch
Mating Contact Row Spacing 0.079 Inch
Mating Information Multiple Mating Parts Available
Mixed Contacts No
Mounting Option 1 Locking
Mounting Style Straight
Mounting Type Board
Number Of Connectors One
Number Of PCB Rows 2
Number of Rows Loaded 2
Operating Temperature-Max 125 °C
Operating Temperature-Min -55 °C
Option General Purpose
PCB Contact Pattern Rectangular
PCB Contact Row Spacing 2.0066 Mm
Plating Thickness 10u Inch
Polarization Key Polar Pin Position
Rated Current (Signal) 3.9 A
Reference Standard Ul, Csa
Terminal Length 0.115 Inch
Terminal Pitch 2 Mm
Termination Type Solder
Total Number of Contacts 66
Withdrawl Force-Min .6116 N
equivalents icon

MMS-133-01-L-DV Frequently Asked Questions (FAQ)

  • The recommended torque for the screw locks is 1.5-2.5 in-lbs (0.17-0.28 Nm) according to Samtec's application notes.

  • Yes, the MMS-133-01-L-DV connector is designed to withstand high-vibration environments. Samtec recommends following their guidelines for vibration testing and ensuring proper screw torque to ensure reliable connections.

  • The MMS-133-01-L-DV connector has an operating temperature range of -55°C to +125°C, making it suitable for most industrial and commercial applications.

  • Yes, the MMS-133-01-L-DV connector is compatible with lead-free soldering processes and meets the requirements of the RoHS directive.

  • The MMS-133-01-L-DV connector is rated for a minimum of 500 mating cycles, making it suitable for applications where frequent connections and disconnections are required.
