NFE31PT222Z1E9L Information
NFE31PT222Z1E9L by Murata Manufacturing Co Ltd is a Data Line Filter.
Data Line Filters are under the broader part category of Filters.
A filter is an electronic circuit that selectively allows certain frequencies to pass while attenuating others. They are used to extract desired signals and remove noise. Read more about Filters on our Filters part category page.
Price & Stock for NFE31PT222Z1E9L
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
97K6473
|
Newark | Emi Suppression Filter, 6A, Filter Applications:-, Voltage Rating:25V, Current Rating:6A, No. Of Phases:-, No. Of Stages:-, Filter Input Terminals:Smd, Filter Output Terminals:Smd, Product Range:Emifil Nfe31Pt Series, Size:1206 Rohs Compliant: Yes |Murata NFE31PT222Z1E9L RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 25635 |
|
$0.3330 / $0.5840 | Buy Now |
|
DISTI #
490-2547-1-ND
|
DigiKey | FILTER LC(T) 2200PF SMD Min Qty: 1 Lead time: 12 Weeks Container: Tape & Reel (TR), Digi-Reel®, Cut Tape (CT) |
102317 In Stock |
|
$0.2340 / $0.5500 | Buy Now |
|
DISTI #
NFE31PT222Z1E9L
|
Avnet Americas | Power Line Filter, 2200 pF, 50 %, 25 V, 6 A, SMD - Tape and Reel (Alt: NFE31PT222Z1E9L) COO: Japan RoHS: Compliant Min Qty: 2000 Package Multiple: 2000 Lead time: 10 Weeks, 0 Days Container: Tape & Reel | 6000 |
|
$0.2035 / $0.2136 | Buy Now |
|
DISTI #
97K6473
|
Avnet Americas | Power Line Filter, 2200 pF, 50 %, 25 V, 6 A, SMD - Product that comes on tape, but is not reeled (Alt: 97K6473) COO: Japan RoHS: Compliant Min Qty: 1 Package Multiple: 1 Container: Ammo Pack | 2256 Partner Stock |
|
$0.3490 / $0.5810 | Buy Now |
|
DISTI #
81-NFE31PT222Z1E9L
|
Mouser Electronics | Feed Through Capacitors 2200 PF 25V RoHS: Compliant | 103901 |
|
$0.2250 / $0.5200 | Buy Now |
|
DISTI #
E02:0323_01079156
|
Arrow Electronics | EMI Filter LC-Circuit 6A 25VDC Flat Style SMD T/R COO: Japan RoHS: Compliant Min Qty: 2000 Package Multiple: 2000 Lead time: 10 Weeks Date Code: 2545 | Europe - 712000 |
|
$0.2622 / $0.3006 | Buy Now |
|
DISTI #
V36:1790_07284917
|
Arrow Electronics | EMI Filter LC-Circuit 6A 25VDC Flat Style SMD T/R COO: Japan RoHS: Compliant Min Qty: 2000 Package Multiple: 2000 Lead time: 10 Weeks Date Code: 2515 | Americas - 30000 |
|
$0.2244 / $0.2569 | Buy Now |
|
DISTI #
V72:2272_07284917
|
Arrow Electronics | EMI Filter LC-Circuit 6A 25VDC Flat Style SMD T/R COO: Japan RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 10 Weeks Date Code: 2537 Container: Cut Strips | Americas - 218 |
|
$0.2595 | Buy Now |
|
|
Future Electronics | NFE Series 1206 2200 pF 6 A 25 V SMT LC Combined Type EMI Filter RoHS: Compliant pbFree: Yes Min Qty: 2000 Package Multiple: 2000 Lead time: 12 Weeks Container: Reel | 6000Reel |
|
$0.2350 / $0.2450 | Buy Now |
|
|
Future Electronics | NFE Series 1206 2200 pF 6 A 25 V SMT LC Combined Type EMI Filter RoHS: Compliant pbFree: Yes Min Qty: 1 Package Multiple: 1 Lead time: 12 Weeks Container: Cut Tape/Mini-Reel | 1977Cut Tape/Mini-Reel |
|
$0.4550 / $0.7050 | Buy Now |
US Tariff Estimator: NFE31PT222Z1E9L by Murata Manufacturing Co Ltd
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for NFE31PT222Z1E9L
NFE31PT222Z1E9L CAD Models
-

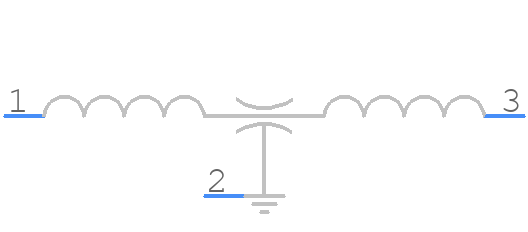

Part Symbol
-
