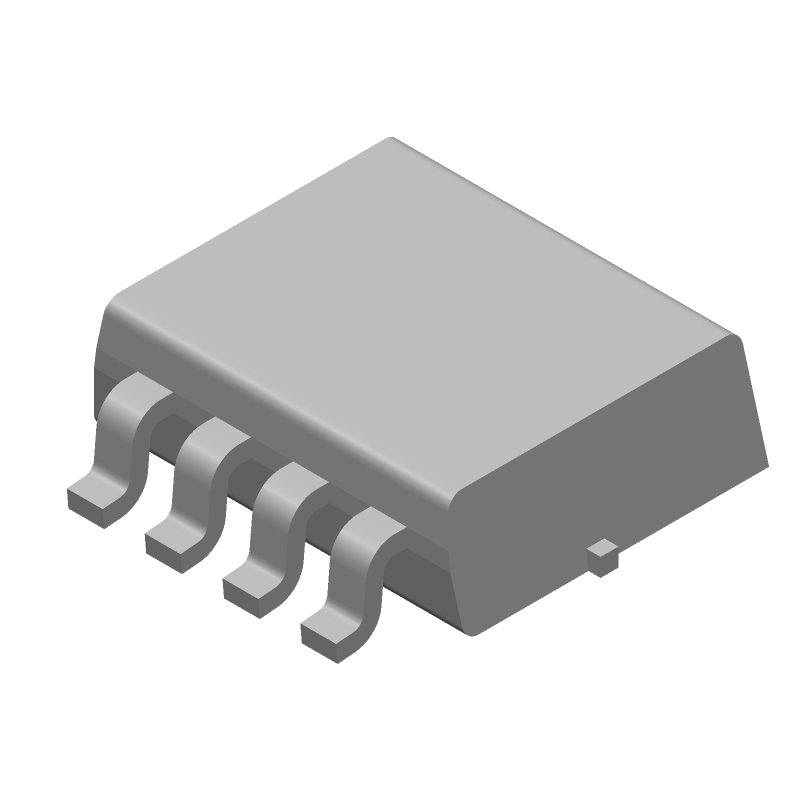

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for NSS1002CLTWG by onsemi
Results Overview of NSS1002CLTWG by onsemi
- Distributor Offerings: (5 listings)
- Number of FFF Equivalents: (0 replacements)
- Tariff Estimator: (Not Available)
- Number of Functional Equivalents: (0 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Industrial Automation
Energy and Power Systems
Renewable Energy
NSS1002CLTWG Information
NSS1002CLTWG by onsemi is a Power Bipolar Transistor.
Power Bipolar Transistors are under the broader part category of Transistors.
A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.
Price & Stock for NSS1002CLTWG
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
488-NSS1002CLTWG-ND
|
DigiKey | TRANS NPN 100V 2.5A 8-LFPAK Min Qty: 1 Lead time: 30 Weeks Container: Bulk |
2990 In Stock |
|
$0.2095 / $1.0000 | Buy Now |
|
DISTI #
NSS1002CLTWG
|
Avnet Americas | Bipolar Transistor 100V, 2.5A Low VCE(sat) NPN Single LFPAK8 3.3x3.3 for automotive. ONSSPCDDENY1E7M, - Tape and Reel (Alt: NSS1002CLTWG) COO: Japan RoHS: Compliant Min Qty: 6000 Package Multiple: 3000 Container: Tape & Reel | 0 |
|
$0.2000 / $0.2286 | Buy Now |
|
DISTI #
863-NSS1002CLTWG
|
Mouser Electronics | Bipolar Transistors - BJT 100V 2.5A NPN LOW SATURATION BJT RoHS: Compliant | 2970 |
|
$0.2490 / $1.0100 | Buy Now |
|
|
Onlinecomponents.com | 100V 2.5A NPN LOW SATURATION BJT COO: Japan | 0 |
|
$0.1931 / $0.2192 | Buy Now |
|
|
Flip Electronics | Stock | 12000 |
|
RFQ |
Part Details for NSS1002CLTWG
NSS1002CLTWG CAD Models
NSS1002CLTWG Part Data Attributes
|
|
NSS1002CLTWG
onsemi
Buy Now
Datasheet
|
Compare Parts:
NSS1002CLTWG
onsemi
Bipolar Transistor 100V, 2.5A Low VCE(sat) NPN Single LFPAK8 3.3x3.3 for automotive, LFPAK8 3.3x3.3, 0.65P, 3000-REEL
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Part Package Code | LFPAK8 3.3x3.3, 0.65P | |
| Manufacturer Package Code | 760AD | |
| Reach Compliance Code | Not Compliant | |
| ECCN Code | EAR99 | |
| Date Of Intro | 2020-03-10 | |
| Case Connection | Collector | |
| Collector Current-Max (IC) | 2.5 A | |
| Collector-Emitter Voltage-Max | 100 V | |
| Configuration | Single | |
| DC Current Gain-Min (hFE) | 140 | |
| JESD-30 Code | R-PDSO-X5 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Number of Elements | 1 | |
| Number of Terminals | 5 | |
| Operating Temperature-Max | 175 °C | |
| Package Body Material | Plastic/Epoxy | |
| Package Shape | Square | |
| Package Style | Small Outline | |
| Polarity/Channel Type | Npn | |
| Power Dissipation-Max (Abs) | 15 W | |
| Surface Mount | Yes | |
| Terminal Finish | Matte Tin (Sn) - Annealed | |
| Terminal Form | Unspecified | |
| Terminal Position | Dual | |
| Transistor Application | Switching | |
| Transistor Element Material | Silicon | |
| Transition Frequency-Nom (fT) | 300 Mhz | |
| VCEsat-Max | 0.14 V |
