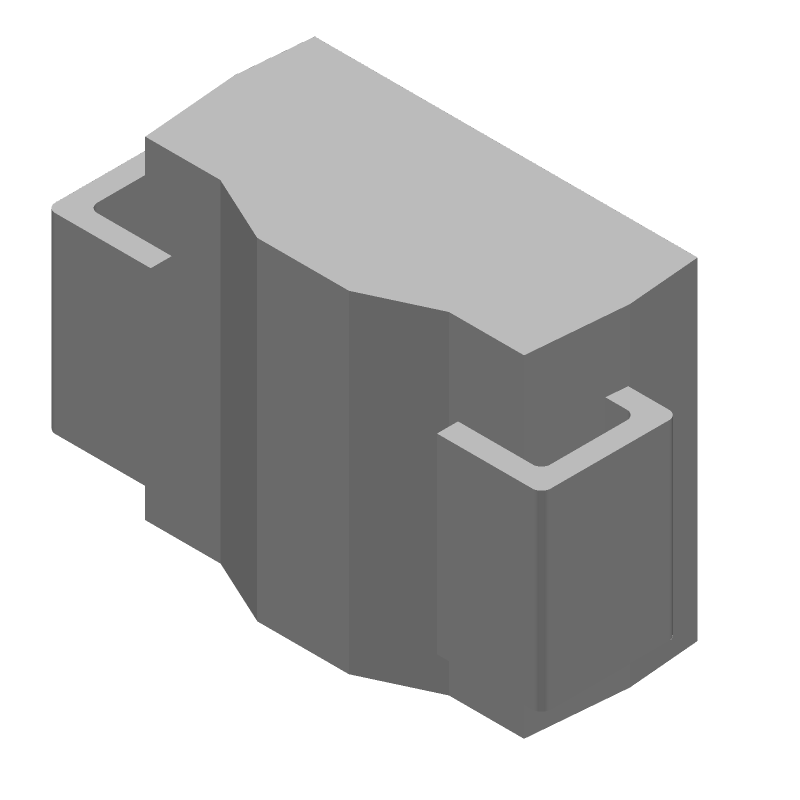

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for P6SMB120CA by Bourns Inc
Overview of P6SMB120CA by Bourns Inc
- Distributor Offerings: (11 listings)
- Number of FFF Equivalents: (10 crosses)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Price & Stock for P6SMB120CA
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
81Y1789
|
Newark | Dio Tvs Vbd 120V 600W Bidir Smb /Tape & Reel - 7" Reel |Bourns P6SMB120CA Min Qty: 12000 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
$0.1140 | Buy Now |
|
DISTI #
P6SMB120CABBCT-ND
|
DigiKey | TVS DIODE 102VWM 165VC DO214AA Min Qty: 1 Lead time: 20 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
30 In Stock |
|
$0.0985 / $0.4600 | Buy Now |
|
DISTI #
P6SMB120CA
|
Avnet Americas | DIO TVS VBD 120V 600W BIDIR SMB - Tape and Reel (Alt: P6SMB120CA) RoHS: Not Compliant Min Qty: 12000 Package Multiple: 3000 Lead time: 16 Weeks, 0 Days Container: Reel | 0 |
|
$0.0742 / $0.1108 | Buy Now |
|
DISTI #
652-P6SMB120CA
|
Mouser Electronics | ESD Suppressors / TVS Diodes 120V 600W BiDir RoHS: Compliant | 2109 |
|
$0.0980 / $0.4100 | Buy Now |
|
DISTI #
V72:2272_14672895
|
Arrow Electronics | TVS Diode Single Bi-Dir 102V 600W 2-Pin SMB T/R Min Qty: 1 Package Multiple: 1 Lead time: 16 Weeks Date Code: 1716 Container: Cut Strips | Americas - 9944 |
|
$0.1163 / $0.1195 | Buy Now |
|
DISTI #
V36:1790_14672895
|
Arrow Electronics | TVS Diode Single Bi-Dir 102V 600W 2-Pin SMB T/R Min Qty: 3000 Package Multiple: 3000 Lead time: 16 Weeks Date Code: 2239 | Americas - 3000 |
|
$0.0911 / $0.1151 | Buy Now |
|
|
Onlinecomponents.com | TVS Diode Single Bi-Dir 102V 600W 2-Pin SMB T/R | 0 |
|
$0.0996 / $0.1241 | Buy Now |
|
DISTI #
25808391
|
Verical | TVS Diode Single Bi-Dir 102V 600W 2-Pin SMB T/R Min Qty: 96 Package Multiple: 1 Date Code: 1716 | Americas - 9944 |
|
$0.1163 / $0.1187 | Buy Now |
|
DISTI #
65668370
|
Verical | TVS Diode Single Bi-Dir 102V 600W 2-Pin SMB T/R Min Qty: 3000 Package Multiple: 3000 Date Code: 2239 | Americas - 3000 |
|
$0.0911 / $0.1151 | Buy Now |
|
DISTI #
P6SMB120CA
|
TTI | ESD Suppressors / TVS Diodes 120V 600W BiDir pbFree: Pb-Free Min Qty: 3000 Package Multiple: 3000 Container: Reel |
Americas - 3000 In Stock |
|
$0.1050 / $0.1150 | Buy Now |
Part Details for P6SMB120CA
P6SMB120CA CAD Models
P6SMB120CA Part Data Attributes:
|
|
P6SMB120CA
Bourns Inc
Buy Now
Datasheet
|
Compare Parts:
P6SMB120CA
Bourns Inc
Trans Voltage Suppressor Diode, 600W, 102V V(RWM), Bidirectional, 1 Element, Silicon, DO-214AA, SMB, 2 PIN
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | BOURNS INC | |
| Package Description | SMB, 2 PIN | |
| Reach Compliance Code | not_compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.50 | |
| Factory Lead Time | 16 Weeks | |
| Samacsys Manufacturer | Bourns | |
| Breakdown Voltage-Max | 126 V | |
| Breakdown Voltage-Min | 114 V | |
| Configuration | SINGLE | |
| Diode Element Material | SILICON | |
| Diode Type | TRANS VOLTAGE SUPPRESSOR DIODE | |
| JEDEC-95 Code | DO-214AA | |
| JESD-30 Code | R-PDSO-C2 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Non-rep Peak Rev Power Dis-Max | 600 W | |
| Number of Elements | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity | BIDIRECTIONAL | |
| Rep Pk Reverse Voltage-Max | 102 V | |
| Surface Mount | YES | |
| Technology | AVALANCHE | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | C BEND | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 |
