PHP02512E75R0BST5 Information
PHP02512E75R0BST5 by Vishay Intertechnologies is a Fixed Resistor.
Fixed Resistors are under the broader part category of Resistors.
Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.
Price & Stock for PHP02512E75R0BST5
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
PHP02512E75R0BST5
|
Avnet Americas | - Tape and Reel (Alt: PHP02512E75R0BST5) COO: United States of America (the) RoHS: Compliant Min Qty: 500 Package Multiple: 500 Lead time: 11 Weeks, 0 Days Container: Tape & Reel | 0 |
|
$1.8038 / $3.1974 | Buy Now |
|
DISTI #
71-PHP02512E75R0BST5
|
Mouser Electronics | Thin Film Resistors - SMD 1watt 75ohms .1% 25ppm RoHS: Compliant | 845 |
|
$2.9800 / $5.4100 | Buy Now |
|
DISTI #
PHP02512E75R0BST5
|
TTI | Thin Film Resistors - SMD 1watt 75ohms .1% 25ppm RoHS: Compliant pbFree: Pb-Free Min Qty: 500 Package Multiple: 500 Container: Reel | Americas - 0 |
|
$2.9800 / $3.1200 | Buy Now |
|
DISTI #
PHP02512E75R0BST5
|
Avnet Asia | (Alt: PHP02512E75R0BST5) RoHS: Compliant Min Qty: 500 Package Multiple: 500 Lead time: 13 Weeks, 0 Days | 0 |
|
RFQ |
US Tariff Estimator: PHP02512E75R0BST5 by Vishay Intertechnologies
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for PHP02512E75R0BST5
PHP02512E75R0BST5 CAD Models
-
Part Symbol
-

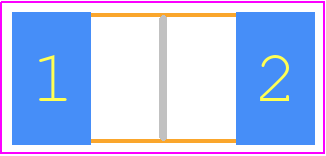

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
PHP02512E75R0BST5 Part Data Attributes
|
|
PHP02512E75R0BST5
Vishay Intertechnologies
Buy Now
Datasheet
|
Compare Parts:
PHP02512E75R0BST5
Vishay Intertechnologies
Fixed Resistor, Thin Film, 2.5W, 75ohm, 200V, 0.1% +/-Tol, 25ppm/Cel, Surface Mount, 2512
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Package Description | Chip | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8533.21.00.30 | |
| Factory Lead Time | 16 Weeks | |
| Additional Feature | Flame Proof | |
| Construction | Rectangular | |
| Mounting Feature | Surface Mount | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 155 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Height | 0.38 Mm | |
| Package Length | 6.58 Mm | |
| Package Shape | Rectangular Package | |
| Package Style | Smt | |
| Package Width | 3.15 Mm | |
| Packing Method | Tr | |
| Rated Power Dissipation (P) | 2.5 W | |
| Rated Temperature | 70 °C | |
| Resistance | 75 Ω | |
| Resistor Type | Fixed Resistor | |
| Size Code | 2512 | |
| Surface Mount | Yes | |
| Technology | Thin Film | |
| Temperature Coefficient | 25 Ppm/°C | |
| Terminal Finish | Tin Silver Copper Over Nickel | |
| Terminal Shape | Wraparound | |
| Tolerance | 0.1% | |
| Working Voltage | 200 V |
Alternate Parts for PHP02512E75R0BST5
This table gives cross-reference parts and alternative options found for PHP02512E75R0BST5. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of PHP02512E75R0BST5, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| PHP02512E75R0BST3 | Vishay Intertechnologies | $3.1277 | Fixed Resistor, Thin Film, 2.5W, 75ohm, 200V, 0.1% +/-Tol, 25ppm/Cel, Surface Mount, 2512 | PHP02512E75R0BST5 vs PHP02512E75R0BST3 |
PHP02512E75R0BST5 Frequently Asked Questions (FAQ)
-
The recommended land pattern for PHP02512E75R0BST5 is available in the Vishay Intertechnologies' website under the 'Packaging' section or can be found in the IPC-7351 standard.
-
While the datasheet specifies an operating temperature range of -55°C to 150°C, it's recommended to derate the power rating above 125°C. Consult Vishay's application notes for high-temperature operation guidelines.
-
Follow standard ESD handling procedures, such as using an ESD wrist strap, mat, or workstation, and ensure that all equipment and tools are properly grounded. Store the components in their original packaging or use ESD-safe containers.
-
Vishay recommends a soldering profile with a peak temperature of 260°C (500°F) for a maximum of 10 seconds. Consult the datasheet or Vishay's application notes for more detailed soldering guidelines.
-
While the component is designed to operate in a humid environment, it's recommended to follow the IPC-J-STD-020 standard for moisture sensitivity level (MSL) ratings and handling procedures to prevent moisture-related failures.
