PIC16C717/P by: Microchip Technology Inc

MCU 18LD WITH A/D 20MHz

Part Details for PIC16C717/P by Microchip Technology Inc

Results Overview of PIC16C717/P by Microchip Technology Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Industrial Automation Healthcare Renewable Energy Robotics and Drones

PIC16C717/P Information

PIC16C717/P by Microchip Technology Inc is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.

Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.

Price & Stock for PIC16C717/P

Part # Distributor Description Stock Price Buy
DISTI # 84AC2346
Newark Pdip 3.5 Kb Otp, 256 Ram, 16 I/O Rohs Compliant: Yes |Microchip PIC16C717/P RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk 20
  • 1 $3.2200
  • 2 $3.1900
  • 4 $3.1500
  • 8 $3.1000
  • 16 $3.0600
$3.0600 / $3.2200 Buy Now
DISTI # 31C8008
Newark Mcu, 8Bit, Pic16, 20Mhz, Dip-18, Product Range:Pic16 Family Pic16C7Xx Series Microcontrollers, Device Core:Pic16, Operating Frequency Max:20Mhz, Program Memory Size:3.5Kb, No. Of Pins:18Pins, Ic Case/Package:Dip, Qualification:- Rohs Compliant: Yes |Microchip PIC16C717/P RoHS: Compliant Min Qty: 200 Package Multiple: 1 Date Code: 0 Container: Bulk 0
  • 100 $3.0600
$3.0600 Buy Now
DISTI # PIC16C717/P-ND
DigiKey IC MCU 8BIT 3.5KB OTP 18DIP Min Qty: 1 Lead time: 6 Weeks Container: Tube 854
In Stock
  • 1 $3.4400
$3.4400 Buy Now
DISTI # PIC16C717/P
Avnet Americas MCU 8-bit PIC16 PIC RISC 3.5KB EPROM 5V 18-Pin PDIP Tube - Rail/Tube (Alt: PIC16C717/P) COO: Thailand RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 6 Weeks, 0 Days Container: Tube 20
  • 1 $3.2175
  • 2 $3.1900
  • 4 $3.1446
  • 8 $3.0993
  • 16 $3.0539
$3.0539 / $3.2175 Buy Now
DISTI # 579-PIC16C717/P
Mouser Electronics 8-bit Microcontrollers - MCU 3.5KB 256 RAM 16 I/O RoHS: Compliant 47
  • 1 $3.4400
$3.4400 Buy Now
DISTI # PIC16C717/P
Microchip Technology Inc MCU 18LD WITH A/D 20MHz, PDIP, Projected EOL: 2034-01-01 COO: Thailand ECCN: EAR99 RoHS: Compliant Lead time: 6 Weeks, 0 Days Container: Tube In Stock: 640 and Alternates Available
  • 1 $3.0100
  • 25 $2.9000
  • 100 $2.8000
  • 1,000 $2.6600
  • 5,000 $2.5400
$2.5400 / $3.0100 Buy Now
DISTI # 70413717
RS PIC16C717/P,8BIT PIC MICROCONTROLLER,20MHZ,2KX14 WORDS EPROM,18-PIN PDIP Min Qty: 200 Package Multiple: 1 Lead time: 41 Weeks, 0 Days Container: Bulk 0
  • 200 $4.1400
$4.1400 RFQ
Future Electronics PIC16C Series 3.5 KB Flash 256 B RAM Through Hole 8-Bit Microcontroller -PDIP-18 RoHS: Compliant pbFree: Yes Min Qty: 250 Package Multiple: 25 Lead time: 6 Weeks Container: Tube 0
Tube
  • 25 $3.4000
  • 50 $3.3600
  • 75 $3.3400
  • 100 $3.3200
  • 125 $3.2700
$3.2700 / $3.4000 Buy Now
Onlinecomponents.com MCU 8-bit PIC RISC 3.5KB EPROM 5V 18-Pin PDIP Tube COO: Thailand RoHS: Compliant 0
  • 50 $5.5000
  • 100 $4.1200
  • 150 $3.8500
  • 200 $3.7700
$3.7700 / $5.5000 Buy Now
NAC 3.5 KB OTP, 256 RAM, 16 I/O. Package: 18 PDIP .300in TUBE - ALL MID-RANGE OTP & ROM DVCS Product Line RoHS: Compliant Min Qty: 1 Package Multiple: 1 Container: Tube 575
  • 1 $4.0400
  • 100 $3.6700
  • 500 $3.4400
  • 1,000 $3.3500
$3.3500 / $4.0400 Buy Now
DISTI # PIC16C717/P
Avnet Silica MCU 8bit PIC16 PIC RISC 35KB EPROM 5V 18Pin PDIP Tube (Alt: PIC16C717/P) RoHS: Compliant Min Qty: 200 Package Multiple: 25 Lead time: 8 Weeks, 0 Days Silica - 0
Buy Now
Chip Stock ICMCU8BIT3.5KBOTP18DIPPICPIC®16CMicrocontrollerIC8-Bit20MHz3.5KB(2Kx14)OTP18-PDIP 136
RFQ
DISTI # PIC16C717/P
EBV Elektronik MCU 8bit PIC16 PIC RISC 35KB EPROM 5V 18Pin PDIP Tube (Alt: PIC16C717/P) RoHS: Compliant Min Qty: 200 Package Multiple: 25 Lead time: 7 Weeks, 0 Days EBV - 0
Buy Now
Master Electronics MCU 8-bit PIC RISC 3.5KB EPROM 5V 18-Pin PDIP Tube COO: Thailand RoHS: Compliant 0
  • 50 $5.5000
  • 100 $4.1200
  • 150 $3.8500
  • 200 $3.7700
$3.7700 / $5.5000 Buy Now

US Tariff Estimator: PIC16C717/P by Microchip Technology Inc

Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

PIC16C717/P
Microchip Technology Inc
Please specify a country of origin.
$
Please specify an import value in USD.
Estimator Results:
Tariff Percentage Tariff Calculation
Import Value
$.
Total Duty
$.
Total Estimate
$.
$.
Based on tariff data from

Part Details for PIC16C717/P

PIC16C717/P CAD Models

  • Part Symbol

    schematic symbol

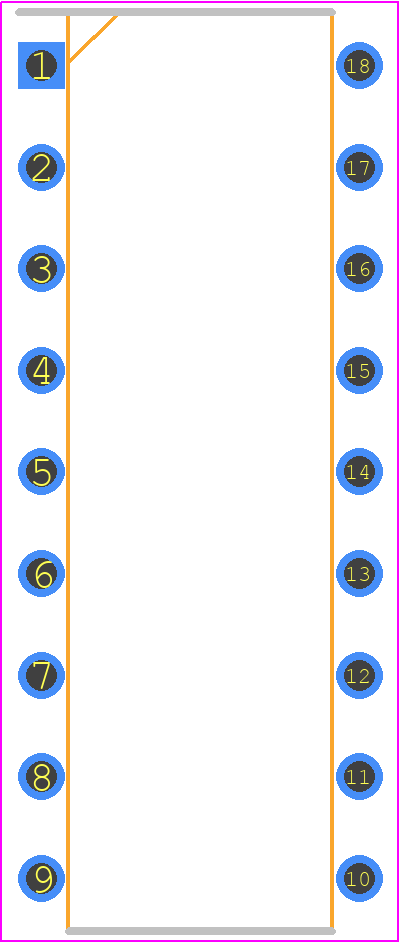

  • Footprint

    pcb footprint

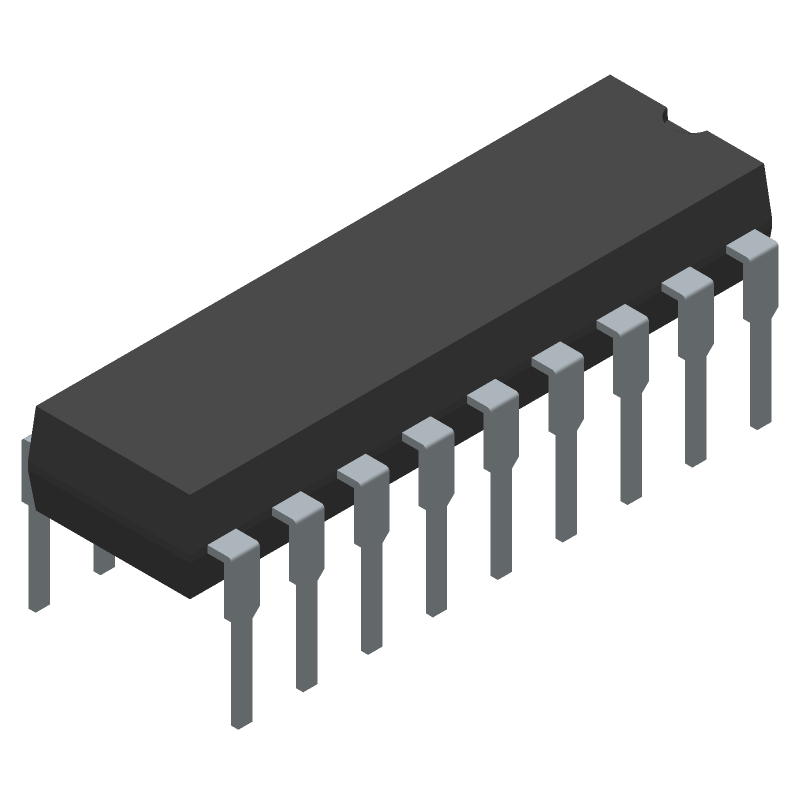

  • 3D Model

    2d presentation

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

PIC16C717/P Part Data Attributes

Parametric Data
PIC16C717/P Microchip Technology Inc
Buy Now Datasheet
Compare Parts:
PIC16C717/P Microchip Technology Inc MCU 18LD WITH A/D 20MHz
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Part Package Code DIP
Package Description Dip, Dip18,.3
Pin Count 18
Manufacturer Package Code PDIP-18
Reach Compliance Code Compliant
ECCN Code EAR99
HTS Code 8542.31.00.01
Factory Lead Time 6 Weeks
Date Of Intro 1999-06-07
Has ADC Yes
Address Bus Width
Bit Size 8
Boundary Scan No
CPU Family Pic16
Clock Frequency-Max 20 Mhz
DAC Channels No
DMA Channels No
External Data Bus Width
Format Fixed Point
Integrated Cache Yes
JESD-30 Code R-PDIP-T18
JESD-609 Code e3
Length 22.86 Mm
Low Power Mode Yes
Number of External Interrupts 1
Number of I/O Lines 16
Number of Terminals 18
Number of Timers 5
On Chip Data RAM Width 8
On Chip Program ROM Width 14
Operating Temperature-Max 70 °C
Operating Temperature-Min
PWM Channels Yes
Package Body Material Plastic/Epoxy
Package Code DIP
Package Equivalence Code DIP18,.3
Package Shape Rectangular
Package Style In-Line
Qualification Status Not Qualified
RAM (bytes) 256
ROM (words) 2048
ROM Programmability Otprom
Screening Level Ts 16949
Seated Height-Max 4.32 Mm
Speed 20 Mhz
Supply Current-Max 12 Ma
Supply Voltage-Max 5.5 V
Supply Voltage-Min 4 V
Supply Voltage-Nom 5 V
Surface Mount No
Technology Cmos
Temperature Grade Commercial
Terminal Finish Matte Tin (Sn)
Terminal Form Through-Hole
Terminal Pitch 2.54 Mm
Terminal Position Dual
Width 7.62 Mm
uPs/uCs/Peripheral ICs Type Microcontroller, Risc
