PIC16F18323-E/JQ by: Microchip Technology Inc

3.5KB Flash, 256 EEPROM, 256B RAM, 6 I/O, 10-bit PWMs, CCP, CWG, CLC, 1.8V-5.5V

Part Details for PIC16F18323-E/JQ by Microchip Technology Inc

Results Overview of PIC16F18323-E/JQ by Microchip Technology Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Internet of Things (IoT) Environmental Monitoring Financial Technology (Fintech) Smart Cities Transportation and Logistics Agriculture Technology Telecommunications Virtual Reality (VR), Augmented Reality (AR), and Vision Systems Automotive Consumer Electronics Education and Research Security and Surveillance Audio and Video Systems Computing and Data Storage Healthcare Renewable Energy Entertainment and Gaming Robotics and Drones

PIC16F18323-E/JQ Information

PIC16F18323-E/JQ by Microchip Technology Inc is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.

Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.

Price & Stock for PIC16F18323-E/JQ

Part # Distributor Description Stock Price Buy
DISTI # 52Y7530
Newark Mcu, 8Bit, 32Mhz, Uqfn-Ep-16, Product Range:Pic16 Family Pic16F183Xx Series Microcontrollers, Device Core:Pic16, Operating Frequency Max:32Mhz, Program Memory Size:3.5Kb, No. Of Pins:16Pins, Ic Case/Package:Uqfn-Ep, Qualification:-Rohs Compliant: Yes |Microchip PIC16F18323-E/JQ RoHS: Compliant Min Qty: 728 Package Multiple: 1 Date Code: 0 Container: Bulk 0
  • 100 $1.0200
$1.0200 Buy Now
DISTI # PIC16F18323-E/JQ-ND
DigiKey IC MCU 8BIT 3.5KB FLASH 16UQFN Min Qty: 1 Lead time: 8 Weeks Container: Tube 728
In Stock
  • 1 $1.1600
  • 25 $1.0500
  • 100 $0.9600
$0.9600 / $1.1600 Buy Now
DISTI # PIC16F18323-E/JQ
Avnet Americas - Rail/Tube (Alt: PIC16F18323-E/JQ) COO: Thailand RoHS: Compliant Min Qty: 637 Package Multiple: 91 Lead time: 8 Weeks, 0 Days Container: Tube 0
  • 637 $1.1571
  • 1,274 $1.0946
  • 2,548 $1.0658
  • 5,096 $1.0385
  • 10,192 $1.0125
$1.0125 / $1.1571 Buy Now
DISTI # 579-PIC16F18323-E/JQ
Mouser Electronics 8-bit Microcontrollers - MCU 8BIT MCU 3.5KB Flash 256 RAM, 256 EEPROM RoHS: Compliant 7833
  • 1 $1.1600
  • 25 $1.0500
  • 91 $0.9600
$0.9600 / $1.1600 Buy Now
DISTI # PIC16F18323-E/JQ
Microchip Technology Inc 3.5KB Flash, 256 EEPROM, 256B RAM, 6 I/O, 10-bit PWMs, CCP, CWG, CLC, 1.8V-5.5V, UQFN, Projected EOL: 2039-07-21 COO: Thailand ECCN: 3A991.a.2 RoHS: Compliant Lead time: 8 Weeks, 0 Days Container: Tube In Stock: 1480 and Alternates Available
  • 1 $1.1600
  • 25 $1.0500
  • 100 $0.9600
  • 1,000 $0.8800
  • 5,000 $0.8400
$0.8400 / $1.1600 Buy Now
Onlinecomponents.com Microcontroller - PIC XLP 16F - 8-Bit - 32MHz - 12 I/O - 3.5KB (2K x 14) FLASH - 256 x 8 EEPROM - 256 x 8 RAM - 2.3 to 5.5V - 16-UQFN (4x4). COO: Thailand RoHS: Compliant 1480 Factory Stock
  • 182 $1.4800
  • 364 $1.1100
  • 546 $1.0400
  • 728 $1.0200
$1.0200 / $1.4800 Buy Now
Quest Components   2637
  • 1 $2.5200
  • 734 $0.7875
  • 1,271 $0.6930
$0.6930 / $2.5200 Buy Now
DISTI # PIC16F18323-E/JQ
TME IC: PIC microcontroller, 3.5kB, 32MHz, 2.3÷5.5VDC, SMD, UQFN16 Min Qty: 1 0
  • 1 $1.1700
  • 5 $1.1100
  • 25 $1.0500
$1.0500 / $1.1700 RFQ
DISTI # PIC16F18323-E/JQ
IBS Electronics PIC16F18323-E/JQ by Microchip is a 8-bit microcontroller with 7KB Flash, 256B RAM, 256B EEPROM, 32MHz internal oscillator, 18 I/O pins, and operates from 1.8V to 5.5V, ideal for low-power applications. Min Qty: 1 Package Multiple: 1 0
  • 1 $1.4000
  • 1,274 $1.3790
  • 1,911 $1.3720
  • 2,548 $1.3580
  • 3,185 $1.3370
$1.3370 / $1.4000 Buy Now
NAC 3.5KB, 256 RAM, 256 EEPROM, 10b ADC, Comparator, 5b DAC, 10b PWM, CCP, CLC, NCO, CWG, PPS, EUSART, SPI, I2C. Package: 16 UQFN 4x4x0.5mm TUBE - LOW PINCONT FLASH EMR DEVICES Product Line RoHS: Compliant Min Qty: 1 Package Multiple: 1 Container: Tube 1183
  • 1 $1.2500
  • 100 $1.1300
  • 500 $1.0400
  • 1,000 $1.0100
$1.0100 / $1.2500 Buy Now
DISTI # PIC16F18323-E/JQ
Avnet Silica (Alt: PIC16F18323-E/JQ) RoHS: Compliant Min Qty: 637 Package Multiple: 91 Lead time: 9 Weeks, 0 Days Silica - 0
Buy Now
DISTI # PIC16F18323-E/JQ
EBV Elektronik (Alt: PIC16F18323-E/JQ) RoHS: Compliant Min Qty: 637 Package Multiple: 91 Lead time: 8 Weeks, 0 Days EBV - 0
Buy Now
Master Electronics Microcontroller - PIC XLP 16F - 8-Bit - 32MHz - 12 I/O - 3.5KB (2K x 14) FLASH - 256 x 8 EEPROM - 256 x 8 RAM - 2.3 to 5.5V - 16-UQFN (4x4). COO: Thailand RoHS: Compliant 1480 Factory Stock
  • 182 $1.4800
  • 364 $1.1100
  • 546 $1.0400
  • 728 $1.0200
$1.0200 / $1.4800 Buy Now

US Tariff Estimator: PIC16F18323-E/JQ by Microchip Technology Inc

Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

PIC16F18323-E/JQ
Microchip Technology Inc
Please specify a country of origin.
$
Please specify an import value in USD.
Estimator Results:
Tariff Percentage Tariff Calculation
Import Value
$.
Total Duty
$.
Total Estimate
$.
$.
Based on tariff data from

Part Details for PIC16F18323-E/JQ

PIC16F18323-E/JQ CAD Models

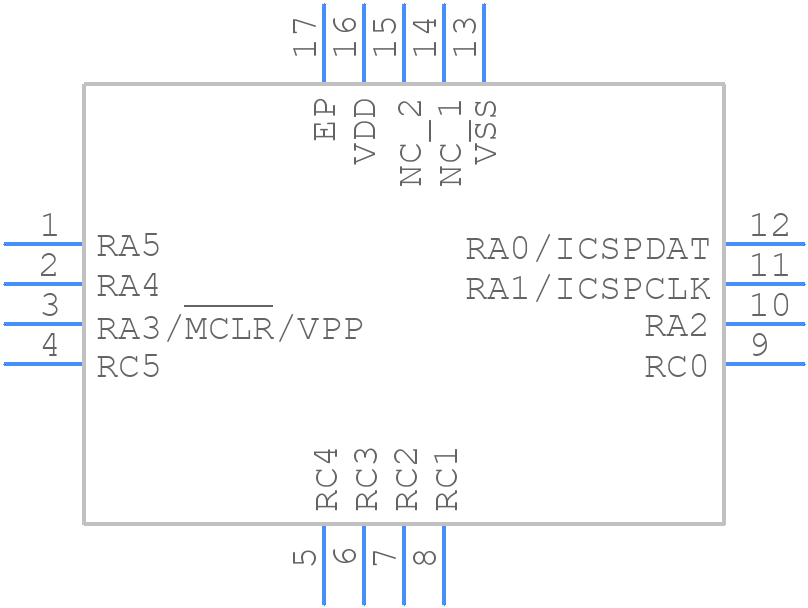

  • Part Symbol

    schematic symbol

  • Footprint

    pcb footprint

  • 3D Model

    2d presentation

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

PIC16F18323-E/JQ Part Data Attributes

Parametric Data
PIC16F18323-E/JQ Microchip Technology Inc
Buy Now Datasheet
Compare Parts:
PIC16F18323-E/JQ Microchip Technology Inc 3.5KB Flash, 256 EEPROM, 256B RAM, 6 I/O, 10-bit PWMs, CCP, CWG, CLC, 1.8V-5.5V
Rohs Code Yes
Part Life Cycle Code Active
Package Description Uqfn-16
Pin Count 16
Manufacturer Package Code UQFN-16
Reach Compliance Code Compliant
ECCN Code EAR99
HTS Code 8542.31.00.01
Factory Lead Time 8 Weeks
Has ADC Yes
Additional Feature 2.3 V Minimum Supply At 16 Mhz
Address Bus Width
Bit Size 8
Boundary Scan No
CPU Family Pic16
Clock Frequency-Max 32 Mhz
DAC Channels Yes
DMA Channels No
External Data Bus Width
Format Fixed Point
Integrated Cache No
JESD-30 Code S-PQCC-N16
JESD-609 Code e3
Length 4 Mm
Low Power Mode Yes
Number of DMA Channels
Number of External Interrupts 1
Number of I/O Lines 12
Number of Serial I/Os 1
Number of Terminals 16
Number of Timers 3
On Chip Data RAM Width 8
On Chip Program ROM Width 8
Operating Temperature-Max 125 °C
Operating Temperature-Min -40 °C
PWM Channels Yes
Package Body Material Plastic/Epoxy
Package Code HVQCCN
Package Equivalence Code LCC16,.16SQ,25
Package Shape Square
Package Style Chip Carrier, Heat Sink/Slug, Very Thin Profile
RAM (bytes) 256
RAM (words) 256
ROM (words) 3584
ROM Programmability Flash
Seated Height-Max 0.55 Mm
Speed 32 Mhz
Supply Current-Max 2.6 Ma
Supply Voltage-Max 5.5 V
Supply Voltage-Min 2.5 V
Supply Voltage-Nom 3.3 V
Surface Mount Yes
Technology Cmos
Temperature Grade Automotive
Terminal Finish Matte Tin (Sn)
Terminal Form No Lead
Terminal Pitch 0.65 Mm
Terminal Position Quad
Width 4 Mm
uPs/uCs/Peripheral ICs Type Microcontroller, Risc
