PIC16F57-E/SP by:
Microchip Technology Inc

28 pin PIC w/2K words of Program Memory & 72 bytes of SRAM

Part Details for PIC16F57-E/SP by Microchip Technology Inc

Results Overview of PIC16F57-E/SP by Microchip Technology Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Internet of Things (IoT) Environmental Monitoring Financial Technology (Fintech) Smart Cities Transportation and Logistics Agriculture Technology Telecommunications Virtual Reality (VR), Augmented Reality (AR), and Vision Systems Automotive Consumer Electronics Education and Research Security and Surveillance Audio and Video Systems Computing and Data Storage Healthcare Renewable Energy Entertainment and Gaming Robotics and Drones

PIC16F57-E/SP Information

PIC16F57-E/SP by Microchip Technology Inc is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.

Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.

Price & Stock for PIC16F57-E/SP

Part # Distributor Description Stock Price Buy
DISTI # 89H0468
Newark Ic, microcontroller,8-Bit, pic Cpu, cmos, dip,28Pin, plastic Rohs Compliant: Yes |Microchip PIC16F57-E/SP RoHS: Compliant Min Qty: 555 Package Multiple: 1 Date Code: 0 Container: Bulk 0
  • 100 $1.2400
$1.2400 Buy Now
DISTI # PIC16F57-E/SP-ND
DigiKey IC MCU 8BIT 3KB FLASH 28SPDIP Min Qty: 555 Lead time: 6 Weeks Container: Tube Temporarily Out of Stock
  • 555 $1.2000
$1.2000 Buy Now
DISTI # PIC16F57-E/SP
Avnet Americas MCU 8-bit PIC16 PIC RISC 3KB Flash 2.5V/3.3V/5V 28-Pin SPDIP Tube - Rail/Tube (Alt: PIC16F57-E/SP) COO: China RoHS: Compliant Min Qty: 450 Package Multiple: 15 Lead time: 6 Weeks, 0 Days Container: Tube 0
  • 450 $1.6000
  • 480 $1.5135
  • 930 $1.4737
  • 2,250 $1.4359
  • 4,500 $1.4000
$1.4000 / $1.6000 Buy Now
DISTI # 579-PIC16F57-E/SP
Mouser Electronics 8-bit Microcontrollers - MCU 3KB 72 RAM 20 I/O RoHS: Compliant 2327
  • 1 $1.2700
  • 30 $1.2400
  • 105 $1.2000
$1.2000 / $1.2700 Buy Now
DISTI # PIC16F57-E/SP
Microchip Technology Inc 28 pin PIC w/2K words of Program Memory & 72 bytes of SRAM, SPDIP, Projected EOL: 2034-04-28 COO: Thailand ECCN: EAR99 RoHS: Compliant Lead time: 6 Weeks, 0 Days Container: Tube In Stock: 7745 and Alternates Available
  • 1 $1.2700
  • 25 $1.2400
  • 100 $1.2000
  • 1,000 $1.0800
  • 5,000 $1.0400
$1.0400 / $1.2700 Buy Now
DISTI # 70573913
RS IC MCU 8BIT 3KB FLASH 28SDIP Min Qty: 555 Package Multiple: 1 Lead time: 52 Weeks, 0 Days Container: Bulk 0
  • 555 $1.3800
$1.3800 RFQ
Onlinecomponents.com Microcontroller - PIC 16F - 8-Bit - 20MHz - 20 I/O - 3KB (2K x 12) FLASH - 72 x 8 RAM - 2 to 5.5V - 28-SPDIP. COO: Thailand RoHS: Compliant 7745 Factory Stock
  • 139 $1.8400
  • 278 $1.3800
  • 417 $1.2900
  • 555 $1.2600
$1.2600 / $1.8400 Buy Now
DISTI # PIC16F57-E/SP
TME IC: PIC microcontroller, 3.5kB, 20MHz, GPIO,ICSP, 2÷5.5VDC, THT Min Qty: 1 0
  • 1 $1.4700
  • 5 $1.4400
  • 10 $1.4000
  • 30 $1.3700
  • 60 $1.3400
  • 105 $1.3100
  • 240 $1.2900
$1.2900 / $1.4700 RFQ
NAC 3 KB Flash, 72 RAM, 20 I/O. Package: 28 SPDIP .300in TUBE - BASELINE FLASH Product Line RoHS: Compliant Min Qty: 1 Package Multiple: 1 Container: Tube 6195
  • 1 $1.7200
  • 100 $1.5600
  • 500 $1.4400
  • 1,000 $1.4000
$1.4000 / $1.7200 Buy Now
DISTI # PIC16F57-E/SP
Avnet Silica MCU 8bit PIC16 PIC RISC 3KB Flash 25V33V5V 28Pin SPDIP Tube (Alt: PIC16F57-E/SP) RoHS: Compliant Min Qty: 450 Package Multiple: 15 Lead time: 8 Weeks, 0 Days Silica - 0
Buy Now
Master Electronics Microcontroller - PIC 16F - 8-Bit - 20MHz - 20 I/O - 3KB (2K x 12) FLASH - 72 x 8 RAM - 2 to 5.5V - 28-SPDIP. COO: Thailand RoHS: Compliant 7745 Factory Stock
  • 139 $1.8400
  • 278 $1.3800
  • 417 $1.2900
  • 555 $1.2600
$1.2600 / $1.8400 Buy Now

US Tariff Estimator: PIC16F57-E/SP by Microchip Technology Inc

Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

PIC16F57-E/SP
Microchip Technology Inc
Please specify a country of origin.
$
Please specify an import value in USD.
Estimator Results:
Tariff Percentage Tariff Calculation
Import Value
$.
Total Duty
$.
Total Estimate
$.
$.
Based on tariff data from

Part Details for PIC16F57-E/SP

PIC16F57-E/SP CAD Models

  • Part Symbol

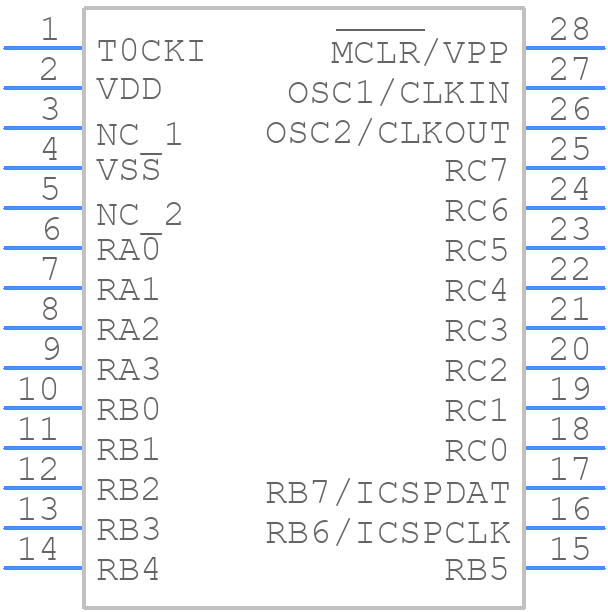

    schematic symbol

  • Footprint

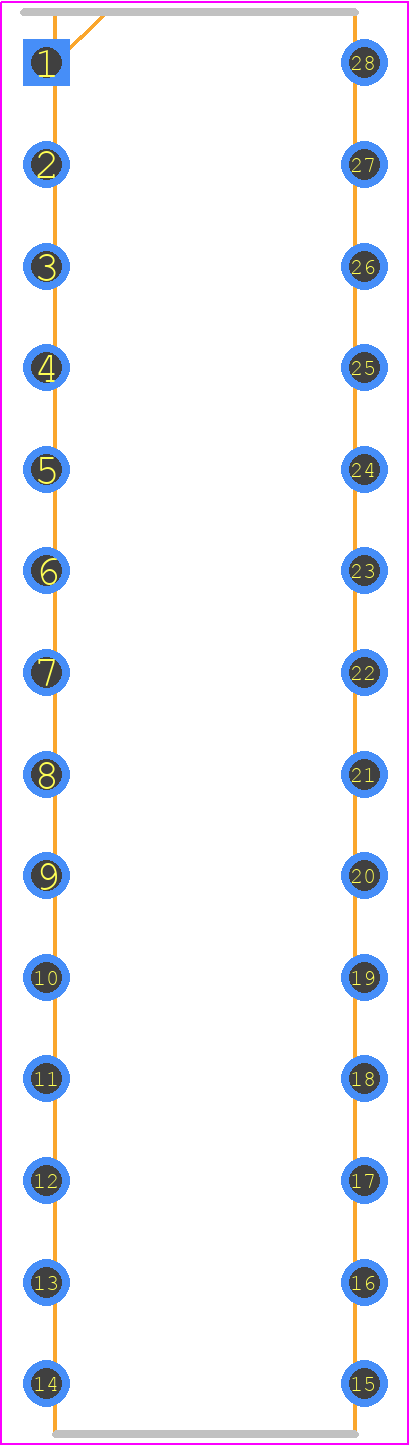

    pcb footprint

  • 3D Model

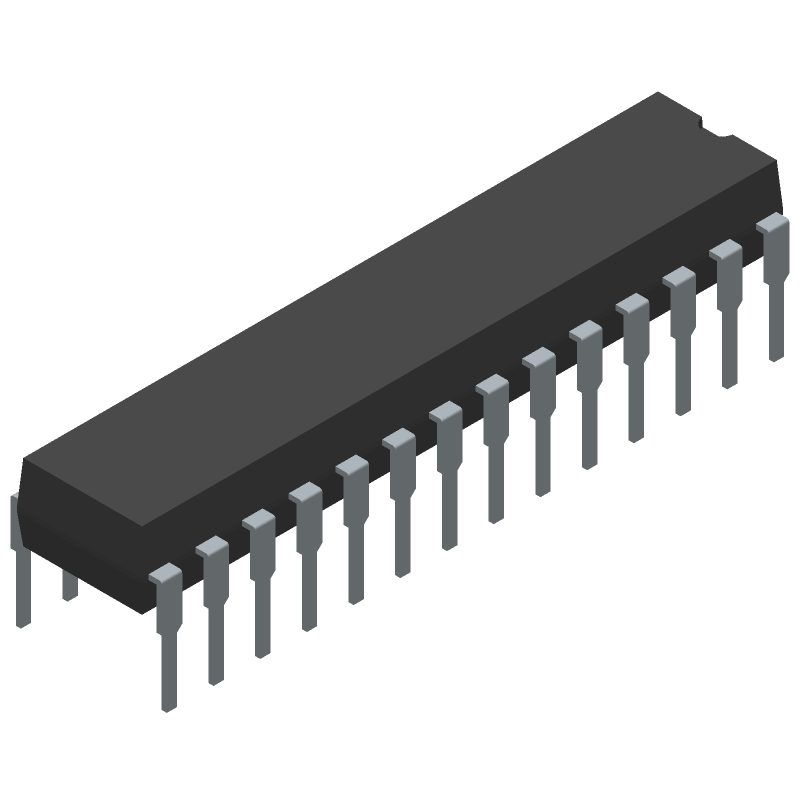

    2d presentation
