Microcontrollers and Processors / Microcontrollers / PIC32MZ1024ECM144T-I/PL
Datasheets
packagee
PIC32MZ1024ECM144T-I/PL by: Microchip Technology Inc

32 Bit MCU, 1MB Flash, 512KB RAM, 200MHz, 144Pin, USB-HS, ENET, CAN, Crypto, SQI

Part Details for PIC32MZ1024ECM144T-I/PL by Microchip Technology Inc

Results Overview of PIC32MZ1024ECM144T-I/PL by Microchip Technology Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

PIC32MZ1024ECM144T-I/PL Information

PIC32MZ1024ECM144T-I/PL by Microchip Technology Inc is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.

Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.

Price & Stock for PIC32MZ1024ECM144T-I/PL

Part # Distributor Description Stock Price Buy
DISTI # 17X9325
Newark Mcu, 32Bit, 200Mhz, Lqfp-144, Product Range:Pic32 Family Pic32Mzec Series Microcontrollers, Device Core:Pic32, Data Bus Width:32 Bit, Operating Frequency Max:200Mhz, Program Memory Size:1Mb, No. Of Pins:144Pins, No. Of I/O S:120I/O Srohs Compliant: Yes |Microchip PIC32MZ1024ECM144T-I/PL RoHS: Compliant Min Qty: 700 Package Multiple: 1 Date Code: 0 Container: Tape & Reel 0
  • 100 $13.7800
$13.7800 Buy Now
DISTI # PIC32MZ1024ECM144T-I/PL-ND
DigiKey IC MCU 32BIT 1MB FLASH 144LQFP Min Qty: 700 Lead time: 8 Weeks Container: Tape & Reel (TR) Temporarily Out of Stock
  • 700 $13.7800
$13.7800 Buy Now
DISTI # PIC32MZ1024ECM144T-I/PL
Avnet Americas - Tape and Reel (Alt: PIC32MZ1024ECM144T-I/PL) COO: China RoHS: Compliant Min Qty: 700 Package Multiple: 700 Lead time: 8 Weeks, 0 Days Container: Tape & Reel 0
  • 700 $16.7286
  • 1,400 $15.8243
  • 2,800 $15.4079
  • 5,600 $15.0128
  • 11,200 $14.6375
$14.6375 / $16.7286 Buy Now
DISTI # 579-1024ECM144T-I/PL
Mouser Electronics 32-bit Microcontrollers - MCU 200MHz 1024 KB Flash Ethernet, Crypto&CAN RoHS: Compliant 0
  • 700 $13.7800
$13.7800 Order Now
DISTI # PIC32MZ1024ECM144T-I/PL
Microchip Technology Inc 32 Bit MCU, 1MB Flash, 512KB RAM, 200MHz, 144Pin, USB-HS, ENET, CAN, Crypto, SQI, LQFP, Projected EOL: 2040-08-05 COO: Philippines ECCN: 5A992.c RoHS: Compliant Lead time: 8 Weeks, 0 Days Container: Tape & Reel In Stock: 0 and Alternates Available
  • 1 $16.6000
  • 25 $15.2100
  • 100 $13.7800
  • 1,000 $12.6800
  • 5,000 $12.0500
$12.0500 / $16.6000 Buy Now
DISTI # 70417197
RS 144 LQFP 20X20X1.4MM T/R200MHZ, 1024 KB FLASH, 512KB RAM, UARTS, SPI/I2S, 12-BIT Min Qty: 700 Package Multiple: 1 Lead time: 38 Weeks, 0 Days Container: Bulk 0
  • 700 $26.9500
  • 1,400 $25.6100
  • 2,100 $24.2600
  • 2,800 $22.9100
$22.9100 / $26.9500 RFQ
Onlinecomponents.com Microcontroller - MIPS32 microAptiv - 32-Bit Single-Core - 200MHz - 120 I/O - 1MB (1Mx8) FLASH - 512K x 8 RAM - 2.3 to 3.6V - 144-LQFP (20x20) - T&R. COO: Philippines RoHS: Compliant 0
  • 175 $38.0500
  • 350 $20.0800
  • 525 $13.8100
  • 700 $13.5400
$13.5400 / $38.0500 Buy Now
NAC 200MHz, 1024 KB Flash, 512KB RAM, UARTs, SPI/I2S, 12-bit ADC, USB2.0 HS OTG, I2C, PMP, EBI, SQI, RTCC Ethernet, Crypto & CAN. Package: 144 LQFP 20x20x1.4mm T/R - PIC32 MX Series Product Line RoHS: Compliant Min Qty: 700 Package Multiple: 700 0
  • 1 $16.7300
  • 100 $15.4100
  • 500 $14.6400
  • 800 $14.2800
$14.2800 / $16.7300 Buy Now
DISTI # PIC32MZ1024ECM144T-I/PL
Avnet Silica (Alt: PIC32MZ1024ECM144T-I/PL) RoHS: Compliant Min Qty: 700 Package Multiple: 700 Lead time: 10 Weeks, 0 Days Silica - 0
Buy Now
Master Electronics Microcontroller - MIPS32 microAptiv - 32-Bit Single-Core - 200MHz - 120 I/O - 1MB (1Mx8) FLASH - 512K x 8 RAM - 2.3 to 3.6V - 144-LQFP (20x20) - T&R. COO: Philippines RoHS: Compliant 0
  • 175 $38.0500
  • 350 $20.0800
  • 525 $13.8100
  • 700 $13.5400
$13.5400 / $38.0500 Buy Now

US Tariff Estimator: PIC32MZ1024ECM144T-I/PL by Microchip Technology Inc

Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

PIC32MZ1024ECM144T-I/PL
Microchip Technology Inc
Please specify a country of origin.
$
Please specify an import value in USD.
Estimator Results:
Tariff Percentage Tariff Calculation
Import Value
$.
Total Duty
$.
Total Estimate
$.
$.
Based on tariff data from

Part Details for PIC32MZ1024ECM144T-I/PL

PIC32MZ1024ECM144T-I/PL CAD Models

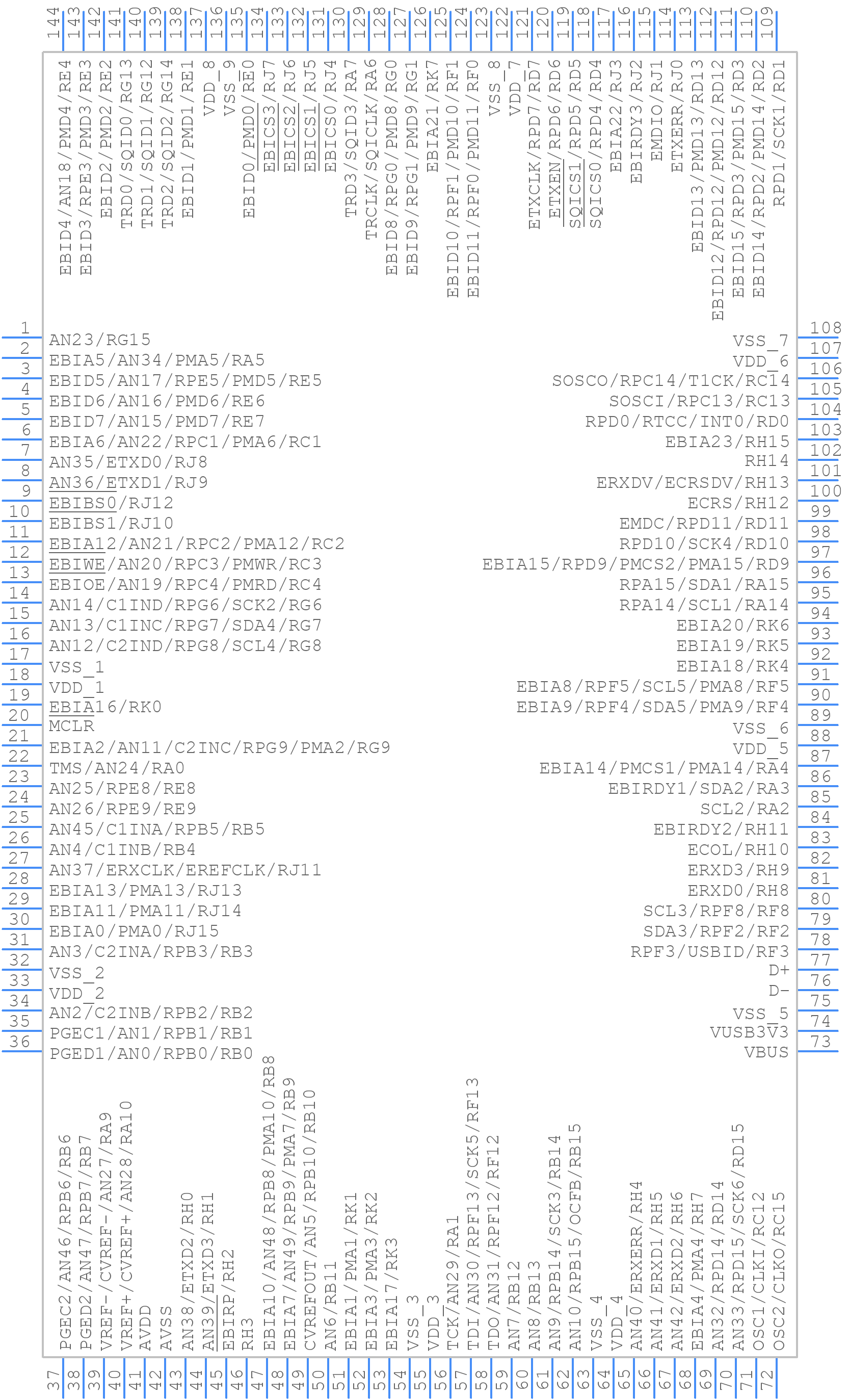

  • Part Symbol

    schematic symbol

  • Footprint

    pcb footprint

  • 3D Model

    2d presentation

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

PIC32MZ1024ECM144T-I/PL Part Data Attributes

Parametric Data
PIC32MZ1024ECM144T-I/PL Microchip Technology Inc
Buy Now Datasheet
Compare Parts:
PIC32MZ1024ECM144T-I/PL Microchip Technology Inc 32 Bit MCU, 1MB Flash, 512KB RAM, 200MHz, 144Pin, USB-HS, ENET, CAN, Crypto, SQI
Rohs Code Yes
Part Life Cycle Code Active
Package Description Lfqfp, Qfp144,.87sq,20
Pin Count 144
Manufacturer Package Code LQFP-144
Reach Compliance Code Compliant
ECCN Code 5A992.C
HTS Code 8542.31.00.01
Factory Lead Time 8 Weeks
Has ADC Yes
Address Bus Width
Bit Size 32
Boundary Scan Yes
CPU Family Pic32
Clock Frequency-Max 64 Mhz
DAC Channels No
DMA Channels Yes
External Data Bus Width
Format Fixed Point
Integrated Cache Yes
JESD-30 Code S-PQFP-G144
JESD-609 Code e3
Length 20 Mm
Low Power Mode Yes
Number of DMA Channels 8
Number of External Interrupts 5
Number of I/O Lines 120
Number of Serial I/Os 4
Number of Terminals 144
Number of Timers 9
On Chip Program ROM Width 32
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
PWM Channels Yes
Package Body Material Plastic/Epoxy
Package Code LFQFP
Package Equivalence Code QFP144,.87SQ,20
Package Shape Square
Package Style Flatpack, Low Profile, Fine Pitch
Peak Reflow Temperature (Cel) 260
Qualification Status Not Qualified
RAM (bytes) 524288
ROM (words) 262144
ROM Programmability Flash
Screening Level Ts 16949
Seated Height-Max 1.6 Mm
Speed 200 Mhz
Supply Current-Max 130 Ma
Supply Voltage-Max 3.6 V
Supply Voltage-Min 2.3 V
Supply Voltage-Nom 3.3 V
Surface Mount Yes
Technology Cmos
Temperature Grade Industrial
Terminal Finish Matte Tin (Sn)
Terminal Form Gull Wing
Terminal Pitch 0.5 Mm
Terminal Position Quad
Time@Peak Reflow Temperature-Max (s) 40
Width 20 Mm
uPs/uCs/Peripheral ICs Type Microcontroller, Risc

Alternate Parts for PIC32MZ1024ECM144T-I/PL

This table gives cross-reference parts and alternative options found for PIC32MZ1024ECM144T-I/PL. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of PIC32MZ1024ECM144T-I/PL, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
PIC32MZ1024ECM144-I/PL Microchip Technology Inc $15.1864 32 Bit MCU, 1MB Flash, 512KB RAM, 200MHz, 144Pin, USB-HS, ENET, CAN, Crypto, SQI PIC32MZ1024ECM144T-I/PL vs PIC32MZ1024ECM144-I/PL
