Part Details for R5F11Y68ASM#30 by Renesas Electronics Corporation
Results Overview of R5F11Y68ASM#30 by Renesas Electronics Corporation
- Distributor Offerings: (5 listings)
- Number of FFF Equivalents: (0 replacements)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (0 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Internet of Things (IoT)
Environmental Monitoring
Financial Technology (Fintech)
Smart Cities
Transportation and Logistics
Agriculture Technology
Telecommunications
Virtual Reality (VR), Augmented Reality (AR), and Vision Systems
Education and Research
Consumer Electronics
Security and Surveillance
Audio and Video Systems
Computing and Data Storage
Healthcare
Entertainment and Gaming
R5F11Y68ASM#30 Information
R5F11Y68ASM#30 by Renesas Electronics Corporation is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.
Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.
Price & Stock for R5F11Y68ASM#30
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
3530129
|
Farnell | MCU, 8BIT, 20MHZ, TSSOP-20 RoHS: Compliant Min Qty: 1 Lead time: 19 Weeks, 1 Days Container: Each | 515 |
|
$0.5046 / $0.8651 | Buy Now |
|
DISTI #
800-R5F11Y68ASM#30-ND
|
DigiKey | IC MCU 16BIT 8KB FLASH 20TSSOP Min Qty: 1 Lead time: 12 Weeks Container: Tray |
2620 In Stock |
|
$0.5527 / $1.1200 | Buy Now |
|
DISTI #
86007891
|
Verical | MCU 16-bit RL78 CISC 8KB Flash 2.5V/3.3V/5V 20-Pin TSSOP Min Qty: 394 Package Multiple: 1 Date Code: 2001 | Americas - 590 |
|
$0.5906 / $0.9526 | Buy Now |
|
|
Rochester Electronics | Microcontroller RoHS: Compliant Status: Active Min Qty: 1 | 590 |
|
$0.4725 / $0.7621 | Buy Now |
|
DISTI #
R5F11Y68ASM#30
|
Avnet Asia | MCU 16-Bit RL78/G1N CISC 8K-Bytes Flash 2V to 5.5V 20-Pin TSSOP Tray (Alt: R5F11Y68ASM#30) RoHS: Compliant Min Qty: 1 Package Multiple: 1 | 0 |
|
RFQ |
US Tariff Estimator: R5F11Y68ASM#30 by Renesas Electronics Corporation
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for R5F11Y68ASM#30
R5F11Y68ASM#30 CAD Models
-

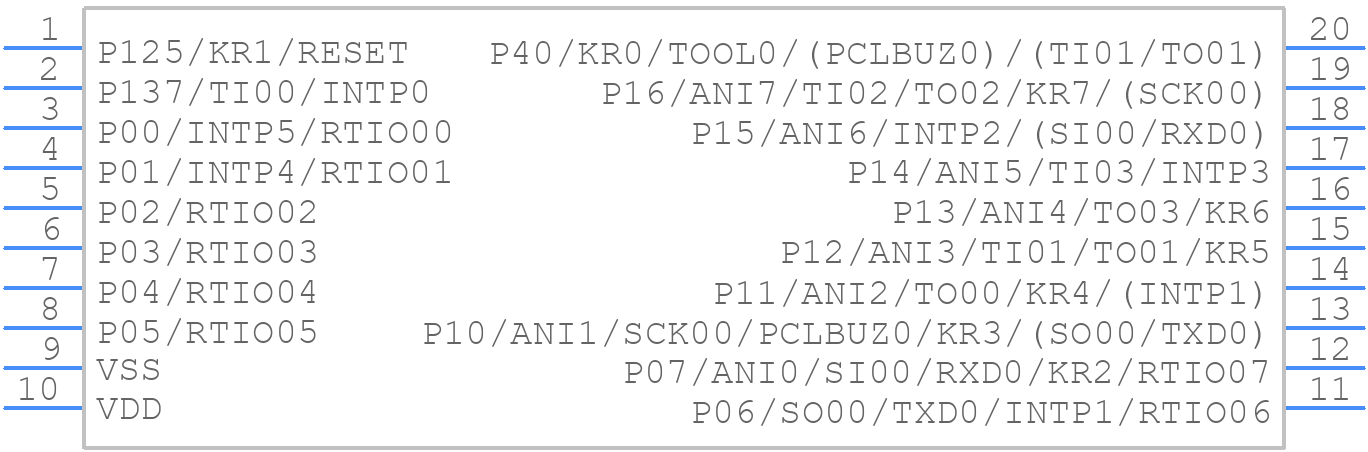

Part Symbol
-

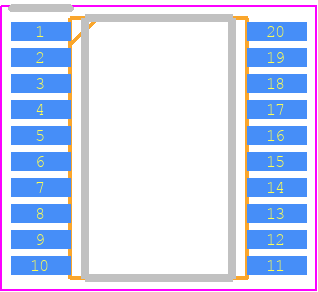

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
R5F11Y68ASM#30 Part Data Attributes
|
|
R5F11Y68ASM#30
Renesas Electronics Corporation
Buy Now
Datasheet
|
Compare Parts:
R5F11Y68ASM#30
Renesas Electronics Corporation
Microcontroller
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Part Package Code | TSSOP | |
| Package Description | , | |
| Pin Count | 20 | |
| Manufacturer Package Code | PTSP0020JI | |
| Reach Compliance Code | Compliant | |
| HTS Code | 8542.31.00.30 | |
| Factory Lead Time | 4 Weeks | |
| Moisture Sensitivity Level | 3 |
R5F11Y68ASM#30 Frequently Asked Questions (FAQ)
-
The recommended oscillator frequency for the R5F11Y68ASM#30 is between 4 MHz and 24 MHz, with a typical value of 16 MHz.
-
The clock settings can be configured using the Clock Control Register (CCR) and the Clock Frequency Control Register (CFR). Refer to the datasheet for specific register settings and bit configurations.
-
The maximum operating temperature range for the R5F11Y68ASM#30 is -40°C to +85°C.
-
The R5F11Y68ASM#30 has a built-in watchdog timer that can be enabled and configured using the Watchdog Timer Control Register (WTCR) and the Watchdog Timer Counter Register (WTCTR). Refer to the datasheet for specific register settings and bit configurations.
-
The maximum current consumption of the R5F11Y68ASM#30 is approximately 15 mA at 16 MHz and 3.3 V supply voltage.
