Microcontrollers and Processors / Microcontrollers / R7S721000VCFP#AA1
Datasheets
R7S721000VCFP#AA1 by: Renesas Electronics Corporation

RISC Microcontroller, 400MHz, PQFP256

Part Details for R7S721000VCFP#AA1 by Renesas Electronics Corporation

Results Overview of R7S721000VCFP#AA1 by Renesas Electronics Corporation

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Internet of Things (IoT) Environmental Monitoring Industrial Automation Financial Technology (Fintech) Smart Cities Transportation and Logistics Agriculture Technology Telecommunications Virtual Reality (VR), Augmented Reality (AR), and Vision Systems Education and Research Consumer Electronics Security and Surveillance Audio and Video Systems Computing and Data Storage Healthcare Renewable Energy Entertainment and Gaming Robotics and Drones

R7S721000VCFP#AA1 Information

R7S721000VCFP#AA1 by Renesas Electronics Corporation is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.

Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.

Price & Stock for R7S721000VCFP#AA1

Part # Distributor Description Stock Price Buy
DISTI # 84AC2682
Newark Mpu, 32Bit, 400Mhz, -40 To 85Deg C, Product Range:Rz Family Rz/A Series Microcontrollers, Architecture:Arm Cortex-A9, No. Of Bits:32Bit, Cpu Speed:400Mhz, Program Memory Size:-, Ram Memory Size:10Mb, No. Of Pins:256Pins, Mcu Case Rohs Compliant: Yes |Renesas R7S721000VCFP#AA1 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk 140
  • 1 $33.2400
  • 5 $33.1600
  • 10 $33.0700
  • 48 $24.5700
  • 72 $24.4200
  • 120 $24.2800
  • 264 $24.1300
$24.1300 / $33.2400 Buy Now
DISTI # R7S721000VCFP#AA1-ND
DigiKey IC MPU RZ/A1H 400MHZ 256LQFP Min Qty: 1 Lead time: 14 Weeks Container: Tray 1396
In Stock
  • 1 $36.1300
  • 24 $27.7483
  • 48 $26.7192
  • 120 $25.6328
  • 264 $24.8976
$24.8976 / $36.1300 Buy Now
DISTI # 968-7S721000VCFP#AA1
Mouser Electronics Microprocessors - MPU RZ/A1H 400MHz 10MB QFP256 Q2A no enc MP RoHS: Compliant 4940
  • 1 $32.2700
  • 10 $32.1100
  • 24 $23.8500
  • 120 $23.4300
  • 264 $23.0400
$23.0400 / $32.2700 Buy Now
DISTI # 30603621
Verical MCU 32-bit ARM Cortex A9 RISC ROMLess 3.3V 256-Pin LFQFP RoHS: Compliant Min Qty: 2 Package Multiple: 1 Americas - 6
  • 2 $27.2000
  • 5 $26.9000
$26.9000 / $27.2000 Buy Now
DISTI # R7S721000VCFP#AA1
Avnet Asia (Alt: R7S721000VCFP#AA1) RoHS: Compliant Min Qty: 72 Package Multiple: 24 Lead time: 14 Weeks, 0 Days 0
RFQ
DISTI # R7S721000VCFP#AA1
Avnet Silica (Alt: R7S721000VCFP#AA1) RoHS: Compliant Min Qty: 25 Package Multiple: 25 Lead time: 14 Weeks, 0 Days Silica - 575
Buy Now
New Advantage Corporation LQFP 256/I�/ CORTEX-A9 32 bit RoHS: Compliant Min Qty: 1 Package Multiple: 25 1850
  • 25 $32.8900
  • 1,850 $30.3600
$30.3600 / $32.8900 Buy Now

US Tariff Estimator: R7S721000VCFP#AA1 by Renesas Electronics Corporation

Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

R7S721000VCFP#AA1
Renesas Electronics Corporation
Please specify a country of origin.
$
Please specify an import value in USD.
Estimator Results:
Tariff Percentage Tariff Calculation
Import Value
$.
Total Duty
$.
Total Estimate
$.
$.
Based on tariff data from

Part Details for R7S721000VCFP#AA1

R7S721000VCFP#AA1 CAD Models

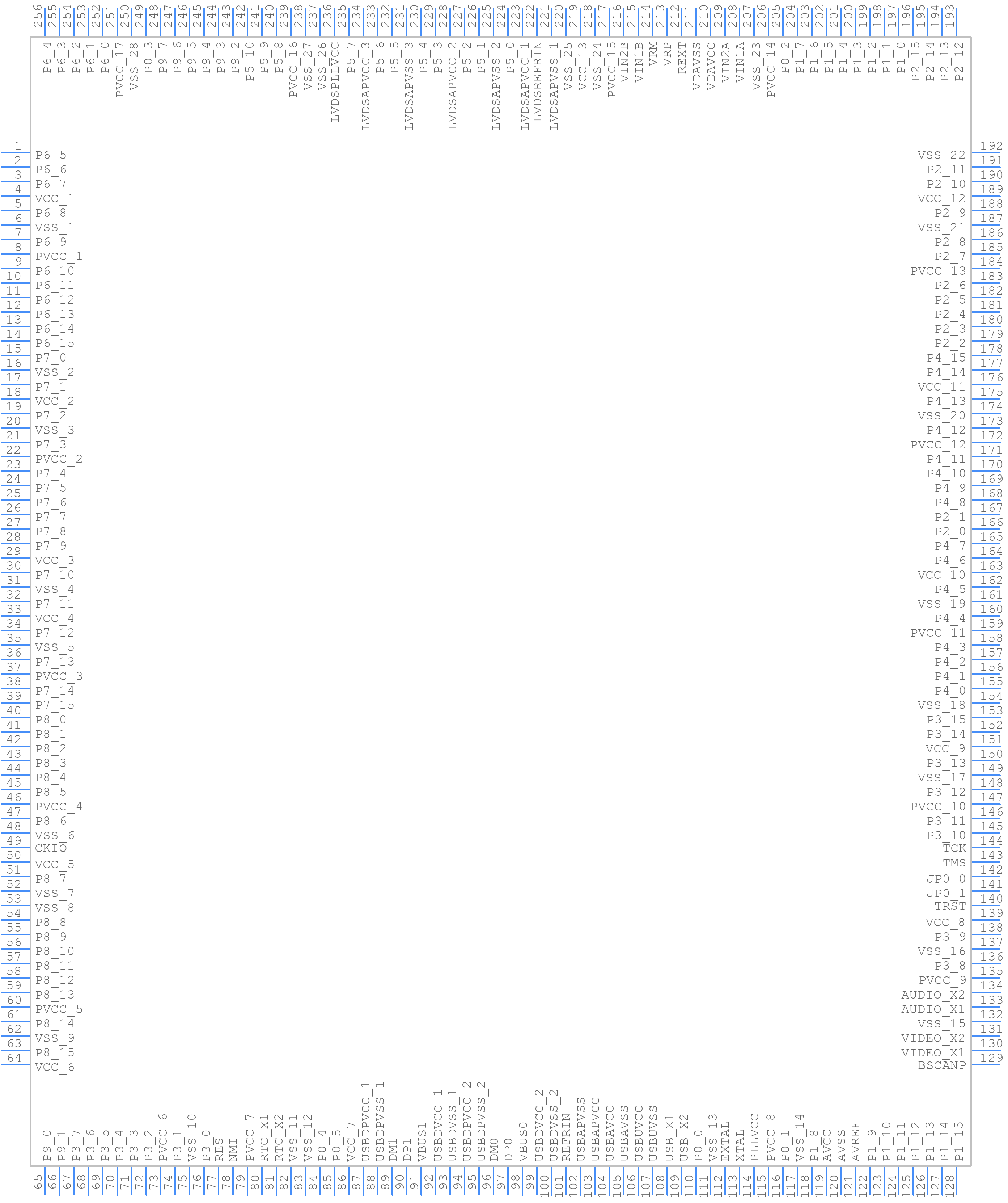

  • Part Symbol

    schematic symbol

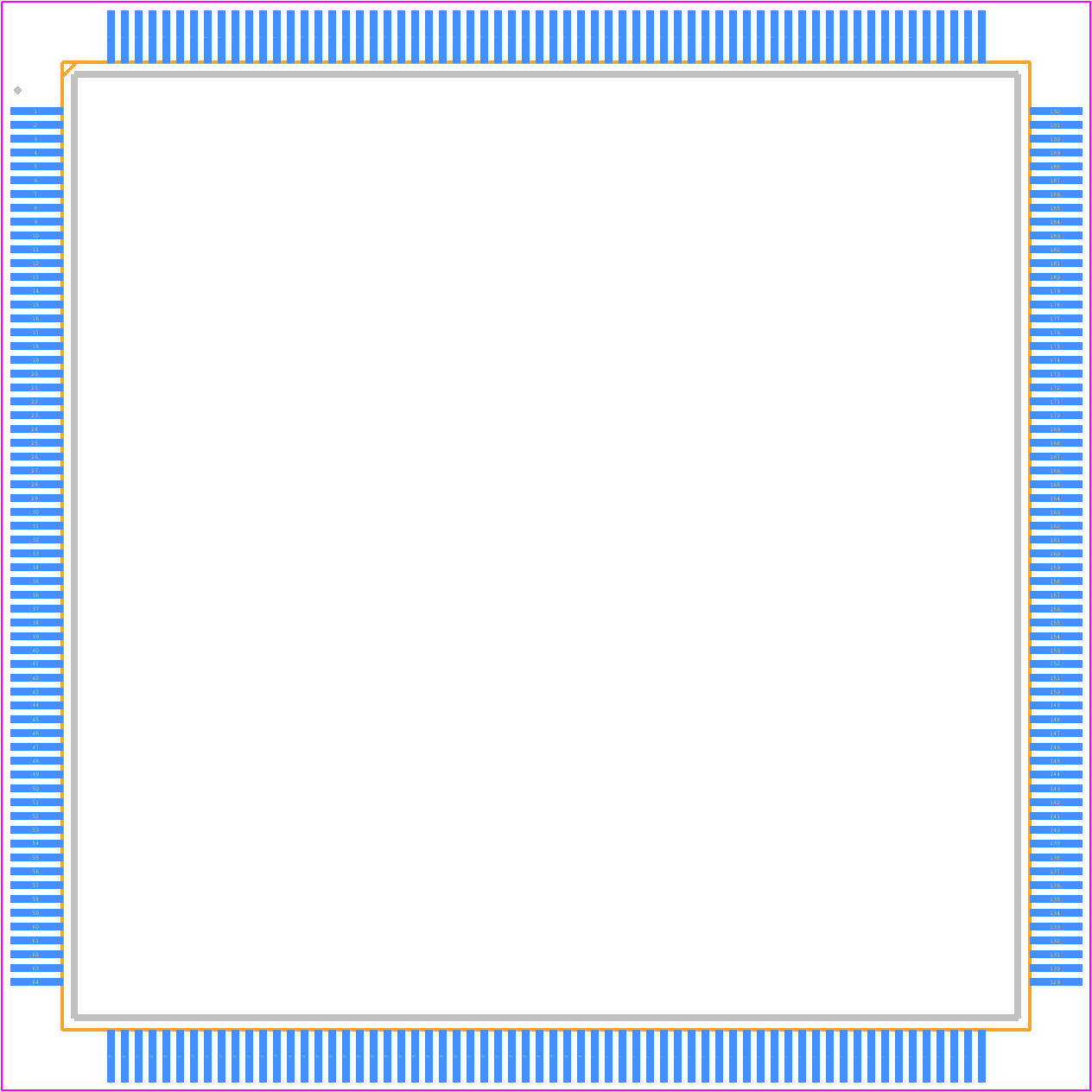

  • Footprint

    pcb footprint

  • 3D Model

    2d presentation

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

R7S721000VCFP#AA1 Part Data Attributes

Parametric Data
R7S721000VCFP#AA1 Renesas Electronics Corporation
Buy Now Datasheet
Compare Parts:
R7S721000VCFP#AA1 Renesas Electronics Corporation RISC Microcontroller, 400MHz, PQFP256
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Part Package Code LQFP
Package Description Lfqfp,
Pin Count 256
Manufacturer Package Code PLQP0256LB
Reach Compliance Code Compliant
ECCN Code 3A991.a.2
HTS Code 8542.31.00.30
Factory Lead Time 12 Weeks
Date Of Intro 2018-06-04
Has ADC Yes
Address Bus Width 26
Clock Frequency-Max 48 Mhz
DMA Channels Yes
External Data Bus Width 32
JESD-30 Code S-PQFP-G256
Length 28 Mm
Moisture Sensitivity Level 3
Number of I/O Lines 137
Number of Terminals 256
PWM Channels Yes
Package Body Material Plastic/Epoxy
Package Code LFQFP
Package Shape Square
Package Style Flatpack, Low Profile, Fine Pitch
Speed 400 Mhz
Supply Voltage-Max 1.26 V
Supply Voltage-Min 1.1 V
Supply Voltage-Nom 1.18 V
Surface Mount Yes
Terminal Form Gull Wing
Terminal Pitch 0.4 Mm
Terminal Position Quad
Width 28 Mm
uPs/uCs/Peripheral ICs Type Microcontroller, Risc

Alternate Parts for R7S721000VCFP#AA1

This table gives cross-reference parts and alternative options found for R7S721000VCFP#AA1. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of R7S721000VCFP#AA1, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
R7S721000VCFP#AA0 Renesas Electronics Corporation $27.9457 RISC Microprocessor, 32-Bit, 400MHz, CMOS, PQFP256 R7S721000VCFP#AA1 vs R7S721000VCFP#AA0
equivalents icon

R7S721000VCFP#AA1 Frequently Asked Questions (FAQ)

  • The maximum operating frequency of the R7S721000VCFP#AA1 is 200 MHz.

  • The minimum voltage required for the R7S721000VCFP#AA1 to operate is 2.7V.

  • Yes, the R7S721000VCFP#AA1 has 1 MB of built-in flash memory.

  • The maximum temperature range for the R7S721000VCFP#AA1 is -40°C to 85°C.

  • Yes, the R7S721000VCFP#AA1 has a built-in USB 2.0 Full-Speed interface.
