REF5030ID Information
REF5030ID by Texas Instruments is a Voltage Reference.
Voltage References are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for REF5030ID
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
296-22206-5-ND
|
DigiKey | IC VREF SERIES 0.05% 8SOIC Min Qty: 1 Container: Tube |
183 Tube |
|
$7.2471 / $11.9300 | Buy Now |
|
DISTI #
595-REF5030ID
|
Mouser Electronics | Voltage References Lo Noise Very Low Dr ift Prec VLTG REF A A 595-REF5030IDR RoHS: Compliant | 101 |
|
$6.8900 / $11.6000 | Buy Now |
|
DISTI #
REF5030ID
|
TME | IC: voltage reference source, 3V, ±0.05%, SO8, tube, 10mA Min Qty: 1 | 0 |
|
$6.9700 / $9.3700 | RFQ |
|
|
Chip Stock | IC VREF SERIES 0.05% 8SOIC Series Voltage Reference IC Fixed 3V V ±0.05% 10 mA 8-SOIC | 6701 |
|
RFQ | |
|
|
Vyrian | Three Terminal Voltage Reference, 1 Output, 3V, Trim/Adjustable, PDSO8 | 4838 |
|
RFQ | |
|
|
Win Source Electronics | IC VREF SERIES 3V 8VSSOP | 6799 |
|
$13.5747 / $20.3620 | Buy Now |
US Tariff Estimator: REF5030ID by Texas Instruments
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
REF5030ID CAD Models
-

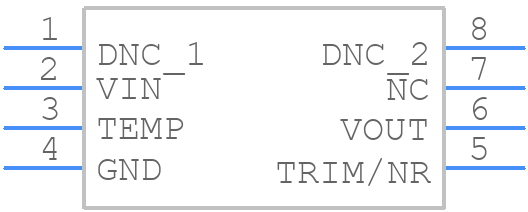

Part Symbol
-
