Part Details for RM322-035-211-5500 by AirBorn a molex company
Results Overview of RM322-035-211-5500 by AirBorn a molex company
- Distributor Offerings: (5 listings)
- Number of FFF Equivalents: (0 replacements)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (0 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
RM322-035-211-5500 Information
RM322-035-211-5500 by AirBorn a molex company is a Header and Edge Type Connector.
Headers and Edge Type Connectors are under the broader part category of Connectors.
Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| 55003-201003LF | Amphenol Communications Solutions | Metral<sup>reg;</sup>, Backplane Connectors, 4000 Series Header, Vertical Signal, 5 Row, Press-Fit, 30 Position, Special Load, Standard | |
| 55004-202002LF | Amphenol Communications Solutions | Metral® High Speed 4000 Series, Backplane Connectors, Header, Vertical Signal, 8 Row, Press-Fit, 96 Position, Select Load, Standard | |
| 55003-301002LF | Amphenol Communications Solutions | Metral<sup>reg;</sup>, Backplane Connectors, 4000 Series Header, Vertical Signal, 5 Row, Press-Fit, 30 Position, Special Load, Standard |
Price & Stock for RM322-035-211-5500
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
3937-RM322-035-211-5500-ND
|
DigiKey | .075 HIGH DENSITY RECTANGULAR CO Min Qty: 1 Lead time: 14 Weeks Container: Bag MARKETPLACE PRODUCT |
25 In Stock |
|
$116.1800 | Buy Now |
|
DISTI #
4134-RM322-035-211-5500-ND
|
DigiKey | RECTANGULAR PCB CONNECTORS (0.07 Min Qty: 1 Lead time: 8 Weeks Container: Bag |
8 In Stock |
|
$71.1750 / $97.9600 | Buy Now |
|
DISTI #
479-RM3220352115500
|
Mouser Electronics | Rectangular MIL Spec Connectors 3 Row Straight Recptl w Mt Ears RoHS: Compliant | 11 |
|
$56.6800 / $115.4400 | Buy Now |
|
DISTI #
RM322-035-211-5500
|
TTI | Rectangular MIL Spec Connectors 3 Row Straight Recptl w Mt Ears Min Qty: 1 Package Multiple: 1 Container: Each | Americas - 0 |
|
Buy Now | |
|
|
Powell Electronics | PCB Connector Min Qty: 1 | 24 |
|
$114.8600 | Buy Now |
US Tariff Estimator: RM322-035-211-5500 by AirBorn a molex company
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for RM322-035-211-5500
RM322-035-211-5500 CAD Models
-

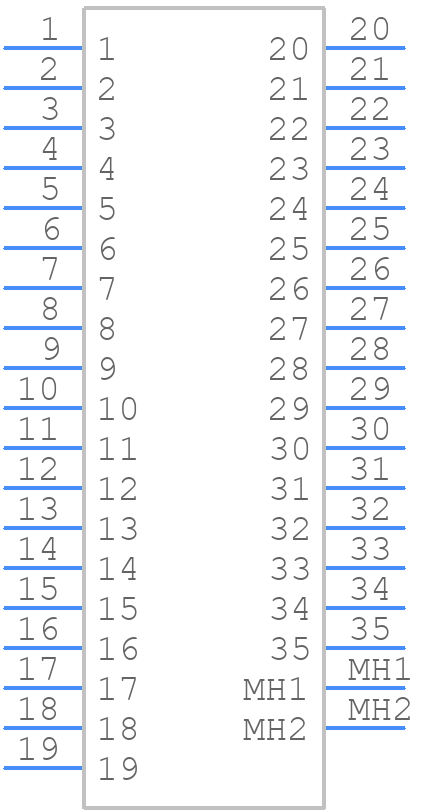

Part Symbol
-

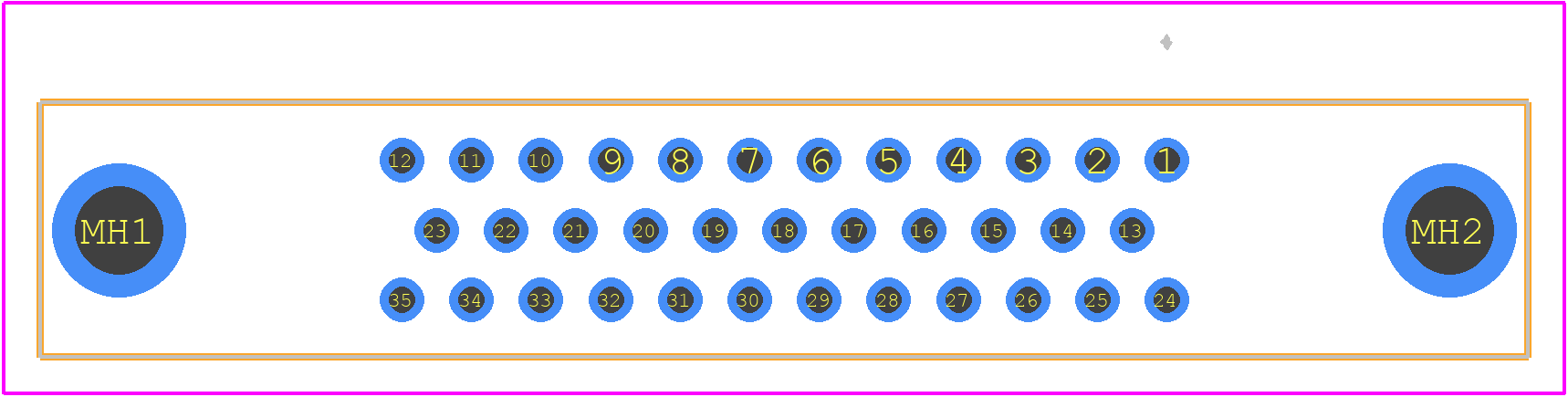

Footprint
-

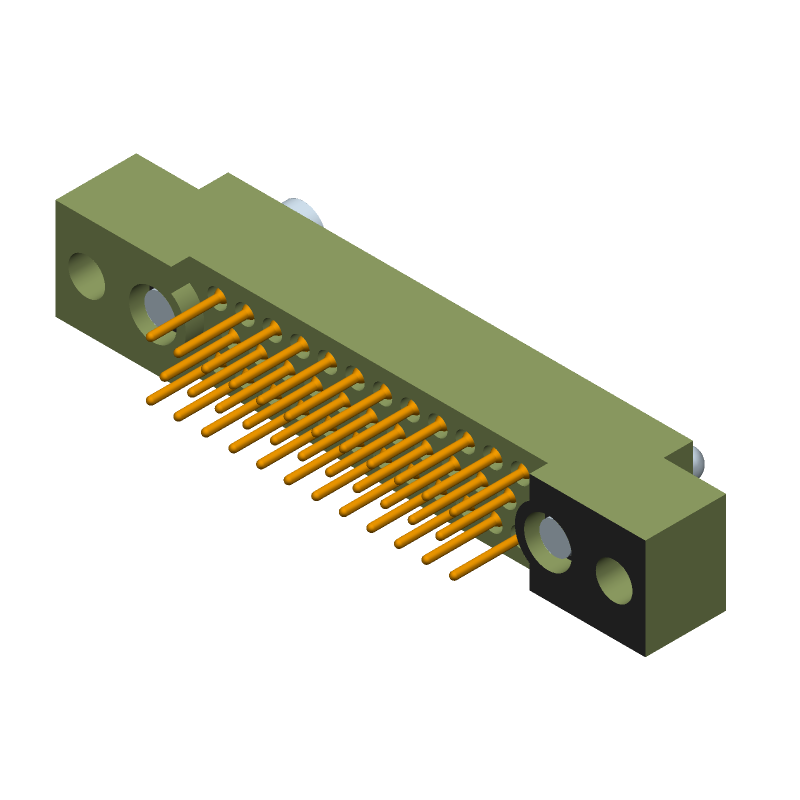

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
RM322-035-211-5500 Part Data Attributes
|
|
RM322-035-211-5500
AirBorn a molex company
Buy Now
Datasheet
|
Compare Parts:
RM322-035-211-5500
AirBorn a molex company
Board Connector, 35 Contact(s), 3 Row(s), Female, Straight, Solder Terminal, Receptacle,
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8536.69.40.40 | |
| Body/Shell Style | Receptacle | |
| Connector Type | Board Connector | |
| Contact Finish Mating | Not Specified | |
| Contact Finish Termination | Gold | |
| Contact Gender | Female | |
| Contact Material | Not Specified | |
| DIN Conformance | No | |
| Filter Feature | No | |
| IEC Conformance | No | |
| JESD-609 Code | e4 | |
| MIL Conformance | No | |
| Mating Information | Multiple Mating Parts Available | |
| Mixed Contacts | No | |
| Mounting Style | Straight | |
| Mounting Type | Board | |
| Number Of Connectors | One | |
| Number of Rows Loaded | 3 | |
| Option | General Purpose | |
| Rated Current (Signal) | 3 A | |
| Terminal Pitch | 1.91 Mm | |
| Termination Type | Solder | |
| Total Number of Contacts | 35 |
RM322-035-211-5500 Frequently Asked Questions (FAQ)
-
The recommended torque value is 0.5-0.7 Nm (4.4-6.3 in-lbs) for the screw terminals, but it's always best to consult the specific application requirements and follow the manufacturer's guidelines.
-
Yes, the RM322-035-211-5500 is designed to withstand vibrations up to 10G (10-2000 Hz) and shocks up to 100G (11 ms), making it suitable for use in high-vibration environments.
-
The operating temperature range for the RM322-035-211-5500 is -55°C to 125°C (-65°F to 257°F), making it suitable for use in a wide range of applications.
-
Yes, the RM322-035-211-5500 is designed to meet the requirements of IP67 (dust-tight and protected against immersion in water up to 1m for 30 minutes) and has a salt spray resistance of 48 hours, making it suitable for use in harsh environments.
-
The RM322-035-211-5500 has a mating cycle life of 500 cycles, making it suitable for use in applications where frequent mating and unmating is required.
