S-19212D33A-M5T1U by: ABLIC Inc.

IC REG LINEAR 3.3V 250MA SOT-23-5

Part Details for S-19212D33A-M5T1U by ABLIC Inc.

Results Overview of S-19212D33A-M5T1U by ABLIC Inc.

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Industrial Automation

S-19212D33A-M5T1U Information

S-19212D33A-M5T1U by ABLIC Inc. is a Linear Regulator IC.
Linear Regulator ICs are under the broader part category of Power Circuits.

A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.

Available Datasheets

Part # Manufacturer Description Datasheet
74AC11000N Texas Instruments Quadruple 2-Input Positive-NAND Gates 16-PDIP -40 to 85
74AC11004DW Texas Instruments Hex Inverters 20-SOIC -40 to 85
74AC11074D Texas Instruments Dual Positive-Edge-Triggered D-Type Flip-Flops With Clear and Preset 14-SOIC -40 to 85

Price & Stock for S-19212D33A-M5T1U

Part # Distributor Description Stock Price Buy
DISTI # 1662-S-19212D33A-M5T1UCT-ND
DigiKey IC REG LINEAR 3.3V 250MA SOT23-5 Min Qty: 1 Lead time: 18 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) 3303
In Stock
  • 1 $2.3200
  • 10 $1.7220
  • 25 $1.5720
  • 100 $1.4069
  • 250 $1.3282
  • 500 $1.2807
  • 1,000 $1.2417
  • 3,000 $1.1934
  • 6,000 $1.1698
$1.1698 / $2.3200 Buy Now
DISTI # S-19212D33A-M5T1U
Avnet Americas LDO Regulator Positive 3.3V 250mA 5-Pin SOT-23 T/R - Tape and Reel (Alt: S-19212D33A-M5T1U) COO: Japan RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Container: Tape & Reel 0
RFQ
DISTI # 628-S19212D33AM5T1U
Mouser Electronics LDO Voltage Regulators IC REG LINEAR 3.3V 250MA RoHS: Compliant 2888
  • 1 $2.3200
  • 10 $1.7300
  • 25 $1.5800
  • 100 $1.4100
  • 250 $1.3300
  • 500 $1.2700
  • 1,000 $1.1800
  • 3,000 $1.1600
  • 6,000 $1.1100
$1.1100 / $2.3200 Buy Now
Onlinecomponents.com   COO: Japan RoHS: Compliant 0
  • 750 $2.9500
  • 1,500 $1.5600
  • 2,250 $1.1000
  • 3,000 $1.0800
$1.0800 / $2.9500 Buy Now
DISTI # 62164974
Verical LDO Regulator Pos 3.3V 0.25A Automotive 5-Pin SOT-23 T/R RoHS: Compliant Min Qty: 48 Package Multiple: 1 Date Code: 2201 Americas - 989
  • 48 $1.5976
  • 50 $1.5367
  • 100 $1.4846
  • 250 $1.4395
  • 500 $1.4004
$1.4004 / $1.5976 Buy Now
Quest Components   791
  • 1 $3.0180
  • 125 $1.8611
  • 538 $1.6599
$1.6599 / $3.0180 Buy Now

US Tariff Estimator: S-19212D33A-M5T1U by ABLIC Inc.

Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

S-19212D33A-M5T1U
ABLIC Inc.
Please specify a country of origin.
$
Please specify an import value in USD.
Estimator Results:
Tariff Percentage Tariff Calculation
Import Value
$.
Total Duty
$.
Total Estimate
$.
$.
Based on tariff data from

Part Details for S-19212D33A-M5T1U

S-19212D33A-M5T1U CAD Models

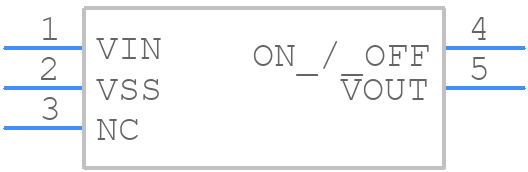

  • Part Symbol

    schematic symbol

  • Footprint

    pcb footprint

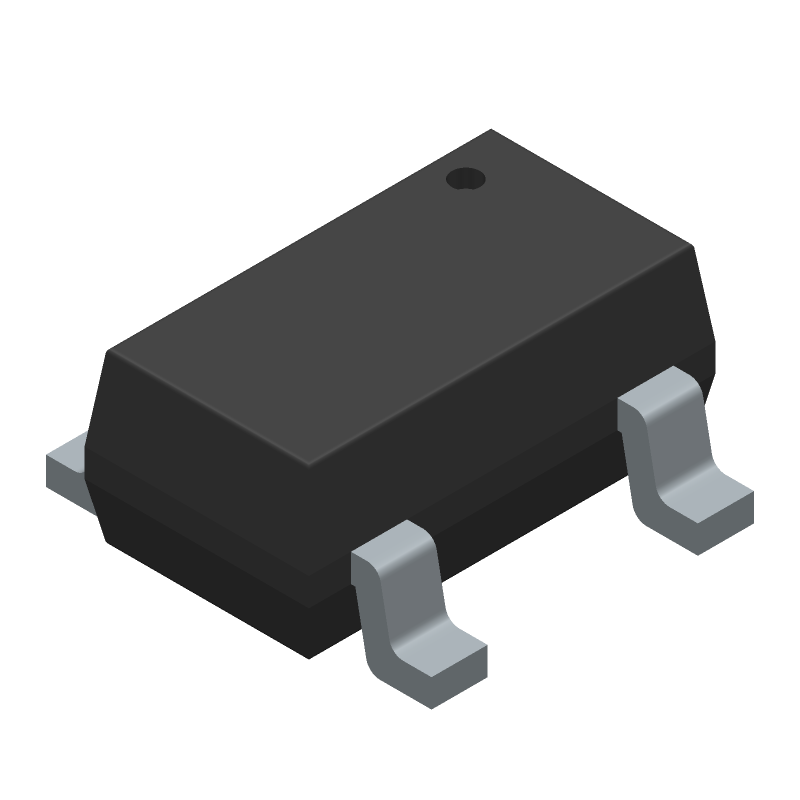

  • 3D Model

    2d presentation

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

S-19212D33A-M5T1U Part Data Attributes

Parametric Data
S-19212D33A-M5T1U ABLIC Inc.
Buy Now Datasheet
Compare Parts:
S-19212D33A-M5T1U ABLIC Inc. IC REG LINEAR 3.3V 250MA SOT-23-5
Rohs Code Yes
Part Life Cycle Code Active
Package Description Sot-23, 5 Pin
Reach Compliance Code Unknown
ECCN Code EAR99
HTS Code 8542.39.00.01
Factory Lead Time 18 Weeks
Adjustability Fixed
Dropout Voltage1-Nom 0.8 V
Input Voltage-Max 36 V
Input Voltage-Min 3.8 V
JESD-30 Code R-PDSO-G5
JESD-609 Code e3
Length 2.9 Mm
Line Regulation-Max 0.03188%
Load Regulation-Max 0.03%
Number of Functions 1
Number of Outputs 1
Number of Terminals 5
Operating Temperature TJ-Max 150 °C
Operating Temperature TJ-Min -40 °C
Operating Temperature-Max 125 °C
Operating Temperature-Min -40 °C
Output Current1-Max 0.25 A
Output Voltage1-Max 3.366 V
Output Voltage1-Min 3.234 V
Output Voltage1-Nom 3.3 V
Package Body Material Plastic/Epoxy
Package Code LSSOP
Package Equivalence Code TSOP5/6,.11,37
Package Shape Rectangular
Package Style Small Outline, Low Profile, Shrink Pitch
Packing Method Tr
Regulator Type Fixed Positive Single Output Ldo Regulator
Screening Level Aec-Q100
Seated Height-Max 1.3 Mm
Surface Mount Yes
Technology Cmos
Terminal Finish Tin
Terminal Form Gull Wing
Terminal Pitch 0.95 Mm
Terminal Position Dual
Voltage Tolerance-Max 2%
Width 1.6 Mm
equivalents icon

S-19212D33A-M5T1U Related Parts

S-19212D33A-M5T1U Frequently Asked Questions (FAQ)

  • The maximum operating temperature range for the S-19212D33A-M5T1U is -40°C to 105°C.

  • To ensure stable output voltage, it's recommended to use a 10uF or larger ceramic capacitor for the output capacitor (COUT) and a 1uF or larger ceramic capacitor for the input capacitor (CIN).

  • The minimum input voltage required for the S-19212D33A-M5T1U to function is 2.5V.

  • The S-19212D33A-M5T1U has a maximum output current of 300mA. If your application requires higher current, you may need to consider a different regulator or add external components to ensure reliable operation.

  • To calculate the power dissipation, use the formula: Pd = (Vin - Vout) x Iout, where Vin is the input voltage, Vout is the output voltage, and Iout is the output current.
