S-19214B00A-V5T2U7 Information
S-19214B00A-V5T2U7 by ABLIC Inc. is a Linear Regulator IC.
Linear Regulator ICs are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for S-19214B00A-V5T2U7
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
1662-S-19214B00A-V5T2U7CT-ND
|
DigiKey | IC REG LIN POS ADJ 1A TO252-5S Min Qty: 1 Lead time: 18 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
65 In Stock |
|
$1.7025 / $3.2400 | Buy Now |
|
DISTI #
S-19214B00A-V5T2U7
|
Avnet Americas | LDO Regulator Positive 1.8V to 30V 1A 5-Pin TO-252S T/R - Tape and Reel (Alt: S-19214B00A-V5T2U7) COO: Japan RoHS: Compliant Min Qty: 4000 Package Multiple: 4000 Container: Tape & Reel | 0 |
|
RFQ | |
|
DISTI #
628-S19214B00AV5T2U7
|
Mouser Electronics | LDO Voltage Regulators AUTOMOTIVE, 125°C OPERATION, 36 V INPUT, 1000 mA VOLTAGE REGULATOR RoHS: Compliant | 16 |
|
$1.6200 / $3.2400 | Buy Now |
|
|
Onlinecomponents.com | COO: Japan RoHS: Compliant | 0 |
|
$1.6100 / $4.5400 | Buy Now |
|
DISTI #
60670499
|
Verical | 36 V INPUT, 1000 mA Voltage Regulator Min Qty: 32 Package Multiple: 1 Date Code: 1901 | Americas - 3937 |
|
$1.9851 / $2.3738 | Buy Now |
|
DISTI #
87560478
|
Verical | 36 V INPUT, 1000 mA Voltage Regulator Min Qty: 25 Package Multiple: 1 | Americas - 1895 |
|
$1.5500 / $2.9100 | Buy Now |
|
|
Quest Components | 3149 |
|
$2.1945 / $4.3890 | Buy Now | |
|
DISTI #
S-19214B00A-V5T2U7
|
Chip One Stop | Semiconductors RoHS: Compliant pbFree: Yes Min Qty: 1 Lead time: 0 Weeks, 1 Days Container: Cut Tape | 1895 |
|
$1.4900 / $2.9100 | Buy Now |
US Tariff Estimator: S-19214B00A-V5T2U7 by ABLIC Inc.
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for S-19214B00A-V5T2U7
S-19214B00A-V5T2U7 CAD Models
-

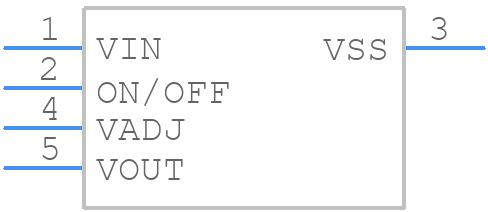

Part Symbol
-

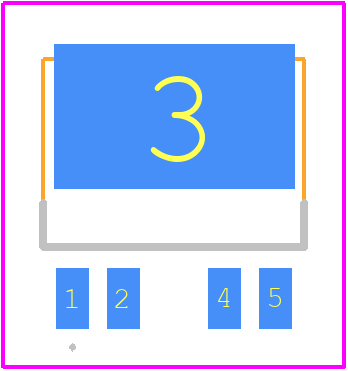

Footprint
