SC0914(7) Information
SC0914(7) by Raspberry Pi is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.
Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.
Price & Stock for SC0914(7)
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
2648-SC0914(7)CT-ND
|
DigiKey | IC MCU 32BIT EXT MEM 56QFN Min Qty: 1 Lead time: 10 Weeks Container: Digi-Reel®, Tape & Reel (TR), Cut Tape (CT) |
13807 In Stock |
|
$0.8000 | Buy Now |
|
DISTI #
358-SC09147
|
Mouser Electronics | ARM Microcontrollers - MCU IC RP2040 (RP2B2) T&R, 500 (7" reel) RoHS: Compliant | 60511 |
|
$0.8000 | Buy Now |
|
DISTI #
72374071
|
RS | RASPBERRY PI RP2040 MICROCONTROLLER 500PC REEL Min Qty: 500 Package Multiple: 500 Lead time: 6 Weeks, 0 Days Container: Tape & Reel | 0 |
|
$0.8700 | RFQ |
|
|
Bristol Electronics | 5 |
|
RFQ |
US Tariff Estimator: SC0914(7) by Raspberry Pi
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for SC0914(7)
SC0914(7) CAD Models
-

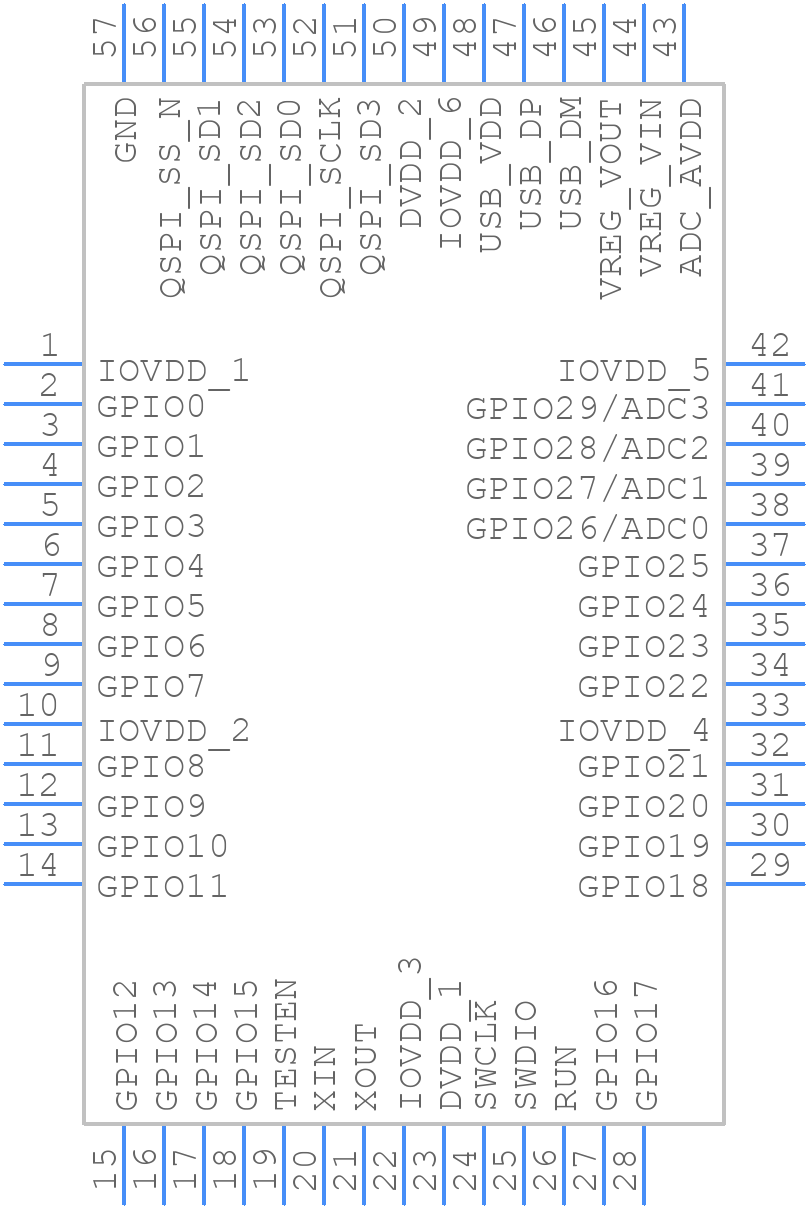

Part Symbol
-

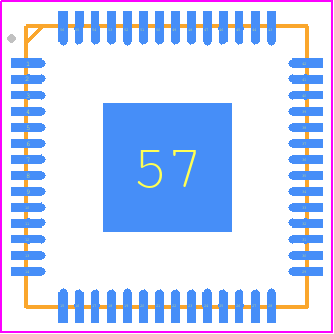

Footprint
-
