SEAM-20-02.0-L-06-2-A-K-TR by: Samtec Inc

Board Stacking Connector, 120 Contact(s), 6 Row(s), Male, Straight, Surface Mount Terminal, ROHS COMPLIANT

Part Details for SEAM-20-02.0-L-06-2-A-K-TR by Samtec Inc

Results Overview of SEAM-20-02.0-L-06-2-A-K-TR by Samtec Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Automotive

SEAM-20-02.0-L-06-2-A-K-TR Information

SEAM-20-02.0-L-06-2-A-K-TR by Samtec Inc is a Header and Edge Type Connector.
Headers and Edge Type Connectors are under the broader part category of Connectors.

Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.

Price & Stock for SEAM-20-02.0-L-06-2-A-K-TR

Part # Distributor Description Stock Price Buy
DISTI # 68AJ2078
Newark Conn, Array Male, 120Pos, 6Row, 1.27Mm Rohs Compliant: Yes |Samtec SEAM-20-02.0-L-06-2-A-K-TR RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk 0
  • 1 $14.5000
  • 10 $13.3000
  • 25 $11.8700
  • 100 $10.2000
  • 250 $9.7300
$9.7300 / $14.5000 Buy Now
DISTI # SAM14386CT-ND
DigiKey CONN HD ARRAY PLUG 120P SMD GOLD Min Qty: 1 Lead time: 4 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) 228
In Stock
  • 1 $13.1700
  • 10 $12.5900
  • 25 $12.1172
  • 50 $11.2310
  • 100 $10.5570
  • 225 $9.6450
  • 450 $8.6250
$8.6250 / $13.1700 Buy Now
DISTI # 3937-SEAM-20-02.0-L-06-2-A-K-TR-ND
DigiKey CONN HD ARRAY PLUG 120P SMD GOLD Min Qty: 1 Lead time: 4 Weeks Container: Tape & Reel (TR) MARKETPLACE PRODUCT 81
In Stock
  • 1 $71.8400
$71.8400 Buy Now
DISTI # SEAM-20-02.0-L-06-2-A-K-TR
Avnet Americas Mezzanine Connector, High Density Array, Male, 1.27 mm, 6 Rows, 120 Contacts, Surface Mount - Tape and Reel (Alt: SEAM-20-02.0-L-06-2-A-K-TR) COO: Costa Rica RoHS: Compliant Min Qty: 225 Package Multiple: 225 Lead time: 1 Weeks, 0 Days Container: Tape & Reel 111 Factory Stock
  • 225 $9.3880
  • 450 $8.0626
  • 675 $6.9750
  • 1,125 $6.0414
  • 2,250 $5.9463
$5.9463 / $9.3880 Buy Now
DISTI # 200-SEAM2002.0L062AK
Mouser Electronics Board to Board & Mezzanine Connectors .050 SEARAY High-Speed High-Density Open-Pin-Field Array Terminal RoHS: Compliant 2
  • 1 $13.1700
  • 10 $12.5900
  • 25 $12.1200
  • 50 $11.2400
  • 100 $9.6500
  • 225 $9.6500
  • 450 $8.2100
  • 900 $7.0300
$7.0300 / $13.1700 Buy Now
Onlinecomponents.com .050" SEARAY™ High-Speed High-Density Open-Pin-Field Array Terminal COO: Costa Rica RoHS: Compliant 0
  • 3 $13.2800
  • 25 $11.5000
  • 100 $9.4600
  • 250 $8.0100
  • 500 $7.9700
  • 1,000 $7.9300
$7.9300 / $13.2800 Buy Now
DISTI # 85153567
Verical Conn Open Pin Field Array HDR 120 POS 1.27mm Solder ST Top Entry SMD SEARAY™ T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Americas - 66
  • 1 $11.3857
$11.3857 Buy Now
DISTI # SEAM2002.0L062AKTR
TTI Board to Board & Mezzanine Connectors RoHS: Compliant pbFree: Pb-Free Min Qty: 225 Package Multiple: 225 Container: Reel Americas - 0
  • 225 $9.6500
$9.6500 Buy Now
DISTI # 5cd917a7cd7c1c4c386f748d
Samtec .050" SEARAY™ High-Speed High-Density Open-Pin-Field Array Terminal RoHS: Compliant Min Qty: 1 Lead time: 0 Weeks, 1 Days Container: Tape & Reel 66
  • 1 $13.1660
  • 10 $12.5900
  • 25 $12.1170
  • 50 $11.2310
  • 100 $9.6450
  • 250 $8.2070
  • 500 $7.0220
  • 1,000 $6.0210
$6.0210 / $13.1660 Buy Now
DISTI # 85153567
Verical Conn Open Pin Field Array HDR 120 POS 1.27mm Solder ST Top Entry SMD SEARAY™ T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Americas - 66
  • 1 $11.3857
$11.3857 Buy Now
Powell Electronics .050 SEARAY High-Speed High-Density Open Min Qty: 1 44
  • 1 $13.1700
  • 10 $12.5900
  • 25 $12.1200
  • 50 $11.2300
  • 100 $9.6500
$9.6500 / $13.1700 Buy Now
DISTI # 000000000002911634
Sager Board to Board & Mezzanine Connectors .050 SEARAY High-Speed High-Density Open-Pin-Field Array Terminal Min Qty: 1 66
  • 1 $13.1700
  • 10 $12.5900
  • 25 $12.1200
  • 50 $11.2300
  • 100 $9.6500
  • 250 $8.2100
$8.2100 / $13.1700 Buy Now
DISTI # 85153567
Verical Conn Open Pin Field Array HDR 120 POS 1.27mm Solder ST Top Entry SMD SEARAY™ T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Americas - 66
  • 1 $11.3857
$11.3857 Buy Now
DISTI # SEAM-20-02.0-L-06-2-A-K-TR
Avnet Abacus Mezzanine Connector High Density Array Male 127 mm 6 Rows 120 Contacts Surface Mount (Alt: SEAM-20-02.0-L-06-2-A-K-TR) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 4 Weeks, 0 Days Abacus - 0
Buy Now
DISTI # SEAM-20-02.0-L-06-2-A-K-TR
Avnet Asia Mezzanine Connector, High Density Array, Male, 1.27 mm, 6 Rows, 120 Contacts, Surface Mount (Alt: SEAM-20-02.0-L-06-2-A-K-TR) RoHS: Compliant Min Qty: 225 Package Multiple: 225 Lead time: 10 Weeks, 0 Days 0
RFQ
LCSC 1.27mm 6 120P Surface MountVertical SMDP1.27mm Arrays Edge Type Mezzanine (Board to Board) RoHS 14
  • 1 $10.9378
  • 10 $10.5695
$10.5695 / $10.9378 Buy Now
Master Electronics .050" SEARAY™ High-Speed High-Density Open-Pin-Field Array Terminal COO: Costa Rica RoHS: Compliant 0
  • 3 $13.2800
  • 25 $11.5000
  • 100 $9.4600
  • 250 $8.0100
  • 500 $7.9700
  • 1,000 $7.9300
$7.9300 / $13.2800 Buy Now

US Tariff Estimator: SEAM-20-02.0-L-06-2-A-K-TR by Samtec Inc

Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

SEAM-20-02.0-L-06-2-A-K-TR
Samtec Inc
Please specify a country of origin.
$
Please specify an import value in USD.
Estimator Results:
Tariff Percentage Tariff Calculation
Import Value
$.
Total Duty
$.
Total Estimate
$.
$.
Based on tariff data from

Part Details for SEAM-20-02.0-L-06-2-A-K-TR

SEAM-20-02.0-L-06-2-A-K-TR CAD Models

  • Part Symbol

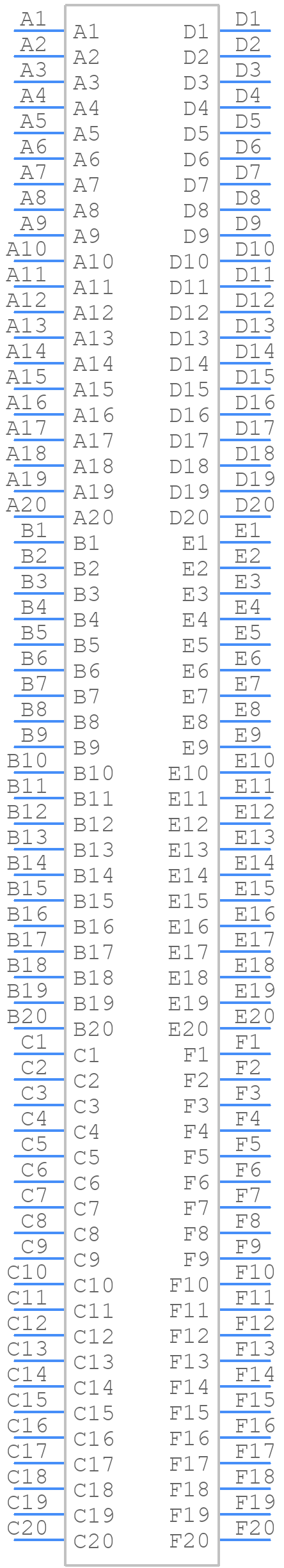

    schematic symbol

  • Footprint

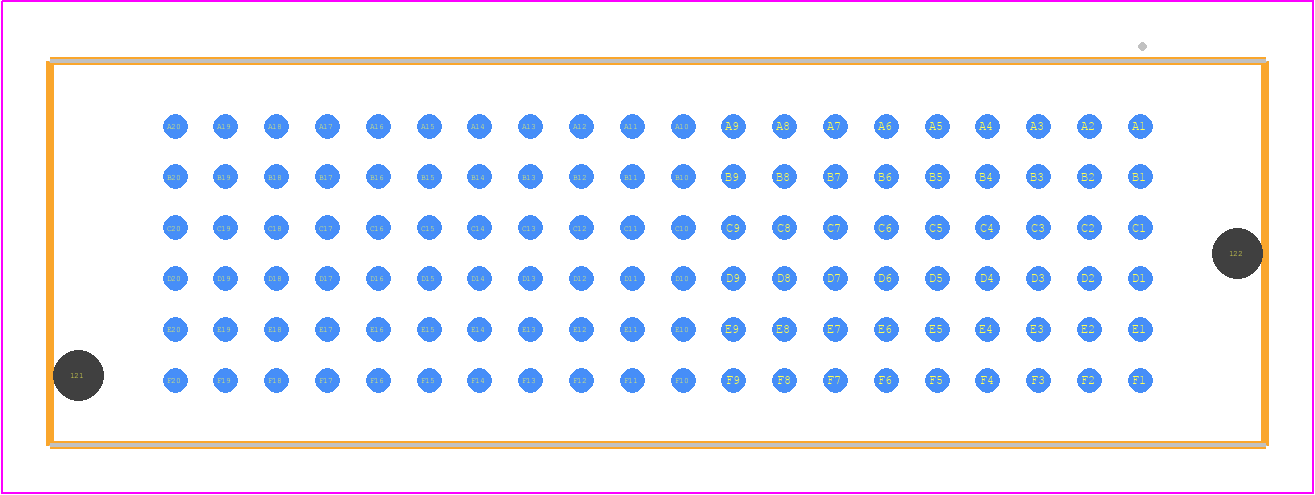

    pcb footprint

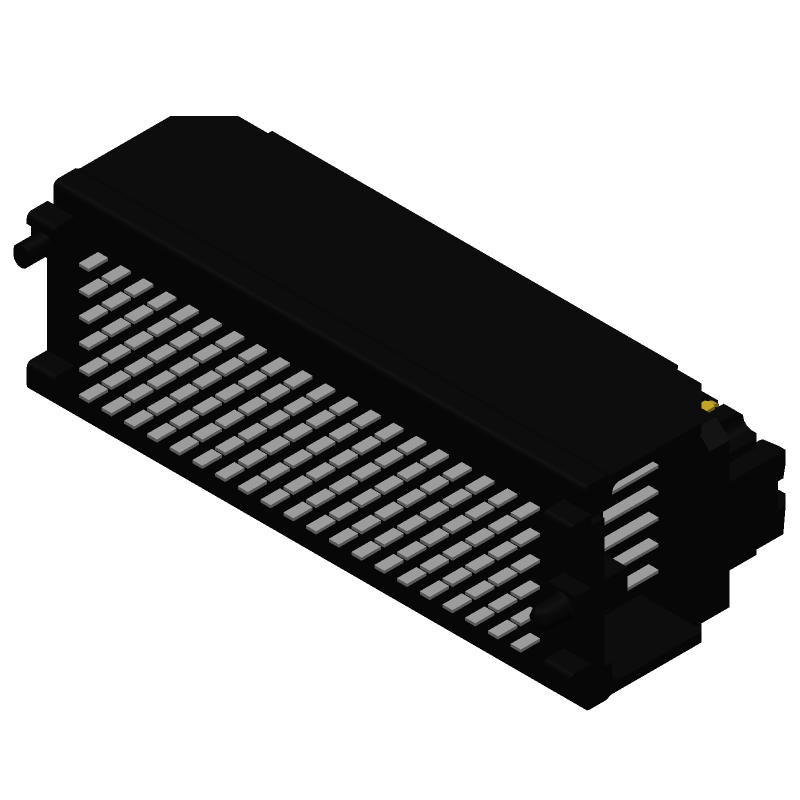

  • 3D Model
