SEAM-20-03.5-L-06-2-A-K-TR by: Samtec Inc

Board Stacking Connector, 120 Contact(s), 6 Row(s), Male, Straight, Surface Mount Terminal, ROHS COMPLIANT

Part Details for SEAM-20-03.5-L-06-2-A-K-TR by Samtec Inc

Results Overview of SEAM-20-03.5-L-06-2-A-K-TR by Samtec Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Automotive

SEAM-20-03.5-L-06-2-A-K-TR Information

SEAM-20-03.5-L-06-2-A-K-TR by Samtec Inc is a Header and Edge Type Connector.
Headers and Edge Type Connectors are under the broader part category of Connectors.

Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.

Price & Stock for SEAM-20-03.5-L-06-2-A-K-TR

Part # Distributor Description Stock Price Buy
DISTI # 3937-SEAM-20-03.5-L-06-2-A-K-TR-ND
DigiKey CONN HD ARRAY PLUG 120P SMD GOLD Min Qty: 1 Lead time: 6 Weeks Container: Tape & Reel (TR) MARKETPLACE PRODUCT 173
In Stock
  • 1 $38.2100
$38.2100 Buy Now
DISTI # SEAM-20-03.5-L-06-2-A-K-TR-ND
DigiKey CONN HD ARRAY PLUG 120P SMD GOLD Min Qty: 1 Lead time: 6 Weeks Container: Tape & Reel (TR) Temporarily Out of Stock
  • 200 $10.2600
$10.2600 Buy Now
DISTI # SEAM-20-03.5-L-06-2-A-K-TR
Avnet Americas Conn Open Pin Field Array HDR 120 POS 1.27mm Solder ST SMD T/R - Tape and Reel (Alt: SEAM-20-03.5-L-06-2-A-K-TR) COO: Costa Rica RoHS: Compliant Min Qty: 200 Package Multiple: 200 Container: Tape & Reel 0
  • 200 $9.9880
  • 400 $8.5787
  • 600 $7.4213
  • 1,000 $6.4262
  • 2,000 $6.3250
$6.3250 / $9.9880 Buy Now
DISTI # 200-EAM20035L062AKTR
Mouser Electronics Board to Board & Mezzanine Connectors .050 SEARAY High-Speed High-Density Open-Pin-Field Array Terminal RoHS: Compliant 0
  • 1 $14.0100
  • 10 $13.4000
  • 25 $12.9000
  • 50 $11.9500
  • 100 $10.2700
  • 200 $10.2700
  • 400 $8.7400
  • 1,000 $6.4100
$6.4100 / $14.0100 Order Now
Onlinecomponents.com .050" SEARAY™ High-Speed High-Density Open-Pin-Field Array Terminal COO: Costa Rica RoHS: Compliant 0
  • 3 $11.4400
  • 25 $10.8700
  • 100 $9.6000
  • 250 $8.4000
  • 500 $7.3700
  • 1,000 $6.4900
$6.4900 / $11.4400 Buy Now
DISTI # 5cd91829cd7c1c4c38700a61
Samtec .050" SEARAY™ High-Speed High-Density Open-Pin-Field Array Terminal RoHS: Compliant Min Qty: 1 Lead time: 2 Weeks, 0 Days Container: Tape & Reel 0
  • 1 $14.0070
  • 10 $13.3940
  • 25 $12.8910
  • 50 $11.9480
  • 100 $10.2620
  • 250 $8.7320
  • 500 $7.4710
  • 1,000 $6.4050
$6.4050 / $14.0070 Buy Now
DISTI # 000000000003083918
Sager Board to Board & Mezzanine Connectors .050 SEARAY High-Speed High-Density Open-Pin-Field Array Terminal Min Qty: 1 0
  • 1 $14.0100
  • 10 $13.3900
  • 25 $12.8900
  • 50 $11.9500
  • 100 $10.2600
  • 250 $8.7300
$8.7300 / $14.0100 Buy Now
DISTI # SEAM-20-03.5-L-06-2-A-K-TR
Avnet Abacus Conn Open Pin Field Array HDR 120 POS 127mm Solder ST SMD TR (Alt: SEAM-20-03.5-L-06-2-A-K-TR) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 8 Weeks, 0 Days Abacus - 0
Buy Now
Master Electronics .050" SEARAY™ High-Speed High-Density Open-Pin-Field Array Terminal COO: Costa Rica RoHS: Compliant 0
  • 3 $11.4400
  • 25 $10.8700
  • 100 $9.6000
  • 250 $8.4000
  • 500 $7.3700
  • 1,000 $6.4900
$6.4900 / $11.4400 Buy Now

US Tariff Estimator: SEAM-20-03.5-L-06-2-A-K-TR by Samtec Inc

Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

SEAM-20-03.5-L-06-2-A-K-TR
Samtec Inc
Please specify a country of origin.
$
Please specify an import value in USD.
Estimator Results:
Tariff Percentage Tariff Calculation
Import Value
$.
Total Duty
$.
Total Estimate
$.
$.
Based on tariff data from

Part Details for SEAM-20-03.5-L-06-2-A-K-TR

SEAM-20-03.5-L-06-2-A-K-TR CAD Models

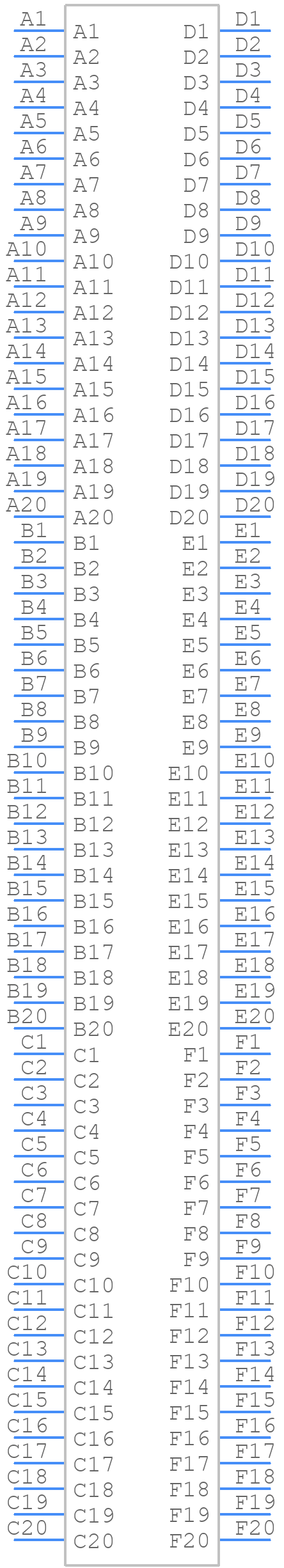

  • Part Symbol

    schematic symbol

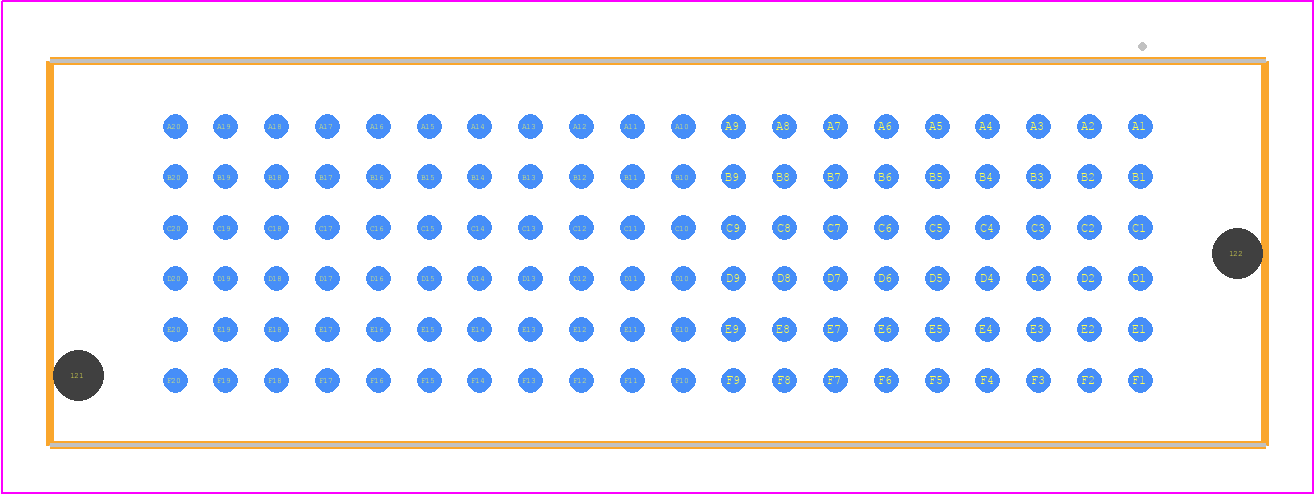

  • Footprint

    pcb footprint

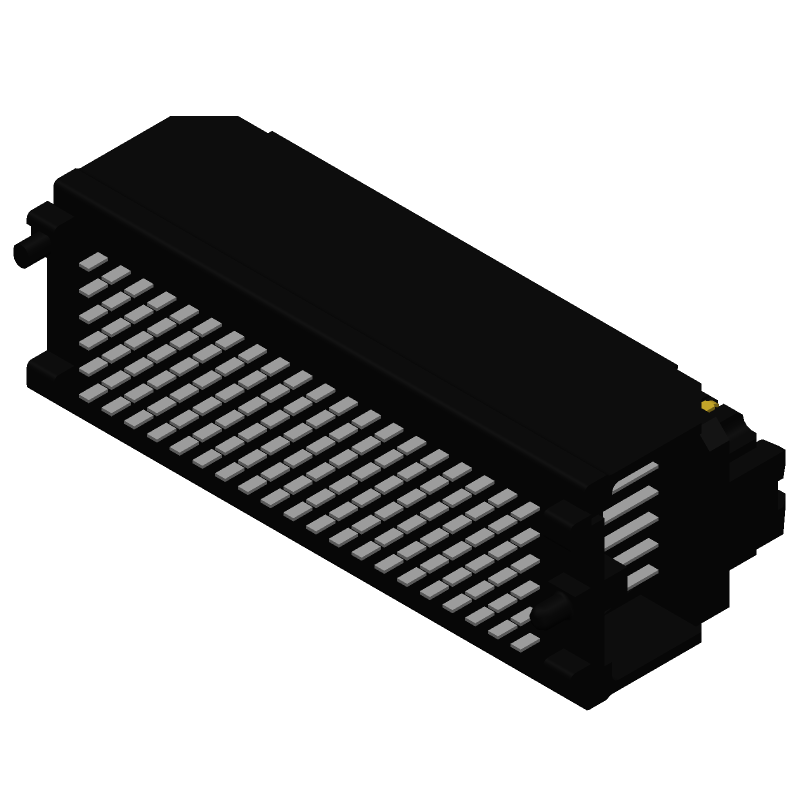

  • 3D Model

    2d presentation

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

SEAM-20-03.5-L-06-2-A-K-TR Part Data Attributes

Parametric Data
SEAM-20-03.5-L-06-2-A-K-TR Samtec Inc
Buy Now Datasheet
Compare Parts:
SEAM-20-03.5-L-06-2-A-K-TR Samtec Inc Board Stacking Connector, 120 Contact(s), 6 Row(s), Male, Straight, Surface Mount Terminal, ROHS COMPLIANT
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Package Description Rohs Compliant
Reach Compliance Code Compliant
ECCN Code EAR99
HTS Code 8536.69.40.40
Additional Feature Elp; Final Inch; Samarray; Searray
Board Mounting Option Peg
Body Breadth 0.378 Inch
Body Depth 0.28 Inch
Body Length 1.196 Inch
Connector Type Board Stacking Connector
Contact Finish Mating Gold (10) Over Nickel (50)
Contact Finish Termination Tin (Sn) - With Nickel (Ni) Barrier
Contact Gender Male
Contact Material Copper Alloy
Contact Pattern Rectangular
Contact Style Centronic
DIN Conformance No
Filter Feature No
IEC Conformance No
Insulator Color Black
JESD-609 Code e3
MIL Conformance No
Mating Contact Pitch 0.05 Inch
Mating Information Multiple Mating Parts Available
Mixed Contacts No
Mounting Style Straight
Mounting Type Board
Number Of Connectors One
Number Of PCB Rows 6
Number of Rows Loaded 6
Operating Temperature-Max 125 °C
Operating Temperature-Min -55 °C
Option General Purpose
PCB Contact Pattern Rectangular
PCB Contact Row Spacing 1.27 Mm
Plating Thickness 10u Inch
Rated Current (Signal) 2.7 A
Terminal Pitch 1.27 Mm
Termination Type Surface Mount
Total Number of Contacts 120
equivalents icon

SEAM-20-03.5-L-06-2-A-K-TR Related Parts

SEAM-20-03.5-L-06-2-A-K-TR Frequently Asked Questions (FAQ)

  • The recommended torque for the screw locks is 0.5-1.5 in-lbs (0.056-0.169 Nm) according to Samtec's application notes.

  • Yes, SEAM-20-03.5-L-06-2-A-K-TR is designed to withstand high-vibration environments. Samtec recommends following their guidelines for vibration testing and ensuring proper screw torque to ensure reliable connections.

  • The maximum operating temperature for SEAM-20-03.5-L-06-2-A-K-TR is 125°C (257°F) according to Samtec's datasheet and application notes.

  • SEAM-20-03.5-L-06-2-A-K-TR is designed to be resistant to harsh environments, including high humidity and exposure to certain chemicals. However, it's recommended to consult Samtec's environmental testing data and application notes for specific guidance.

  • The mating cycle life for SEAM-20-03.5-L-06-2-A-K-TR is 500 cycles minimum according to Samtec's datasheet and application notes.
