SEAM-20-03.5-S-10-2-A-K-TR Information
SEAM-20-03.5-S-10-2-A-K-TR by Samtec Inc is a Header and Edge Type Connector.
Headers and Edge Type Connectors are under the broader part category of Connectors.
Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| 74AC11000N | Texas Instruments | Quadruple 2-Input Positive-NAND Gates 16-PDIP -40 to 85 | |
| 74AC11004DW | Texas Instruments | Hex Inverters 20-SOIC -40 to 85 | |
| 74AC11074D | Texas Instruments | Dual Positive-Edge-Triggered D-Type Flip-Flops With Clear and Preset 14-SOIC -40 to 85 |
Price & Stock for SEAM-20-03.5-S-10-2-A-K-TR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
48AM4922
|
Newark | Conn .050 Searay High-Speed High-Density Rohs Compliant: Yes |Samtec SEAM-20-03.5-S-10-2-A-K-TR RoHS: Compliant Min Qty: 200 Package Multiple: 1 Date Code: 0 Container: Tape & Reel | 576 |
|
$16.8400 | Buy Now |
|
DISTI #
54AJ5376
|
Newark | Conn, Array Male, 200Pos, 10Row, 1.27Mm, Mezzanine Connector Type:High Density Array, Male, Pitch Spacing:1.27Mm, No. Of Rows:10Rows, No. Of Contacts:200Contacts, Connector Mounting:Surface Mount, Contact Material:Copper Alloy Rohs Compliant: Yes |Samtec SEAM-20-03.5-S-10-2-A-K-TR RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 66 |
|
$15.4200 / $21.0400 | Buy Now |
|
DISTI #
97P3992
|
Newark | Conn, Array Male, 200Pos, 10Row, 1.27Mm, Mezzanine Connector Type:High Density Array, Male, Pitch Spacing:1.27Mm, No. Of Rows:10Rows, No. Of Contacts:200Contacts, Connector Mounting:Surface Mount, Contact Material:Copper Alloy Rohs Compliant: Yes |Samtec SEAM-20-03.5-S-10-2-A-K-TR RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Tape & Reel | 0 |
|
Buy Now | |
|
DISTI #
SAM14399CT-ND
|
DigiKey | CONN HD ARRAY PLUG 200P SMD GOLD Min Qty: 1 Lead time: 4 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
214 In Stock |
|
$14.0640 / $22.3600 | Buy Now |
|
DISTI #
SEAM-20-03.5-S-10-2-A-K-TR
|
Avnet Americas | Mezzanine Connector, High Density Array, Male, 1.27 mm, 10 Rows, 200 Contacts, Surface Mount - Tape and Reel (Alt: SEAM-20-03.5-S-10-2-A-K-TR) COO: Costa Rica RoHS: Compliant Min Qty: 200 Package Multiple: 200 Lead time: 1 Weeks, 0 Days Container: Tape & Reel | 199 Factory Stock |
|
$10.0962 / $15.9440 | Buy Now |
|
DISTI #
200-SEAM2003.5S102AK
|
Mouser Electronics | Board to Board & Mezzanine Connectors .050 SEARAY High-Speed High-Density Open-Pin-Field Array Terminal RoHS: Compliant | 463 |
|
$12.9000 / $22.3600 | Buy Now |
|
|
Onlinecomponents.com | .050" SEARAY™ High-Speed High-Density Open-Pin-Field Array Terminal COO: Costa Rica RoHS: Compliant |
569 Partner Stock |
|
$10.5700 / $18.6400 | Buy Now |
|
DISTI #
68406916
|
Verical | Conn Open Pin Field Array HDR 200 POS 1.27mm Solder ST Top Entry SMD SEARAY™ T/R RoHS: Compliant Min Qty: 200 Package Multiple: 200 | Americas - 400 |
|
$14.5900 / $15.3600 | Buy Now |
|
DISTI #
85031362
|
Verical | Conn Open Pin Field Array HDR 200 POS 1.27mm Solder ST Top Entry SMD SEARAY™ T/R RoHS: Compliant Min Qty: 199 Package Multiple: 199 | Americas - 199 |
|
$22.9429 | Buy Now |
|
DISTI #
87335710
|
Verical | Conn Open Pin Field Array HDR 200 POS 1.27mm Solder ST Top Entry SMD SEARAY™ T/R RoHS: Compliant Min Qty: 3 Package Multiple: 1 | Americas - 10 |
|
$28.9565 | Buy Now |
US Tariff Estimator: SEAM-20-03.5-S-10-2-A-K-TR by Samtec Inc
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for SEAM-20-03.5-S-10-2-A-K-TR
SEAM-20-03.5-S-10-2-A-K-TR CAD Models
-

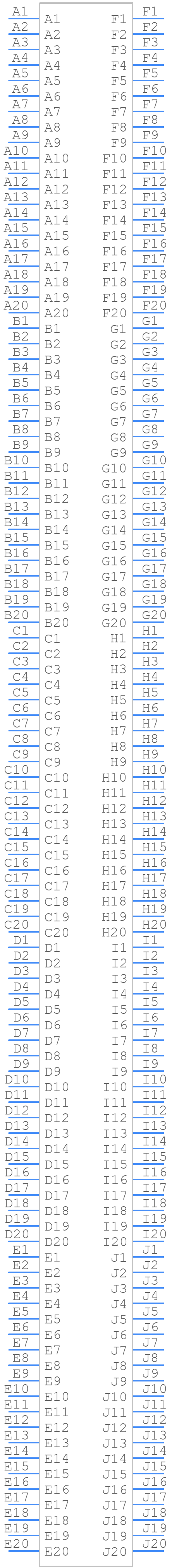

Part Symbol
-

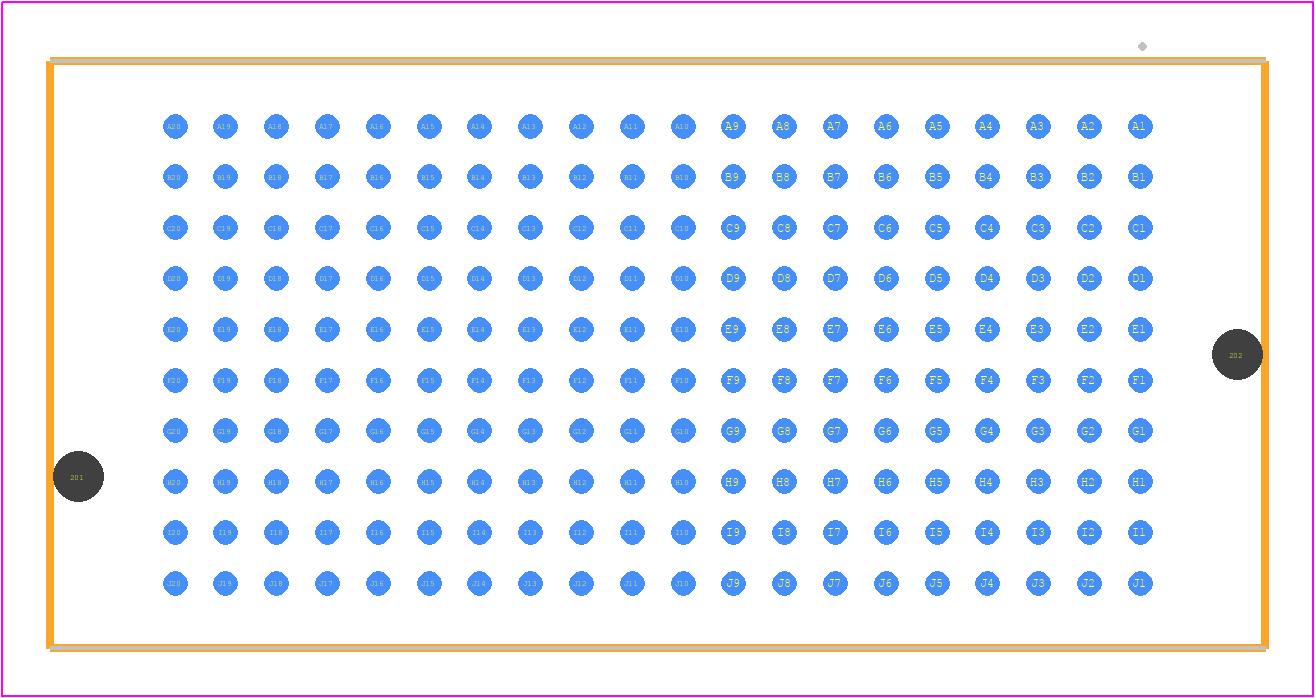

Footprint
