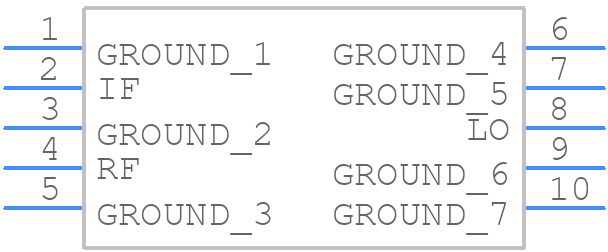

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for SIM-43MH+ by Mini-Circuits
Results Overview of SIM-43MH+ by Mini-Circuits
- Distributor Offerings: (4 listings)
- Number of FFF Equivalents: (0 replacements)
- Tariff Estimator: (Not Available)
- Number of Functional Equivalents: (1 option)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Environmental Monitoring
Automotive
SIM-43MH+ Information
SIM-43MH+ by Mini-Circuits is an RF/Microwave Mixer.
RF/Microwave Mixers are under the broader part category of RF and Microwave Components.
RF and Microwave Engineering focuses on the design and operation of devices that transmit or receive radio waves. The main distinction between RF and microwave engineering is their wavelength, which influences how energy is transmitted and used in various applications. Read more about RF and Microwave Components on our RF and Microwave part category page.
Price & Stock for SIM-43MH+
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
3157-SIM-43MH+TR-ND
|
DigiKey | IC MIX 824MHZ-4.2GHZ UP/DWN 8SMD Min Qty: 500 Lead time: 12 Weeks Container: Tape & Reel (TR) | Temporarily Out of Stock |
|
$8.0000 / $8.3500 | Buy Now |
|
DISTI #
139-SIM-43MH
|
Mouser Electronics | RF Mixer DBL BAL MIX / SURF MT / RoHS RoHS: Compliant | 111 |
|
$10.1600 / $21.8000 | Buy Now |
|
|
Bristol Electronics | 158 |
|
RFQ | ||
|
|
LCSC | SMD-8P RF Mixers RoHS | 3 |
|
$12.4702 / $12.9180 | Buy Now |
Part Details for SIM-43MH+
SIM-43MH+ CAD Models
SIM-43MH+ Part Data Attributes
|
|
SIM-43MH+
Mini-Circuits
Buy Now
Datasheet
|
Compare Parts:
SIM-43MH+
Mini-Circuits
Double Balanced Mixer, 824MHz Min, 4200MHz Max, 9.8dB Conversion Loss-Max
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Package Description | Case Hv1195, 8 Pin | |
| Reach Compliance Code | Unknown | |
| ECCN Code | EAR99 | |
| Construction | Component | |
| Conversion Loss-Max | 9.8 Db | |
| Input Power-Max (CW) | 17 Dbm | |
| Mounting Feature | Surface Mount | |
| Number of Terminals | 8 | |
| Operating Frequency-Max | 4200 Mhz | |
| Operating Frequency-Min | 824 Mhz | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | Plastic/Epoxy | |
| Package Equivalence Code | SOLCC8,.18 | |
| RF/Microwave Device Type | Double Balanced | |
| Surface Mount | Yes | |
| VSWR-Max | 8.86 |
Alternate Parts for SIM-43MH+
This table gives cross-reference parts and alternative options found for SIM-43MH+. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of SIM-43MH+, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| SIM-43+ | Mini-Circuits | Check for Price | Double Balanced Mixer, 750MHz Min, 4200MHz Max, 8.1dB Conversion Loss-Max | SIM-43MH+ vs SIM-43+ |
SIM-43MH+ Frequently Asked Questions (FAQ)
-
Mini-Circuits provides a recommended PCB layout and footprint in their application note AN-60-001, which can be found on their website. It's essential to follow this layout to ensure optimal performance and minimize parasitic effects.
-
The SIM-43MH+ has a 50 ohm input and output impedance. To impedance match, use a pi-network or a T-network topology with resistors and capacitors. Mini-Circuits also provides a impedance matching calculator tool on their website to help with the design.
-
The maximum power handling of the SIM-43MH+ is 1W. Exceeding this power limit can cause damage to the device. It's essential to ensure that the input power is within the specified limit to maintain the device's reliability and performance.
-
The SIM-43MH+ is rated for operation up to 85°C. While it can tolerate high temperatures, it's essential to derate the power handling and consider the thermal resistance of the device when operating in high-temperature environments.
-
Common issues with the SIM-43MH+ include poor return loss, high insertion loss, and mismatch. To troubleshoot, check the PCB layout, impedance matching, and soldering quality. Also, ensure that the device is properly biased and that the input power is within the specified limit.
