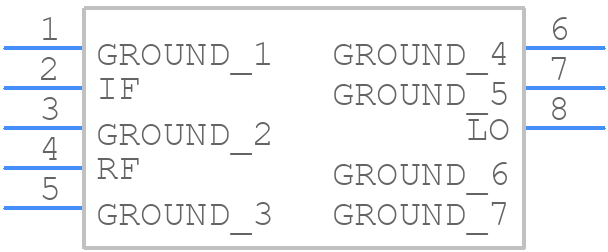

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for SIM-83+ by Mini-Circuits
Results Overview of SIM-83+ by Mini-Circuits
- Distributor Offerings: (4 listings)
- Number of FFF Equivalents: (0 replacements)
- Tariff Estimator: (Not Available)
- Number of Functional Equivalents: (0 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
SIM-83+ Information
SIM-83+ by Mini-Circuits is an RF/Microwave Mixer.
RF/Microwave Mixers are under the broader part category of RF and Microwave Components.
RF and Microwave Engineering focuses on the design and operation of devices that transmit or receive radio waves. The main distinction between RF and microwave engineering is their wavelength, which influences how energy is transmitted and used in various applications. Read more about RF and Microwave Components on our RF and Microwave part category page.
Price & Stock for SIM-83+
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
3157-SIM-83+CT-ND
|
DigiKey | IC MIX 2.3GHZ-8GHZ UP/DOWN 6SMD Min Qty: 1 Lead time: 12 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
2277 In Stock |
|
$8.8375 / $20.2400 | Buy Now |
|
DISTI #
139-SIM-83
|
Mouser Electronics | RF Mixer DBL BAL MIX / SURF MT / RoHS RoHS: Compliant | 531 |
|
$9.2200 / $20.2400 | Buy Now |
|
|
Bristol Electronics | 11 |
|
RFQ | ||
|
|
Quest Components | DOUBLE BALANCED MIXER, 2300MHZ MIN, 8000MHZ MAX, 8.9DB CONVERSION LOSS-MAX | 50 |
|
$8.3558 / $12.8550 | Buy Now |
Part Details for SIM-83+

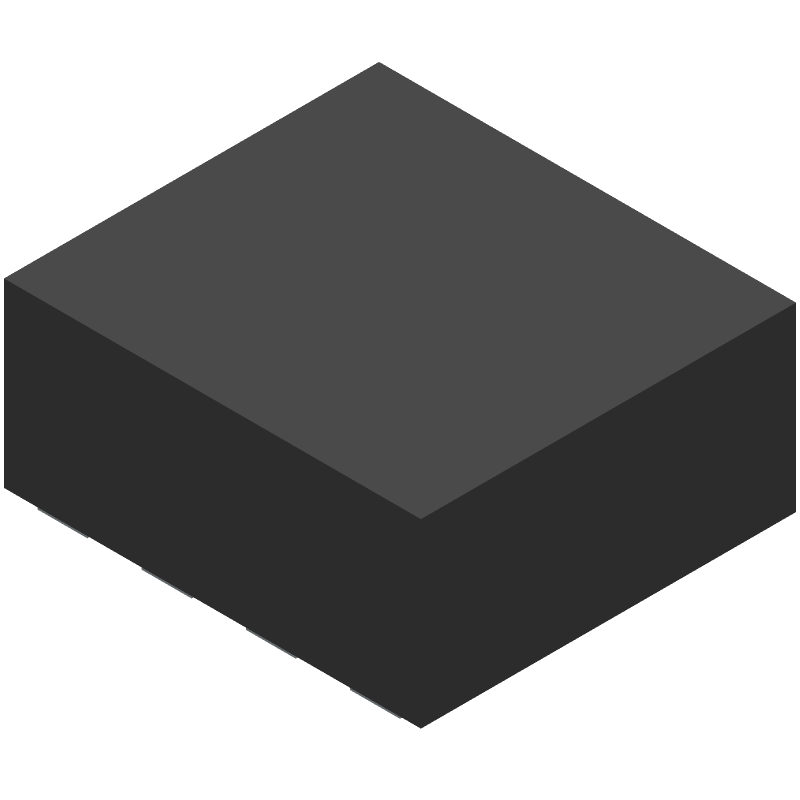

SIM-83+ CAD Models
SIM-83+ Part Data Attributes
|
|
SIM-83+
Mini-Circuits
Buy Now
Datasheet
|
Compare Parts:
SIM-83+
Mini-Circuits
Double Balanced Mixer, 2300MHz Min, 8000MHz Max, 8.9dB Conversion Loss-Max
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Package Description | Hv1195, 8 Pin | |
| Reach Compliance Code | Not Compliant | |
| ECCN Code | EAR99 | |
| Construction | Component | |
| Conversion Loss-Max | 8.9 Db | |
| Input Power-Max (CW) | 17 Dbm | |
| JESD-609 Code | e4 | |
| Mounting Feature | Surface Mount | |
| Number of Terminals | 8 | |
| Operating Frequency-Max | 8000 Mhz | |
| Operating Frequency-Min | 2300 Mhz | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | Plastic/Epoxy | |
| Package Equivalence Code | SOLCC8,.2 | |
| RF/Microwave Device Type | Double Balanced | |
| Surface Mount | Yes | |
| Terminal Finish | Palladium Silver | |
| VSWR-Max | 4.27 |
