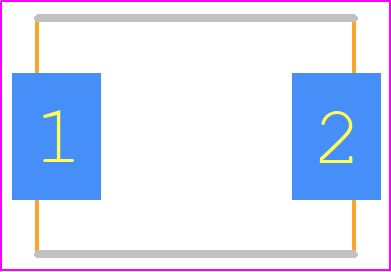

Footprint
-

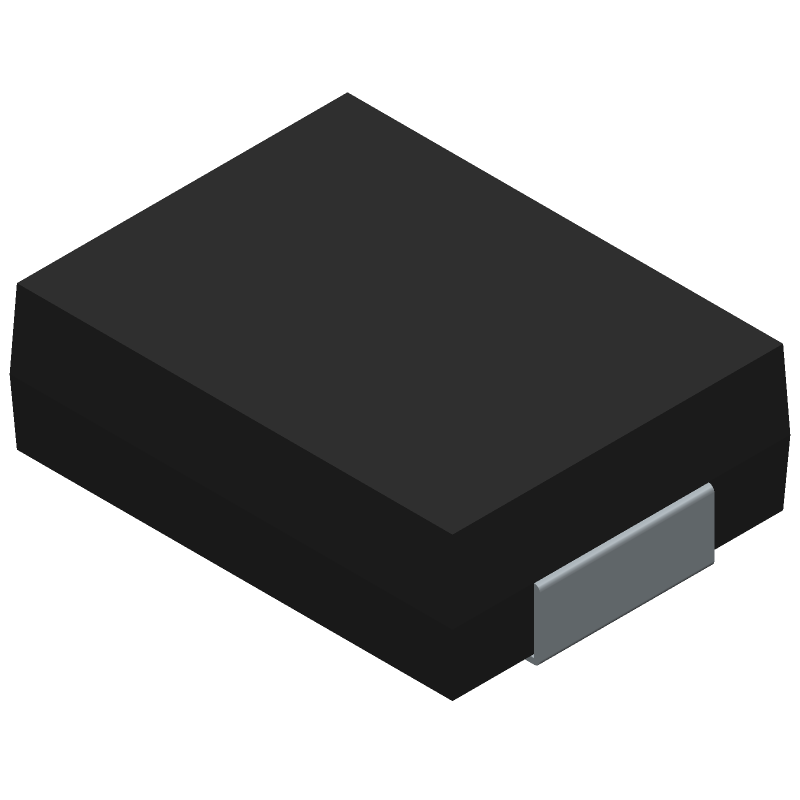

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Trans Voltage Suppressor Diode, 1500W, 170V V(RWM), Bidirectional, 1 Element, Silicon, DO-214AB, HALOGEN FREE AND ROHS COMPLIANT, PLASTIC, SMCJ, 2 PIN
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Part # | Distributor | Description | Stock | Price | Buy | |
---|---|---|---|---|---|---|
DISTI #
51AK5698
|
Newark | Transient Suppressor Diode, single, bidirectional,170V V(Rwm),do-214Ab/Smc Rohs Compliant: Yes |Littelfuse SMCJ170CA Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 1670 |
|
$0.2770 / $0.3280 | Buy Now |
DISTI #
71J2159
|
Newark | Transient Suppressor Diode, single, bidirectional,170V V(Rwm),do-214Ab/Smc Rohs Compliant: Yes |Littelfuse SMCJ170CA Min Qty: 3000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.2100 / $0.2370 | Buy Now |
DISTI #
SMCJ170CALFCT-ND
|
DigiKey | TVS DIODE 170VWM 275VC DO214AB Min Qty: 1 Lead time: 13 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
7950 In Stock |
|
$0.1904 / $0.6600 | Buy Now |
DISTI #
576-SMCJ170CA
|
Mouser Electronics | ESD Suppressors / TVS Diodes 1.5kW 170V 5% Bi-Directional RoHS: Compliant | 9458 |
|
$0.1900 / $0.6200 | Buy Now |
DISTI #
V72:2272_06470357
|
Arrow Electronics | TVS Diode Single Bi-Dir 170V 1.5KW 2-Pin SMC T/R Min Qty: 1 Package Multiple: 1 Lead time: 13 Weeks Date Code: 1742 Container: Cut Strips | Americas - 3001 |
|
$0.1745 / $0.6102 | Buy Now |
|
Future Electronics | SMCJ Series 275 V 1.5 kW Surface Mount Bi-Directional TVS Diode - DO-214AB RoHS: Compliant pbFree: Yes Min Qty: 3000 Package Multiple: 3000 Lead time: 13 Weeks Container: Reel | 0Reel |
|
$0.1780 / $0.1910 | Buy Now |
|
Future Electronics | SMCJ Series 275 V 1.5 kW Surface Mount Bi-Directional TVS Diode - DO-214AB RoHS: Compliant pbFree: Yes Min Qty: 3000 Package Multiple: 3000 Lead time: 13 Weeks Container: Reel | 0Reel |
|
$0.1780 / $0.1910 | Buy Now |
|
Bristol Electronics | Min Qty: 7 | 158 |
|
$0.2250 / $0.7500 | Buy Now |
|
Quest Components | Transient Suppressor Diode, Single, Bi-Directional, 170 Volt, DO-214AB / SMC | 126 |
|
$0.3000 / $1.0000 | Buy Now |
|
Quest Components | Transient Suppressor Diode, Single, Bi-Directional, 170 Volt, DO-214AB / SMC | 2398 |
|
$0.4795 / $1.3700 | Buy Now |
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
|
SMCJ170CA
Littelfuse Inc
Buy Now
Datasheet
|
Compare Parts:
SMCJ170CA
Littelfuse Inc
Trans Voltage Suppressor Diode, 1500W, 170V V(RWM), Bidirectional, 1 Element, Silicon, DO-214AB, HALOGEN FREE AND ROHS COMPLIANT, PLASTIC, SMCJ, 2 PIN
|
Pbfree Code | No | |
Rohs Code | Yes | |
Part Life Cycle Code | Active | |
Ihs Manufacturer | LITTELFUSE INC | |
Part Package Code | DO-214AB | |
Package Description | SMCJ, 2 PIN | |
Pin Count | 2 | |
Reach Compliance Code | not_compliant | |
ECCN Code | EAR99 | |
HTS Code | 8541.10.00.50 | |
Samacsys Manufacturer | LITTELFUSE | |
Additional Feature | EXCELLENT CLAMPING CAPABILITY, LOW INDUCTANCE | |
Breakdown Voltage-Max | 209 V | |
Breakdown Voltage-Min | 189 V | |
Breakdown Voltage-Nom | 199 V | |
Clamping Voltage-Max | 275 V | |
Configuration | SINGLE | |
Diode Element Material | SILICON | |
Diode Type | TRANS VOLTAGE SUPPRESSOR DIODE | |
JEDEC-95 Code | DO-214AB | |
JESD-30 Code | R-PDSO-C2 | |
JESD-609 Code | e3 | |
Moisture Sensitivity Level | 1 | |
Non-rep Peak Rev Power Dis-Max | 1500 W | |
Number of Elements | 1 | |
Number of Terminals | 2 | |
Operating Temperature-Max | 150 °C | |
Operating Temperature-Min | -65 °C | |
Package Body Material | PLASTIC/EPOXY | |
Package Shape | RECTANGULAR | |
Package Style | SMALL OUTLINE | |
Peak Reflow Temperature (Cel) | 260 | |
Polarity | BIDIRECTIONAL | |
Power Dissipation-Max | 6.5 W | |
Qualification Status | Not Qualified | |
Reference Standard | UL RECOGNIZED | |
Rep Pk Reverse Voltage-Max | 170 V | |
Reverse Current-Max | 1 µA | |
Reverse Test Voltage | 170 V | |
Surface Mount | YES | |
Technology | AVALANCHE | |
Terminal Finish | MATTE TIN | |
Terminal Form | C BEND | |
Terminal Position | DUAL | |
Time@Peak Reflow Temperature-Max (s) | 40 |
