SN65LVDM22D Information
SN65LVDM22D by Texas Instruments is a Line Driver or Receiver.
Line Driver or Receivers are under the broader part category of Drivers And Interfaces.
A driver controls the current or voltage delivered to components like LCDs or motors, while an interface component connects systems for data transfer and control. Read more about Drivers And Interfaces on our Drivers And Interfaces part category page.
Price & Stock for SN65LVDM22D
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Rochester Electronics | Line Transceiver, 2 Func, 2 Driver, 2 Rcvr, PDSO16 RoHS: Compliant Status: Active Min Qty: 1 | 25488 |
|
$5.3300 / $6.6600 | Buy Now |
|
|
Ameya Holding Limited | IC MULTIPLEXER LVDS 1CH 16SOIC | 14369 |
|
RFQ |
US Tariff Estimator: SN65LVDM22D by Texas Instruments
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for SN65LVDM22D
SN65LVDM22D CAD Models
-

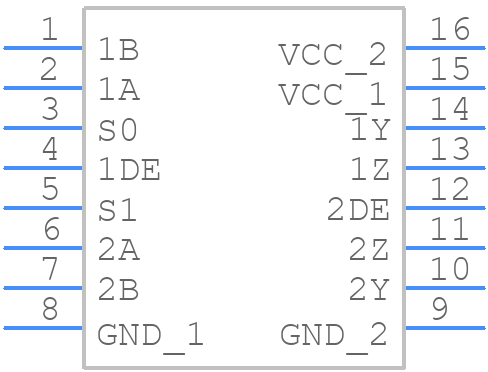

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
SN65LVDM22D Part Data Attributes
|
|
SN65LVDM22D
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
SN65LVDM22D
Texas Instruments
Dual multiplexed LVDM repeater 16-SOIC -40 to 85
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Part Package Code | SOIC | |
| Package Description | Sop, | |
| Pin Count | 16 | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.60 | |
| Differential Output | Yes | |
| Driver Number of Bits | 2 | |
| Input Characteristics | Differential | |
| Interface IC Type | Line Transceiver | |
| Interface Standard | Eia-644; Tia-644 | |
| JESD-30 Code | R-PDSO-G16 | |
| JESD-609 Code | e4 | |
| Length | 9.9 Mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 2 | |
| Number of Terminals | 16 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Characteristics | Differential | |
| Output Low Current-Max | 0.00001 A | |
| Output Polarity | Complementary | |
| Package Body Material | Plastic/Epoxy | |
| Package Code | SOP | |
| Package Shape | Rectangular | |
| Package Style | Small Outline | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Receive Delay-Max | 6 Ns | |
| Receiver Number of Bits | 2 | |
| Seated Height-Max | 1.75 Mm | |
| Supply Current-Max | 27 Ma | |
| Supply Voltage-Max | 3.6 V | |
| Supply Voltage-Min | 3 V | |
| Supply Voltage-Nom | 3.3 V | |
| Supply Voltage1-Max | 3.6 V | |
| Supply Voltage1-Min | 3 V | |
| Supply Voltage1-Nom | 3.3 V | |
| Surface Mount | Yes | |
| Temperature Grade | Industrial | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | Gull Wing | |
| Terminal Pitch | 1.27 Mm | |
| Terminal Position | Dual | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Transmit Delay-Max | 6 Ns | |
| Width | 3.9 Mm |
Alternate Parts for SN65LVDM22D
This table gives cross-reference parts and alternative options found for SN65LVDM22D. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of SN65LVDM22D, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| SN65LVDT122D | Texas Instruments | $5.5952 | 2x2 1.5-Gbps LVDS crosspoint switch 16-SOIC -40 to 85 | SN65LVDM22D vs SN65LVDT122D |
| SN65LVDM22DRG4 | Texas Instruments | Check for Price | DUAL LINE TRANSCEIVER, PDSO16, GREEN, MS-012AC, SOIC-16 | SN65LVDM22D vs SN65LVDM22DRG4 |
| SN65LVDM22DG4 | Texas Instruments | Check for Price | Dual multiplexed LVDM repeater 16-SOIC -40 to 85 | SN65LVDM22D vs SN65LVDM22DG4 |
SN65LVDM22D Frequently Asked Questions (FAQ)
-
The maximum cable length depends on the specific application and the signal frequency. As a general rule, the maximum cable length for LVDS signals is around 10-15 meters. However, it's recommended to consult the TI application note 'LVDS Owner's Manual' (SLWC073) for more detailed information on cable length and signal integrity.
-
While the SN65LVDM22D is designed specifically for LVDS applications, it can be used for other differential signaling standards like RS-422 or RS-485 with some limitations. However, it's essential to consult the datasheet and application notes to ensure the device meets the specific requirements of the target application.
-
Proper termination is crucial for maintaining signal integrity in LVDS applications. The SN65LVDM22D datasheet recommends using a 100-ohm differential termination resistor at the receiving end of the cable. Additionally, it's essential to follow the guidelines outlined in the TI application note 'LVDS Owner's Manual' (SLWC073) for proper termination and signal routing.
-
The SN65LVDM22D is designed to support data rates up to 400 Mbps. However, the actual data rate may vary depending on the specific application, cable length, and signal quality. It's recommended to consult the datasheet and application notes for more detailed information on data rate and signal integrity.
-
The SN65LVDM22D is rated for operation up to 85°C (junction temperature). However, it's essential to consult the datasheet and application notes for more detailed information on thermal management and derating guidelines for high-temperature applications.
