SPC560P50L5BEFAR by: STMicroelectronics

RISC Microcontroller, 32-Bit, FLASH, 64MHz, CMOS

Part Details for SPC560P50L5BEFAR by STMicroelectronics

Results Overview of SPC560P50L5BEFAR by STMicroelectronics

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Transportation and Logistics Healthcare Automotive

SPC560P50L5BEFAR Information

SPC560P50L5BEFAR by STMicroelectronics is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.

Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.

Price & Stock for SPC560P50L5BEFAR

Part # Distributor Description Stock Price Buy
DISTI # SPC560P50L5BEFAR-ND
DigiKey IC MCU 32BIT 512KB FLASH 144LQFP Min Qty: 500 Lead time: 20 Weeks Container: Tape & Reel (TR) Temporarily Out of Stock
  • 500 $4.7720
$4.7720 Buy Now
DISTI # SPC560P50L5BEFAR
Avnet Americas MCU 32-Bit SPC560P50x e200z0 RISC 512KB Flash 5V 144-Pin LQFP T/R - Tape and Reel (Alt: SPC560P50L5BEFAR) COO: Taiwan (Province of China) RoHS: Compliant Min Qty: 500 Package Multiple: 500 Lead time: 20 Weeks, 0 Days Container: Tape & Reel 0
  • 500 $4.8247
  • 1,000 $4.7004
  • 2,000 $4.6765
  • 4,000 $4.6527
  • 8,000 $4.6288
$4.6288 / $4.8247 Buy Now
DISTI # 511-SPC560P50L5BEFAR
Mouser Electronics 32-bit Microcontrollers - MCU 32-bit Pwr Architect MCU Auto Chassis RoHS: Compliant 0
  • 500 $4.7700
  • 1,000 $4.7000
$4.7000 / $4.7700 Order Now
STMicroelectronics 32-bit Power Architecture MCU for Automotive Chassis and Safety Applications COO: Taiwan RoHS: Compliant Min Qty: 1 0
  • 500 $4.6800
$4.6800 Buy Now
DISTI # SPC560P50L5BEFAR
Avnet Silica MCU 32Bit SPC560P50x e200z0 RISC 512KB Flash 5V 144Pin LQFP TR (Alt: SPC560P50L5BEFAR) RoHS: Compliant Min Qty: 500 Package Multiple: 500 Lead time: 21 Weeks, 0 Days Silica - 0
Buy Now
DISTI # SPC560P50L5BEFAR
EBV Elektronik MCU 32Bit SPC560P50x e200z0 RISC 512KB Flash 5V 144Pin LQFP TR (Alt: SPC560P50L5BEFAR) RoHS: Compliant Min Qty: 500 Package Multiple: 500 Lead time: 21 Weeks, 0 Days EBV - 0
Buy Now
Vyrian Active 8596
RFQ

US Tariff Estimator: SPC560P50L5BEFAR by STMicroelectronics

Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

SPC560P50L5BEFAR
STMicroelectronics
Please specify a country of origin.
$
Please specify an import value in USD.
Estimator Results:
Tariff Percentage Tariff Calculation
Import Value
$.
Total Duty
$.
Total Estimate
$.
$.
Based on tariff data from

Part Details for SPC560P50L5BEFAR

SPC560P50L5BEFAR CAD Models

  • Part Symbol

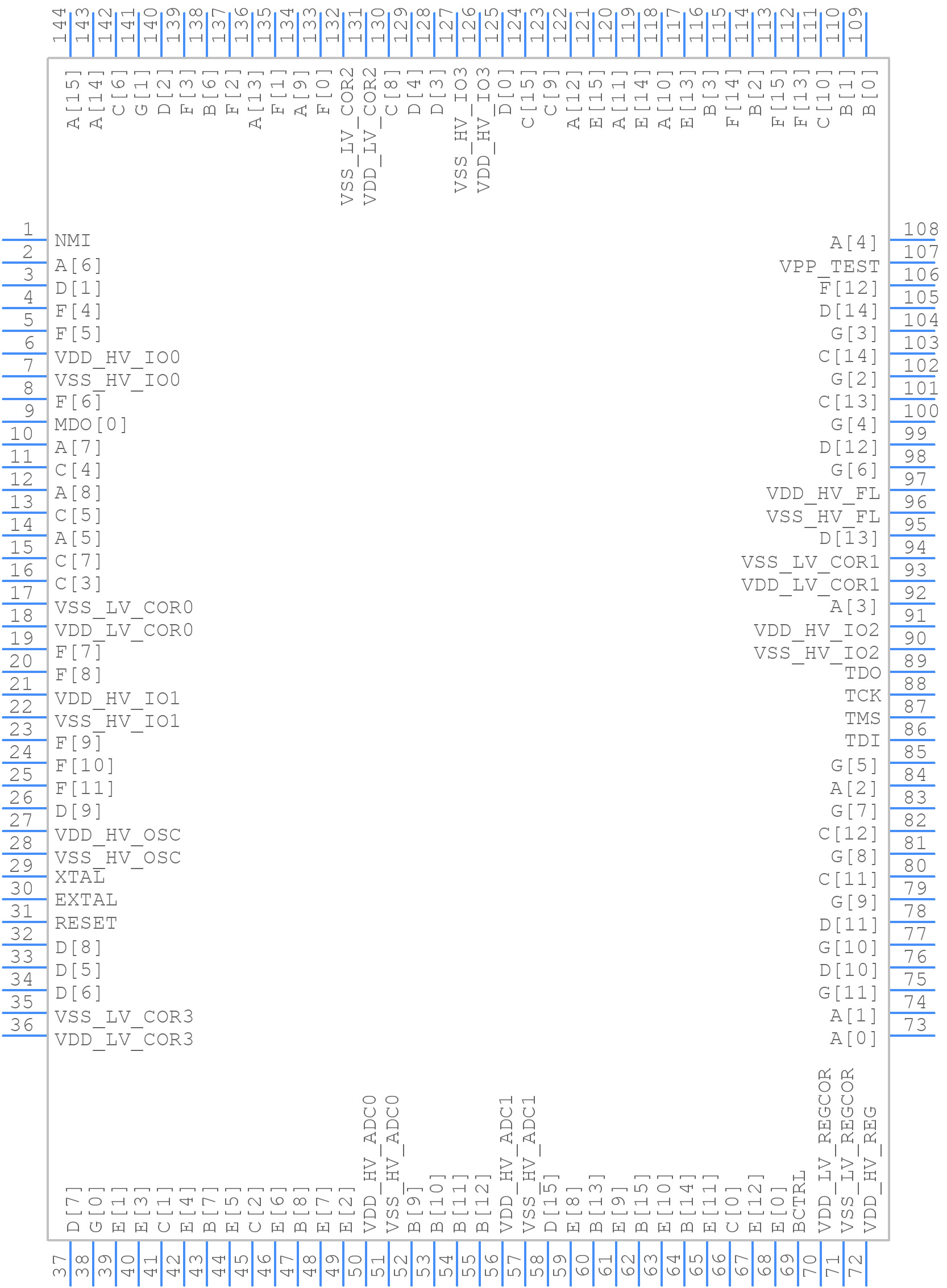

    schematic symbol

  • Footprint

    pcb footprint

  • 3D Model

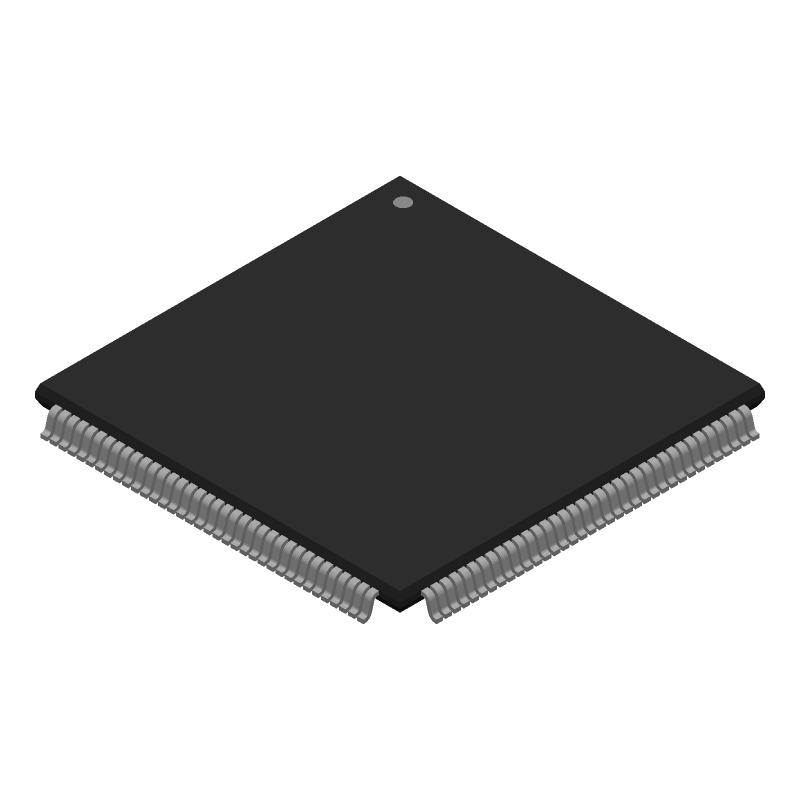

    2d presentation

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

SPC560P50L5BEFAR Part Data Attributes

Parametric Data
SPC560P50L5BEFAR STMicroelectronics
Buy Now Datasheet
Compare Parts:
SPC560P50L5BEFAR STMicroelectronics RISC Microcontroller, 32-Bit, FLASH, 64MHz, CMOS
Rohs Code Yes
Part Life Cycle Code Active
Package Description Qfp,
Reach Compliance Code Compliant
ECCN Code 5A991.B.4.A
HTS Code 8542.31.00.01
Factory Lead Time 26 Weeks
Has ADC Yes
Address Bus Width 32
Bit Size 32
Clock Frequency-Max 16 Mhz
DMA Channels Yes
External Data Bus Width 32
JESD-609 Code e3
Length 22 Mm
Moisture Sensitivity Level 3
Number of I/O Lines 108
Number of Terminals 144
On Chip Data RAM Width 8
On Chip Program ROM Width 8
PWM Channels Yes
Package Code QFP
Package Shape Square
Package Style Flatpack
Peak Reflow Temperature (Cel) 260
RAM (bytes) 40960
ROM (words) 524288
ROM Programmability Flash
Speed 64 Mhz
Supply Voltage-Max 3.465 V
Supply Voltage-Min 2.97 V
Supply Voltage-Nom 3.3 V
Surface Mount Yes
Technology Cmos
Terminal Finish Matte Tin (Sn) - Annealed
Terminal Form Gull Wing
Terminal Pitch 0.5 Mm
Terminal Position Quad
Width 22 Mm
uPs/uCs/Peripheral ICs Type Microcontroller, Risc
equivalents icon

SPC560P50L5BEFAR Related Parts

SPC560P50L5BEFAR Frequently Asked Questions (FAQ)

  • The SPC560P50L5BEFAR can operate from -40°C to 125°C, but it's recommended to operate within -40°C to 105°C for optimal performance and reliability.

  • The clock settings can be configured using the Clock Generation Unit (CGU) module. You can use the STMicroelectronics' SPC5Studio development environment or write your own code to configure the clock settings. Refer to the SPC560P50L5BEFAR user manual for more information.

  • The maximum frequency of the CPU is 80 MHz, and the peripherals can operate at a maximum frequency of 40 MHz.

  • The SPC560P50L5BEFAR has several low-power modes, including Sleep, Stop, and Standby modes. You can use the Power Management Unit (PMU) module to configure and control these modes. Refer to the SPC560P50L5BEFAR user manual for more information.

  • The SPC560P50L5BEFAR has 512 KB of Flash memory and 64 KB of RAM.
