ST8024CTR Information
ST8024CTR by STMicroelectronics is an Other Interface IC.
Other Interface ICs are under the broader part category of Drivers And Interfaces.
A driver controls the current or voltage delivered to components like LCDs or motors, while an interface component connects systems for data transfer and control. Read more about Drivers And Interfaces on our Drivers And Interfaces part category page.
Price & Stock for ST8024CTR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
497-11969-1-ND
|
DigiKey | IC INTERFACE SPECIALIZED 28TSSOP Container: Cut Tape |
0 Cut Tape |
|
Buy Now | |
|
DISTI #
497-11969-6-ND
|
DigiKey | IC INTERFACE SPECIALIZED 28TSSOP Container: Digi-Reel |
0 Digi-Reel® |
|
Buy Now | |
|
DISTI #
497-11969-2-ND
|
DigiKey | IC INTERFACE SPECIALIZED 28TSSOP Container: Tape & Reel |
0 Tape & Reel |
|
Buy Now | |
|
DISTI #
511-ST8024CTR
|
Mouser Electronics | Smart Card Interface ICs Smartcard Interface 3 or 5V 40nA 20 MHz RoHS: Compliant | 0 |
|
Order Now | |
|
|
Chip Stock | ST8024 Series 2.7 to 6.5 V Surface Mount Smartcard Interface - TSSOP-28 | 3272 |
|
RFQ | |
|
|
Vyrian | Interface Circuit, PDSO28 | 3965 |
|
RFQ | |
|
|
Win Source Electronics | IC SMARTCARD INTERFACE 28TSSOP | 4709 |
|
$1.2144 / $1.8215 | Buy Now |
ST8024CTR CAD Models
-

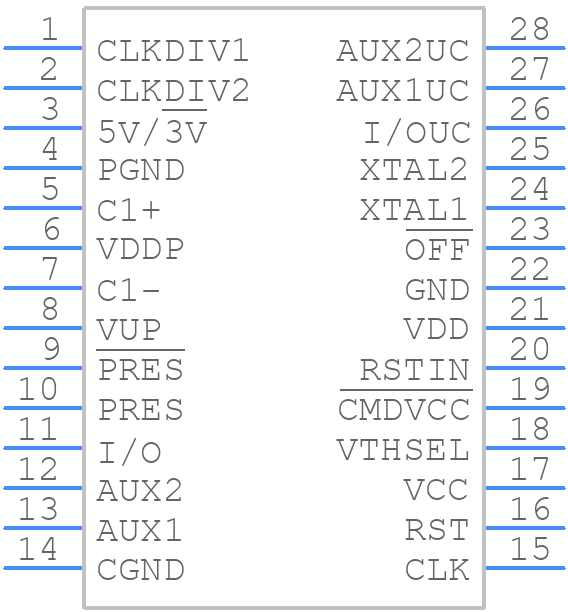

Part Symbol
-

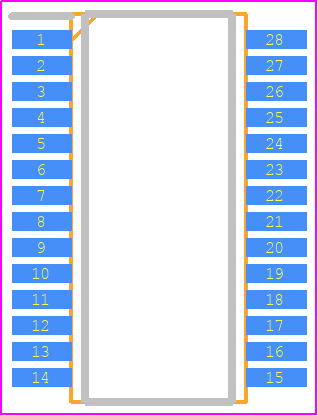

Footprint
-

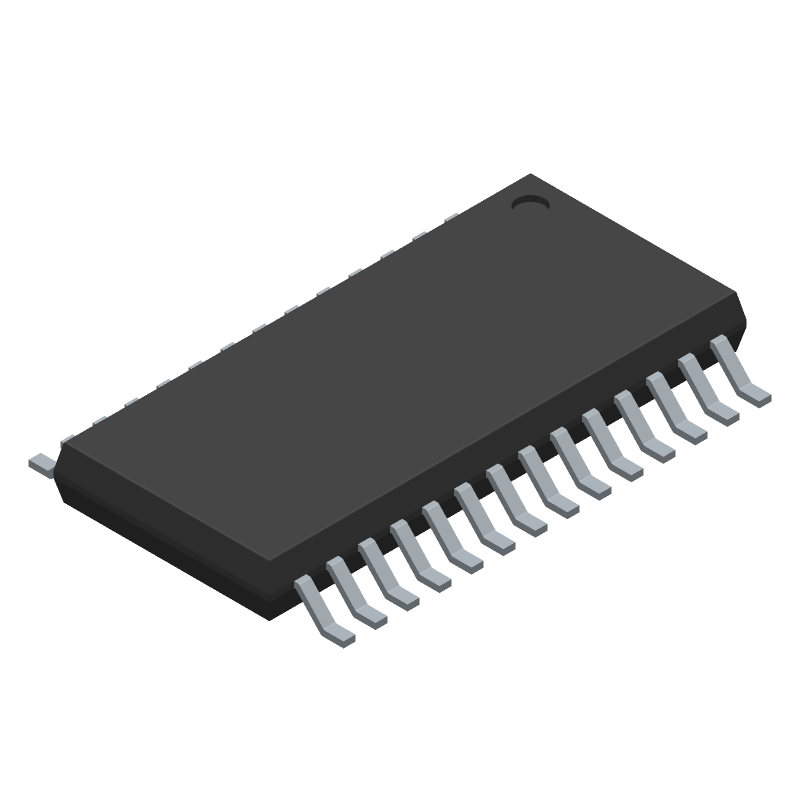

3D Model
