STC3100IST Information
STC3100IST by STMicroelectronics is a Power Management Circuit.
Power Management Circuits are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for STC3100IST
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
55T3932
|
Newark | Batt Supervisor & Monitor, -40 To 85Degc, Battery Type:Li-Ion, Interfaces:I2C, No. Of Cells:1Cells, Supply Voltage Min:2.7V, Supply Voltage Max:5.5V, Ic Case/Package:Msop, No. Of Pins:8Pins, Operating Temperature Min:-40°C Rohs Compliant: Yes |Stmicroelectronics STC3100IST RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 249 |
|
$1.6200 / $2.9500 | Buy Now |
|
DISTI #
497-10526-1-ND
|
DigiKey | IC BATT MON LI-ION 1CELL 8MINISO Min Qty: 1 Lead time: 12 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
3088 In Stock |
|
$1.5397 / $2.9500 | Buy Now |
|
DISTI #
55T3932
|
Avnet Americas | Battery Monitoring Li-Ion 8-Pin MSOP T/R - Product that comes on tape, but is not reeled (Alt: 55T3932) COO: France RoHS: Compliant Min Qty: 1 Package Multiple: 1 Container: Ammo Pack | 249 Partner Stock |
|
$1.6600 / $2.9500 | Buy Now |
|
DISTI #
STC3100IST
|
Avnet Americas | Battery Monitoring Li-Ion 8-Pin MSOP T/R - Tape and Reel (Alt: STC3100IST) COO: France RoHS: Compliant Min Qty: 4000 Package Multiple: 4000 Lead time: 12 Weeks, 0 Days Container: Tape & Reel | 0 |
|
$1.4215 / $1.6246 | Buy Now |
|
DISTI #
511-STC3100IST
|
Mouser Electronics | Battery Management Battery Monitor IC 32-Ram 12/14 ADC 8B RoHS: Compliant | 4030 |
|
$1.5300 / $2.9500 | Buy Now |
|
DISTI #
70521168
|
RS | STC3100IST, BATTERY FUEL GAUGE IC LITHIUM-ION, 2.7 - 5.5 V, 8-PIN, MSOP Min Qty: 5 Package Multiple: 1 Container: Bulk | 0 |
|
$4.2500 / $5.0100 | RFQ |
|
|
STMicroelectronics | Battery monitor IC with Coulomb counter/gas gauge COO: France RoHS: Compliant Min Qty: 1 | 4030 |
|
$1.6400 / $2.8900 | Buy Now |
|
|
Future Electronics | STC3100 Series 5.5 V 100 uA Surface Mount Gas Gauge IC with Alarm Output -MSOP-8 RoHS: Compliant pbFree: Yes Min Qty: 4000 Package Multiple: 4000 Lead time: 12 Weeks Container: Reel | 0Reel |
|
$1.3900 | Buy Now |
|
|
Bristol Electronics | 2023 |
|
RFQ | ||
|
|
Quest Components | 168 |
|
$2.0563 / $3.3345 | Buy Now |
US Tariff Estimator: STC3100IST by STMicroelectronics
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for STC3100IST
STC3100IST CAD Models
-

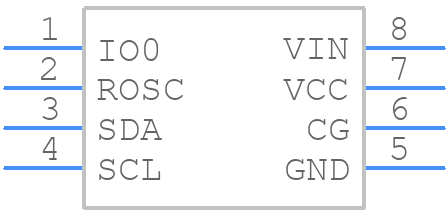

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
STC3100IST Part Data Attributes
|
|
STC3100IST
STMicroelectronics
Buy Now
Datasheet
|
Compare Parts:
STC3100IST
STMicroelectronics
Fixed, 1 Channel, PDSO8
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Part Package Code | SOIC | |
| Package Description | Tssop, Tssop8,.19 | |
| Pin Count | 8 | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Factory Lead Time | 12 Weeks | |
| Adjustable Threshold | No | |
| Analog IC - Other Type | Battery Gauge | |
| JESD-30 Code | S-PDSO-G8 | |
| JESD-609 Code | e4 | |
| Length | 3 Mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Channels | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | Plastic/Epoxy | |
| Package Code | TSSOP | |
| Package Equivalence Code | TSSOP8,.19 | |
| Package Shape | Square | |
| Package Style | Small Outline, Thin Profile, Shrink Pitch | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.1 Mm | |
| Supply Current-Max (Isup) | 0.1 Ma | |
| Supply Voltage-Max (Vsup) | 5.5 V | |
| Supply Voltage-Min (Vsup) | 2.7 V | |
| Supply Voltage-Nom (Vsup) | 3.6 V | |
| Surface Mount | Yes | |
| Temperature Grade | Industrial | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | Gull Wing | |
| Terminal Pitch | 0.65 Mm | |
| Terminal Position | Dual | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 3 Mm |
