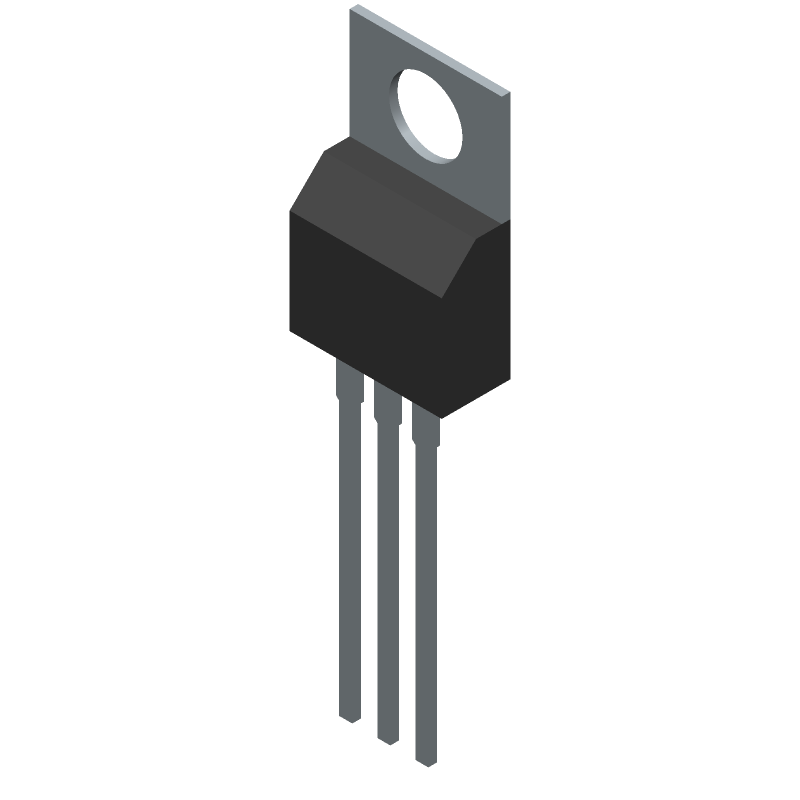

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for STF18N65DM2 by STMicroelectronics
Results Overview of STF18N65DM2 by STMicroelectronics
- Distributor Offerings: (4 listings)
- Number of FFF Equivalents: (0 replacements)
- Tariff Estimator: (Not Available)
- Number of Functional Equivalents: (0 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Energy and Power Systems
Medical Imaging
Robotics and Drones
STF18N65DM2 Information
STF18N65DM2 by STMicroelectronics is a Power Field-Effect Transistor.
Power Field-Effect Transistors are under the broader part category of Transistors.
A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.
Price & Stock for STF18N65DM2
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
497-STF18N65DM2-ND
|
DigiKey | DISCRETE Min Qty: 1000 Container: Bulk |
0 Bulk |
|
$1.2663 | Buy Now |
|
DISTI #
STF18N65DM2
|
Avnet Americas | - Tape and Reel (Alt: STF18N65DM2) COO: China RoHS: Not Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 18 Weeks, 0 Days Container: Tape & Reel | 0 |
|
$1.2284 / $1.2537 | Buy Now |
|
DISTI #
511-STF18N65DM2
|
Mouser Electronics | MOSFETs N-channel 650 V, 231 mOhm typ., 12 A, MDmesh DM2 Power MOSFET in a TO-220FP pack RoHS: Compliant | 0 |
|
$1.1700 / $1.2600 | Order Now |
|
DISTI #
STF18N65DM2
|
Avnet Silica | (Alt: STF18N65DM2) RoHS: Compliant Min Qty: 50 Package Multiple: 50 Lead time: 19 Weeks, 0 Days | Silica - 0 |
|
RFQ |
Part Details for STF18N65DM2
STF18N65DM2 CAD Models
STF18N65DM2 Part Data Attributes
|
|
STF18N65DM2
STMicroelectronics
Buy Now
Datasheet
|
Compare Parts:
STF18N65DM2
STMicroelectronics
Power Field-Effect Transistor, 12A I(D), 650V, 0.295ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-220AB
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Package Description | To-220fp, 3 Pin | |
| ECCN Code | EAR99 | |
| Factory Lead Time | 16 Weeks | |
| Avalanche Energy Rating (Eas) | 482 Mj | |
| Case Connection | Isolated | |
| Configuration | Single With Built-In Diode | |
| DS Breakdown Voltage-Min | 650 V | |
| Drain Current-Max (ID) | 12 A | |
| Drain-source On Resistance-Max | 0.295 Ω | |
| FET Technology | Metal-Oxide Semiconductor | |
| Feedback Cap-Max (Crss) | 0.45 Pf | |
| JEDEC-95 Code | TO-220AB | |
| JESD-30 Code | R-PSFM-T3 | |
| Number of Elements | 1 | |
| Number of Terminals | 3 | |
| Operating Mode | Enhancement Mode | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Body Material | Plastic/Epoxy | |
| Package Shape | Rectangular | |
| Package Style | Flange Mount | |
| Polarity/Channel Type | N-Channel | |
| Power Dissipation-Max (Abs) | 28 W | |
| Pulsed Drain Current-Max (IDM) | 36 A | |
| Surface Mount | No | |
| Terminal Finish | Matte Tin (Sn) - Annealed | |
| Terminal Form | Through-Hole | |
| Terminal Position | Single | |
| Transistor Application | Switching | |
| Transistor Element Material | Silicon |
