STLED316SMTR Information
STLED316SMTR by STMicroelectronics is a Display Controller.
Display Controllers are under the broader part category of Microcontrollers and Processors.
Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.
Price & Stock for STLED316SMTR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
45AC7613
|
Newark | Led Controller W/ Keyscan, 14 O/P, Soic, No. Of Channels:14Channels, Output Current Max:-, Output Voltage Max:-, Ic Case/Package:Soic, No. Of Pins:24Pins, Input Voltage Min:4.5V, Input Voltage Max:5.5V, Ic Mounting:Surface Mount Rohs Compliant: Yes |Stmicroelectronics STLED316SMTR RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 1364 |
|
$1.2300 / $1.3400 | Buy Now |
|
DISTI #
497-6925-1-ND
|
DigiKey | IC INTERFACE SPECIALIZED 24SO Min Qty: 1 Lead time: 14 Weeks Container: Tape & Reel (TR), Digi-Reel®, Cut Tape (CT) |
3552 In Stock |
|
$1.0842 / $2.1800 | Buy Now |
|
DISTI #
STLED316SMTR
|
Avnet Americas | Linear LED Driver, 4.5 V to 5.5 V, 40 mA, 24 Pins, SOIC - Tape and Reel (Alt: STLED316SMTR) COO: Taiwan (Province of China) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 14 Weeks, 0 Days Container: Tape & Reel | 0 |
|
$1.0094 / $1.1536 | Buy Now |
|
DISTI #
511-STLED316SMTR
|
Mouser Electronics | LED Lighting Driver ICs LED Front Panel 3V SUPPLY RoHS: Compliant | 3094 |
|
$1.0500 / $2.1800 | Buy Now |
|
DISTI #
E54:1762_09181062
|
Arrow Electronics | LED Driver 8 Segment 15000uA Supply Current 24-Pin SO T/R COO: Malaysia RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 14 Weeks Date Code: 2508 | Europe - 11000 |
|
$0.9323 / $0.9561 | Buy Now |
|
DISTI #
V36:1790_06561030
|
Arrow Electronics | LED Driver 8 Segment 15000uA Supply Current 24-Pin SO T/R COO: Malaysia RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 14 Weeks Date Code: 2509 | Americas - 1000 |
|
$0.9739 / $1.1158 | Buy Now |
|
|
STMicroelectronics | Serial-interfaced 6-digit LED controller with keyscan COO: Taiwan RoHS: Compliant Min Qty: 1 | 3124 |
|
$1.1800 / $2.1400 | Buy Now |
|
|
Future Electronics | STLED316S Series 40mA 1MHz 6 Serial-Interfaced 6-digit LED Controller w/Keyscan RoHS: Compliant pbFree: Yes Min Qty: 1000 Package Multiple: 1000 Lead time: 14 Weeks Container: Reel | 0Reel |
|
$0.9850 / $1.0200 | Buy Now |
|
DISTI #
21829752
|
Verical | LED Driver 8 Segment 15000uA Supply Current 24-Pin SO T/R RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 | Americas - 11000 |
|
$0.9323 | Buy Now |
|
DISTI #
89526244
|
Verical | LED Driver 8 Segment 15000uA Supply Current 24-Pin SO T/R RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Date Code: 2509 | Americas - 1000 |
|
$0.9739 / $1.1158 | Buy Now |
US Tariff Estimator: STLED316SMTR by STMicroelectronics
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for STLED316SMTR
STLED316SMTR CAD Models
-

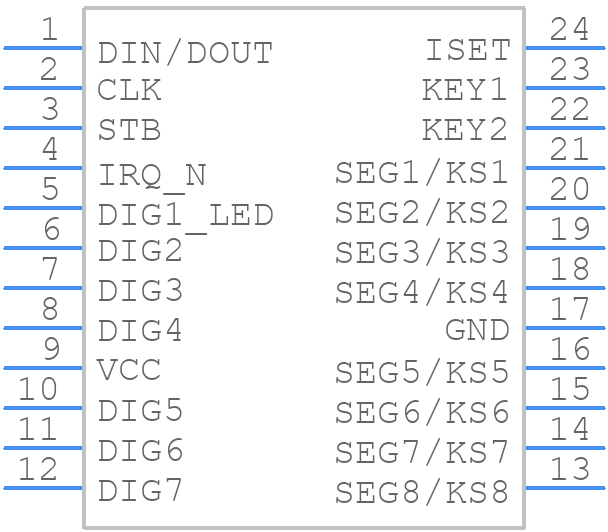

Part Symbol
-

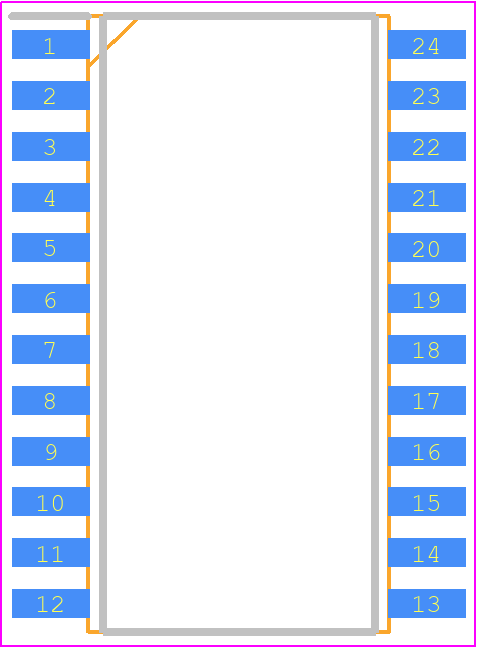

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
STLED316SMTR Part Data Attributes
|
|
STLED316SMTR
STMicroelectronics
Buy Now
Datasheet
|
Compare Parts:
STLED316SMTR
STMicroelectronics
Serial-interfaced 6-digit LED controller with keyscan
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Part Package Code | SOIC | |
| Package Description | Rohs Compliant, Sop-24 | |
| Pin Count | 24 | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.31.00.01 | |
| Factory Lead Time | 12 Weeks | |
| Address Bus Width | ||
| Clock Frequency-Max | 0.6 Mhz | |
| Display Configuration | 4 X 17 Segments | |
| External Data Bus Width | ||
| JESD-30 Code | R-PDSO-G24 | |
| JESD-609 Code | e4 | |
| Length | 15.4 Mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Terminals | 24 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | Plastic/Epoxy | |
| Package Code | SOP | |
| Package Shape | Rectangular | |
| Package Style | Small Outline | |
| Peak Reflow Temperature (Cel) | 250 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 2.65 Mm | |
| Supply Voltage-Max | 5.5 V | |
| Supply Voltage-Min | 4.5 V | |
| Supply Voltage-Nom | 5 V | |
| Surface Mount | Yes | |
| Technology | Cmos | |
| Temperature Grade | Industrial | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | Gull Wing | |
| Terminal Pitch | 1.27 Mm | |
| Terminal Position | Dual | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 7.5 Mm | |
| uPs/uCs/Peripheral ICs Type | Display Controller, Segment Led Driver |
