Microcontrollers and Processors / Microcontrollers / STM32F051R6T7
Datasheets
STM32F051R6T7 by: STMicroelectronics

RISC Microcontroller, 32-Bit, FLASH, CORTEX-M0 CPU, 48MHz, CMOS, PQFP64

Part Details for STM32F051R6T7 by STMicroelectronics

Results Overview of STM32F051R6T7 by STMicroelectronics

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Consumer Electronics Internet of Things (IoT) Smart Cities Automotive

STM32F051R6T7 Information

STM32F051R6T7 by STMicroelectronics is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.

Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.

Price & Stock for STM32F051R6T7

Part # Distributor Description Stock Price Buy
DISTI # 497-STM32F051R6T7-ND
DigiKey IC MCU 32BIT 32KB FLASH 64LQFP Min Qty: 960 Lead time: 13 Weeks Container: Bulk Temporarily Out of Stock
  • 960 $2.3655
$2.3655 Buy Now
DISTI # STM32F051R6T7
Avnet Americas MCU 32-Bit ARM Cortex M0 RISC 32KB Flash 2V to 3.6V 64-Pin LQFP Tray - Trays (Alt: STM32F051R6T7) COO: Singapore RoHS: Not Compliant Min Qty: 960 Package Multiple: 960 Lead time: 13 Weeks, 0 Days Container: Tray 0
  • 960 $2.4057
  • 1,920 $2.3300
  • 3,840 $2.3182
  • 5,760 $2.3063
  • 7,680 $2.2945
$2.2945 / $2.4057 Buy Now
DISTI # 511-STM32F051R6T7
Mouser Electronics ARM Microcontrollers - MCU Mainstream Arm Cortex-M0 Access line MCU 32 Kbytes 48 MHz CPU motor control CEC RoHS: Compliant 0
  • 960 $2.3500
  • 2,880 $2.3000
$2.3000 / $2.3500 Order Now
DISTI # STM32F051R6T7
Avnet Silica MCU 32Bit ARM Cortex M0 RISC 32KB Flash 2V to 36V 64Pin LQFP Tray (Alt: STM32F051R6T7) RoHS: Compliant Min Qty: 160 Package Multiple: 160 Lead time: 14 Weeks, 0 Days Silica - 480
Buy Now
DISTI # STM32F051R6T7
EBV Elektronik MCU 32Bit ARM Cortex M0 RISC 32KB Flash 2V to 36V 64Pin LQFP Tray (Alt: STM32F051R6T7) RoHS: Compliant Min Qty: 160 Package Multiple: 160 Lead time: 14 Weeks, 0 Days EBV - 0
Buy Now
Vyrian Active 6954
RFQ

US Tariff Estimator: STM32F051R6T7 by STMicroelectronics

Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

STM32F051R6T7
STMicroelectronics
Please specify a country of origin.
$
Please specify an import value in USD.
Estimator Results:
Tariff Percentage Tariff Calculation
Import Value
$.
Total Duty
$.
Total Estimate
$.
$.
Based on tariff data from

Part Details for STM32F051R6T7

STM32F051R6T7 CAD Models

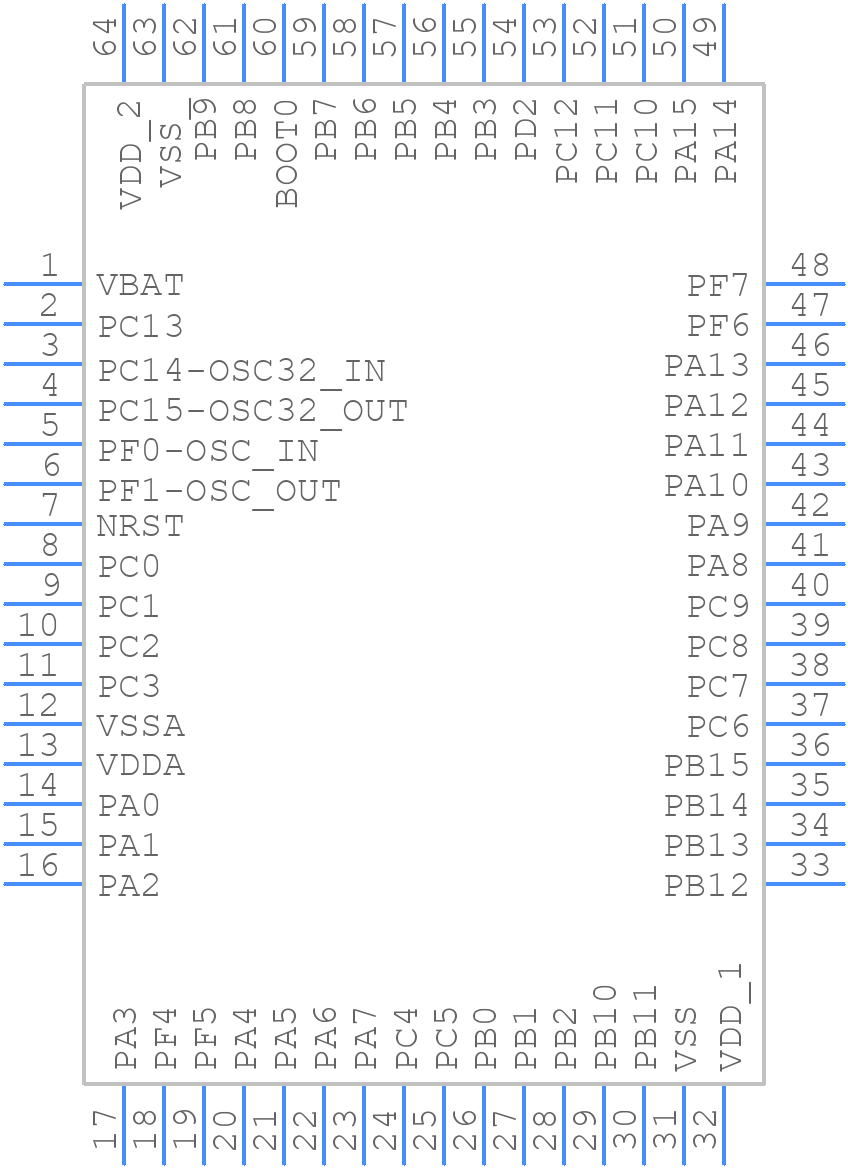

  • Part Symbol

    schematic symbol

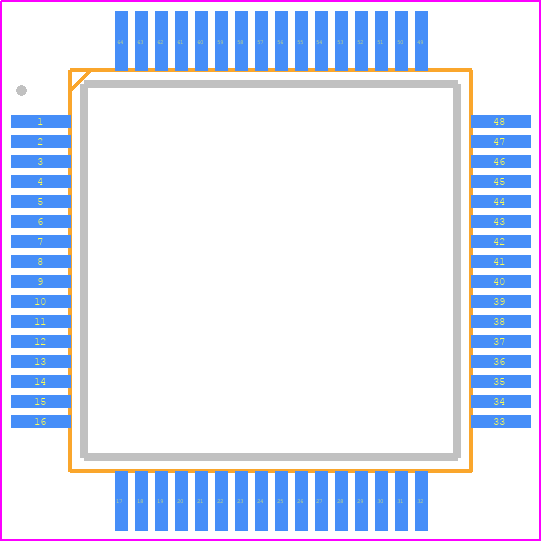

  • Footprint

    pcb footprint

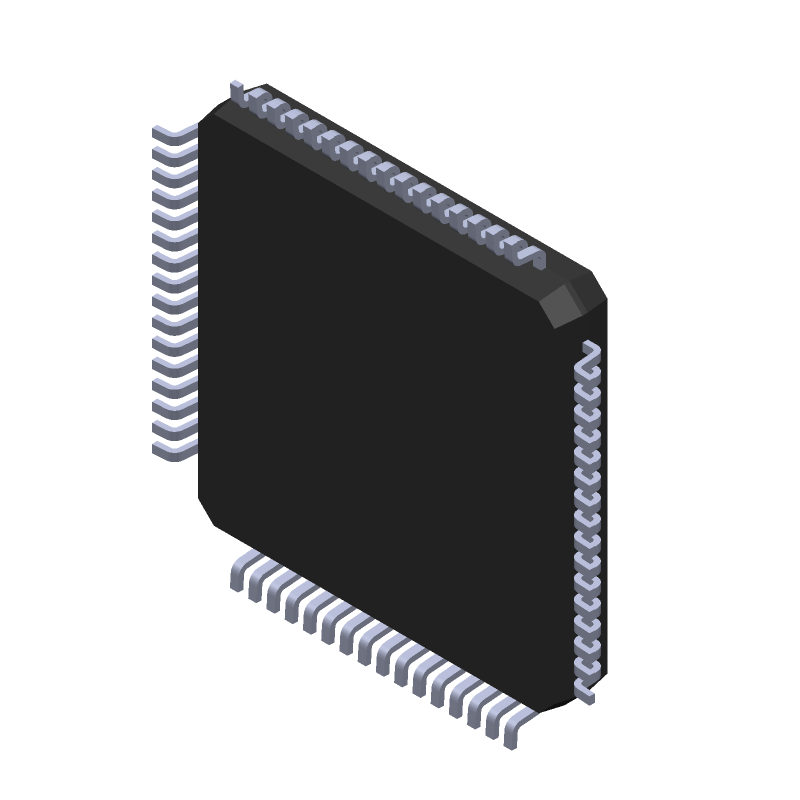

  • 3D Model

    2d presentation

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

STM32F051R6T7 Part Data Attributes

Parametric Data
STM32F051R6T7 STMicroelectronics
Buy Now Datasheet
Compare Parts:
STM32F051R6T7 STMicroelectronics RISC Microcontroller, 32-Bit, FLASH, CORTEX-M0 CPU, 48MHz, CMOS, PQFP64
Rohs Code Yes
Part Life Cycle Code Active
Package Description Lfqfp, Qfp64,.47sq,20
Reach Compliance Code Compliant
ECCN Code 3A991.A.2
HTS Code 8542.31.00.01
Factory Lead Time 13 Weeks
Has ADC Yes
Address Bus Width
Bit Size 32
Boundary Scan No
CPU Family Cortex-M0
Clock Frequency-Max 32 Mhz
DAC Channels Yes
DMA Channels Yes
External Data Bus Width
Format Floating Point
JESD-30 Code S-PQFP-G64
JESD-609 Code e3
Length 10 Mm
Low Power Mode Yes
Moisture Sensitivity Level 3
Number of DMA Channels 5
Number of External Interrupts 5
Number of I/O Lines 55
Number of Terminals 64
On Chip Data RAM Width 8
On Chip Program ROM Width 8
Operating Temperature-Max 105 °C
Operating Temperature-Min -40 °C
PWM Channels Yes
Package Body Material Plastic/Epoxy
Package Code LFQFP
Package Equivalence Code QFP64,.47SQ,20
Package Shape Square
Package Style Flatpack, Low Profile, Fine Pitch
Peak Reflow Temperature (Cel) 260
Qualification Status Not Qualified
RAM (bytes) 8192
ROM (words) 32768
ROM Programmability Flash
Seated Height-Max 1.6 Mm
Speed 48 Mhz
Supply Current-Max 23.2 Ma
Supply Voltage-Max 3.6 V
Supply Voltage-Min 3.3 V
Supply Voltage-Nom 3.3 V
Surface Mount Yes
Technology Cmos
Temperature Grade Industrial
Terminal Finish Matte Tin (Sn)
Terminal Form Gull Wing
Terminal Pitch 0.5 Mm
Terminal Position Quad
Time@Peak Reflow Temperature-Max (s) 30
Width 10 Mm
uPs/uCs/Peripheral ICs Type Microcontroller, Risc

Alternate Parts for STM32F051R6T7

This table gives cross-reference parts and alternative options found for STM32F051R6T7. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of STM32F051R6T7, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
STM32F051R6T6 STMicroelectronics $2.2302 RISC Microcontroller, 32-Bit, FLASH, CORTEX-M0 CPU, 48MHz, CMOS, PQFP64 STM32F051R6T7 vs STM32F051R6T6
STM32F051R6T6TR STMicroelectronics Check for Price RISC Microcontroller, 32-Bit, FLASH, CORTEX-M0 CPU, 48MHz, CMOS, PQFP64 STM32F051R6T7 vs STM32F051R6T6TR
STM32F051R6T7TR STMicroelectronics Check for Price RISC Microcontroller, 32-Bit, FLASH, CORTEX-M0 CPU, 48MHz, CMOS, PQFP64 STM32F051R6T7 vs STM32F051R6T7TR
STM32F051R6T6XXX STMicroelectronics Check for Price RISC Microcontroller, 32-Bit, FLASH, CORTEX-M0 CPU, 48MHz, CMOS, PQFP64 STM32F051R6T7 vs STM32F051R6T6XXX
