STM32F103T8U7TR by: STMicroelectronics

RISC Microcontroller, 32-Bit, FLASH, CORTEX-M3 CPU, 1.25MHz, CMOS

Part Details for STM32F103T8U7TR by STMicroelectronics

Results Overview of STM32F103T8U7TR by STMicroelectronics

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Education and Research Aerospace and Defense Agriculture Technology Robotics and Drones

STM32F103T8U7TR Information

STM32F103T8U7TR by STMicroelectronics is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.

Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.

Price & Stock for STM32F103T8U7TR

Part # Distributor Description Stock Price Buy
DISTI # 61AC2118
Newark Stm32 Mainstream Mcus Rohs Compliant: Yes |Stmicroelectronics STM32F103T8U7TR RoHS: Compliant Min Qty: 3000 Package Multiple: 1 Date Code: 0 Container: Tape & Reel 18000
  • 1 $3.6300
$3.6300 Buy Now
DISTI # 26AH0211
Newark Mcu, 32Bit, 72Mhz, Product Range:Stm32 Family Stm32F1 Series Microcontrollers, Architecture:Arm Cortex-M3, No. Of Bits:32Bit, Cpu Speed:72Mhz, Program Memory Size:64Kb, Ram Memory Size:20Kb, No. Of Pins:36Pins, Mcu Case Style:Vfqfpn, rohs Compliant: Yes |Stmicroelectronics STM32F103T8U7TR RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape 0
  • 1 $6.6500
  • 10 $5.1200
  • 25 $4.7400
  • 50 $4.5300
  • 100 $4.3200
  • 250 $4.1100
  • 500 $3.9900
  • 1,000 $3.8900
$3.8900 / $6.6500 Buy Now
DISTI # 497-17391-1-ND
DigiKey IC MCU 32BIT 64KB FLASH 36VFQFPN Min Qty: 1 Lead time: 13 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) 1902
In Stock
  • 1 $6.4600
  • 10 $4.9660
  • 25 $4.5924
  • 100 $4.1817
  • 250 $3.9859
  • 500 $3.8679
  • 1,000 $3.7708
  • 3,000 $3.6508
$3.6508 / $6.4600 Buy Now
DISTI # STM32F103T8U7TR
Avnet Americas ARM MCU, STM32 Family STM32F1 Series Microcontrollers, ARM Cortex-M3, 32 bit, 72 MHz, 64 KB - Tape and Reel (Alt: STM32F103T8U7TR) COO: Philippines (the) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 13 Weeks, 0 Days Container: Tape & Reel 18000
  • 3,000 $3.6281
  • 6,000 $3.5854
  • 12,000 $3.5672
  • 24,000 $3.5490
  • 48,000 $3.5308
$3.5308 / $3.6281 Buy Now
DISTI # 511-STM32F103T8U7TR
Mouser Electronics ARM Microcontrollers - MCU 32-Bit ARM Cortex MED Density 64kb PL RoHS: Compliant 21
  • 1 $6.4600
  • 10 $4.9700
  • 25 $4.6000
  • 100 $4.1900
  • 250 $3.9900
  • 500 $3.8700
  • 1,000 $3.7800
  • 3,000 $3.6400
$3.6400 / $6.4600 Buy Now
STMicroelectronics Mainstream Performance line, Arm Cortex-M3 MCU with 64 Kbytes of Flash memory, 72 MHz CPU, motor control, USB and CAN COO: Taiwan RoHS: Compliant Min Qty: 1 21
  • 1 $6.3300
  • 10 $4.8700
  • 25 $4.5100
  • 100 $4.1100
  • 250 $3.9100
  • 500 $3.7900
$3.7900 / $6.3300 Buy Now
DISTI # STM32F103T8U7TR
IBS Electronics MCU 32-BIT STM32F1 ARM CORTEX M3 RISC 64KB FLASH 2.5V/3.3V 36-PIN VFQFPN EP T/R Min Qty: 1 Package Multiple: 1 0
  • 1 $4.5080
  • 980 $4.4380
$4.4380 / $4.5080 Buy Now
DISTI # STM32F103T8U7TR
Avnet Silica ARM MCU STM32 Family STM32F1 Series Microcontrollers ARM CortexM3 32 bit 72 MHz 64 KB (Alt: STM32F103T8U7TR) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 14 Weeks, 0 Days Silica - 0
Buy Now
DISTI # STM32F103T8U7TR
EBV Elektronik ARM MCU STM32 Family STM32F1 Series Microcontrollers ARM CortexM3 32 bit 72 MHz 64 KB (Alt: STM32F103T8U7TR) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 14 Weeks, 0 Days EBV - 0
Buy Now

US Tariff Estimator: STM32F103T8U7TR by STMicroelectronics

Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

STM32F103T8U7TR
STMicroelectronics
Please specify a country of origin.
$
Please specify an import value in USD.
Estimator Results:
Tariff Percentage Tariff Calculation
Import Value
$.
Total Duty
$.
Total Estimate
$.
$.
Based on tariff data from

Part Details for STM32F103T8U7TR

STM32F103T8U7TR CAD Models

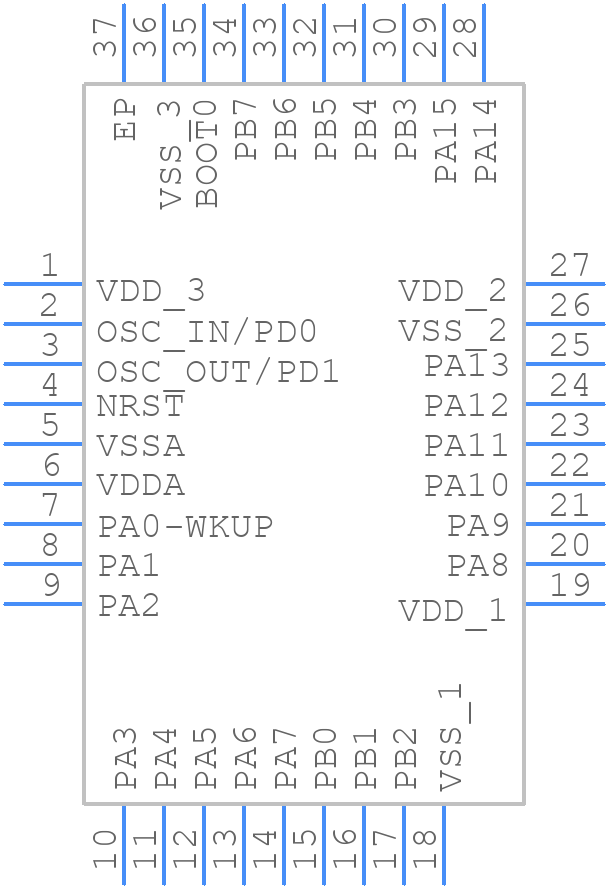

  • Part Symbol

    schematic symbol

  • Footprint

    pcb footprint

  • 3D Model

    2d presentation

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

STM32F103T8U7TR Part Data Attributes

Parametric Data
STM32F103T8U7TR STMicroelectronics
Buy Now Datasheet
Compare Parts:
STM32F103T8U7TR STMicroelectronics RISC Microcontroller, 32-Bit, FLASH, CORTEX-M3 CPU, 1.25MHz, CMOS
Rohs Code Yes
Part Life Cycle Code Active
Part Package Code QFP
Package Description Hvqccn, Lcc36,.25sq,20
Pin Count 36
Reach Compliance Code Compliant
ECCN Code 3A991.A.2
HTS Code 8542.31.00.01
Factory Lead Time 13 Weeks
Has ADC Yes
Address Bus Width 32
Bit Size 32
Boundary Scan Yes
CPU Family Cortex-M3
Clock Frequency-Max 72 Mhz
DAC Channels No
DMA Channels Yes
External Data Bus Width 32
JESD-30 Code S-XQCC-N36
JESD-609 Code e3
Length 6 Mm
Moisture Sensitivity Level 3
Number of I/O Lines 26
Number of Terminals 36
On Chip Program ROM Width 8
Operating Temperature-Max 105 °C
Operating Temperature-Min -40 °C
PWM Channels Yes
Package Body Material Unspecified
Package Code HVQCCN
Package Equivalence Code LCC36,.25SQ,20
Package Shape Square
Package Style Chip Carrier, Heat Sink/Slug, Very Thin Profile
Peak Reflow Temperature (Cel) 260
Qualification Status Not Qualified
RAM (bytes) 20480
ROM (words) 65536
ROM Programmability Flash
Seated Height-Max 1 Mm
Speed 1.25 Mhz
Supply Current-Max 50.3 Ma
Supply Voltage-Max 3.6 V
Supply Voltage-Min 3.3 V
Supply Voltage-Nom 3.3 V
Surface Mount Yes
Technology Cmos
Temperature Grade Industrial
Terminal Finish Matte Tin (Sn)
Terminal Form No Lead
Terminal Pitch 0.5 Mm
Terminal Position Quad
Width 6 Mm
uPs/uCs/Peripheral ICs Type Microcontroller, Risc

Alternate Parts for STM32F103T8U7TR

This table gives cross-reference parts and alternative options found for STM32F103T8U7TR. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of STM32F103T8U7TR, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
STM32F103T8U6XXXTR STMicroelectronics Check for Price RISC Microcontroller, 32-Bit, FLASH, CORTEX-M3 CPU, 72MHz, CMOS, PQCC36 STM32F103T8U7TR vs STM32F103T8U6XXXTR
Part Number Manufacturer Composite Price Description Compare
STM32F103T8U6 STMicroelectronics $5.8083 RISC Microcontroller, 32-Bit, FLASH, CORTEX-M3 CPU, 72MHz, CMOS STM32F103T8U7TR vs STM32F103T8U6
STM32F103T8U7 STMicroelectronics Check for Price RISC Microcontroller, 32-Bit, FLASH, CORTEX-M3 CPU, 72MHz, CMOS, PQCC36 STM32F103T8U7TR vs STM32F103T8U7
equivalents icon

STM32F103T8U7TR Related Parts

STM32F103T8U7TR Frequently Asked Questions (FAQ)

  • The maximum clock frequency of the STM32F103T8U7TR is 72 MHz.

  • The STM32F103T8U7TR has 64 KB of flash memory.

  • Yes, the STM32F103T8U7TR can operate with a power supply voltage range of 2.0V to 3.6V, making it compatible with 3.3V systems.

  • Yes, the STM32F103T8U7TR has a built-in USB 2.0 full-speed device interface.

  • Yes, the STM32F103T8U7TR has an external clock input that can be used with an external crystal oscillator.
