STM32F103ZFH6TR by: STMicroelectronics

RISC Microcontroller, 32-Bit, FLASH, CORTEX-M3 CPU, 72MHz, CMOS, PBGA144

Part Details for STM32F103ZFH6TR by STMicroelectronics

Results Overview of STM32F103ZFH6TR by STMicroelectronics

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Education and Research Aerospace and Defense Agriculture Technology Robotics and Drones

STM32F103ZFH6TR Information

STM32F103ZFH6TR by STMicroelectronics is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.

Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.

Price & Stock for STM32F103ZFH6TR

Part # Distributor Description Stock Price Buy
DISTI # 497-18763-1-ND
DigiKey IC MCU 32BIT 768KB FLSH 144LFBGA Min Qty: 1 Lead time: 13 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) Temporarily Out of Stock
  • 1 $13.7600
  • 10 $10.8530
  • 25 $10.1256
  • 100 $9.3258
  • 250 $8.9446
  • 500 $8.7150
  • 1,500 $8.4312
$8.4312 / $13.7600 Buy Now
DISTI # STM32F103ZFH6TR
Avnet Americas MCU 32-bit STM32F ARM Cortex M3 RISC 768 KB Flash 2.5V/3.3V 144-Pin LF-BGA T/R - Tape and Reel (Alt: STM32F103ZFH6TR) COO: China RoHS: Compliant Min Qty: 1500 Package Multiple: 1500 Lead time: 13 Weeks, 0 Days Container: Tape & Reel 0
  • 1,500 $8.9551
  • 3,000 $8.4711
  • 6,000 $8.2614
  • 12,000 $8.2193
  • 24,000 $8.1771
$8.1771 / $8.9551 Buy Now
DISTI # 511-STM32F103ZFH6TR
Mouser Electronics ARM Microcontrollers - MCU STM32F103 Perf Line M3 768kB 72 MHz MCU RoHS: Compliant 62
  • 1 $15.5700
  • 10 $12.2200
  • 25 $11.7200
  • 100 $9.3300
  • 250 $8.9500
  • 500 $8.7200
  • 1,000 $8.6800
  • 1,500 $8.4300
$8.4300 / $15.5700 Buy Now
STMicroelectronics Mainstream Performance line, Arm Cortex-M3 MCU with 768 Kbytes of Flash memory, 72 MHz CPU, motor control, USB and CAN COO: Taiwan RoHS: Compliant Min Qty: 1 62
  • 1 $15.2600
  • 10 $11.9800
  • 25 $11.4900
  • 100 $9.1400
  • 250 $8.7700
  • 500 $8.5500
$8.5500 / $15.2600 Buy Now
Bristol Electronics   81
RFQ
DISTI # STM32F103ZFH6TR
Avnet Silica MCU 32bit STM32F ARM Cortex M3 RISC 768 KB Flash 25V33V 144Pin LFBGA TR (Alt: STM32F103ZFH6TR) RoHS: Compliant Min Qty: 1500 Package Multiple: 1500 Lead time: 14 Weeks, 0 Days Silica - 0
Buy Now
DISTI # STM32F103ZFH6TR
EBV Elektronik MCU 32bit STM32F ARM Cortex M3 RISC 768 KB Flash 25V33V 144Pin LFBGA TR (Alt: STM32F103ZFH6TR) RoHS: Compliant Min Qty: 1500 Package Multiple: 1500 Lead time: 14 Weeks, 0 Days EBV - 1500
Buy Now

US Tariff Estimator: STM32F103ZFH6TR by STMicroelectronics

Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

STM32F103ZFH6TR
STMicroelectronics
Please specify a country of origin.
$
Please specify an import value in USD.
Estimator Results:
Tariff Percentage Tariff Calculation
Import Value
$.
Total Duty
$.
Total Estimate
$.
$.
Based on tariff data from

Part Details for STM32F103ZFH6TR

STM32F103ZFH6TR CAD Models

  • Part Symbol

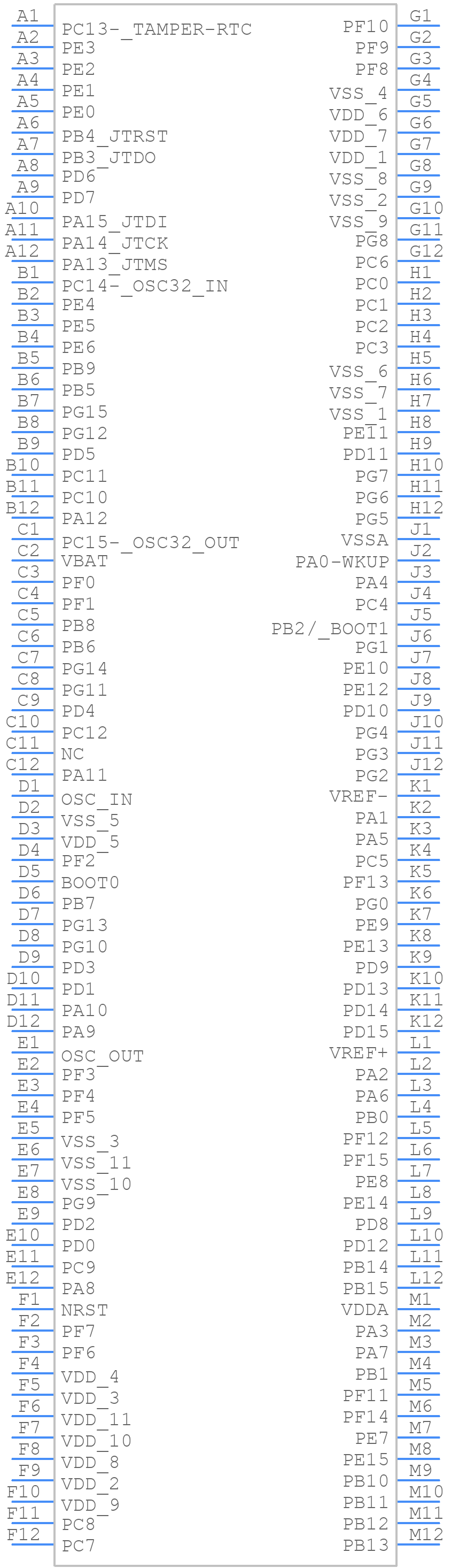

    schematic symbol

  • Footprint

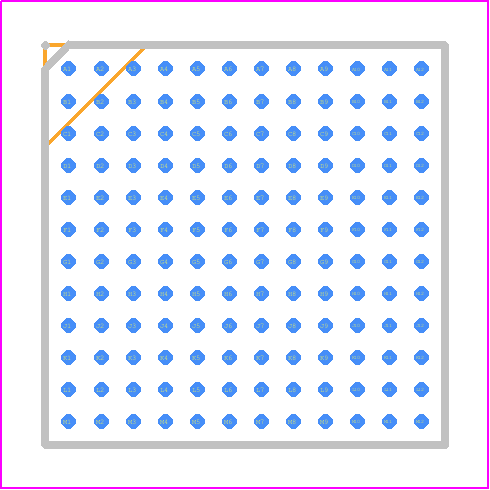

    pcb footprint

  • 3D Model

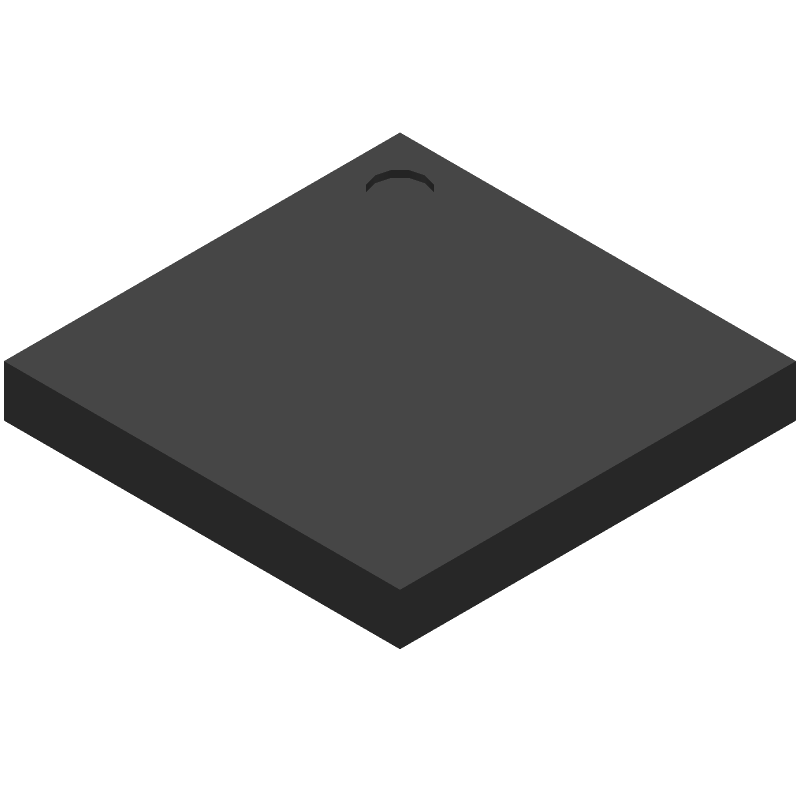

    2d presentation

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

STM32F103ZFH6TR Part Data Attributes

Parametric Data
STM32F103ZFH6TR STMicroelectronics
Buy Now Datasheet
Compare Parts:
STM32F103ZFH6TR STMicroelectronics RISC Microcontroller, 32-Bit, FLASH, CORTEX-M3 CPU, 72MHz, CMOS, PBGA144
Rohs Code Yes
Part Life Cycle Code Active
Part Package Code BGA
Package Description Lfbga, Bga144,12x12,32
Pin Count 144
Reach Compliance Code Compliant
ECCN Code 3A991.A.2
HTS Code 8542.31.00.01
Factory Lead Time 13 Weeks
Has ADC Yes
Address Bus Width 26
Bit Size 32
Boundary Scan Yes
CPU Family Cortex-M3
Clock Frequency-Max 16 Mhz
DAC Channels Yes
DMA Channels Yes
External Data Bus Width 16
JESD-30 Code S-PBGA-B144
Length 10 Mm
Number of I/O Lines 112
Number of Terminals 144
On Chip Program ROM Width 8
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
PWM Channels Yes
Package Body Material Plastic/Epoxy
Package Code LFBGA
Package Equivalence Code BGA144,12X12,32
Package Shape Square
Package Style Grid Array, Low Profile, Fine Pitch
Peak Reflow Temperature (Cel) Not Specified
Qualification Status Not Qualified
RAM (bytes) 98304
ROM (words) 786432
ROM Programmability Flash
Seated Height-Max 1.7 Mm
Speed 72 Mhz
Supply Current-Max 68 Ma
Supply Voltage-Max 3.6 V
Supply Voltage-Min 3.3 V
Supply Voltage-Nom 3.3 V
Surface Mount Yes
Technology Cmos
Temperature Grade Industrial
Terminal Form Ball
Terminal Pitch 0.8 Mm
Terminal Position Bottom
Time@Peak Reflow Temperature-Max (s) Not Specified
Width 10 Mm
uPs/uCs/Peripheral ICs Type Microcontroller, Risc
