STM32F318C8Y6TR by: STMicroelectronics

RISC Microcontroller, 32-Bit, FLASH, CORTEX-M4 CPU, 72MHz, CMOS, PBGA49

Part Details for STM32F318C8Y6TR by STMicroelectronics

Results Overview of STM32F318C8Y6TR by STMicroelectronics

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Healthcare Telecommunications

STM32F318C8Y6TR Information

STM32F318C8Y6TR by STMicroelectronics is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.

Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.

Price & Stock for STM32F318C8Y6TR

Part # Distributor Description Stock Price Buy
DISTI # STM32F318C8Y6TR-ND
DigiKey IC MCU 32BIT 64KB FLASH 49WLCSP Min Qty: 5000 Lead time: 13 Weeks Container: Tape & Reel (TR) Temporarily Out of Stock
  • 5,000 $2.7587
$2.7587 Buy Now
DISTI # STM32F318C8Y6TR
Avnet Americas MCU 32-Bit STM32 ARM Cortex M4 RISC 64KB Flash 2.5V/3.3V 49-Pin WLCSP T/R - Tape and Reel (Alt: STM32F318C8Y6TR) COO: China RoHS: Compliant Min Qty: 5000 Package Multiple: 5000 Lead time: 13 Weeks, 0 Days Container: Tape & Reel 0
  • 5,000 $2.9603
  • 10,000 $2.8003
  • 20,000 $2.7266
  • 40,000 $2.6898
  • 80,000 $2.6760
$2.6760 / $2.9603 Buy Now
DISTI # 511-STM32F318C8Y6TR
Mouser Electronics ARM Microcontrollers - MCU Mainstream Mixed signals MCUs Arm Cortex-M4 core DSP & FPU, 64 Kbytes of Flash 7 RoHS: Compliant 0
  • 5,000 $2.7500
$2.7500 Order Now
STMicroelectronics Mainstream Mixed signals MCUs Arm Cortex-M4 core with DSP and FPU, 64 Kbytes of Flash memory, 72 MHz CPU, 12-bit ADC 5 MSPS, Comparator, Op-Amp COO: Singapore RoHS: Compliant Min Qty: 1 0
  • 10 $3.1200
  • 100 $2.7000
  • 250 $2.5600
  • 500 $2.2900
$2.2900 / $3.1200 Buy Now
DISTI # STM32F318C8Y6TR
Avnet Silica MCU 32Bit STM32 ARM Cortex M4 RISC 64KB Flash 25V33V 49Pin WLCSP TR (Alt: STM32F318C8Y6TR) RoHS: Compliant Min Qty: 5000 Package Multiple: 5000 Lead time: 14 Weeks, 0 Days Silica - 0
Buy Now
DISTI # STM32F318C8Y6TR
EBV Elektronik MCU 32Bit STM32 ARM Cortex M4 RISC 64KB Flash 25V33V 49Pin WLCSP TR (Alt: STM32F318C8Y6TR) RoHS: Compliant Min Qty: 5000 Package Multiple: 5000 Lead time: 14 Weeks, 0 Days EBV - 0
Buy Now
Vyrian Peripheral ICs 4235
RFQ

US Tariff Estimator: STM32F318C8Y6TR by STMicroelectronics

Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

STM32F318C8Y6TR
STMicroelectronics
Please specify a country of origin.
$
Please specify an import value in USD.
Estimator Results:
Tariff Percentage Tariff Calculation
Import Value
$.
Total Duty
$.
Total Estimate
$.
$.
Based on tariff data from

Part Details for STM32F318C8Y6TR

STM32F318C8Y6TR CAD Models

  • Part Symbol

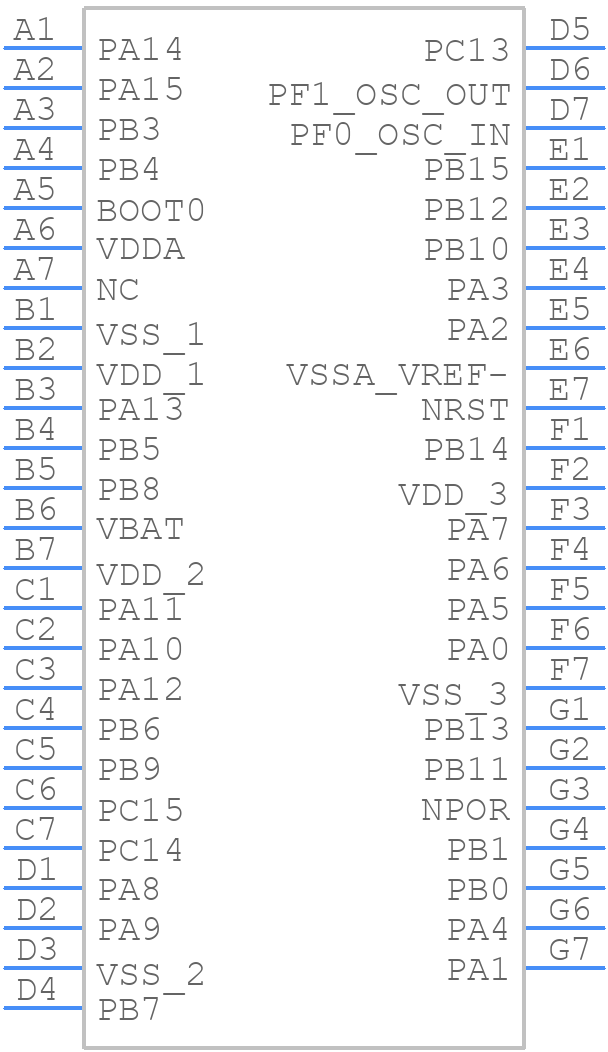

    schematic symbol

  • Footprint

    pcb footprint

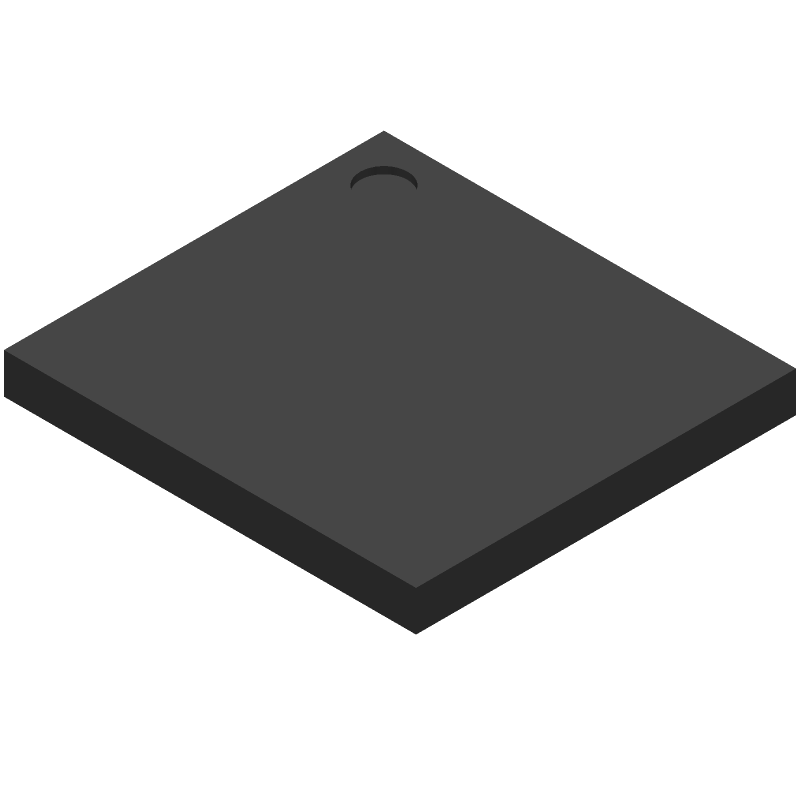

  • 3D Model

    2d presentation

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

STM32F318C8Y6TR Part Data Attributes

Parametric Data
STM32F318C8Y6TR STMicroelectronics
Buy Now Datasheet
Compare Parts:
STM32F318C8Y6TR STMicroelectronics RISC Microcontroller, 32-Bit, FLASH, CORTEX-M4 CPU, 72MHz, CMOS, PBGA49
Rohs Code Yes
Part Life Cycle Code Active
Package Description Vfbga, Bga49,7x7,16
Reach Compliance Code Compliant
ECCN Code 3A991.A.2
HTS Code 8542.31.00.01
Factory Lead Time 13 Weeks
Has ADC Yes
Address Bus Width
Bit Size 32
Boundary Scan Yes
CPU Family Cortex-M4
Clock Frequency-Max 32 Mhz
DAC Channels Yes
DMA Channels Yes
External Data Bus Width
Format Floating Point
JESD-30 Code R-PBGA-B49
JESD-609 Code e1
Length 3.151 Mm
Low Power Mode Yes
Moisture Sensitivity Level 1
Number of DMA Channels 7
Number of I/O Lines 19
Number of Terminals 49
Number of Timers 7
On Chip Data RAM Width 8
On Chip Program ROM Width 8
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
PWM Channels Yes
Package Body Material Plastic/Epoxy
Package Code VFBGA
Package Equivalence Code BGA49,7X7,16
Package Shape Rectangular
Package Style Grid Array, Thin Profile, Fine Pitch
Peak Reflow Temperature (Cel) 260
RAM (bytes) 16384
RAM (words) 8192
ROM (words) 65536
ROM Programmability Flash
Seated Height-Max 0.585 Mm
Speed 72 Mhz
Supply Current-Max 48.9 Ma
Supply Voltage-Max 1.95 V
Supply Voltage-Min 1.8 V
Supply Voltage-Nom 1.8 V
Surface Mount Yes
Technology Cmos
Temperature Grade Industrial
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
Terminal Form Ball
Terminal Pitch 0.4 Mm
Terminal Position Bottom
Width 3.147 Mm
uPs/uCs/Peripheral ICs Type Microcontroller, Risc

Alternate Parts for STM32F318C8Y6TR

This table gives cross-reference parts and alternative options found for STM32F318C8Y6TR. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of STM32F318C8Y6TR, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
STM32F318C8Y7 STMicroelectronics Check for Price RISC Microcontroller, 32-Bit, FLASH, CORTEX-M4F CPU, 72MHz, CMOS, PBGA49 STM32F318C8Y6TR vs STM32F318C8Y7
STM32F318C8Y6 STMicroelectronics Check for Price RISC Microcontroller, 32-Bit, FLASH, CORTEX-M4F CPU, 72MHz, CMOS, PBGA49 STM32F318C8Y6TR vs STM32F318C8Y6
