Microcontrollers and Processors / Microcontrollers / STM32F410R8T6
Datasheets
STM32F410R8T6 by: STMicroelectronics

RISC Microcontroller, 32-Bit, FLASH, 100MHz, CMOS, PQFP64

Part Details for STM32F410R8T6 by STMicroelectronics

Results Overview of STM32F410R8T6 by STMicroelectronics

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Internet of Things (IoT) Environmental Monitoring Financial Technology (Fintech) Smart Cities Transportation and Logistics Agriculture Technology Telecommunications Virtual Reality (VR), Augmented Reality (AR), and Vision Systems Education and Research Consumer Electronics Security and Surveillance Audio and Video Systems Computing and Data Storage Healthcare Entertainment and Gaming

STM32F410R8T6 Information

STM32F410R8T6 by STMicroelectronics is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.

Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.

Price & Stock for STM32F410R8T6

Part # Distributor Description Stock Price Buy
DISTI # 54AH6974
Newark Mcu, 32Bit, 100Mhz, Lqfp-64 Rohs Compliant: Yes |Stmicroelectronics STM32F410R8T6 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk 1855
  • 1 $4.5500
  • 10 $3.6700
  • 25 $3.4500
  • 50 $3.3300
  • 100 $3.2100
  • 320 $3.1000
  • 640 $3.0900
$3.0900 / $4.5500 Buy Now
DISTI # 497-18544-ND
DigiKey IC MCU 32BIT 64KB FLASH 64LQFP Min Qty: 1 Lead time: 15 Weeks Container: Tray 381
In Stock
  • 1 $3.5600
  • 10 $2.6780
  • 25 $2.4584
  • 100 $2.2166
  • 250 $2.1014
  • 960 $1.9778
  • 1,920 $1.9302
  • 2,880 $1.9064
$1.9064 / $3.5600 Buy Now
DISTI # STM32F410R8T6
Avnet Americas ARM-Based 32-Bit MCU+FPU, 125 DMIPS, 64kB Flash, 32kB RAM, 64-pin LQFP - Bulk (Alt: STM32F410R8T6) COO: France RoHS: Compliant Min Qty: 960 Package Multiple: 960 Lead time: 15 Weeks, 0 Days Container: Bulk 0
  • 960 $2.0016
  • 1,920 $1.8934
  • 3,840 $1.8436
  • 7,680 $1.7963
  • 15,360 $1.7848
$1.7848 / $2.0016 Buy Now
DISTI # 511-STM32F410R8T6
Mouser Electronics ARM Microcontrollers - MCU STM32 Dynamic Efficiency MCU BAM, High-performance & DSP FPU, Arm Cortex-M4 MCU RoHS: Compliant 6966
  • 1 $3.5600
  • 10 $2.6800
  • 25 $2.4600
  • 100 $2.2200
  • 250 $2.1100
  • 500 $2.1000
  • 960 $1.8900
  • 2,880 $1.8400
$1.8400 / $3.5600 Buy Now
STMicroelectronics STM32 Dynamic Efficiency MCU with BAM, High-performance and DSP with FPU, Arm Cortex-M4 MCU with 64 Kbytes of Flash memory, 100 MHz CPU, Art Accelerator COO: France RoHS: Compliant Min Qty: 1 6966
  • 1 $3.4900
  • 10 $2.6300
  • 25 $2.4100
  • 100 $2.1800
  • 250 $2.0700
  • 500 $2.0600
$2.0600 / $3.4900 Buy Now
DISTI # STM32F410R8T6
Avnet Silica ARMBased 32Bit MCUFPU 125 DMIPS 64kB Flash 32kB RAM 64pin LQFP (Alt: STM32F410R8T6) RoHS: Compliant Min Qty: 160 Package Multiple: 160 Lead time: 16 Weeks, 0 Days Silica - 0
Buy Now
DISTI # STM32F410R8T6
EBV Elektronik ARMBased 32Bit MCUFPU 125 DMIPS 64kB Flash 32kB RAM 64pin LQFP (Alt: STM32F410R8T6) RoHS: Compliant Min Qty: 160 Package Multiple: 160 Lead time: 16 Weeks, 0 Days EBV - 960
Buy Now

US Tariff Estimator: STM32F410R8T6 by STMicroelectronics

Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

STM32F410R8T6
STMicroelectronics
Please specify a country of origin.
$
Please specify an import value in USD.
Estimator Results:
Tariff Percentage Tariff Calculation
Import Value
$.
Total Duty
$.
Total Estimate
$.
$.
Based on tariff data from

Part Details for STM32F410R8T6

STM32F410R8T6 CAD Models

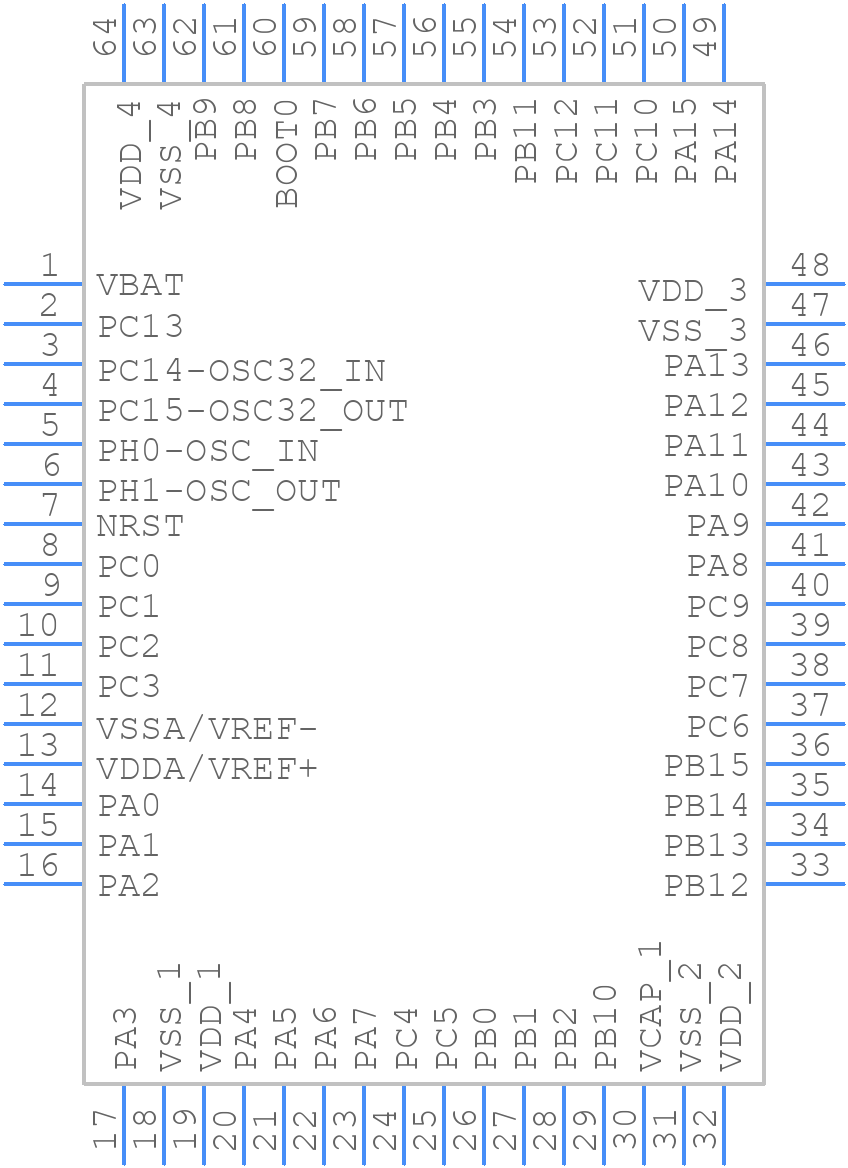

  • Part Symbol

    schematic symbol

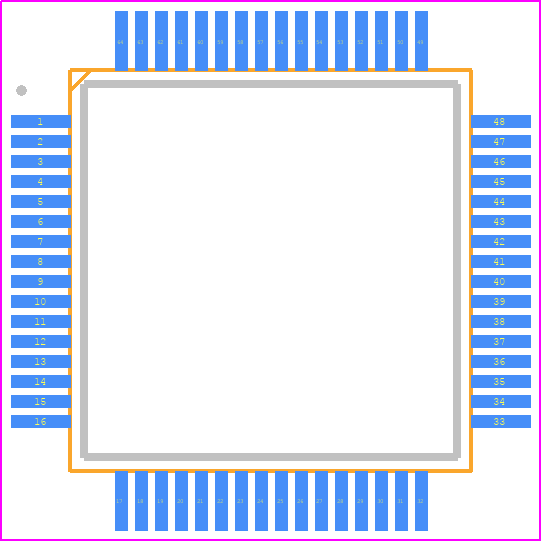

  • Footprint

    pcb footprint

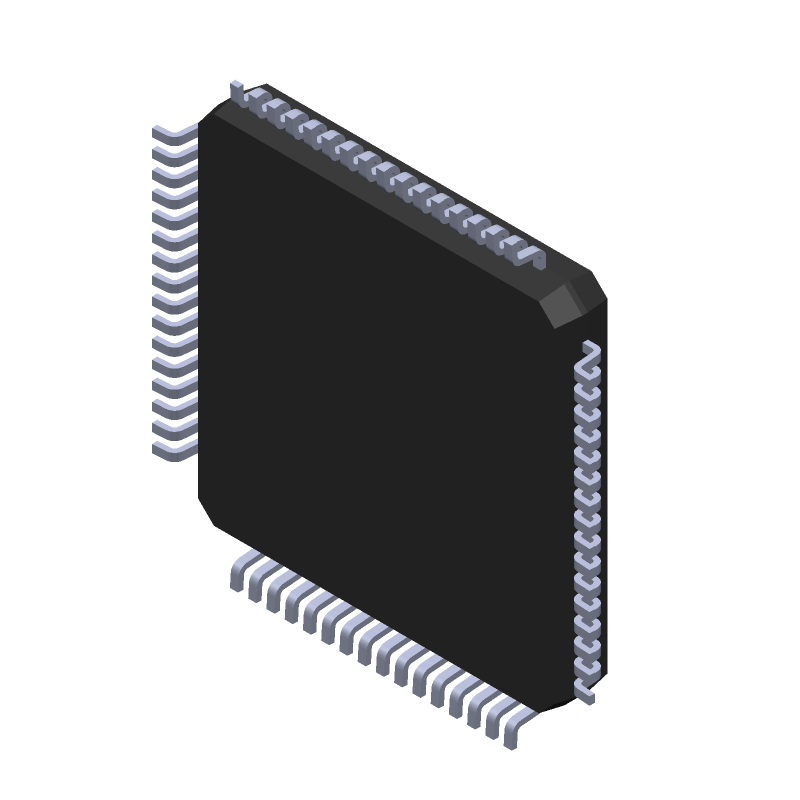

  • 3D Model

    2d presentation

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

STM32F410R8T6 Part Data Attributes

Parametric Data
STM32F410R8T6 STMicroelectronics
Buy Now Datasheet
Compare Parts:
STM32F410R8T6 STMicroelectronics RISC Microcontroller, 32-Bit, FLASH, 100MHz, CMOS, PQFP64
Rohs Code Yes
Part Life Cycle Code Active
Package Description Lfqfp,
Reach Compliance Code Compliant
ECCN Code 3A991.A.2
HTS Code 8542.31.00.01
Factory Lead Time 15 Weeks
Has ADC Yes
Address Bus Width
Bit Size 32
Boundary Scan Yes
Clock Frequency-Max 26 Mhz
DAC Channels Yes
DMA Channels Yes
External Data Bus Width
JESD-30 Code S-PQFP-G64
JESD-609 Code e3
Length 10 Mm
Moisture Sensitivity Level 3
Number of I/O Lines 50
Number of Terminals 64
On Chip Program ROM Width 8
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
PWM Channels Yes
Package Body Material Plastic/Epoxy
Package Code LFQFP
Package Shape Square
Package Style Flatpack, Low Profile, Fine Pitch
Peak Reflow Temperature (Cel) 260
RAM (bytes) 32768
ROM (words) 65536
ROM Programmability Flash
Seated Height-Max 1.6 Mm
Speed 100 Mhz
Supply Voltage-Max 3.6 V
Supply Voltage-Min 3.3 V
Supply Voltage-Nom 3.3 V
Surface Mount Yes
Technology Cmos
Temperature Grade Industrial
Terminal Finish Matte Tin (Sn)
Terminal Form Gull Wing
Terminal Pitch 0.5 Mm
Terminal Position Quad
Width 10 Mm
uPs/uCs/Peripheral ICs Type Microcontroller, Risc

Alternate Parts for STM32F410R8T6

This table gives cross-reference parts and alternative options found for STM32F410R8T6. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of STM32F410R8T6, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
STM32F410R8T7 STMicroelectronics Check for Price RISC Microcontroller, 32-Bit, FLASH, 100MHz, CMOS, PQFP64 STM32F410R8T6 vs STM32F410R8T7
Part Number Manufacturer Composite Price Description Compare
STM32F410R8T6TR STMicroelectronics Check for Price RISC Microcontroller, 32-Bit, FLASH, 100MHz, CMOS, PQFP64 STM32F410R8T6 vs STM32F410R8T6TR
STM32F410R8T7TR STMicroelectronics Check for Price RISC Microcontroller, 32-Bit, FLASH, 100MHz, CMOS, PQFP64 STM32F410R8T6 vs STM32F410R8T7TR
equivalents icon

STM32F410R8T6 Related Parts

STM32F410R8T6 Frequently Asked Questions (FAQ)

  • The maximum clock frequency of the STM32F410R8T6 is 100 MHz.

  • The clock settings for the STM32F410R8T6 can be configured using the Clock Control Register (RCC) and the Power Control Register (PWR). The RCC register is used to select the clock source, while the PWR register is used to control the voltage regulator and power modes.

  • The BOOT0 and BOOT1 pins on the STM32F410R8T6 are used to select the boot mode of the device. BOOT0 is used to select between the internal flash memory and an external memory, while BOOT1 is used to select the boot mode (e.g., boot from flash or boot from RAM).

  • The DMA controller on the STM32F410R8T6 can be used to transfer data between peripherals and memory without involving the CPU. To use the DMA controller, you need to configure the DMA channel, set the transfer parameters, and enable the DMA transfer.

  • The NVIC on the STM32F410R8T6 is used to handle interrupts generated by peripherals. It allows the CPU to prioritize and handle interrupts efficiently, enabling the device to respond quickly to events.
