Microcontrollers and Processors / Microcontrollers / STM32F427IGH7
Datasheets
STM32F427IGH7 by: STMicroelectronics

RISC Microcontroller, 32-Bit, FLASH, CORTEX-M4 CPU, 180MHz, CMOS, PBGA176

Part Details for STM32F427IGH7 by STMicroelectronics

Results Overview of STM32F427IGH7 by STMicroelectronics

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Consumer Electronics Internet of Things (IoT) Smart Cities

STM32F427IGH7 Information

STM32F427IGH7 by STMicroelectronics is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.

Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.

Price & Stock for STM32F427IGH7

Part # Distributor Description Stock Price Buy
DISTI # 32AJ8888
Newark Mcu, Arm Cortex-M4, 180Mhz, Ufbga-176, Product Range:Arm Cortex-M4 Microcontrollers, Architecture:Arm Cortex-M4, No. Of Bits:32Bit, Cpu Speed:180Mhz, Program Memory Size:1Mb, Ram Memory Size:256Kb, No. Of Pins:176Pins, Mcu Case Rohs Compliant: Yes |Stmicroelectronics STM32F427IGH7 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk 0
  • 1 $10.3100
  • 10 $8.6900
  • 25 $7.4300
  • 50 $6.7800
  • 100 $5.7200
  • 250 $4.6700
  • 500 $4.3900
$4.3900 / $10.3100 Buy Now
DISTI # 497-19176-ND
DigiKey IC MCU 32BIT 1MB FLASH 176UFBGA Min Qty: 1 Lead time: 15 Weeks Container: Tray 1850
In Stock
  • 1 $17.7400
  • 10 $14.1060
  • 25 $13.1972
  • 168 $11.9142
  • 336 $11.5934
  • 504 $11.4327
$11.4327 / $17.7400 Buy Now
DISTI # STM32F427IGH7
Avnet Americas MCU 32-Bit STM32 ARM Cortex M4 RISC 1MB Flash 176-Pin UFBGA Tray - Trays (Alt: STM32F427IGH7) COO: Taiwan (Province of China) RoHS: Compliant Min Qty: 1008 Package Multiple: 1008 Lead time: 15 Weeks, 0 Days Container: Tray 0
  • 1,008 $9.9080
  • 2,016 $9.3724
  • 4,032 $9.1424
  • 6,048 $9.0958
  • 8,064 $9.0491
$9.0491 / $9.9080 Buy Now
DISTI # 511-STM32F427IGH7
Mouser Electronics ARM Microcontrollers - MCU High-performance advanced line, Arm Cortex-M4 core DSP & FPU, 1 Mbyte of Flash 1 RoHS: Compliant 9
  • 1 $17.4600
  • 10 $13.7800
  • 25 $13.0600
  • 100 $11.6400
  • 250 $11.1900
  • 500 $10.7300
$10.7300 / $17.4600 Buy Now
STMicroelectronics High-performance advanced line, Arm Cortex-M4 core with DSP and FPU, 1 Mbyte of Flash memory, 180 MHz CPU, ART Accelerator, Chrom-ARTAccelerator, FMC with SDRAM COO: France RoHS: Compliant Min Qty: 1 9
  • 1 $17.1100
  • 10 $13.5000
  • 25 $12.8000
  • 100 $11.4100
  • 250 $10.9700
  • 500 $10.5200
$10.5200 / $17.1100 Buy Now
DISTI # STM32F427IGH7
Avnet Silica MCU 32Bit STM32 ARM Cortex M4 RISC 1MB Flash 176Pin UFBGA Tray (Alt: STM32F427IGH7) RoHS: Compliant Min Qty: 168 Package Multiple: 168 Lead time: 16 Weeks, 0 Days Silica - 336
Buy Now
DISTI # STM32F427IGH7
EBV Elektronik MCU 32Bit STM32 ARM Cortex M4 RISC 1MB Flash 176Pin UFBGA Tray (Alt: STM32F427IGH7) RoHS: Compliant Min Qty: 168 Package Multiple: 168 Lead time: 16 Weeks, 0 Days EBV - 0
Buy Now
Win Source Electronics IC MCU 32BIT 1MB FLASH 176UFBGA / ARM® Cortex®-M4 series Microcontroller IC 32-Bit Single-Core 180MHz 1MB (1M x 8) FLASH 176+25UFBGA (10x10) 3500
  • 3 $21.6783
  • 5 $20.2797
  • 8 $19.5804
  • 12 $18.1818
  • 15 $17.4825
  • 18 $16.7832
$16.7832 / $21.6783 Buy Now

US Tariff Estimator: STM32F427IGH7 by STMicroelectronics

Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

STM32F427IGH7
STMicroelectronics
Please specify a country of origin.
$
Please specify an import value in USD.
Estimator Results:
Tariff Percentage Tariff Calculation
Import Value
$.
Total Duty
$.
Total Estimate
$.
$.
Based on tariff data from

Part Details for STM32F427IGH7

STM32F427IGH7 CAD Models

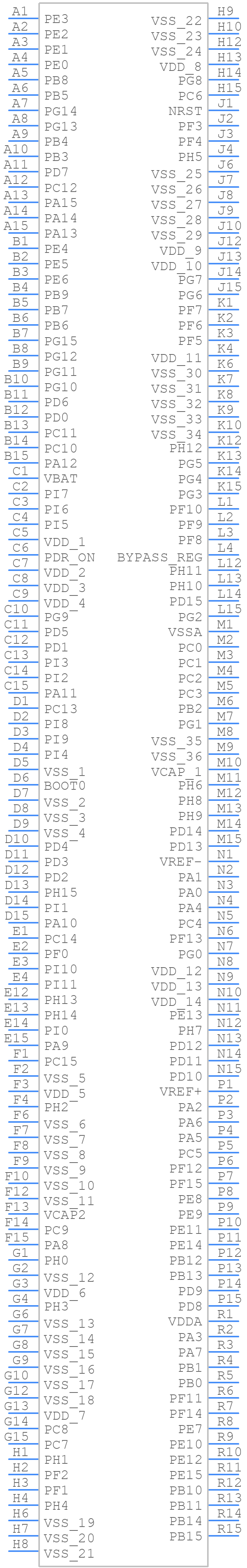

  • Part Symbol

    schematic symbol

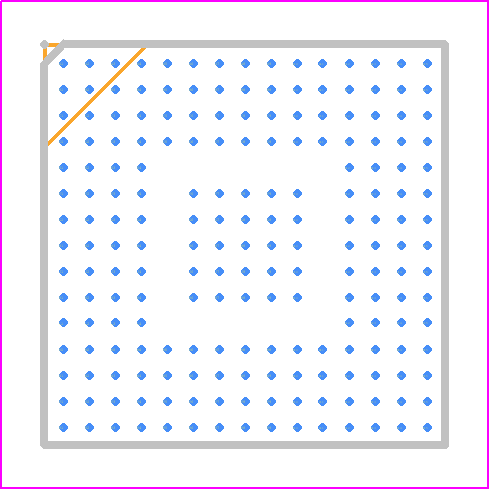

  • Footprint

    pcb footprint

  • 3D Model

    2d presentation

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

STM32F427IGH7 Part Data Attributes

Parametric Data
STM32F427IGH7 STMicroelectronics
Buy Now Datasheet
Compare Parts:
STM32F427IGH7 STMicroelectronics RISC Microcontroller, 32-Bit, FLASH, CORTEX-M4 CPU, 180MHz, CMOS, PBGA176
Rohs Code Yes
Part Life Cycle Code Active
Package Description Vfbga, Bga201,15x15,25
Reach Compliance Code Compliant
ECCN Code 3A991.A.2
HTS Code 8542.31.00.01
Factory Lead Time 15 Weeks
Has ADC Yes
Address Bus Width
Bit Size 32
Boundary Scan Yes
CPU Family Cortex-M4
Clock Frequency-Max 50 Mhz
DAC Channels Yes
DMA Channels Yes
External Data Bus Width
JESD-30 Code S-PBGA-B176
JESD-609 Code e2
Length 10 Mm
Moisture Sensitivity Level 3
Number of DMA Channels 2
Number of I/O Lines 140
Number of Terminals 176
Number of Timers 17
On Chip Program ROM Width 8
Operating Temperature-Max 105 °C
Operating Temperature-Min -40 °C
PWM Channels Yes
Package Body Material Plastic/Epoxy
Package Code VFBGA
Package Equivalence Code BGA201,15X15,25
Package Shape Square
Package Style Grid Array, Very Thin Profile, Fine Pitch
Peak Reflow Temperature (Cel) 260
Qualification Status Not Qualified
RAM (bytes) 262144
ROM (words) 1048576
ROM Programmability Flash
Seated Height-Max 0.6 Mm
Speed 180 Mhz
Supply Current-Max 135 Ma
Supply Voltage-Max 3.6 V
Supply Voltage-Min 3.3 V
Supply Voltage-Nom 3.3 V
Surface Mount Yes
Technology Cmos
Temperature Grade Industrial
Terminal Finish Tin/Silver (Sn/Ag)
Terminal Form Ball
Terminal Pitch 0.65 Mm
Terminal Position Bottom
Width 10 Mm
uPs/uCs/Peripheral ICs Type Microcontroller, Risc

Alternate Parts for STM32F427IGH7

This table gives cross-reference parts and alternative options found for STM32F427IGH7. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of STM32F427IGH7, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
STM32F427IGH6 STMicroelectronics Check for Price RISC Microcontroller, 32-Bit, FLASH, CORTEX-M4 CPU, 180MHz, CMOS, PBGA176 STM32F427IGH7 vs STM32F427IGH6
STM32F427IGH6XXX STMicroelectronics Check for Price RISC Microcontroller, 32-Bit, FLASH, CORTEX-M4 CPU, 180MHz, CMOS, PBGA201 STM32F427IGH7 vs STM32F427IGH6XXX
equivalents icon

STM32F427IGH7 Related Parts

STM32F427IGH7 Frequently Asked Questions (FAQ)

  • The maximum clock frequency of the STM32F427IGH7 is 180 MHz.

  • The STM32F427IGH7 has 1 MB of flash memory.

  • Yes, the STM32F427IGH7 can operate at both 3.3V and 1.8V, making it suitable for a wide range of applications.

  • Yes, the STM32F427IGH7 has a built-in USB OTG (On-The-Go) interface, which allows it to act as a USB host or device.

  • The STM32F427IGH7 has 256 KB of SRAM and 4 KB of backup SRAM.
