STM32G041C8T6 by: STMicroelectronics

RISC Microcontroller, 32-Bit, FLASH, Cortex-M0+ CPU, 64MHz, CMOS, PQFP48

Part Details for STM32G041C8T6 by STMicroelectronics

Results Overview of STM32G041C8T6 by STMicroelectronics

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Internet of Things (IoT) Environmental Monitoring Industrial Automation Financial Technology (Fintech) Smart Cities Transportation and Logistics Agriculture Technology Telecommunications Virtual Reality (VR), Augmented Reality (AR), and Vision Systems Automotive Education and Research Consumer Electronics Security and Surveillance Audio and Video Systems Computing and Data Storage Healthcare Renewable Energy Entertainment and Gaming Robotics and Drones

STM32G041C8T6 Information

STM32G041C8T6 by STMicroelectronics is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.

Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.

Price & Stock for STM32G041C8T6

Part # Distributor Description Stock Price Buy
DISTI # 29AK8187
Newark Mcu, 32Bit, 64Mhz, Lqfp-48 Rohs Compliant: Yes |Stmicroelectronics STM32G041C8T6 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk 700
  • 1 $3.0700
  • 10 $2.4600
  • 25 $2.3100
  • 50 $2.2300
  • 100 $2.1400
  • 250 $2.0700
  • 500 $2.0200
$2.0200 / $3.0700 Buy Now
DISTI # STM32G041C8T6-ND
DigiKey IC MCU 32BIT 64KB FLASH 48LQFP Min Qty: 1 Lead time: 12 Weeks Container: Tray 8617
In Stock
  • 1 $2.4000
  • 10 $1.7890
  • 25 $1.6368
  • 100 $1.4700
  • 250 $1.3904
  • 500 $1.3495
$1.3495 / $2.4000 Buy Now
DISTI # STM32G041C8T6
Avnet Americas Microcontroller 32-Bit ARM Cortex-M0 RISC 64K-Byte Flash 3.6V 48-Pin LQFP - Trays (Alt: STM32G041C8T6) COO: Italy RoHS: Not Compliant Min Qty: 1500 Package Multiple: 1500 Lead time: 12 Weeks, 0 Days Container: Tray 0
  • 1,500 $1.4074
  • 3,000 $1.3314
  • 6,000 $1.2963
  • 9,000 $1.2631
  • 12,000 $1.2315
$1.2315 / $1.4074 Buy Now
DISTI # 511-STM32G041C8T6
Mouser Electronics ARM Microcontrollers - MCU Mainstream Arm Cortex-M0+ MCU 32 Kbytes of Flash 8 Kbytes RAM, 64 MHz CPU, 2x US RoHS: Compliant 2159
  • 1 $2.4000
  • 10 $1.7900
  • 25 $1.6400
  • 100 $1.4700
  • 250 $1.4000
  • 500 $1.3500
  • 1,500 $1.3400
$1.3400 / $2.4000 Buy Now
STMicroelectronics Mainstream Arm Cortex-M0+ MCU with 32 Kbytes of Flash memory, 8 Kbytes RAM, 64 MHz CPU, 2x USART, timers, ADC, comm. I/F, AES256, 1.7-3.6V COO: France RoHS: Compliant Min Qty: 1 2159
  • 1 $2.3500
  • 10 $1.7500
  • 25 $1.6100
  • 100 $1.4400
  • 250 $1.3700
  • 500 $1.3200
$1.3200 / $2.3500 Buy Now
Future Electronics ARM Microcontrollers - MCU 16/32-BITS MICROS RoHS: Compliant pbFree: Yes Min Qty: 1 Package Multiple: 1 Lead time: 12 Weeks Container: Tray 245
Tray
  • 1 $1.1500
  • 25 $1.1300
  • 75 $1.1100
  • 150 $1.1000
  • 400 $1.0800
$1.0800 / $1.1500 Buy Now
DISTI # STM32G041C8T6
IBS Electronics MICROCONTROLLER 32-BIT ARM CORTEX-M0 RISC 64K-BYTE FLASH 3.6V 48-PIN LQFP Min Qty: 10 Package Multiple: 1 245
  • 10 $1.6100
  • 25 $1.5820
  • 75 $1.5540
  • 150 $1.5400
  • 250 $1.4980
  • 500 $1.4840
  • 1,000 $1.4700
  • 3,750 $1.4420
$1.4420 / $1.6100 Buy Now
DISTI # STM32G041C8T6
Avnet Silica Microcontroller 32Bit ARM CortexM0 RISC 64KByte Flash 36V 48Pin LQFP (Alt: STM32G041C8T6) RoHS: Compliant Min Qty: 250 Package Multiple: 250 Lead time: 13 Weeks, 0 Days Silica - 0
Buy Now
DISTI # STM32G041C8T6
EBV Elektronik Microcontroller 32Bit ARM CortexM0 RISC 64KByte Flash 36V 48Pin LQFP (Alt: STM32G041C8T6) RoHS: Compliant Min Qty: 250 Package Multiple: 250 Lead time: 13 Weeks, 0 Days EBV - 0
Buy Now

US Tariff Estimator: STM32G041C8T6 by STMicroelectronics

Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

STM32G041C8T6
STMicroelectronics
Please specify a country of origin.
$
Please specify an import value in USD.
Estimator Results:
Tariff Percentage Tariff Calculation
Import Value
$.
Total Duty
$.
Total Estimate
$.
$.
Based on tariff data from

Part Details for STM32G041C8T6

STM32G041C8T6 CAD Models

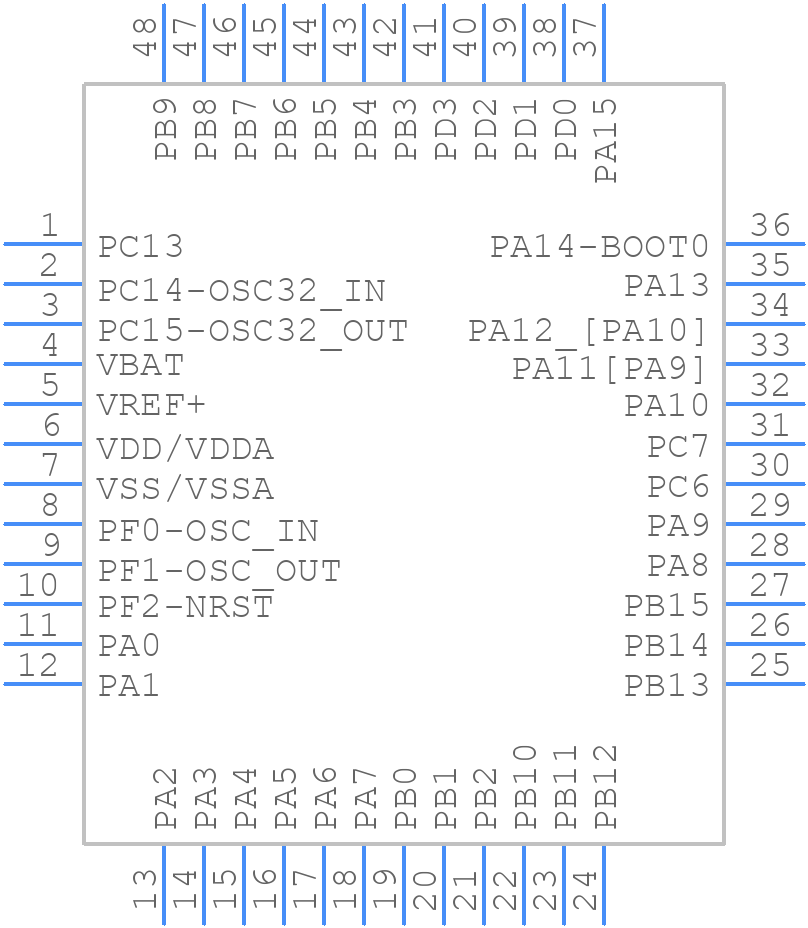

  • Part Symbol

    schematic symbol

  • Footprint

    pcb footprint

  • 3D Model

    2d presentation

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

STM32G041C8T6 Part Data Attributes

Parametric Data
STM32G041C8T6 STMicroelectronics
Buy Now Datasheet
Compare Parts:
STM32G041C8T6 STMicroelectronics RISC Microcontroller, 32-Bit, FLASH, Cortex-M0+ CPU, 64MHz, CMOS, PQFP48
Rohs Code Yes
Part Life Cycle Code Active
Package Description Lfqfp, Qfp48,.35sq,20
Reach Compliance Code Compliant
ECCN Code 5A992.C
HTS Code 8542.31.00.01
Factory Lead Time 12 Weeks
Has ADC Yes
Address Bus Width
Bit Size 32
Boundary Scan No
CPU Family Cortex-M0+
Clock Frequency-Max 48 Mhz
DAC Channels No
DMA Channels Yes
External Data Bus Width
Format Fixed Point
Integrated Cache No
JESD-30 Code S-PQFP-G48
Length 7 Mm
Low Power Mode Yes
Number of DMA Channels 5
Number of External Interrupts 44
Number of I/O Lines 44
Number of Serial I/Os 3
Number of Terminals 48
Number of Timers 9
On Chip Data RAM Width 8
On Chip Program ROM Width 8
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
PWM Channels Yes
Package Body Material Plastic/Epoxy
Package Code LFQFP
Package Equivalence Code QFP48,.35SQ,20
Package Shape Square
Package Style Flatpack, Low Profile, Fine Pitch
Peak Reflow Temperature (Cel) Not Specified
RAM (bytes) 8192
ROM (words) 65536
ROM Programmability Flash
Seated Height-Max 1.6 Mm
Speed 64 Mhz
Supply Current-Max 6.9 Ma
Supply Voltage-Max 3.6 V
Supply Voltage-Min 3 V
Supply Voltage-Nom 3 V
Surface Mount Yes
Technology Cmos
Terminal Form Gull Wing
Terminal Pitch 0.5 Mm
Terminal Position Quad
Time@Peak Reflow Temperature-Max (s) Not Specified
Width 7 Mm
uPs/uCs/Peripheral ICs Type Microcontroller, Risc
equivalents icon

STM32G041C8T6 Frequently Asked Questions (FAQ)

  • The maximum clock frequency of the STM32G041C8T6 is 64 MHz, but it can be overclocked to 72 MHz with a reduced voltage range.

  • The clock settings for the STM32G041C8T6 can be configured using the Clock Configuration Tool (CCT) provided by STMicroelectronics or by writing code to configure the registers directly.

  • The power consumption of the STM32G041C8T6 depends on the operating mode and frequency. In low-power mode, the current consumption is around 350 μA/MHz, and in sleep mode, it is around 2 μA.

  • The DMA controller on the STM32G041C8T6 can be used to transfer data between peripherals and memory without CPU intervention. This can be done by configuring the DMA registers and enabling the DMA channel.

  • The STM32G041C8T6 has 64 KB of Flash memory and 8 KB of SRAM.
