STM32G041K8T6 by: STMicroelectronics

RISC Microcontroller, 32-Bit, FLASH, Cortex-M0+ CPU, 64MHz, CMOS, PQFP32

Part Details for STM32G041K8T6 by STMicroelectronics

Results Overview of STM32G041K8T6 by STMicroelectronics

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Internet of Things (IoT) Environmental Monitoring Industrial Automation Financial Technology (Fintech) Smart Cities Transportation and Logistics Agriculture Technology Telecommunications Virtual Reality (VR), Augmented Reality (AR), and Vision Systems Automotive Education and Research Consumer Electronics Security and Surveillance Audio and Video Systems Computing and Data Storage Healthcare Renewable Energy Entertainment and Gaming Robotics and Drones

STM32G041K8T6 Information

STM32G041K8T6 by STMicroelectronics is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.

Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.

Price & Stock for STM32G041K8T6

Part # Distributor Description Stock Price Buy
DISTI # 497-STM32G041K8T6-ND
DigiKey IC MCU 32BIT 64KB FLASH 32LQFP Min Qty: 1500 Lead time: 12 Weeks Container: Tray Temporarily Out of Stock
  • 1,500 $1.3040
$1.3040 Buy Now
DISTI # STM32G041K8T6
Avnet Americas Microcontroller 32-Bit ARM Cortex-M0+ RISC 64K-Bytes Flash 2.5V/3.3V 32-Pin LQFP Tray - Trays (Alt: STM32G041K8T6) COO: Italy RoHS: Not Compliant Min Qty: 1500 Package Multiple: 1500 Lead time: 12 Weeks, 0 Days Container: Tray 0
  • 1,500 $1.3273
  • 3,000 $1.2555
  • 6,000 $1.2225
  • 9,000 $1.1911
  • 12,000 $1.1614
$1.1614 / $1.3273 Buy Now
DISTI # 511-STM32G041K8T6
Mouser Electronics ARM Microcontrollers - MCU Mainstream Arm Cortex-M0+ MCU 64 Kbytes of Flash 8 Kbytes RAM, 64 MHz CPU, 2x US RoHS: Compliant 1356
  • 1 $2.9800
  • 10 $2.2100
  • 25 $2.0900
  • 100 $1.8800
  • 250 $1.8100
  • 500 $1.6500
  • 1,000 $1.4000
  • 1,500 $1.3000
$1.3000 / $2.9800 Buy Now
DISTI # V36:1790_23988983
Arrow Electronics MCU 32-bit ARM Cortex M0+ RISC 64KB Flash 1.8V/2.5V/3.3V 32-Pin LQFP Tray COO: Taiwan RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 12 Weeks Date Code: 2308 Americas - 1500
  • 1 $1.8082
  • 10 $1.5672
  • 25 $1.5154
  • 100 $1.4245
  • 250 $1.3870
  • 500 $1.3077
  • 1,000 $1.1764
  • 1,500 $1.1158
$1.1158 / $1.8082 Buy Now
STMicroelectronics Mainstream Arm Cortex-M0+ MCU with 64 Kbytes of Flash memory, 8 Kbytes RAM, 64 MHz CPU, 2x USART, timers, ADC, comm. I/F, AES256, 1.7-3.6V COO: France RoHS: Compliant Min Qty: 1 1356
  • 1 $2.9200
  • 10 $2.1700
  • 25 $2.0500
  • 100 $1.8400
  • 250 $1.7700
  • 500 $1.6200
$1.6200 / $2.9200 Buy Now
DISTI # 86932589
Verical MCU 32-bit ARM Cortex M0+ RISC 64KB Flash 1.8V/2.5V/3.3V 32-Pin LQFP Tray RoHS: Compliant Min Qty: 6 Package Multiple: 1 Date Code: 2308 Americas - 1500
  • 6 $1.8082
  • 10 $1.5672
  • 25 $1.5154
  • 100 $1.4245
  • 250 $1.3870
  • 500 $1.3077
  • 1,000 $1.1764
  • 1,500 $1.1158
$1.1158 / $1.8082 Buy Now
DISTI # V36:1790_23988983
Arrow Electronics MCU 32-bit ARM Cortex M0+ RISC 64KB Flash 1.8V/2.5V/3.3V 32-Pin LQFP Tray COO: Taiwan RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 12 Weeks Date Code: 2308 Americas - 1500
  • 1 $1.8082
  • 10 $1.5672
  • 25 $1.5154
  • 100 $1.4245
  • 250 $1.3870
  • 500 $1.3077
  • 1,000 $1.1764
  • 1,500 $1.1158
$1.1158 / $1.8082 Buy Now
DISTI # 86932589
Verical MCU 32-bit ARM Cortex M0+ RISC 64KB Flash 1.8V/2.5V/3.3V 32-Pin LQFP Tray COO: Taiwan RoHS: Compliant Min Qty: 6 Package Multiple: 1 Date Code: 2308 Americas - 1500
  • 6 $1.8082
  • 10 $1.5672
  • 25 $1.5154
  • 100 $1.4245
  • 250 $1.3870
  • 500 $1.3077
  • 1,000 $1.1764
  • 1,500 $1.1158
$1.1158 / $1.8082 Buy Now
DISTI # V36:1790_23988983
Arrow Electronics MCU 32-bit ARM Cortex M0+ RISC 64KB Flash 1.8V/2.5V/3.3V 32-Pin LQFP Tray COO: Taiwan RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 12 Weeks Date Code: 2308 Americas - 1500
  • 1 $1.8082
  • 10 $1.5672
  • 25 $1.5154
  • 100 $1.4245
  • 250 $1.3870
  • 500 $1.3077
  • 1,000 $1.1764
  • 1,500 $1.1158
$1.1158 / $1.8082 Buy Now
DISTI # 86932589
Verical MCU 32-bit ARM Cortex M0+ RISC 64KB Flash 1.8V/2.5V/3.3V 32-Pin LQFP Tray COO: Taiwan RoHS: Compliant Min Qty: 6 Package Multiple: 1 Date Code: 2308 Americas - 1500
  • 6 $1.8082
  • 10 $1.5672
  • 25 $1.5154
  • 100 $1.4245
  • 250 $1.3870
  • 500 $1.3077
  • 1,000 $1.1764
  • 1,500 $1.1158
$1.1158 / $1.8082 Buy Now
DISTI # STM32G041K8T6
Avnet Silica Microcontroller 32Bit ARM CortexM0 RISC 64KBytes Flash 25V33V 32Pin LQFP Tray (Alt: STM32G041K8T6) RoHS: Compliant Min Qty: 250 Package Multiple: 250 Lead time: 13 Weeks, 0 Days Silica - 0
Buy Now
DISTI # STM32G041K8T6
EBV Elektronik Microcontroller 32Bit ARM CortexM0 RISC 64KBytes Flash 25V33V 32Pin LQFP Tray (Alt: STM32G041K8T6) RoHS: Compliant Min Qty: 250 Package Multiple: 250 Lead time: 13 Weeks, 0 Days EBV - 0
Buy Now

US Tariff Estimator: STM32G041K8T6 by STMicroelectronics

Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

STM32G041K8T6
STMicroelectronics
Please specify a country of origin.
$
Please specify an import value in USD.
Estimator Results:
Tariff Percentage Tariff Calculation
Import Value
$.
Total Duty
$.
Total Estimate
$.
$.
Based on tariff data from

Part Details for STM32G041K8T6

STM32G041K8T6 CAD Models

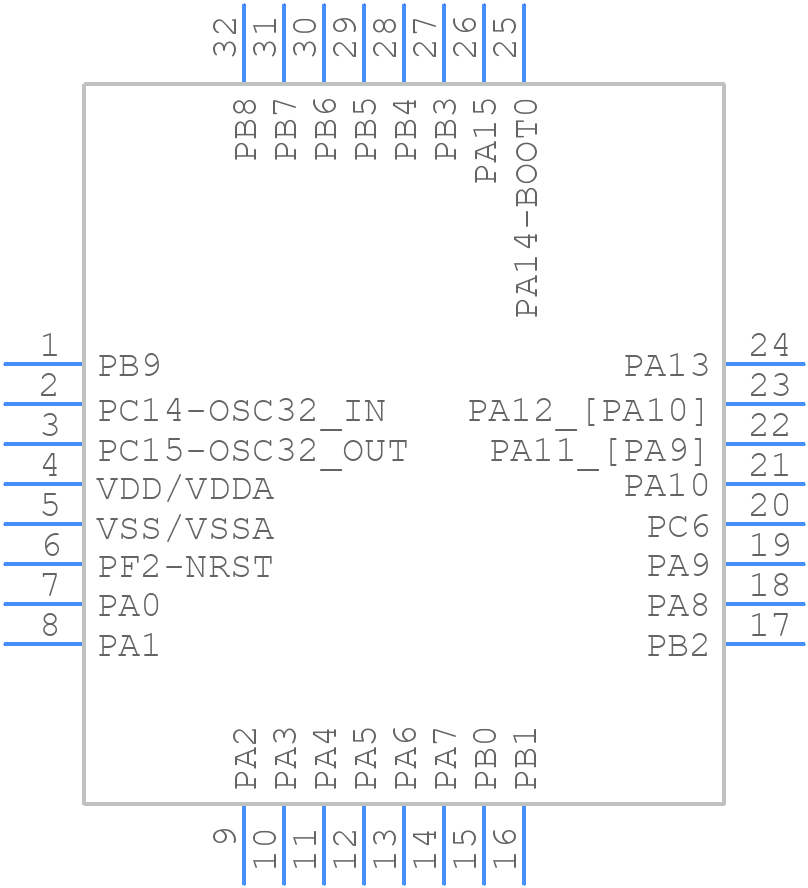

  • Part Symbol

    schematic symbol

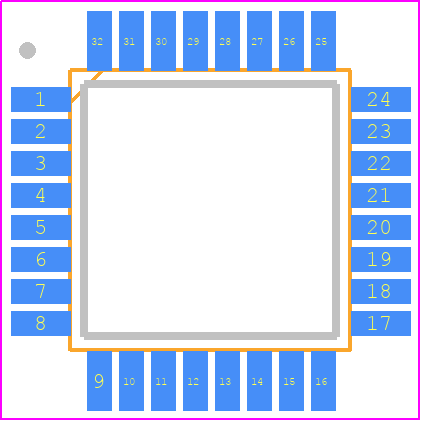

  • Footprint

    pcb footprint

  • 3D Model

    2d presentation

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

STM32G041K8T6 Part Data Attributes

Parametric Data
STM32G041K8T6 STMicroelectronics
Buy Now Datasheet
Compare Parts:
STM32G041K8T6 STMicroelectronics RISC Microcontroller, 32-Bit, FLASH, Cortex-M0+ CPU, 64MHz, CMOS, PQFP32
Rohs Code Yes
Part Life Cycle Code Active
Package Description Lqfp, Qfp32,.35sq,32
Reach Compliance Code Compliant
ECCN Code 5A992.C
HTS Code 8542.31.00.01
Factory Lead Time 12 Weeks
Has ADC Yes
Address Bus Width
Bit Size 32
Boundary Scan No
CPU Family Cortex-M0+
Clock Frequency-Max 48 Mhz
DAC Channels No
DMA Channels Yes
External Data Bus Width
Format Fixed Point
Integrated Cache No
JESD-30 Code S-PQFP-G32
JESD-609 Code e3
Length 7 Mm
Low Power Mode Yes
Moisture Sensitivity Level 3
Number of DMA Channels 5
Number of External Interrupts 30
Number of I/O Lines 30
Number of Serial I/Os 3
Number of Terminals 32
Number of Timers 9
On Chip Data RAM Width 8
On Chip Program ROM Width 8
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
PWM Channels Yes
Package Body Material Plastic/Epoxy
Package Code LQFP
Package Equivalence Code QFP32,.35SQ,32
Package Shape Square
Package Style Flatpack, Low Profile
Peak Reflow Temperature (Cel) 260
RAM (bytes) 8192
ROM (words) 65536
ROM Programmability Flash
Seated Height-Max 1.6 Mm
Speed 64 Mhz
Supply Current-Max 6.9 Ma
Supply Voltage-Max 3.6 V
Supply Voltage-Min 3 V
Supply Voltage-Nom 3 V
Surface Mount Yes
Technology Cmos
Terminal Finish Matte Tin (Sn)
Terminal Form Gull Wing
Terminal Pitch 0.8 Mm
Terminal Position Quad
Width 7 Mm
uPs/uCs/Peripheral ICs Type Microcontroller, Risc
equivalents icon

STM32G041K8T6 Frequently Asked Questions (FAQ)

  • The maximum clock frequency of the STM32G041K8T6 is 64 MHz, but it can be overclocked to 72 MHz with a reduced voltage supply.

  • The boot mode of the STM32G041K8T6 can be configured by setting the BOOT0 and BOOT1 pins. BOOT0 pin is used to select between the internal flash and system memory, while BOOT1 pin is used to select between the internal flash and external memory.

  • The minimum voltage required for the STM32G041K8T6 to operate is 1.7V, but it is recommended to use a voltage supply of at least 2.0V for reliable operation.

  • The internal oscillator of the STM32G041K8T6 can be used by setting the HSE clock source to 'Internal Clock' in the RCC clock configuration register. The internal oscillator frequency can be trimmed using the HSITRIM register.

  • The maximum current consumption of the STM32G041K8T6 depends on the operating frequency and voltage supply. At 64 MHz and 3.3V, the maximum current consumption is around 350 mA.
