STM32G050C6T6 by: STMicroelectronics

RISC Microcontroller, 32-Bit, FLASH, Cortex-M0+ CPU, 64MHz, CMOS, PQFP48

Part Details for STM32G050C6T6 by STMicroelectronics

Results Overview of STM32G050C6T6 by STMicroelectronics

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Consumer Electronics Internet of Things (IoT) Smart Cities

STM32G050C6T6 Information

STM32G050C6T6 by STMicroelectronics is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.

Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.

Price & Stock for STM32G050C6T6

Part # Distributor Description Stock Price Buy
DISTI # 45AJ8541
Newark Mcu, 64Mhz, Arm Cortex-M0+, Lqfp-48 Rohs Compliant: Yes |Stmicroelectronics STM32G050C6T6 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk 117
  • 1 $2.4300
  • 10 $1.9200
  • 100 $1.6500
  • 500 $1.5400
  • 1,000 $1.5100
  • 2,500 $1.4900
  • 5,000 $1.4600
$1.4600 / $2.4300 Buy Now
DISTI # 497-STM32G050C6T6-ND
DigiKey IC MCU 32BIT 32KB FLASH 48LQFP Min Qty: 1 Lead time: 12 Weeks Container: Tray 1500
In Stock
  • 1 $1.9600
  • 10 $1.4460
  • 25 $1.3176
  • 100 $1.1755
  • 250 $1.1078
  • 500 $1.0670
  • 1,500 $1.0167
  • 3,000 $0.9920
  • 6,000 $0.9717
$0.9717 / $1.9600 Buy Now
DISTI # STM32G050C6T6
Avnet Americas MCU 32-Bit ARM Cortex-M0+ RISC 32kByte Flash 1.7V to 3.6V 48-Pin LQFP Tray - Trays (Alt: STM32G050C6T6) COO: Taiwan (Province of China) RoHS: Not Compliant Min Qty: 1500 Package Multiple: 1500 Lead time: 12 Weeks, 0 Days Container: Tray 0
  • 1,500 $0.9477
  • 3,000 $0.8965
  • 6,000 $0.8849
  • 9,000 $0.8804
  • 12,000 $0.8759
$0.8759 / $0.9477 Buy Now
DISTI # 511-STM32G050C6T6
Mouser Electronics ARM Microcontrollers - MCU Mainstream Value line, Arm Cortex-M0+ MCU 32 Kbytes of Flash 18 Kbytes RAM, 64 M RoHS: Compliant 15
  • 1 $2.8700
  • 10 $1.8600
  • 25 $1.6900
  • 100 $1.4200
  • 250 $1.3300
  • 500 $1.1700
  • 1,000 $1.0000
  • 1,500 $0.9240
  • 4,500 $0.9030
$0.9030 / $2.8700 Buy Now
STMicroelectronics Mainstream Value line, Arm Cortex-M0+ MCU with 32 Kbytes of Flash memory, 18 Kbytes RAM, 64 MHz CPU, 2x USART, timers, ADC, comm. I/F, 2-3.6V COO: Taiwan RoHS: Compliant Min Qty: 1 15
  • 1 $2.8100
  • 10 $1.8200
  • 25 $1.6600
  • 100 $1.3900
  • 250 $1.3000
  • 500 $1.1500
$1.1500 / $2.8100 Buy Now
DISTI # STM32G050C6T6
Avnet Silica MCU 32Bit ARM CortexM0 RISC 32kByte Flash 17V to 36V 48Pin LQFP Tray (Alt: STM32G050C6T6) RoHS: Compliant Min Qty: 250 Package Multiple: 250 Lead time: 13 Weeks, 0 Days Silica - 0
Buy Now
DISTI # STM32G050C6T6
EBV Elektronik MCU 32Bit ARM CortexM0 RISC 32kByte Flash 17V to 36V 48Pin LQFP Tray (Alt: STM32G050C6T6) RoHS: Compliant Min Qty: 250 Package Multiple: 250 Lead time: 13 Weeks, 0 Days EBV - 0
Buy Now

US Tariff Estimator: STM32G050C6T6 by STMicroelectronics

Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

STM32G050C6T6
STMicroelectronics
Please specify a country of origin.
$
Please specify an import value in USD.
Estimator Results:
Tariff Percentage Tariff Calculation
Import Value
$.
Total Duty
$.
Total Estimate
$.
$.
Based on tariff data from

Part Details for STM32G050C6T6

STM32G050C6T6 CAD Models

  • Part Symbol

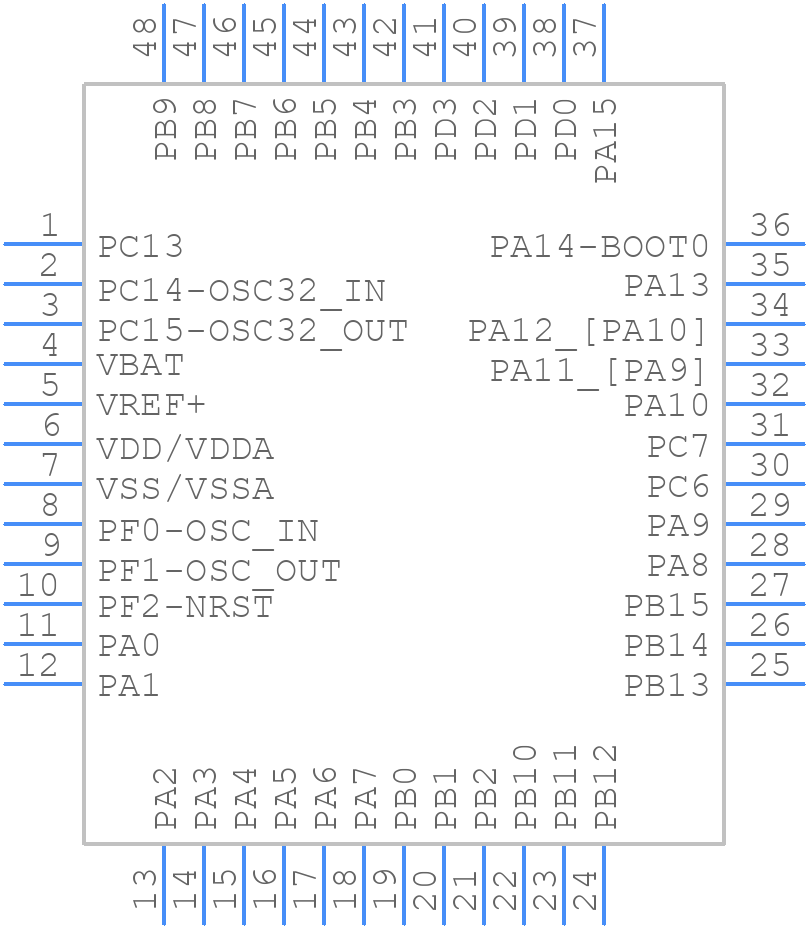

    schematic symbol

  • Footprint

    pcb footprint

  • 3D Model

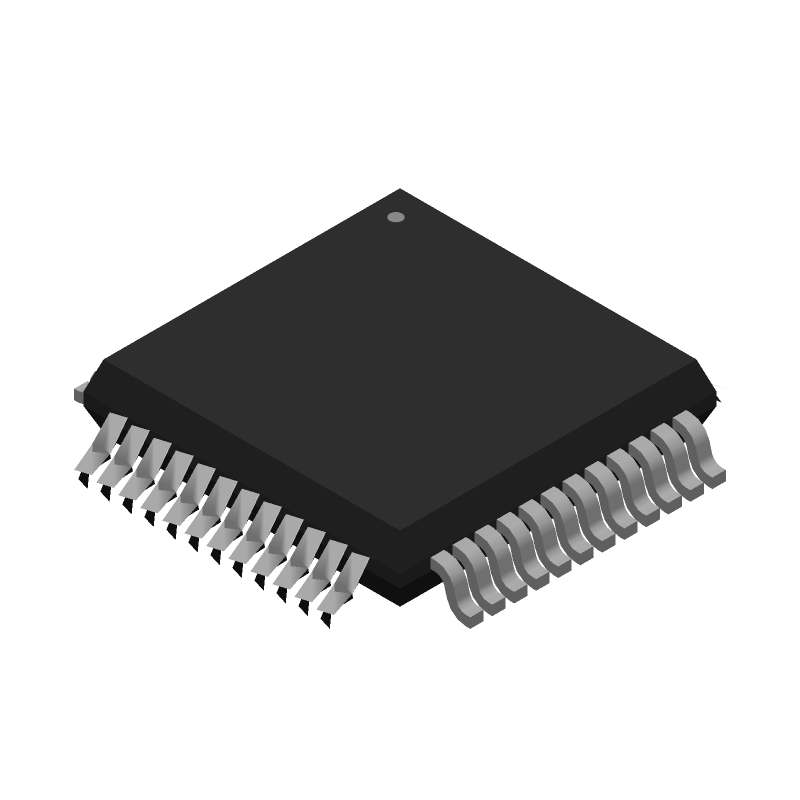

    2d presentation

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

STM32G050C6T6 Part Data Attributes

Parametric Data
STM32G050C6T6 STMicroelectronics
Buy Now Datasheet
Compare Parts:
STM32G050C6T6 STMicroelectronics RISC Microcontroller, 32-Bit, FLASH, Cortex-M0+ CPU, 64MHz, CMOS, PQFP48
Rohs Code Yes
Part Life Cycle Code Active
Package Description Lfqfp, Qfp48,.35sq,20
Reach Compliance Code Compliant
ECCN Code 3A991.A.2
HTS Code 8542.31.00.01
Factory Lead Time 12 Weeks
Has ADC Yes
Address Bus Width
Bit Size 32
Boundary Scan No
CPU Family Cortex-M0+
Clock Frequency-Max 48 Mhz
DAC Channels No
DMA Channels Yes
External Data Bus Width
Format Fixed Point
Integrated Cache No
JESD-30 Code S-PQFP-G48
Length 7 Mm
Low Power Mode Yes
Number of DMA Channels 7
Number of External Interrupts 44
Number of I/O Lines 44
Number of Serial I/Os 2
Number of Terminals 48
Number of Timers 14
On Chip Data RAM Width 8
On Chip Program ROM Width 8
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
PWM Channels Yes
Package Body Material Plastic/Epoxy
Package Code LFQFP
Package Equivalence Code QFP48,.35SQ,20
Package Shape Square
Package Style Flatpack, Low Profile, Fine Pitch
RAM (bytes) 18432
ROM (words) 32768
ROM Programmability Flash
Seated Height-Max 1.6 Mm
Speed 64 Mhz
Supply Current-Max 7.7 Ma
Supply Voltage-Max 3.6 V
Supply Voltage-Min 3 V
Supply Voltage-Nom 3 V
Surface Mount Yes
Technology Cmos
Terminal Form Gull Wing
Terminal Pitch 0.5 Mm
Terminal Position Quad
Width 7 Mm
uPs/uCs/Peripheral ICs Type Microcontroller, Risc
