STM32G081KBT6 by: STMicroelectronics

RISC Microcontroller, 32-Bit, FLASH, CORTEX-M0 CPU, 64MHz, CMOS, PQFP32

Part Details for STM32G081KBT6 by STMicroelectronics

Results Overview of STM32G081KBT6 by STMicroelectronics

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Consumer Electronics Internet of Things (IoT) Industrial Automation Smart Cities Renewable Energy Automotive Robotics and Drones

STM32G081KBT6 Information

STM32G081KBT6 by STMicroelectronics is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.

Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.

Price & Stock for STM32G081KBT6

Part # Distributor Description Stock Price Buy
DISTI # 29AK8196
Newark Mcu, 32Bit, 64Mhz, Lqfp-32 Rohs Compliant: Yes |Stmicroelectronics STM32G081KBT6 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk 162
  • 1 $3.3600
  • 10 $2.9200
  • 25 $2.7800
  • 50 $2.7200
  • 100 $2.6500
  • 250 $2.5800
  • 500 $2.4900
$2.4900 / $3.3600 Buy Now
DISTI # 497-STM32G081KBT6-ND
DigiKey IC MCU 32BIT 128KB FLASH 32LQFP Min Qty: 1 Lead time: 12 Weeks Container: Tray 381
In Stock
  • 1 $3.4500
  • 10 $2.5960
  • 25 $2.3820
  • 100 $2.1466
  • 250 $2.0344
  • 500 $1.9668
  • 1,500 $1.8833
  • 3,000 $1.8424
$1.8424 / $3.4500 Buy Now
DISTI # STM32G081KBT6
Avnet Americas Microcontroller 32-Bit ARM Cortex-M0 RISC 128K-Byte Flash 3.3V 32-Pin LQFP - Trays (Alt: STM32G081KBT6) COO: France RoHS: Not Compliant Min Qty: 1500 Package Multiple: 1500 Lead time: 12 Weeks, 0 Days Container: Tray 0
  • 1,500 $1.8247
  • 3,000 $1.7261
  • 6,000 $1.6807
  • 9,000 $1.6376
  • 12,000 $1.5966
$1.5966 / $1.8247 Buy Now
DISTI # 511-STM32G081KBT6
Mouser Electronics ARM Microcontrollers - MCU Mainstream Arm Cortex-M0+ MCU 128 Kbytes of Flash, 36 Kbytes RAM, 64 MHz CPU RoHS: Compliant 0
  • 1 $3.4500
  • 10 $2.6000
  • 25 $2.3900
  • 100 $2.1500
  • 250 $2.0400
  • 500 $1.9700
  • 1,000 $1.7800
  • 1,500 $1.7300
  • 4,500 $1.7200
$1.7200 / $3.4500 Order Now
STMicroelectronics Mainstream Arm Cortex-M0+ MCU with 128 Kbytes of Flash memory, 36 Kbytes RAM, 64 MHz CPU, 4x USART, timers, ADC, DAC, comm. I/F, AES256, 1.7-3.6V COO: France RoHS: Compliant Min Qty: 1 0
  • 1 $2.4800
  • 10 $2.0300
  • 25 $1.9100
  • 100 $1.7800
  • 250 $1.7200
  • 500 $1.6300
$1.6300 / $2.4800 Buy Now
DISTI # STM32G081KBT6
Avnet Silica Microcontroller 32Bit ARM CortexM0 RISC 128KByte Flash 33V 32Pin LQFP (Alt: STM32G081KBT6) RoHS: Compliant Min Qty: 250 Package Multiple: 250 Lead time: 13 Weeks, 0 Days Silica - 0
Buy Now
DISTI # STM32G081KBT6
EBV Elektronik Microcontroller 32Bit ARM CortexM0 RISC 128KByte Flash 33V 32Pin LQFP (Alt: STM32G081KBT6) RoHS: Compliant Min Qty: 250 Package Multiple: 250 Lead time: 13 Weeks, 0 Days EBV - 0
Buy Now

US Tariff Estimator: STM32G081KBT6 by STMicroelectronics

Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

STM32G081KBT6
STMicroelectronics
Please specify a country of origin.
$
Please specify an import value in USD.
Estimator Results:
Tariff Percentage Tariff Calculation
Import Value
$.
Total Duty
$.
Total Estimate
$.
$.
Based on tariff data from

Part Details for STM32G081KBT6

STM32G081KBT6 CAD Models

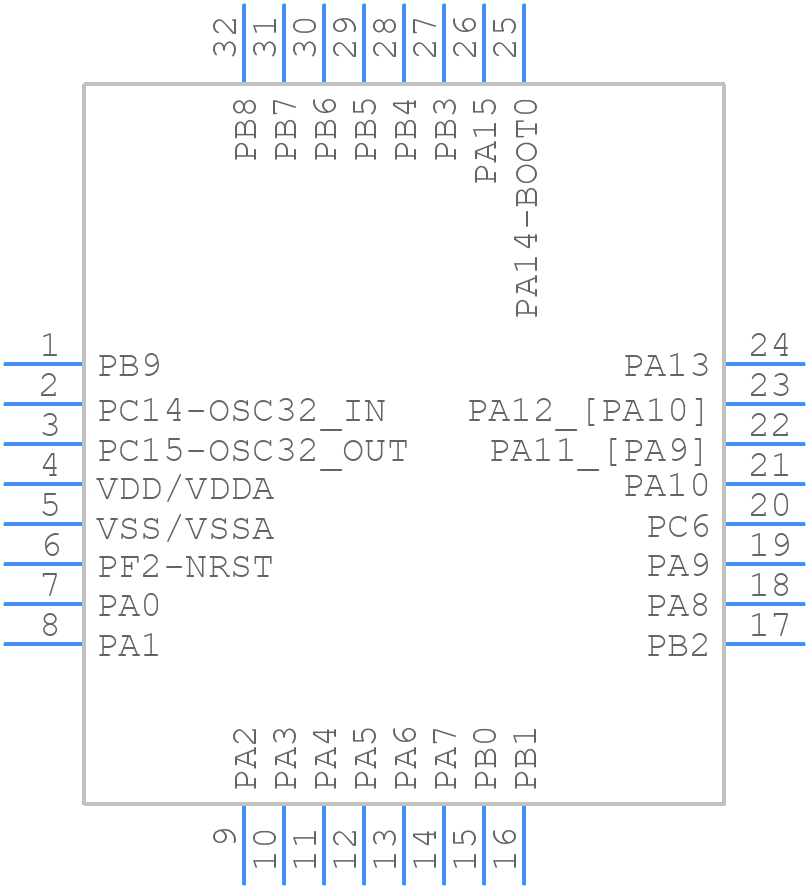

  • Part Symbol

    schematic symbol

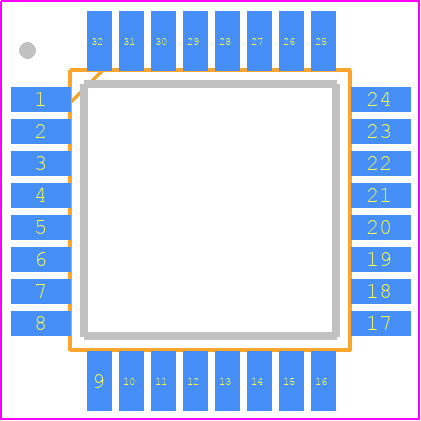

  • Footprint

    pcb footprint

  • 3D Model

    2d presentation

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

STM32G081KBT6 Part Data Attributes

Parametric Data
STM32G081KBT6 STMicroelectronics
Buy Now Datasheet
Compare Parts:
STM32G081KBT6 STMicroelectronics RISC Microcontroller, 32-Bit, FLASH, CORTEX-M0 CPU, 64MHz, CMOS, PQFP32
Rohs Code Yes
Part Life Cycle Code Active
Package Description Lqfp,
Reach Compliance Code Compliant
ECCN Code 5A992.C
HTS Code 8542.31.00.01
Factory Lead Time 12 Weeks
Date Of Intro 2019-05-06
Has ADC Yes
Additional Feature Sram 32kbyte With Parity
Address Bus Width
Bit Size 32
Boundary Scan No
CPU Family Cortex-M0
Clock Frequency-Max 48 Mhz
DAC Channels Yes
DMA Channels Yes
External Data Bus Width
JESD-30 Code S-PQFP-G32
Length 7 Mm
Moisture Sensitivity Level 3
Number of DMA Channels 7
Number of I/O Lines 24
Number of Terminals 32
Number of Timers 12
On Chip Program ROM Width 8
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
PWM Channels Yes
Package Body Material Plastic/Epoxy
Package Code LQFP
Package Shape Square
Package Style Flatpack, Low Profile
Peak Reflow Temperature (Cel) 260
RAM (bytes) 36864
ROM (words) 131072
ROM Programmability Flash
Seated Height-Max 1.6 Mm
Speed 64 Mhz
Supply Voltage-Max 3.6 V
Supply Voltage-Min 3 V
Supply Voltage-Nom 3 V
Surface Mount Yes
Technology Cmos
Temperature Grade Industrial
Terminal Finish Tin (Sn) - Immersion
Terminal Form Gull Wing
Terminal Pitch 0.8 Mm
Terminal Position Quad
Time@Peak Reflow Temperature-Max (s) Not Specified
Width 7 Mm
uPs/uCs/Peripheral ICs Type Microcontroller, Risc
equivalents icon

STM32G081KBT6 Frequently Asked Questions (FAQ)

  • The maximum clock frequency of the STM32G081KBT6 is 64 MHz.

  • The STM32G081KBT6 has 64 KB of flash memory.

  • No, the STM32G081KBT6 is a 3.3V device and should not be operated at 5V.

  • No, the STM32G081KBT6 does not have a built-in USB interface. However, it can be implemented using the device's GPIO pins and a USB software stack.

  • The STM32G081KBT6 has 3 UARTs.
