STM32L051T6Y6TR by: STMicroelectronics

RISC Microcontroller, 32-Bit, FLASH, CORTEX-M0 CPU, 32MHz, CMOS, PBGA36

Part Details for STM32L051T6Y6TR by STMicroelectronics

Results Overview of STM32L051T6Y6TR by STMicroelectronics

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Internet of Things (IoT) Environmental Monitoring Financial Technology (Fintech) Smart Cities Transportation and Logistics Agriculture Technology Telecommunications Virtual Reality (VR), Augmented Reality (AR), and Vision Systems Automotive Consumer Electronics Education and Research Security and Surveillance Audio and Video Systems Computing and Data Storage Healthcare Renewable Energy Entertainment and Gaming Robotics and Drones

STM32L051T6Y6TR Information

STM32L051T6Y6TR by STMicroelectronics is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.

Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.

Price & Stock for STM32L051T6Y6TR

Part # Distributor Description Stock Price Buy
DISTI # 52Y1140
Newark 32 Bit Microcontroller, Ultra Low Power, Arm Cortex-M0+, 32 Mhz, 32 Kb, 8 Kb, 36, Wlcsp Rohs Compliant: Yes |Stmicroelectronics STM32L051T6Y6TR RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape 2500
  • 1 $1.8200
  • 10 $1.6800
  • 25 $1.6800
  • 50 $1.5600
  • 100 $1.4600
  • 250 $1.4100
  • 500 $1.3600
  • 1,000 $1.3100
$1.3100 / $1.8200 Buy Now
DISTI # 52Y1140
Avnet Americas MCU 32-Bit Ultra Low Power STM32L ARM Cortex M0+ RISC 32kB Flash 36-Pin Std WLCSP T/R - Product that comes on tape, but is not reeled (Alt: 52Y1140) COO: France RoHS: Compliant Min Qty: 1 Package Multiple: 1 Container: Ammo Pack 2500 Partner Stock
  • 1 $2.4500
  • 10 $1.8200
  • 25 $1.7000
  • 50 $1.5900
  • 100 $1.4900
  • 250 $1.4100
  • 500 $1.3600
$1.3600 / $2.4500 Buy Now
DISTI # STM32L051T6Y6TR
Avnet Americas MCU 32-Bit Ultra Low Power STM32L ARM Cortex M0+ RISC 32kB Flash 36-Pin Std WLCSP T/R - Tape and Reel (Alt: STM32L051T6Y6TR) COO: France RoHS: Compliant Min Qty: 5000 Package Multiple: 5000 Lead time: 13 Weeks, 0 Days Container: Tape & Reel 0
  • 5,000 $1.3173
  • 10,000 $1.2461
  • 20,000 $1.2133
  • 40,000 $1.1822
  • 80,000 $1.1526
$1.1526 / $1.3173 Buy Now
DISTI # 511-STM32L051T6Y6TR
Mouser Electronics ARM Microcontrollers - MCU Ultra-low-power Arm Cortex-M0+ MCU 32 Kbytes of Flash , 32 MHz CPU RoHS: Compliant 11629
  • 1 $2.4900
  • 10 $1.8500
  • 25 $1.7000
  • 100 $1.5100
  • 250 $1.4300
  • 500 $1.4000
  • 5,000 $1.3400
$1.3400 / $2.4900 Buy Now
DISTI # V36:1790_06563903
Arrow Electronics MCU 32-bit ARM Cortex M0+ RISC 32KB Flash 2.5V/3.3V 36-Pin WLCSP T/R COO: Singapore RoHS: Compliant Min Qty: 5000 Package Multiple: 5000 Lead time: 13 Weeks Date Code: 2403 Americas - 15000
  • 5,000 $1.0757
$1.0757 Buy Now
STMicroelectronics Ultra-low-power Arm Cortex-M0+ MCU with 32 Kbytes of Flash memory, 32 MHz CPU COO: France RoHS: Compliant Min Qty: 1 12754
  • 1 $2.4400
  • 10 $1.8100
  • 25 $1.6700
  • 100 $1.4800
  • 250 $1.4000
  • 500 $1.3700
$1.3700 / $2.4400 Buy Now
DISTI # 78395537
Verical MCU 32-bit ARM Cortex M0+ RISC 32KB Flash 2.5V/3.3V 36-Pin WLCSP T/R RoHS: Compliant Min Qty: 5000 Package Multiple: 5000 Date Code: 2403 Americas - 15000
  • 5,000 $1.0757
$1.0757 Buy Now
DISTI # V36:1790_06563903
Arrow Electronics MCU 32-bit ARM Cortex M0+ RISC 32KB Flash 2.5V/3.3V 36-Pin WLCSP T/R COO: Singapore RoHS: Compliant Min Qty: 5000 Package Multiple: 5000 Lead time: 13 Weeks Date Code: 2403 Americas - 15000
  • 5,000 $1.0757
$1.0757 Buy Now
DISTI # 78395537
Verical MCU 32-bit ARM Cortex M0+ RISC 32KB Flash 2.5V/3.3V 36-Pin WLCSP T/R COO: Singapore RoHS: Compliant Min Qty: 5000 Package Multiple: 5000 Date Code: 2403 Americas - 15000
  • 5,000 $1.0757
$1.0757 Buy Now
DISTI # V36:1790_06563903
Arrow Electronics MCU 32-bit ARM Cortex M0+ RISC 32KB Flash 2.5V/3.3V 36-Pin WLCSP T/R COO: Singapore RoHS: Compliant Min Qty: 5000 Package Multiple: 5000 Lead time: 13 Weeks Date Code: 2403 Americas - 15000
  • 5,000 $1.0757
$1.0757 Buy Now
DISTI # 78395537
Verical MCU 32-bit ARM Cortex M0+ RISC 32KB Flash 2.5V/3.3V 36-Pin WLCSP T/R COO: Singapore RoHS: Compliant Min Qty: 5000 Package Multiple: 5000 Date Code: 2403 Americas - 15000
  • 5,000 $1.0757
$1.0757 Buy Now
DISTI # STM32L051T6Y6TR
Avnet Silica MCU 32Bit Ultra Low Power STM32L ARM Cortex M0 RISC 32kB Flash 36Pin Std WLCSP TR (Alt: STM32L051T6Y6TR) RoHS: Compliant Min Qty: 5000 Package Multiple: 5000 Lead time: 14 Weeks, 0 Days Silica - 0
Buy Now
DISTI # STM32L051T6Y6TR
EBV Elektronik MCU 32Bit Ultra Low Power STM32L ARM Cortex M0 RISC 32kB Flash 36Pin Std WLCSP TR (Alt: STM32L051T6Y6TR) RoHS: Compliant Min Qty: 5000 Package Multiple: 5000 Lead time: 14 Weeks, 0 Days EBV - 0
Buy Now

US Tariff Estimator: STM32L051T6Y6TR by STMicroelectronics

Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

STM32L051T6Y6TR
STMicroelectronics
Please specify a country of origin.
$
Please specify an import value in USD.
Estimator Results:
Tariff Percentage Tariff Calculation
Import Value
$.
Total Duty
$.
Total Estimate
$.
$.
Based on tariff data from

Part Details for STM32L051T6Y6TR

STM32L051T6Y6TR CAD Models

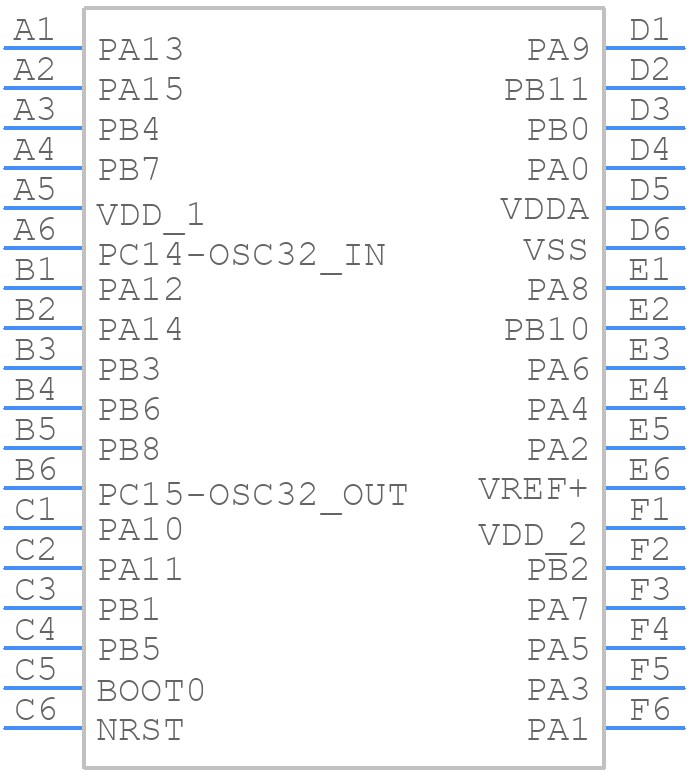

  • Part Symbol

    schematic symbol

  • Footprint

    pcb footprint

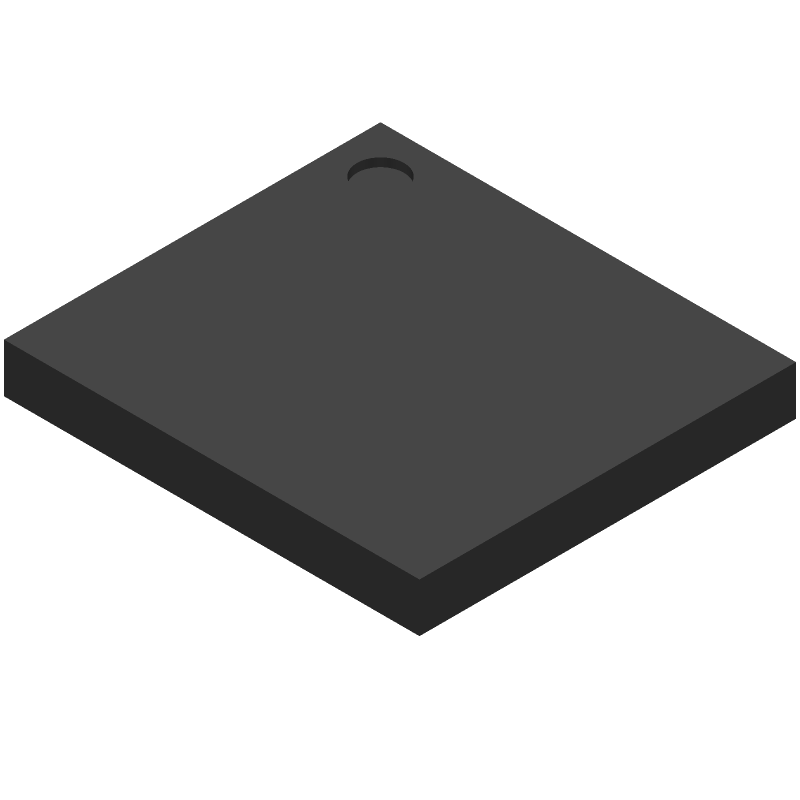

  • 3D Model

    2d presentation

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

STM32L051T6Y6TR Part Data Attributes

Parametric Data
STM32L051T6Y6TR STMicroelectronics
Buy Now Datasheet
Compare Parts:
STM32L051T6Y6TR STMicroelectronics RISC Microcontroller, 32-Bit, FLASH, CORTEX-M0 CPU, 32MHz, CMOS, PBGA36
Rohs Code Yes
Part Life Cycle Code Active
Package Description Vfbga, Bga36,6x6,16
Reach Compliance Code Compliant
ECCN Code 3A991.A.2
HTS Code 8542.31.00.01
Has ADC Yes
Address Bus Width
Bit Size 32
Boundary Scan No
CPU Family Cortex-M0
Clock Frequency-Max 25 Mhz
DAC Channels No
DMA Channels Yes
External Data Bus Width
Integrated Cache No
JESD-30 Code R-PBGA-B36
JESD-609 Code e1
Length 2.88 Mm
Low Power Mode Yes
Moisture Sensitivity Level 1
Number of DMA Channels 7
Number of I/O Lines 29
Number of Terminals 36
Number of Timers 5
On Chip Program ROM Width 8
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
PWM Channels Yes
Package Body Material Plastic/Epoxy
Package Code VFBGA
Package Equivalence Code BGA36,6X6,16
Package Shape Rectangular
Package Style Grid Array, Very Thin Profile, Fine Pitch
Peak Reflow Temperature (Cel) 260
RAM (bytes) 8192
ROM (words) 32768
ROM Programmability Flash
Seated Height-Max 0.59 Mm
Speed 32 Mhz
Supply Current-Max 6.8 Ma
Supply Voltage-Max 3.6 V
Supply Voltage-Min 3 V
Supply Voltage-Nom 3 V
Surface Mount Yes
Technology Cmos
Temperature Grade Industrial
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
Terminal Form Ball
Terminal Pitch 0.4 Mm
Terminal Position Bottom
Width 2.61 Mm
uPs/uCs/Peripheral ICs Type Microcontroller, Risc
equivalents icon

STM32L051T6Y6TR Related Parts

STM32L051T6Y6TR Frequently Asked Questions (FAQ)

  • The maximum clock frequency of the STM32L051T6Y6TR is 32 MHz.

  • The STM32L051T6Y6TR has 32 KB of flash memory.

  • The power consumption of the STM32L051T6Y6TR in low-power mode (Stop mode) is approximately 350 nA.

  • No, the STM32L051T6Y6TR does not have a built-in USB interface.

  • Yes, the STM32L051T6Y6TR can operate at 1.8V, but it is not recommended as it may affect the device's performance and reliability.
