Microcontrollers and Processors / Microcontrollers / STM32L053R6T6TR
Datasheets
packagee
STM32L053R6T6TR by: STMicroelectronics

RISC Microcontroller, 32-Bit, FLASH, 32MHz, CMOS, PQFP64

Part Details for STM32L053R6T6TR by STMicroelectronics

Results Overview of STM32L053R6T6TR by STMicroelectronics

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Consumer Electronics Internet of Things (IoT) Smart Cities

STM32L053R6T6TR Information

STM32L053R6T6TR by STMicroelectronics is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.

Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.

Price & Stock for STM32L053R6T6TR

Part # Distributor Description Stock Price Buy
DISTI # 497-STM32L053R6T6TR-ND
DigiKey IC MCU 32BIT 32KB FLASH 64LQFP Min Qty: 1000 Lead time: 15 Weeks Container: Tape & Reel (TR) Temporarily Out of Stock
  • 1,000 $1.6415
$1.6415 Buy Now
DISTI # STM32L053R6T6TR
Avnet Americas - Tape and Reel (Alt: STM32L053R6T6TR) COO: France RoHS: Not Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 15 Weeks, 0 Days Container: Tape & Reel 0
  • 1,000 $1.7423
  • 2,000 $1.6481
  • 4,000 $1.6047
  • 6,000 $1.5636
  • 8,000 $1.5245
$1.5245 / $1.7423 Buy Now
DISTI # 511-STM32L053R6T6TR
Mouser Electronics ARM Microcontrollers - MCU Ultra-low-power Arm Cortex-M0+ MCU 32 Kbytes of Flash , 32 MHz CPU, USB, LCD RoHS: Compliant 0
  • 1,000 $1.6400
  • 2,000 $1.5900
  • 5,000 $1.5500
$1.5500 / $1.6400 Order Now
DISTI # V36:1790_24115689
Arrow Electronics MCU 32-bit ARM Cortex M0+ RISC 32KB Flash 2.5V/3.3V 64-Pin LQFP T/R COO: China RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 15 Weeks Date Code: 2347 Americas - 39000
  • 1,000 $1.4950
  • 2,000 $1.4790
  • 5,000 $1.4600
$1.4600 / $1.4950 Buy Now
DISTI # 83688669
Verical MCU 32-bit ARM Cortex M0+ RISC 32KB Flash 2.5V/3.3V 64-Pin LQFP T/R RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Date Code: 2347 Americas - 39000
  • 1,000 $1.4950
  • 2,000 $1.4790
  • 5,000 $1.4600
$1.4600 / $1.4950 Buy Now
DISTI # V36:1790_24115689
Arrow Electronics MCU 32-bit ARM Cortex M0+ RISC 32KB Flash 2.5V/3.3V 64-Pin LQFP T/R COO: China RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 15 Weeks Date Code: 2347 Americas - 39000
  • 1,000 $1.4950
  • 2,000 $1.4790
  • 5,000 $1.4600
$1.4600 / $1.4950 Buy Now
DISTI # 83688669
Verical MCU 32-bit ARM Cortex M0+ RISC 32KB Flash 2.5V/3.3V 64-Pin LQFP T/R COO: China RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Date Code: 2347 Americas - 39000
  • 1,000 $1.4950
  • 2,000 $1.4790
  • 5,000 $1.4600
$1.4600 / $1.4950 Buy Now
DISTI # V36:1790_24115689
Arrow Electronics MCU 32-bit ARM Cortex M0+ RISC 32KB Flash 2.5V/3.3V 64-Pin LQFP T/R COO: China RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 15 Weeks Date Code: 2347 Americas - 39000
  • 1,000 $1.4950
  • 2,000 $1.4790
  • 5,000 $1.4600
$1.4600 / $1.4950 Buy Now
DISTI # 83688669
Verical MCU 32-bit ARM Cortex M0+ RISC 32KB Flash 2.5V/3.3V 64-Pin LQFP T/R COO: China RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Date Code: 2347 Americas - 39000
  • 1,000 $1.4950
  • 2,000 $1.4790
  • 5,000 $1.4600
$1.4600 / $1.4950 Buy Now
DISTI # STM32L053R6T6TR
Avnet Silica (Alt: STM32L053R6T6TR) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 16 Weeks, 0 Days Silica - 0
Buy Now
DISTI # STM32L053R6T6TR
EBV Elektronik (Alt: STM32L053R6T6TR) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 16 Weeks, 0 Days EBV - 1000
Buy Now

US Tariff Estimator: STM32L053R6T6TR by STMicroelectronics

Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

STM32L053R6T6TR
STMicroelectronics
Please specify a country of origin.
$
Please specify an import value in USD.
Estimator Results:
Tariff Percentage Tariff Calculation
Import Value
$.
Total Duty
$.
Total Estimate
$.
$.
Based on tariff data from

Part Details for STM32L053R6T6TR

STM32L053R6T6TR CAD Models

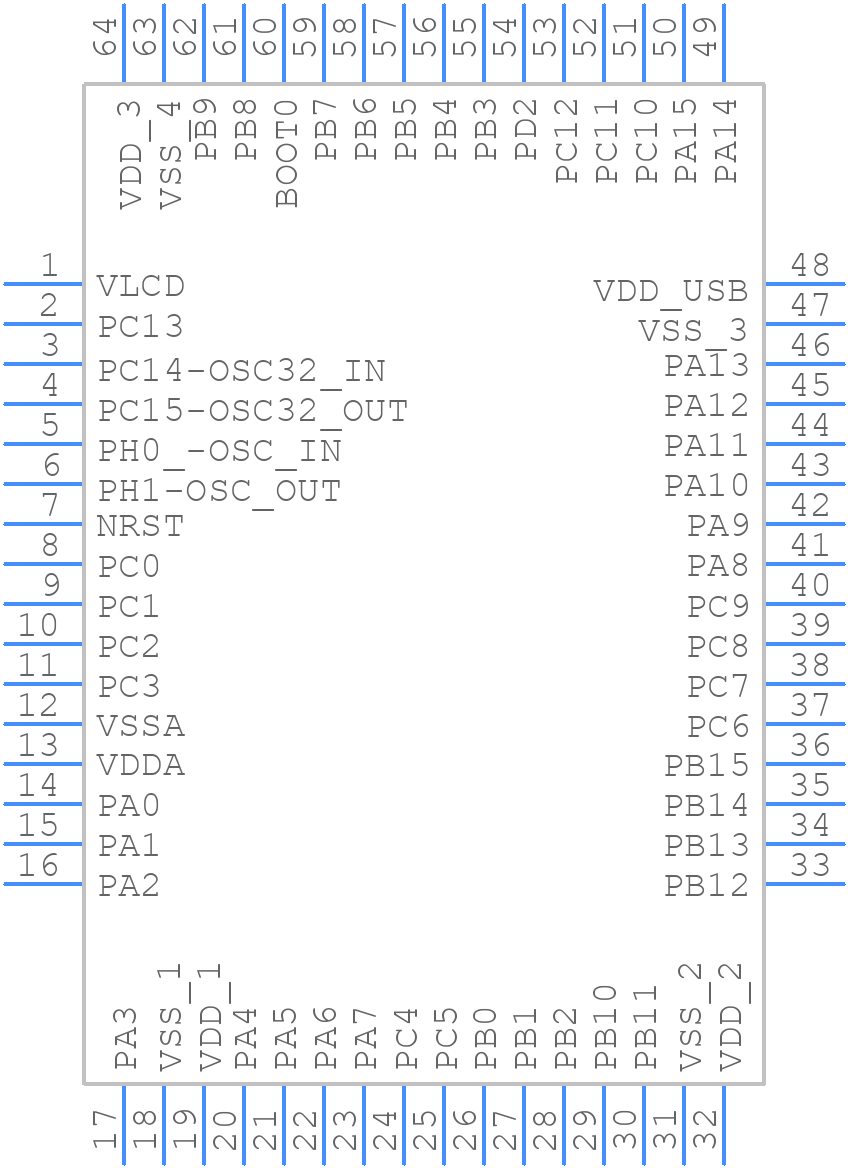

  • Part Symbol

    schematic symbol

  • Footprint

    pcb footprint

  • 3D Model

    2d presentation

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

STM32L053R6T6TR Part Data Attributes

Parametric Data
STM32L053R6T6TR STMicroelectronics
Buy Now Datasheet
Compare Parts:
STM32L053R6T6TR STMicroelectronics RISC Microcontroller, 32-Bit, FLASH, 32MHz, CMOS, PQFP64
Rohs Code Yes
Part Life Cycle Code Active
Package Description Lfqfp,
Reach Compliance Code Compliant
ECCN Code 3A991.A.2
HTS Code 8542.31.00.01
Factory Lead Time 15 Weeks
Has ADC Yes
Address Bus Width
Bit Size 32
Boundary Scan No
Clock Frequency-Max 25 Mhz
DAC Channels Yes
DMA Channels Yes
External Data Bus Width
JESD-30 Code S-PQFP-G64
Length 10 Mm
Number of I/O Lines 51
Number of Terminals 64
On Chip Program ROM Width 8
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
PWM Channels Yes
Package Body Material Plastic/Epoxy
Package Code LFQFP
Package Shape Square
Package Style Flatpack, Low Profile, Fine Pitch
Peak Reflow Temperature (Cel) Not Specified
RAM (bytes) 8192
ROM (words) 32768
ROM Programmability Flash
Seated Height-Max 1.6 Mm
Speed 32 Mhz
Supply Voltage-Max 3.6 V
Supply Voltage-Min 3 V
Supply Voltage-Nom 3 V
Surface Mount Yes
Technology Cmos
Temperature Grade Industrial
Terminal Form Gull Wing
Terminal Pitch 0.5 Mm
Terminal Position Quad
Time@Peak Reflow Temperature-Max (s) Not Specified
Width 10 Mm
uPs/uCs/Peripheral ICs Type Microcontroller, Risc
equivalents icon

STM32L053R6T6TR Frequently Asked Questions (FAQ)

  • The maximum clock frequency that can be achieved with the internal oscillator is 32 kHz, but it can be increased up to 2 MHz using the PLL (Phase-Locked Loop) feature.

  • To achieve the highest accuracy, the ADC should be configured to use the internal voltage reference (VREFINT), and the sampling time should be set to the maximum value (720 cycles). Additionally, the ADC should be calibrated before use.

  • Yes, the STM32L053R6T6TR is designed for low-power applications and can be used in battery-powered devices. It has a low power consumption of 350 μA/MHz in Run mode and 1.3 μA in Stop mode.

  • To implement a low-power sleep mode, use the Stop mode or Standby mode, which can be configured using the PWR (Power) peripheral. In Stop mode, the CPU is stopped, and the peripherals are disabled, while in Standby mode, the CPU is stopped, and the peripherals are kept running.

  • The maximum amount of current that can be sourced or sunk by the GPIO pins is 20 mA, but it's recommended to limit the current to 10 mA to ensure reliable operation.
