Part Details for STM32L072KZT6 by STMicroelectronics
Results Overview of STM32L072KZT6 by STMicroelectronics
- Distributor Offerings: (14 listings)
- Number of FFF Equivalents: (0 replacements)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (0 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
STM32L072KZT6 Information
STM32L072KZT6 by STMicroelectronics is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.
Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.
Price & Stock for STM32L072KZT6
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
54AH7042
|
Newark | Mcu, 32Bit, 32Mhz, Lqfp-32 Rohs Compliant: Yes |Stmicroelectronics STM32L072KZT6 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 4759 |
|
$3.7500 / $5.0800 | Buy Now |
|
DISTI #
497-19668-ND
|
DigiKey | IC MCU 32BIT 192KB FLASH 32LQFP Min Qty: 1 Lead time: 15 Weeks Container: Tray |
1857 In Stock |
|
$2.4842 / $4.5400 | Buy Now |
|
DISTI #
STM32L072KZT6
|
Avnet Americas | MCU 32-Bit Low Power STM32L 32MHz ARM Cortex M0+ RISC 192kB Flash 32-Pin LQFP Tray - Bulk (Alt: STM32L072KZT6) COO: France RoHS: Compliant Min Qty: 1500 Package Multiple: 1500 Lead time: 15 Weeks, 0 Days Container: Bulk | 0 |
|
$2.2974 / $2.6256 | Buy Now |
|
DISTI #
511-STM32L072KZT6
|
Mouser Electronics | ARM Microcontrollers - MCU Ultra-low-power Arm Cortex-M0+ MCU 192-Kbytes of Flash , 32 MHz CPU, USB RoHS: Compliant | 19617 |
|
$2.3800 / $3.8500 | Buy Now |
|
DISTI #
V36:1790_14472182
|
Arrow Electronics | MCU 32-bit ARM Cortex M0+ RISC 192KB Flash 2.5V/3.3V 32-Pin LQFP Tray COO: China RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 15 Weeks Date Code: 2351 | Americas - 404 |
|
$2.3150 / $3.0160 | Buy Now |
|
|
STMicroelectronics | Ultra-low-power Arm Cortex-M0+ MCU with 192-Kbytes of Flash memory, 32 MHz CPU, USB COO: France RoHS: Compliant Min Qty: 1 | 19621 |
|
$2.4700 / $3.7700 | Buy Now |
|
DISTI #
87541556
|
Verical | MCU 32-bit ARM Cortex M0+ RISC 192KB Flash 2.5V/3.3V 32-Pin LQFP Tray RoHS: Compliant Min Qty: 3 Package Multiple: 1 Date Code: 2351 | Americas - 404 |
|
$2.3150 / $3.0160 | Buy Now |
|
DISTI #
V36:1790_14472182
|
Arrow Electronics | MCU 32-bit ARM Cortex M0+ RISC 192KB Flash 2.5V/3.3V 32-Pin LQFP Tray COO: China RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 15 Weeks Date Code: 2351 | Americas - 404 |
|
$2.3150 / $3.0160 | Buy Now |
|
DISTI #
87541556
|
Verical | MCU 32-bit ARM Cortex M0+ RISC 192KB Flash 2.5V/3.3V 32-Pin LQFP Tray COO: China RoHS: Compliant Min Qty: 3 Package Multiple: 1 Date Code: 2351 | Americas - 404 |
|
$2.3150 / $3.0160 | Buy Now |
|
DISTI #
STM32L072KZT6
|
TME | IC: STM32 ARM microcontroller, 32MHz, LQFP32, 1.8÷3.6VDC, STM32L0 Min Qty: 1 | 0 |
|
$3.5400 / $6.2100 | RFQ |
US Tariff Estimator: STM32L072KZT6 by STMicroelectronics
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for STM32L072KZT6
STM32L072KZT6 CAD Models
-

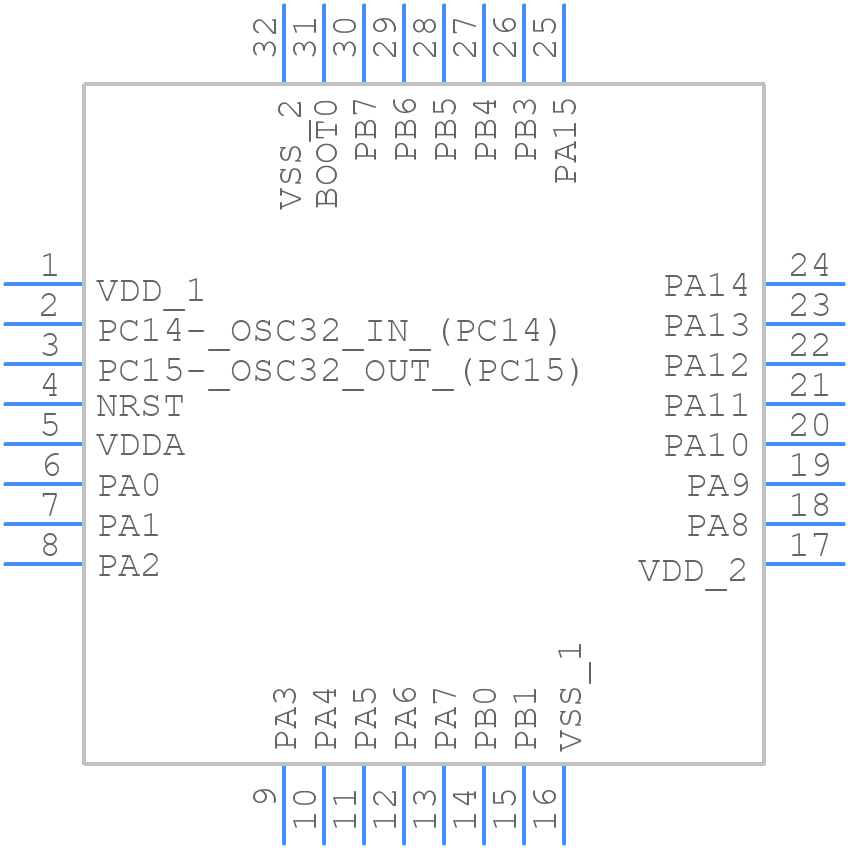

Part Symbol
-

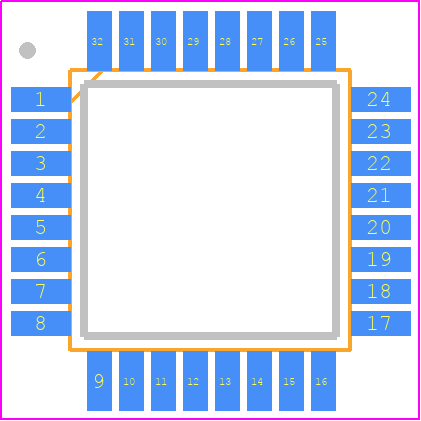

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
STM32L072KZT6 Part Data Attributes
|
|
STM32L072KZT6
STMicroelectronics
Buy Now
Datasheet
|
Compare Parts:
STM32L072KZT6
STMicroelectronics
RISC Microcontroller, 32-Bit, FLASH, CORTEX-M0 CPU, 32MHz, CMOS, PQFP32
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Package Description | Lqfp, | |
| Manufacturer Package Code | LQFP 32 7x7x1.4 | |
| Reach Compliance Code | Compliant | |
| ECCN Code | 3A991.A.2 | |
| HTS Code | 8542.31.00.01 | |
| Factory Lead Time | 15 Weeks | |
| Has ADC | Yes | |
| Address Bus Width | ||
| Bit Size | 32 | |
| Boundary Scan | No | |
| CPU Family | Cortex-M0 | |
| Clock Frequency-Max | 32 Mhz | |
| DAC Channels | Yes | |
| DMA Channels | Yes | |
| External Data Bus Width | ||
| JESD-30 Code | S-PQFP-G32 | |
| JESD-609 Code | e4 | |
| Length | 7 Mm | |
| Moisture Sensitivity Level | 3 | |
| Number of DMA Channels | 7 | |
| Number of I/O Lines | 25 | |
| Number of Terminals | 32 | |
| Number of Timers | 8 | |
| On Chip Program ROM Width | 8 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| PWM Channels | Yes | |
| Package Body Material | Plastic/Epoxy | |
| Package Code | LQFP | |
| Package Shape | Square | |
| Package Style | Flatpack, Low Profile | |
| Peak Reflow Temperature (Cel) | 260 | |
| RAM (bytes) | 20480 | |
| ROM (words) | 196608 | |
| ROM Programmability | Flash | |
| Seated Height-Max | 1.6 Mm | |
| Speed | 32 Mhz | |
| Supply Voltage-Max | 3.6 V | |
| Supply Voltage-Min | 3 V | |
| Supply Voltage-Nom | 3 V | |
| Surface Mount | Yes | |
| Technology | Cmos | |
| Temperature Grade | Industrial | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | Gull Wing | |
| Terminal Pitch | 0.8 Mm | |
| Terminal Position | Quad | |
| Width | 7 Mm | |
| uPs/uCs/Peripheral ICs Type | Microcontroller, Risc |
STM32L072KZT6 Frequently Asked Questions (FAQ)
-
The maximum clock frequency of the STM32L072KZT6 is 32 MHz, but it can be overclocked to 48 MHz with a reduced voltage range.
-
The internal oscillator (HSI) on the STM32L072KZT6 can be configured using the RCC_HSICFGR register. Set the HSITRIM bits to adjust the oscillator frequency, and the HSICAL bits to adjust the oscillator calibration.
-
The maximum current consumption of the STM32L072KZT6 depends on the operating mode and frequency. In Run mode, the maximum current consumption is around 2.5 mA/MHz, and in Low Power Run mode, it is around 1.5 mA/MHz.
-
The DMA controller on the STM32L072KZT6 can be used to transfer data between peripherals and memory. Configure the DMA channel, set the transfer mode, and enable the DMA interrupt to use the DMA controller.
-
The VBAT pin on the STM32L072KZT6 is used to connect a battery or a supercapacitor to store the backup registers and the real-time clock (RTC) when the device is powered off.
