Part Details for STM32L151RBH6TR by STMicroelectronics
Results Overview of STM32L151RBH6TR by STMicroelectronics
- Distributor Offerings: (5 listings)
- Number of FFF Equivalents: (0 replacements)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (10 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
STM32L151RBH6TR Information
STM32L151RBH6TR by STMicroelectronics is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.
Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.
Price & Stock for STM32L151RBH6TR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
STM32L151RBH6TR-ND
|
DigiKey | IC MCU 32BIT 128KB FLASH 64TFBGA Min Qty: 2500 Lead time: 13 Weeks Container: Tape & Reel (TR) | Temporarily Out of Stock |
|
$4.5367 | Buy Now |
|
DISTI #
STM32L151RBH6TR
|
Avnet Americas | MCU 32-bit Low Power STM32L ARM Cortex-M3 RISC 128kB Flash 64-Pin BGA T/R - Tape and Reel (Alt: STM32L151RBH6TR) COO: France RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 13 Weeks, 0 Days Container: Tape & Reel | 0 |
|
$4.3552 / $4.4460 | Buy Now |
|
DISTI #
STM32L151RBH6TR
|
Avnet Silica | MCU 32bit Low Power STM32L ARM CortexM3 RISC 128kB Flash 64Pin BGA TR (Alt: STM32L151RBH6TR) RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 14 Weeks, 0 Days | Silica - 2500 |
|
Buy Now | |
|
DISTI #
STM32L151RBH6TR
|
EBV Elektronik | MCU 32bit Low Power STM32L ARM CortexM3 RISC 128kB Flash 64Pin BGA TR (Alt: STM32L151RBH6TR) RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 14 Weeks, 0 Days | EBV - 0 |
|
Buy Now | |
|
|
Win Source Electronics | MCU 32-bit ARM Cortex M3 RISC 128KB Flash 2.5V/3.3V 64-Pin TFBGA T/R / IC MCU 32BIT 128KB FLASH 64BGA | 8055 |
|
$4.7875 / $7.1818 | Buy Now |
US Tariff Estimator: STM32L151RBH6TR by STMicroelectronics
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for STM32L151RBH6TR
STM32L151RBH6TR CAD Models
-

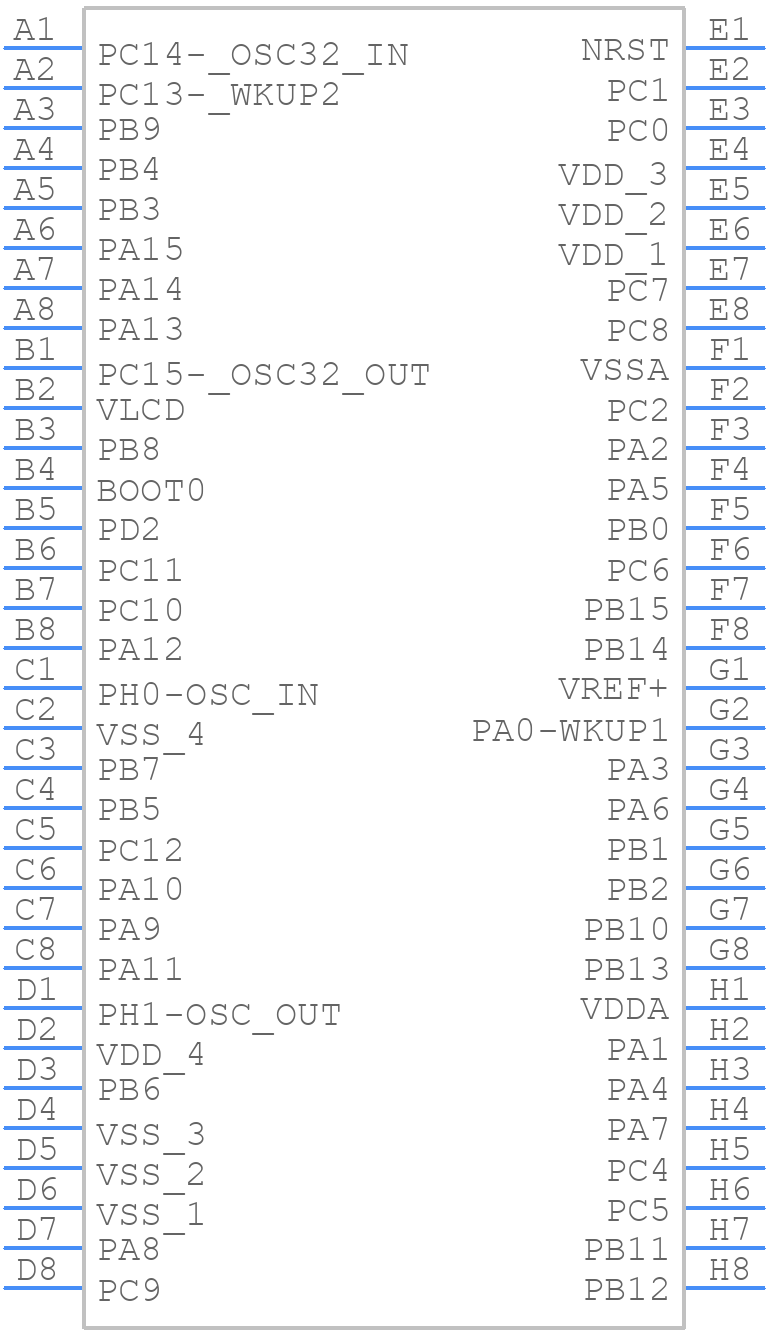

Part Symbol
-
Footprint
-

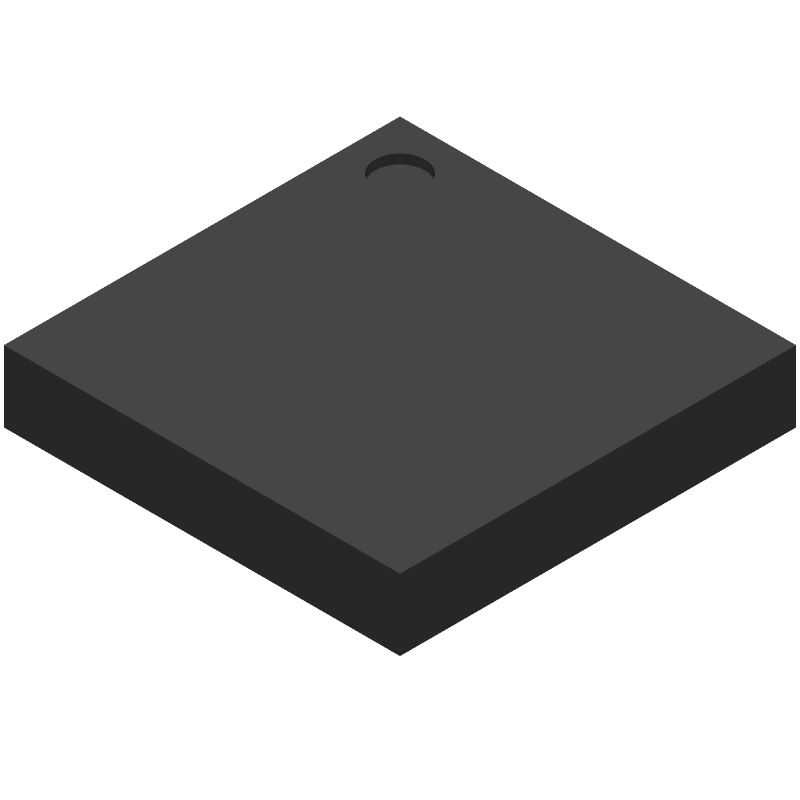

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
STM32L151RBH6TR Part Data Attributes
|
|
STM32L151RBH6TR
STMicroelectronics
Buy Now
Datasheet
|
Compare Parts:
STM32L151RBH6TR
STMicroelectronics
RISC Microcontroller, 32-Bit, FLASH, CORTEX-M3 CPU, 32MHz, CMOS, PBGA64
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Not Recommended | |
| Part Package Code | BGA | |
| Package Description | Tfbga, Bga64,8x8,20 | |
| Pin Count | 64 | |
| Reach Compliance Code | Compliant | |
| ECCN Code | 3A991.A.2 | |
| HTS Code | 8542.31.00.01 | |
| Factory Lead Time | 13 Weeks | |
| Has ADC | Yes | |
| Address Bus Width | ||
| Bit Size | 32 | |
| Boundary Scan | Yes | |
| CPU Family | Cortex-M3 | |
| Clock Frequency-Max | 24 Mhz | |
| DAC Channels | Yes | |
| DMA Channels | Yes | |
| External Data Bus Width | ||
| Format | Fixed Point | |
| Integrated Cache | No | |
| JESD-30 Code | S-PBGA-B64 | |
| JESD-609 Code | e1 | |
| Length | 5 Mm | |
| Low Power Mode | Yes | |
| Moisture Sensitivity Level | 3 | |
| Number of DMA Channels | 7 | |
| Number of External Interrupts | 16 | |
| Number of I/O Lines | 51 | |
| Number of Terminals | 64 | |
| Number of Timers | 8 | |
| On Chip Data RAM Width | 8 | |
| On Chip Program ROM Width | 8 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| PWM Channels | Yes | |
| Package Body Material | Plastic/Epoxy | |
| Package Code | TFBGA | |
| Package Equivalence Code | BGA64,8X8,20 | |
| Package Shape | Square | |
| Package Style | Grid Array, Thin Profile, Fine Pitch | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| RAM (bytes) | 16384 | |
| ROM (words) | 131072 | |
| ROM Programmability | Flash | |
| Seated Height-Max | 1.2 Mm | |
| Speed | 32 Mhz | |
| Supply Current-Max | 11 Ma | |
| Supply Voltage-Max | 3.6 V | |
| Supply Voltage-Min | 3 V | |
| Supply Voltage-Nom | 3 V | |
| Surface Mount | Yes | |
| Technology | Cmos | |
| Temperature Grade | Industrial | |
| Terminal Finish | Tin/Silver/Copper (Sn/Ag/Cu) | |
| Terminal Form | Ball | |
| Terminal Pitch | 0.5 Mm | |
| Terminal Position | Bottom | |
| Width | 5 Mm | |
| uPs/uCs/Peripheral ICs Type | Microcontroller, Risc |
Alternate Parts for STM32L151RBH6TR
This table gives cross-reference parts and alternative options found for STM32L151RBH6TR. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of STM32L151RBH6TR, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| STM32L151RBT6 | STMicroelectronics | $4.3557 | RISC Microcontroller, 32-Bit, FLASH, CORTEX-M3 CPU, 32MHz, CMOS, PQFP64 | STM32L151RBH6TR vs STM32L151RBT6 |
| STM32L151RBH6A | STMicroelectronics | $5.0344 | RISC Microcontroller, 32-Bit, FLASH, 32MHz, CMOS, PBGA64 | STM32L151RBH6TR vs STM32L151RBH6A |
| STM32L151RBH6 | STMicroelectronics | Check for Price | RISC Microcontroller, 32-Bit, FLASH, CORTEX-M3 CPU, 32MHz, CMOS, PBGA64 | STM32L151RBH6TR vs STM32L151RBH6 |
| STM32L151RBT7ADTR | STMicroelectronics | Check for Price | RISC Microcontroller, 32-Bit, FLASH, 32MHz, CMOS, PQFP64 | STM32L151RBH6TR vs STM32L151RBT7ADTR |
| STM32L151RBT6TR | STMicroelectronics | Check for Price | RISC Microcontroller, 32-Bit, FLASH, CORTEX-M3 CPU, 32MHz, CMOS, PQFP64 | STM32L151RBH6TR vs STM32L151RBT6TR |
| STM32L151RBH7A | STMicroelectronics | Check for Price | RISC Microcontroller, 32-Bit, FLASH, 32MHz, CMOS, PBGA64 | STM32L151RBH6TR vs STM32L151RBH7A |
| STM32L151RBT6T | STMicroelectronics | Check for Price | RISC Microcontroller, 32-Bit, FLASH, CORTEX-M3 CPU, 32MHz, CMOS, PQFP64 | STM32L151RBH6TR vs STM32L151RBT6T |
| STM32L151RBT6DTR | STMicroelectronics | Check for Price | RISC Microcontroller, 32-Bit, FLASH, CORTEX-M3 CPU, 32MHz, CMOS, PQFP64 | STM32L151RBH6TR vs STM32L151RBT6DTR |
| STM32L151RBH7ATR | STMicroelectronics | Check for Price | RISC Microcontroller, 32-Bit, FLASH, 32MHz, CMOS, PBGA64 | STM32L151RBH6TR vs STM32L151RBH7ATR |
| STM32L151RBH6D | STMicroelectronics | Check for Price | RISC Microcontroller, 32-Bit, FLASH, CORTEX-M3 CPU, 32MHz, CMOS, PBGA64 | STM32L151RBH6TR vs STM32L151RBH6D |
STM32L151RBH6TR Frequently Asked Questions (FAQ)
-
The maximum clock frequency of the STM32L151RBH6TR is 32 MHz.
-
The STM32L151RBH6TR has 128 KB of flash memory.
-
Yes, the STM32L151RBH6TR can operate at 1.8V, but it is not recommended as it may affect the device's performance and reliability.
-
The power consumption of the STM32L151RBH6TR in sleep mode is typically around 1.5 μA/MHz, depending on the clock frequency and other factors.
-
No, the STM32L151RBH6TR does not have a built-in USB interface. However, it has a USB device peripheral that can be used to implement a USB interface with an external transceiver.
