STM32L162RCT6 by: STMicroelectronics

RISC Microcontroller, 32-Bit, FLASH, CORTEX-M3 CPU, 32MHz, CMOS, PQFP64

Part Details for STM32L162RCT6 by STMicroelectronics

Results Overview of STM32L162RCT6 by STMicroelectronics

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Consumer Electronics Internet of Things (IoT) Smart Cities

STM32L162RCT6 Information

STM32L162RCT6 by STMicroelectronics is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.

Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.

Price & Stock for STM32L162RCT6

Part # Distributor Description Stock Price Buy
DISTI # STM32L162RCT6
Avnet Americas MCU 32-Bit STM32 ARM Cortex M3 RISC 256KB Flash 2.5V/3.3V 64-Pin LQFP Tray - Trays (Alt: STM32L162RCT6) COO: France RoHS: Compliant Min Qty: 960 Package Multiple: 960 Lead time: 13 Weeks, 0 Days Container: Tray 0
  • 960 $4.6660
  • 1,920 $4.4450
  • 3,840 $4.4224
  • 7,680 $4.3998
  • 15,360 $4.3773
$4.3773 / $4.6660 Buy Now
DISTI # 511-STM32L162RCT6
Mouser Electronics ARM Microcontrollers - MCU Ultra-low-power Arm Cortex-M3 MCU 256 Kbytes of Flash 32 MHz CPU, LCD, USB, 2xOp RoHS: Compliant 0
  • 960 $4.4800
$4.4800 Order Now
STMicroelectronics Ultra-low-power Arm Cortex-M3 MCU with 256 Kbytes of Flash memory, 32 MHz CPU, LCD, USB, 2xOp-amp, AES COO: France RoHS: Compliant Min Qty: 1 0
  • 1 $9.2700
  • 10 $6.9600
  • 25 $6.6400
  • 100 $5.7600
  • 250 $5.5000
  • 500 $4.4300
$4.4300 / $9.2700 Buy Now
DISTI # 90206456
Verical MCU 32-bit ARM Cortex M3 RISC 256KB Flash 2.5V/3.3V 64-Pin LQFP Tray RoHS: Compliant Min Qty: 2 Package Multiple: 1 Date Code: 2522 Americas - 580
  • 2 $5.1645
  • 960 $4.5216
$4.5216 / $5.1645 Buy Now
DISTI # 90206456
Verical MCU 32-bit ARM Cortex M3 RISC 256KB Flash 2.5V/3.3V 64-Pin LQFP Tray COO: France RoHS: Compliant Min Qty: 2 Package Multiple: 1 Date Code: 2522 Americas - 580
  • 2 $5.1645
  • 960 $4.5216
$4.5216 / $5.1645 Buy Now
DISTI # 90206456
Verical MCU 32-bit ARM Cortex M3 RISC 256KB Flash 2.5V/3.3V 64-Pin LQFP Tray COO: France RoHS: Compliant Min Qty: 2 Package Multiple: 1 Date Code: 2522 Americas - 580
  • 2 $5.1645
  • 960 $4.5216
$4.5216 / $5.1645 Buy Now
DISTI # STM32L162RCT6
Avnet Silica MCU 32Bit STM32 ARM Cortex M3 RISC 256KB Flash 25V33V 64Pin LQFP Tray (Alt: STM32L162RCT6) RoHS: Compliant Min Qty: 160 Package Multiple: 160 Lead time: 14 Weeks, 0 Days Silica - 0
Buy Now
DISTI # STM32L162RCT6
EBV Elektronik MCU 32Bit STM32 ARM Cortex M3 RISC 256KB Flash 25V33V 64Pin LQFP Tray (Alt: STM32L162RCT6) RoHS: Compliant Min Qty: 160 Package Multiple: 160 Lead time: 14 Weeks, 0 Days EBV - 0
Buy Now
Vyrian Active 7305
RFQ

US Tariff Estimator: STM32L162RCT6 by STMicroelectronics

Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

STM32L162RCT6
STMicroelectronics
Please specify a country of origin.
$
Please specify an import value in USD.
Estimator Results:
Tariff Percentage Tariff Calculation
Import Value
$.
Total Duty
$.
Total Estimate
$.
$.
Based on tariff data from

Part Details for STM32L162RCT6

STM32L162RCT6 CAD Models

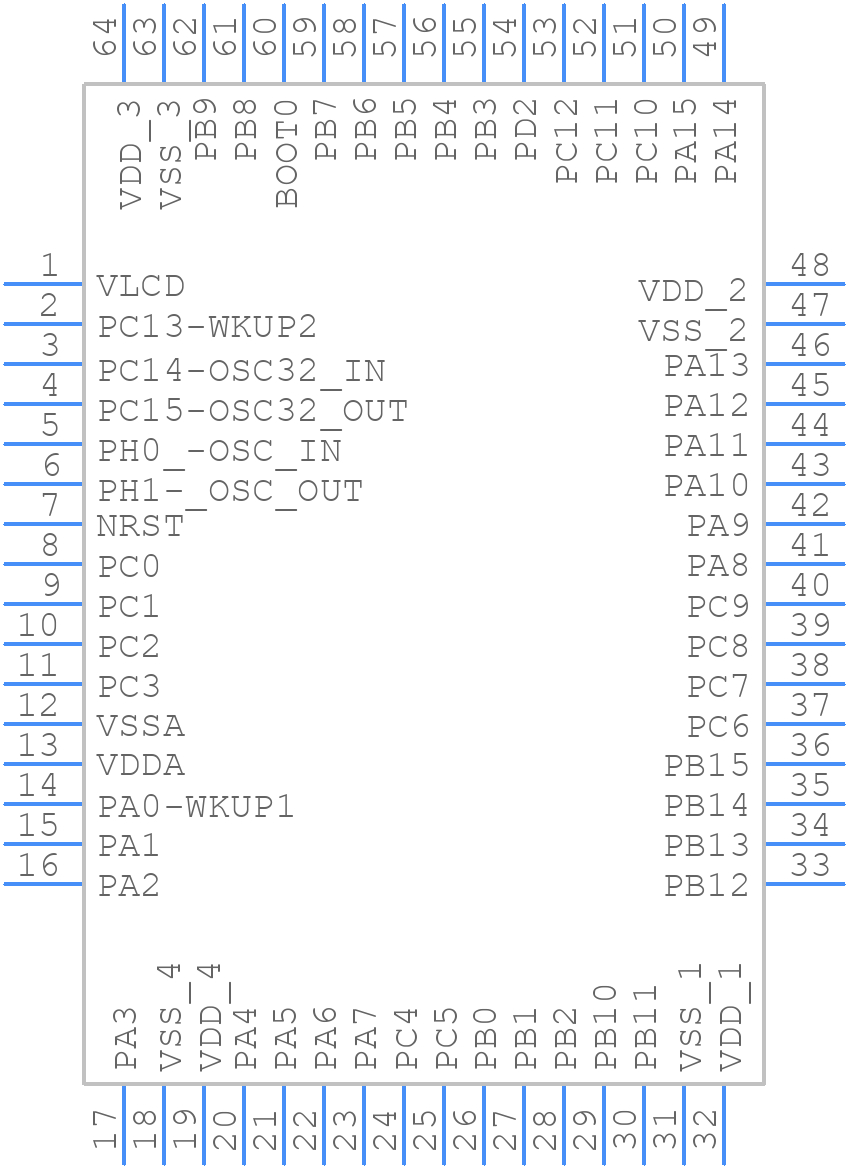

  • Part Symbol

    schematic symbol

  • Footprint

    pcb footprint

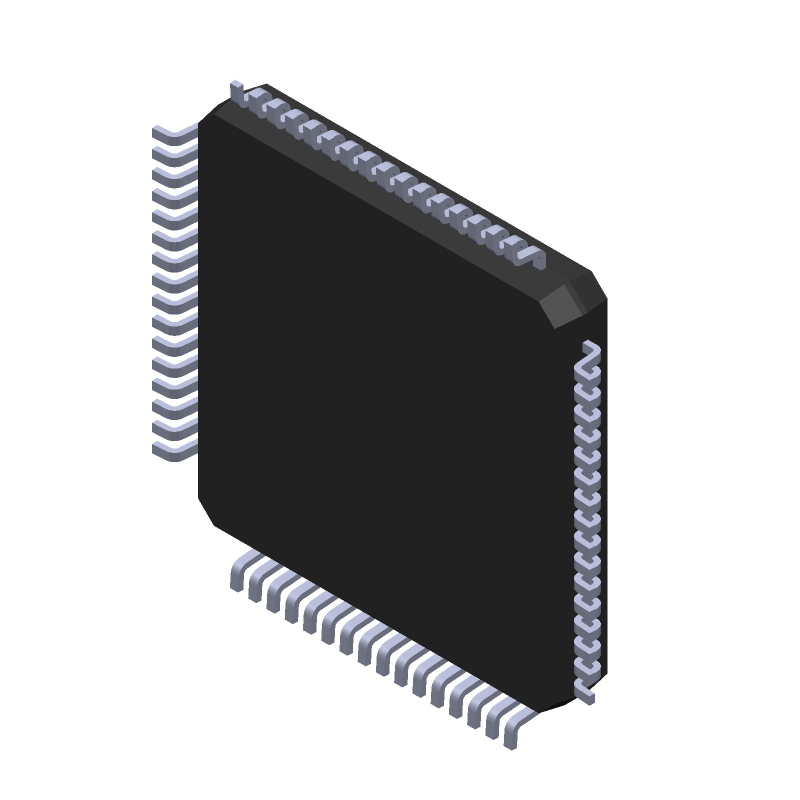

  • 3D Model

    2d presentation

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

STM32L162RCT6 Part Data Attributes

Parametric Data
STM32L162RCT6 STMicroelectronics
Buy Now Datasheet
Compare Parts:
STM32L162RCT6 STMicroelectronics RISC Microcontroller, 32-Bit, FLASH, CORTEX-M3 CPU, 32MHz, CMOS, PQFP64
Rohs Code Yes
Part Life Cycle Code Active
Package Description Lfqfp, Qfp64,.47sq,20
Reach Compliance Code Compliant
ECCN Code 5A992.C
HTS Code 8542.31.00.01
Factory Lead Time 13 Weeks
Has ADC Yes
Address Bus Width
Bit Size 32
CPU Family Cortex-M3
Clock Frequency-Max 24 Mhz
DMA Channels Yes
External Data Bus Width
JESD-30 Code S-PQFP-G64
Length 10 Mm
Number of I/O Lines 51
Number of Terminals 64
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
PWM Channels Yes
Package Body Material Plastic/Epoxy
Package Code LFQFP
Package Equivalence Code QFP64,.47SQ,20
Package Shape Square
Package Style Flatpack, Low Profile, Fine Pitch
Peak Reflow Temperature (Cel) Not Specified
Qualification Status Not Qualified
RAM (bytes) 32768
ROM (words) 262144
ROM Programmability Flash
Speed 32 Mhz
Supply Current-Max 9.6 Ma
Supply Voltage-Max 3.6 V
Supply Voltage-Min 1.65 V
Supply Voltage-Nom 3.3 V
Surface Mount Yes
Technology Cmos
Temperature Grade Industrial
Terminal Form Gull Wing
Terminal Pitch 0.5 Mm
Terminal Position Quad
Time@Peak Reflow Temperature-Max (s) Not Specified
Width 10 Mm
uPs/uCs/Peripheral ICs Type Microcontroller, Risc

Alternate Parts for STM32L162RCT6

This table gives cross-reference parts and alternative options found for STM32L162RCT6. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of STM32L162RCT6, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
STM32L162RCT7ATR STMicroelectronics Check for Price RISC Microcontroller, 32-Bit, FLASH, CORTEX-M3 CPU, 32MHz, CMOS, PQFP64 STM32L162RCT6 vs STM32L162RCT7ATR
STM32L162RCT6TR STMicroelectronics Check for Price RISC Microcontroller, 32-Bit, 32MHz, CMOS, PQFP64 STM32L162RCT6 vs STM32L162RCT6TR
STM32L162RCT7TR STMicroelectronics Check for Price RISC Microcontroller, 32-Bit, FLASH, CORTEX-M3 CPU, 32MHz, CMOS, PQFP64 STM32L162RCT6 vs STM32L162RCT7TR
STM32L162RCT7A STMicroelectronics Check for Price RISC Microcontroller, 32-Bit, FLASH, CORTEX-M3 CPU, 32MHz, CMOS, PQFP64 STM32L162RCT6 vs STM32L162RCT7A
Part Number Manufacturer Composite Price Description Compare
STM32L152RCT6A STMicroelectronics $5.5716 RISC Microcontroller, 32-Bit, FLASH, 32MHz, CMOS, PQFP64 STM32L162RCT6 vs STM32L152RCT6A
STM32L151UCY7TR STMicroelectronics $5.5818 RISC Microcontroller, 32-Bit, FLASH, CORTEX-M3 CPU, 32MHz, CMOS, PBGA63 STM32L162RCT6 vs STM32L151UCY7TR
STM32L162RCT6A STMicroelectronics $8.8027 RISC Microcontroller, 32-Bit, FLASH, CORTEX-M3 CPU, 32MHz, CMOS, PQFP64 STM32L162RCT6 vs STM32L162RCT6A
STM32L162RCT6ATR STMicroelectronics Check for Price RISC Microcontroller, 32-Bit, FLASH, CORTEX-M3 CPU, 32MHz, CMOS, PQFP64 STM32L162RCT6 vs STM32L162RCT6ATR
STM32L100RCT6TR STMicroelectronics Check for Price RISC Microcontroller, 32-Bit, FLASH, CORTEX-M3 CPU, 32MHz, CMOS, PQFP64 STM32L162RCT6 vs STM32L100RCT6TR
STM32L152RCT6ADTR STMicroelectronics Check for Price RISC Microcontroller, 32-Bit, FLASH, 32MHz, CMOS, PQFP64 STM32L162RCT6 vs STM32L152RCT6ADTR
STM32L152RCT6ATR STMicroelectronics Check for Price RISC Microcontroller, 32-Bit, FLASH, 32MHz, CMOS, PQFP64 STM32L162RCT6 vs STM32L152RCT6ATR
STM32L151RCY6 STMicroelectronics Check for Price RISC Microcontroller, 32-Bit, FLASH, CORTEX-M3 CPU, 32MHz, CMOS, PBGA64 STM32L162RCT6 vs STM32L151RCY6
STM32L151RCT6A STMicroelectronics Check for Price RISC Microcontroller, 32-Bit, FLASH, CORTEX-M3 CPU, 32MHz, CMOS, PQFP64 STM32L162RCT6 vs STM32L151RCT6A
STM32L162RCT6D STMicroelectronics Check for Price RISC Microcontroller, 32-Bit, 32MHz, CMOS, PQFP64 STM32L162RCT6 vs STM32L162RCT6D
equivalents icon

STM32L162RCT6 Related Parts

STM32L162RCT6 Frequently Asked Questions (FAQ)

  • The maximum clock frequency of the STM32L162RCT6 is 32 MHz, but it can be overclocked to 48 MHz with a reduced voltage range.

  • The internal oscillator (HSI) on the STM32L162RCT6 can be configured using the RCC_HSICFGR register. Set the HSITRIM bits to adjust the oscillator frequency, and the HSICAL bits to adjust the oscillator calibration.

  • The power consumption of the STM32L162RCT6 in low-power modes depends on the specific mode and configuration. In Stop mode, the current consumption is around 2.5 μA/MHz, and in Standby mode, it is around 1.5 μA. In Shutdown mode, the current consumption is around 1 μA.

  • The DMA controller on the STM32L162RCT6 can be used to transfer data between peripherals and memory. Configure the DMA channel, set the transfer mode, and enable the DMA interrupt to use the DMA controller.

  • The STM32L162RCT6 has 64 KB of Flash memory and 8 KB of SRAM.
