Part Details for STM32L451CCU3 by STMicroelectronics
Results Overview of STM32L451CCU3 by STMicroelectronics
- Distributor Offerings: (6 listings)
- Number of FFF Equivalents: (0 replacements)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (0 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
STM32L451CCU3 Information
STM32L451CCU3 by STMicroelectronics is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.
Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.
Price & Stock for STM32L451CCU3
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
497-17972-ND
|
DigiKey | IC MCU 32BIT 256KB FLSH 48UFQFPN Min Qty: 1 Lead time: 12 Weeks Container: Tray |
134 In Stock |
|
$3.1949 / $5.7200 | Buy Now |
|
DISTI #
STM32L451CCU3
|
Avnet Americas | MCU 32-Bit STM32 ARM Cortex M4 RISC 256KB Flash 1.8V/2.5V/3.3V 48-Pin UFQFPN Tray - Trays (Alt: STM32L451CCU3) COO: Taiwan (Province of China) RoHS: Compliant Min Qty: 1560 Package Multiple: 1560 Lead time: 12 Weeks, 0 Days Container: Tray | 0 |
|
$2.9722 / $3.3969 | Buy Now |
|
DISTI #
511-STM32L451CCU3
|
Mouser Electronics | ARM Microcontrollers - MCU Ultra-low-power FPU Arm Cortex-M4 MCU 80 MHz 256 kbytes of Flash , DFSDM RoHS: Compliant | 0 |
|
$3.1400 / $5.2500 | Order Now |
|
|
STMicroelectronics | Ultra-low-power with FPU Arm Cortex-M4 MCU 80 MHz with 256 kbytes of Flash memory, DFSDM COO: Taiwan RoHS: Compliant Min Qty: 1 | 0 |
|
$3.1100 / $5.1500 | Buy Now |
|
DISTI #
STM32L451CCU3
|
Avnet Silica | MCU 32Bit STM32 ARM Cortex M4 RISC 256KB Flash 18V25V33V 48Pin UFQFPN Tray (Alt: STM32L451CCU3) RoHS: Compliant Min Qty: 260 Package Multiple: 260 Lead time: 13 Weeks, 0 Days | Silica - 0 |
|
Buy Now | |
|
DISTI #
STM32L451CCU3
|
EBV Elektronik | MCU 32Bit STM32 ARM Cortex M4 RISC 256KB Flash 18V25V33V 48Pin UFQFPN Tray (Alt: STM32L451CCU3) RoHS: Compliant Min Qty: 260 Package Multiple: 260 Lead time: 13 Weeks, 0 Days | EBV - 0 |
|
Buy Now |
US Tariff Estimator: STM32L451CCU3 by STMicroelectronics
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for STM32L451CCU3
STM32L451CCU3 CAD Models
-

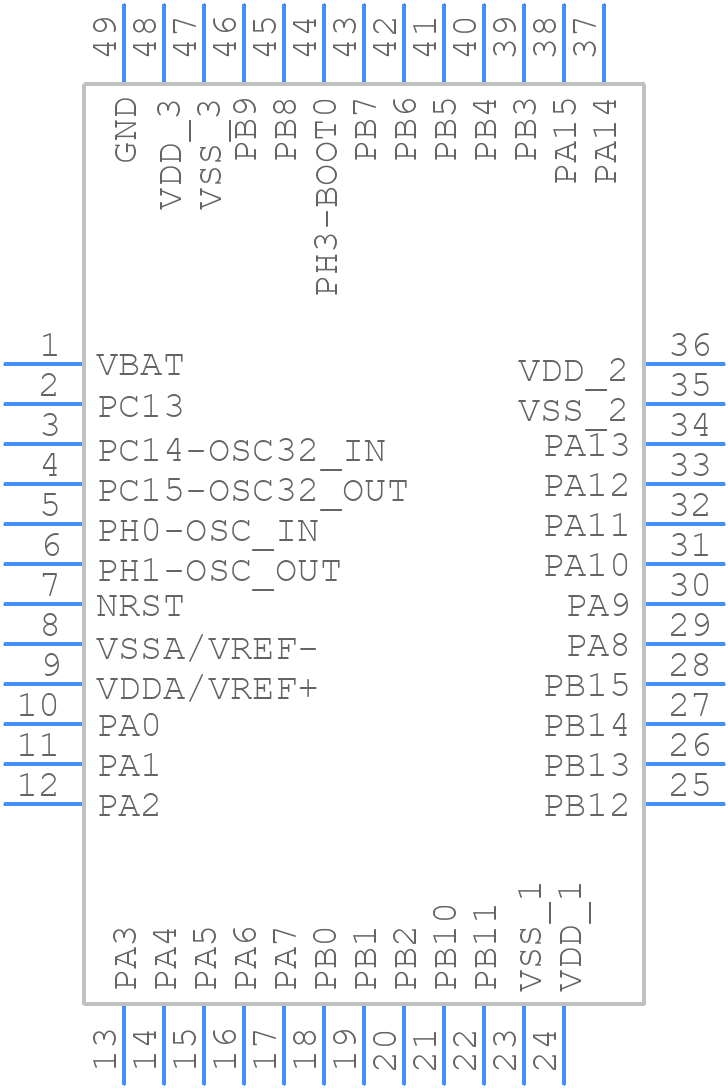

Part Symbol
-

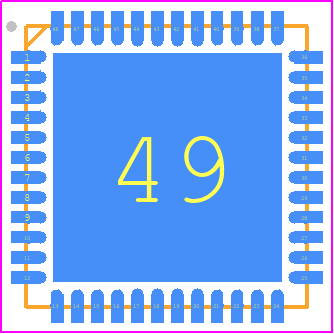

Footprint
-

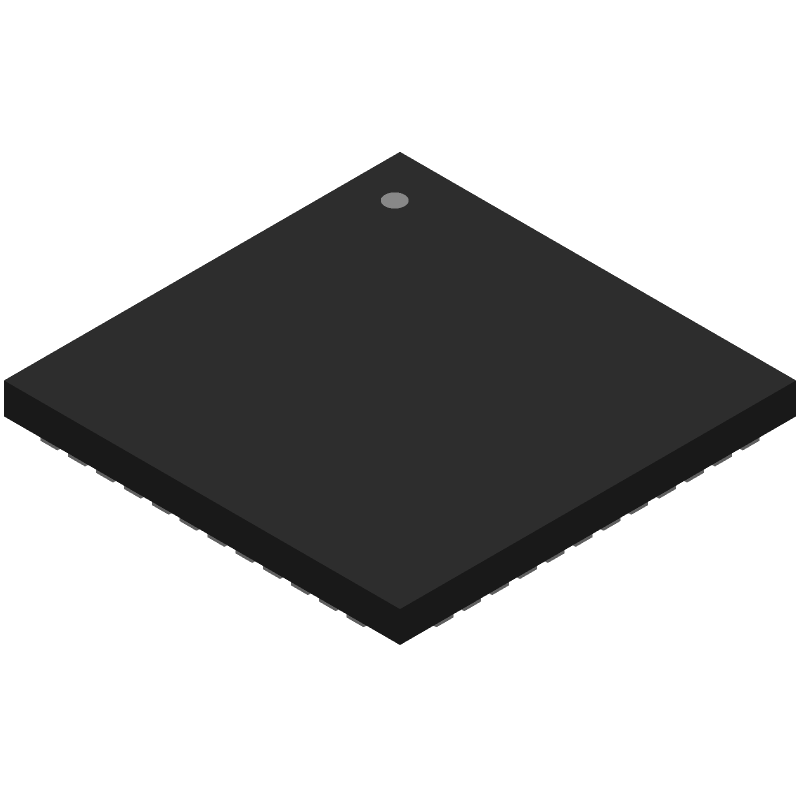

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
STM32L451CCU3 Part Data Attributes
|
|
STM32L451CCU3
STMicroelectronics
Buy Now
Datasheet
|
Compare Parts:
STM32L451CCU3
STMicroelectronics
RISC Microcontroller, 32-Bit, FLASH, CORTEX-M4 CPU, 80MHz, CMOS
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Package Description | Hvqccn, Lcc48,.28sq,20 | |
| Reach Compliance Code | Compliant | |
| ECCN Code | 3A991.A.2 | |
| HTS Code | 8542.31.00.01 | |
| Factory Lead Time | 12 Weeks | |
| Has ADC | Yes | |
| Address Bus Width | ||
| Bit Size | 32 | |
| Boundary Scan | Yes | |
| CPU Family | Cortex-M4 | |
| Clock Frequency-Max | 48 Mhz | |
| DAC Channels | Yes | |
| DMA Channels | Yes | |
| External Data Bus Width | ||
| Format | Floating Point | |
| Integrated Cache | No | |
| JESD-30 Code | S-XQCC-N48 | |
| JESD-609 Code | e4 | |
| Length | 7 Mm | |
| Low Power Mode | Yes | |
| Moisture Sensitivity Level | 3 | |
| Number of DMA Channels | 14 | |
| Number of External Interrupts | 16 | |
| Number of I/O Lines | 38 | |
| Number of Serial I/Os | 5 | |
| Number of Terminals | 48 | |
| Number of Timers | 12 | |
| On Chip Data RAM Width | 8 | |
| On Chip Program ROM Width | 8 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| PWM Channels | Yes | |
| Package Body Material | Unspecified | |
| Package Code | HVQCCN | |
| Package Equivalence Code | LCC48,.28SQ,20 | |
| Package Shape | Square | |
| Package Style | Chip Carrier, Heat Sink/Slug, Very Thin Profile | |
| Peak Reflow Temperature (Cel) | 260 | |
| RAM (bytes) | 163840 | |
| ROM (words) | 262144 | |
| ROM Programmability | Flash | |
| Seated Height-Max | 0.6 Mm | |
| Speed | 80 Mhz | |
| Supply Current-Max | 11.5 Ma | |
| Supply Voltage-Max | 3.6 V | |
| Supply Voltage-Min | 1.71 V | |
| Supply Voltage-Nom | 3 V | |
| Surface Mount | Yes | |
| Technology | Cmos | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | No Lead | |
| Terminal Pitch | 0.5 Mm | |
| Terminal Position | Quad | |
| Width | 7 Mm | |
| uPs/uCs/Peripheral ICs Type | Microcontroller, Risc |
STM32L451CCU3 Frequently Asked Questions (FAQ)
-
The maximum clock frequency of the STM32L451CCU3 is 32 MHz, but it can be overclocked to 64 MHz using the internal PLL.
-
The clock settings can be configured using the Clock Control Register (RCC_CR) and the Clock Configuration Register (RCC_CFGR). The RCC_CR register is used to enable and disable the clock sources, while the RCC_CFGR register is used to select the clock source and configure the clock prescalers.
-
The VBAT pin is used to connect a battery or a supercapacitor to the microcontroller. It is used to power the real-time clock (RTC) and the backup registers when the main power supply is turned off.
-
The STM32L451CCU3 has several low-power modes, including Sleep, Stop, and Standby modes. These modes can be entered using the Power Management Unit (PMU) and the Cortex-M4 processor's sleep modes. The PMU is used to control the power modes, while the Cortex-M4 processor's sleep modes are used to reduce power consumption.
-
The maximum amount of current that the STM32L451CCU3 can supply to an external device is 20 mA per GPIO pin, with a total current limit of 100 mA for all GPIO pins combined.
