Part Details for STM8AF6246TDSSSX by STMicroelectronics
Results Overview of STM8AF6246TDSSSX by STMicroelectronics
- Distributor Offerings: (11 listings)
- Number of FFF Equivalents: (0 replacements)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (0 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Internet of Things (IoT)
Transportation and Logistics
Automotive
STM8AF6246TDSSSX Information
STM8AF6246TDSSSX by STMicroelectronics is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.
Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.
Price & Stock for STM8AF6246TDSSSX
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
39T7159
|
Newark | Stm8Af-Auto |Stmicroelectronics STM8AF6246TDSSSX RoHS: Not Compliant Min Qty: 2400 Package Multiple: 1 Date Code: 0 Container: Tape & Reel | 0 |
|
$1.8700 / $2.3900 | Buy Now |
|
DISTI #
STM8AF6246TDSSSX-ND
|
DigiKey | IC MCU 8BIT 16KB FLASH 32LQFP Min Qty: 2400 Lead time: 16 Weeks Container: Tape & Reel (TR) | Temporarily Out of Stock |
|
$1.9571 | Buy Now |
|
DISTI #
STM8AF6246TDSSSX
|
Avnet Americas | MCU 8-bit STM8A STM8 CISC 16KB Flash 3.3V/5V 32-Pin LQFP T/R - Tape and Reel (Alt: STM8AF6246TDSSSX) COO: France RoHS: Compliant Min Qty: 2400 Package Multiple: 2400 Lead time: 16 Weeks, 0 Days Container: Tape & Reel | 0 |
|
$1.8720 / $1.9110 | Buy Now |
|
DISTI #
STM8AF6246TDSSSX
|
Avnet Americas | MCU 8-bit STM8A STM8 CISC 16KB Flash 3.3V/5V 32-Pin LQFP T/R - Tape and Reel (Alt: STM8AF6246TDSSSX) COO: France RoHS: Compliant Min Qty: 2400 Package Multiple: 2400 Lead time: 16 Weeks, 0 Days Container: Tape & Reel | 0 |
|
$1.8720 / $1.9110 | Buy Now |
|
DISTI #
511-STM8AF6246TDSSSX
|
Mouser Electronics | 8-bit Microcontrollers - MCU Automotive 8-Bit MCU Rev X LIN 16Kb 32Pin RoHS: Compliant | 56 |
|
$1.9500 / $5.0900 | Buy Now |
|
|
STMicroelectronics | Automotive 8-bit MCU with 16 Kbytes Flash, LIN, 16 MHz CPU, integrated EEPROM COO: France RoHS: Compliant Min Qty: 1 | 56 |
|
$2.3500 / $4.9900 | Buy Now |
|
|
Future Electronics | STM8A Series 16 kB Flash 2 kB RAM 16 MHz 8-Bit Microcontroller - LQFP-32 RoHS: Compliant pbFree: Yes Min Qty: 2400 Package Multiple: 2400 Lead time: 20 Weeks Container: Reel | 0Reel |
|
$1.7900 | Buy Now |
|
DISTI #
STM8AF6246TDSSSX
|
Avnet Silica | MCU 8bit STM8A STM8 CISC 16KB Flash 33V5V 32Pin LQFP TR (Alt: STM8AF6246TDSSSX) RoHS: Compliant Min Qty: 2400 Package Multiple: 2400 Lead time: 17 Weeks, 0 Days | Silica - 0 |
|
Buy Now | |
|
|
Chip Stock | Automotive8-bitMCUwith16KbytesFlash,LIN,16MHzCPU,integratedEEPROM | 22880 |
|
RFQ | |
|
DISTI #
STM8AF6246TDSSSX
|
EBV Elektronik | MCU 8bit STM8A STM8 CISC 16KB Flash 33V5V 32Pin LQFP TR (Alt: STM8AF6246TDSSSX) RoHS: Compliant Min Qty: 2400 Package Multiple: 2400 Lead time: 17 Weeks, 0 Days | EBV - 2400 |
|
Buy Now |
US Tariff Estimator: STM8AF6246TDSSSX by STMicroelectronics
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for STM8AF6246TDSSSX
STM8AF6246TDSSSX CAD Models
-

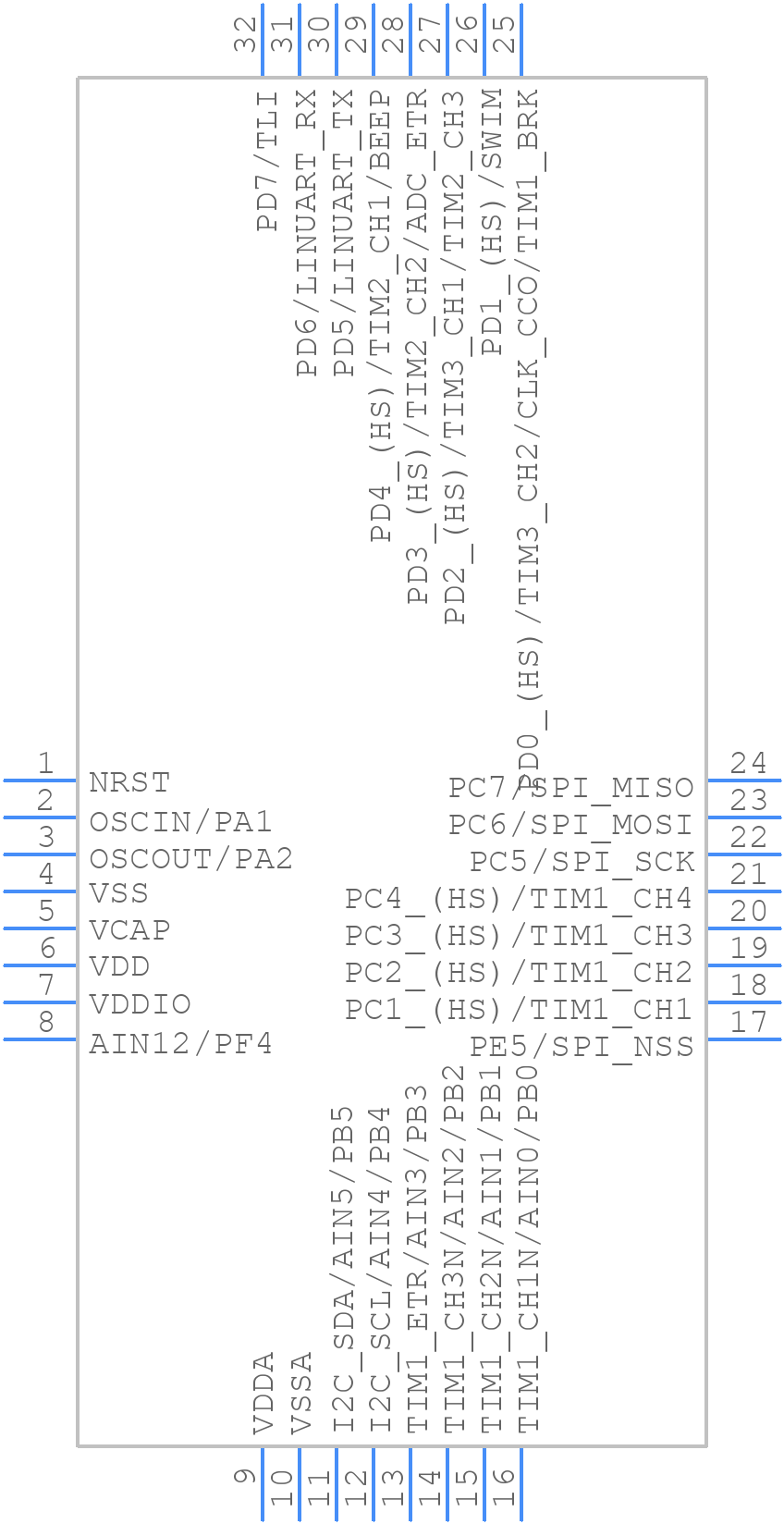

Part Symbol
-

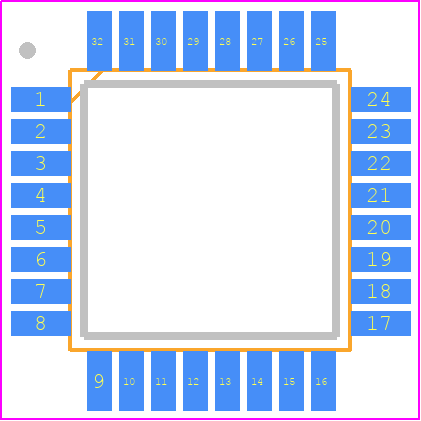

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
STM8AF6246TDSSSX Part Data Attributes
|
|
STM8AF6246TDSSSX
STMicroelectronics
Buy Now
Datasheet
|
Compare Parts:
STM8AF6246TDSSSX
STMicroelectronics
Microcontroller, 8-Bit, FLASH, STM8 CPU, 16MHz, CMOS, PQFP32
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Part Package Code | QFP | |
| Package Description | Lqfp, Qfp32,.35sq,32 | |
| Pin Count | 32 | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.31.00.01 | |
| Factory Lead Time | 16 Weeks | |
| Has ADC | Yes | |
| Address Bus Width | ||
| Bit Size | 8 | |
| CPU Family | Stm8 | |
| Clock Frequency-Max | 24 Mhz | |
| DMA Channels | No | |
| External Data Bus Width | ||
| JESD-30 Code | S-PQFP-G32 | |
| Length | 7 Mm | |
| Number of I/O Lines | 32 | |
| Number of Terminals | 32 | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -40 °C | |
| PWM Channels | Yes | |
| Package Body Material | Plastic/Epoxy | |
| Package Code | LQFP | |
| Package Equivalence Code | QFP32,.35SQ,32 | |
| Package Shape | Square | |
| Package Style | Flatpack, Low Profile | |
| Qualification Status | Not Qualified | |
| RAM (bytes) | 2048 | |
| ROM (words) | 16384 | |
| ROM Programmability | Flash | |
| Screening Level | Aec-Q100 | |
| Speed | 16 Mhz | |
| Supply Current-Max | 14 Ma | |
| Supply Voltage-Max | 5.5 V | |
| Supply Voltage-Min | 3 V | |
| Supply Voltage-Nom | 3.3 V | |
| Surface Mount | Yes | |
| Technology | Cmos | |
| Temperature Grade | Automotive | |
| Terminal Form | Gull Wing | |
| Terminal Pitch | 0.8 Mm | |
| Terminal Position | Quad | |
| Width | 7 Mm | |
| uPs/uCs/Peripheral ICs Type | Microcontroller |
STM8AF6246TDSSSX Frequently Asked Questions (FAQ)
-
The maximum clock frequency of the STM8AF6246TDSSSX is 24 MHz.
-
The STM8AF6246TDSSSX has 32 KB of flash memory.
-
The maximum operating temperature range of the STM8AF6246TDSSSX is -40°C to 125°C.
-
Yes, the STM8AF6246TDSSSX has a built-in bootloader that allows for in-system programming (ISP) and in-application programming (IAP).
-
The power consumption of the STM8AF6246TDSSSX in low-power mode is typically around 2.5 μA/MHz.
