STP20NF06L by:
STMicroelectronics

Power Field-Effect Transistor, 20A I(D), 60V, 0.085ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-220AB

Part Details for STP20NF06L by STMicroelectronics

Results Overview of STP20NF06L by STMicroelectronics

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

STP20NF06L Information

STP20NF06L by STMicroelectronics is a Power Field-Effect Transistor.
Power Field-Effect Transistors are under the broader part category of Transistors.

A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.

Price & Stock for STP20NF06L

Part # Distributor Description Stock Price Buy
DISTI # 497-4375-5-ND
DigiKey MOSFET N-CH 60V 20A TO220AB Container: Tube 0
Tube
Buy Now
DISTI # V79:2366_25623886
Arrow Electronics Trans MOSFET N-CH 60V 20A 3-Pin(3+Tab) TO-220AB Tube COO: Morocco RoHS: Exempt Min Qty: 1 Package Multiple: 1 Date Code: 1948 Americas - 421
  • 1 $2.2854
$2.2854 Buy Now
STMicroelectronics N-channel 60 V, 0.06 Ohm typ., 20 A STripFET(TM) II Power MOSFET in TO-220 package COO: China RoHS: Compliant Min Qty: 1 1
  • 1 $1.4800
  • 10 $1.2400
  • 100 $0.9800
  • 500 $0.8300
$0.8300 / $1.4800 Buy Now
Future Electronics N-Channel 60 V 0.07 Ohm Flange Mount STripFET II Power MosFet - TO-220 RoHS: Compliant pbFree: Yes Min Qty: 15 Package Multiple: 1 Container: Tube 15
Tube
  • 100 $0.2250
  • 300 $0.2200
  • 1,250 $0.2150
  • 4,000 $0.2100
  • 15,000 $0.2000
$0.2000 / $0.2250 Buy Now
DISTI # 54232074
Verical Trans MOSFET N-CH 60V 20A 3-Pin(3+Tab) TO-220AB Tube RoHS: Exempt Min Qty: 15 Package Multiple: 1 Date Code: 1948 Americas - 421
  • 15 $2.2854
$2.2854 Buy Now
Bristol Electronics Trans MOSFET N-CH 60V 20A 3-Pin(3+Tab) TO-220AB Tube 237
RFQ
DISTI # V79:2366_25623886
Arrow Electronics Trans MOSFET N-CH 60V 20A 3-Pin(3+Tab) TO-220AB Tube COO: Morocco RoHS: Exempt Min Qty: 1 Package Multiple: 1 Date Code: 1948 Americas - 421
  • 1 $2.2854
$2.2854 Buy Now
DISTI # 54232074
Verical Trans MOSFET N-CH 60V 20A 3-Pin(3+Tab) TO-220AB Tube COO: Morocco RoHS: Exempt Min Qty: 15 Package Multiple: 1 Date Code: 1948 Americas - 421
  • 15 $2.2854
$2.2854 Buy Now
DISTI # V79:2366_25623886
Arrow Electronics Trans MOSFET N-CH 60V 20A 3-Pin(3+Tab) TO-220AB Tube COO: Morocco RoHS: Exempt Min Qty: 1 Package Multiple: 1 Date Code: 1948 Americas - 421
  • 1 $2.2854
$2.2854 Buy Now
DISTI # 54232074
Verical Trans MOSFET N-CH 60V 20A 3-Pin(3+Tab) TO-220AB Tube COO: Morocco RoHS: Exempt Min Qty: 15 Package Multiple: 1 Date Code: 1948 Americas - 421
  • 15 $2.2854
$2.2854 Buy Now

Part Details for STP20NF06L

STP20NF06L CAD Models

  • Part Symbol

    schematic symbol

  • Footprint

    pcb footprint

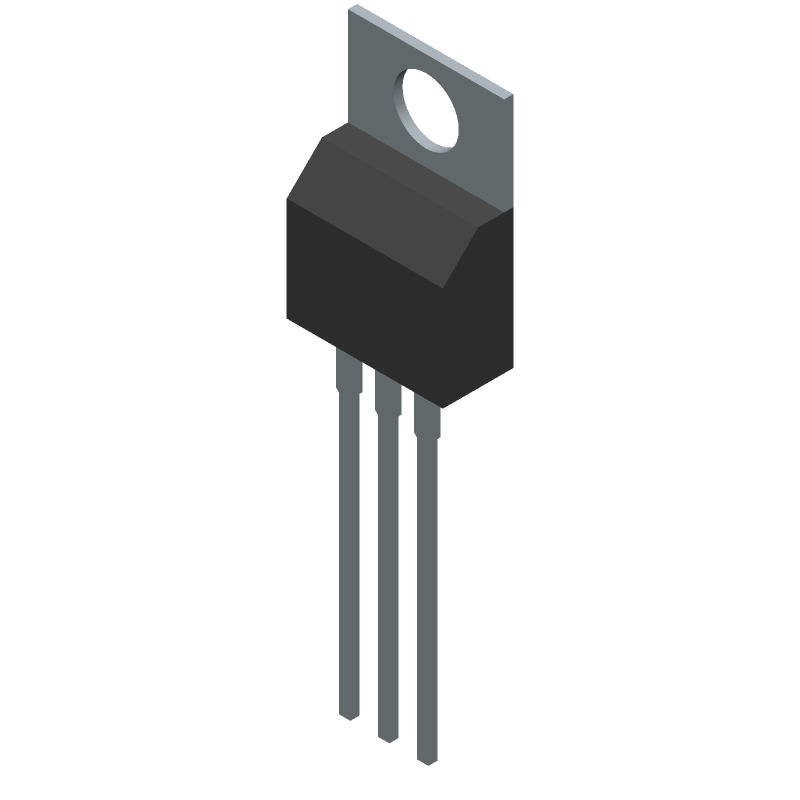

  • 3D Model

    2d presentation

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

STP20NF06L Part Data Attributes

Parametric Data
STP20NF06L STMicroelectronics
Buy Now Datasheet
Compare Parts:
STP20NF06L STMicroelectronics Power Field-Effect Transistor, 20A I(D), 60V, 0.085ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-220AB
Rohs Code Yes
Part Life Cycle Code Obsolete
Part Package Code TO-220AB
Package Description To-220, 3 Pin
Pin Count 3
ECCN Code EAR99
Avalanche Energy Rating (Eas) 120 Mj
Configuration Single With Built-In Diode
DS Breakdown Voltage-Min 60 V
Drain Current-Max (ID) 20 A
Drain-source On Resistance-Max 0.085 Ω
FET Technology Metal-Oxide Semiconductor
JEDEC-95 Code TO-220AB
JESD-30 Code R-PSFM-T3
JESD-609 Code e3
Number of Elements 1
Number of Terminals 3
Operating Mode Enhancement Mode
Operating Temperature-Max 175 °C
Package Body Material Plastic/Epoxy
Package Shape Rectangular
Package Style Flange Mount
Polarity/Channel Type N-Channel
Power Dissipation-Max (Abs) 60 W
Pulsed Drain Current-Max (IDM) 80 A
Qualification Status Not Qualified
Surface Mount No
Terminal Finish Matte Tin
Terminal Form Through-Hole
Terminal Position Single
Transistor Application Switching
Transistor Element Material Silicon

Alternate Parts for STP20NF06L

This table gives cross-reference parts and alternative options found for STP20NF06L. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of STP20NF06L, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
IPB80N06S2LH5ATMA1 Infineon Technologies AG Check for Price Power Field-Effect Transistor, 80A I(D), 55V, 0.0062ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-263AB STP20NF06L vs IPB80N06S2LH5ATMA1
NDB706AL Texas Instruments Check for Price 75A, 60V, 0.015ohm, N-CHANNEL, Si, POWER, MOSFET, TO-263AB STP20NF06L vs NDB706AL
FQPF7N20 Fairchild Semiconductor Corporation Check for Price Power Field-Effect Transistor, 4.8A I(D), 200V, 0.69ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-220AB STP20NF06L vs FQPF7N20
FDH45N50F Fairchild Semiconductor Corporation Check for Price Power Field-Effect Transistor, 45A I(D), 500V, 0.12ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-247AD STP20NF06L vs FDH45N50F
STW80NF55-06 STMicroelectronics Check for Price Power Field-Effect Transistor, 80A I(D), 55V, 0.0065ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-247AC STP20NF06L vs STW80NF55-06
STP19N06 STMicroelectronics Check for Price Power Field-Effect Transistor, 19A I(D), 60V, 0.1ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-220AB STP20NF06L vs STP19N06
STP13NK50Z STMicroelectronics Check for Price Power Field-Effect Transistor, 11A I(D), 500V, 0.48ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-220AB STP20NF06L vs STP13NK50Z
IXFH7N90Q Littelfuse Inc Check for Price Power Field-Effect Transistor, 7A I(D), 900V, 1.5ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-247AD STP20NF06L vs IXFH7N90Q
IXFH14N80 Littelfuse Inc Check for Price Power Field-Effect Transistor, 14A I(D), 800V, 0.7ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-247AD STP20NF06L vs IXFH14N80
SPB80N06S2-07 Infineon Technologies AG Check for Price Power Field-Effect Transistor, 80A I(D), 55V, 0.0066ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-263AB STP20NF06L vs SPB80N06S2-07
equivalents icon

STP20NF06L Related Parts

STP20NF06L Frequently Asked Questions (FAQ)

  • The maximum operating temperature range for the STP20NF06L is -40°C to 150°C.

  • To ensure reliability, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, minimizing thermal resistance, and avoiding thermal hotspots.

  • The recommended gate drive voltage for the STP20NF06L is between 10V and 15V, with a maximum gate-source voltage of ±20V.

  • To protect the STP20NF06L from ESD, handle the device by the body, use an anti-static wrist strap or mat, and ensure that the device is stored in an anti-static package.

  • The maximum allowed current for the STP20NF06L is 20A, with a maximum pulsed current of 40A.
