STPSC10H12G-TR Information
STPSC10H12G-TR by STMicroelectronics is a Rectifier Diode.
Rectifier Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for STPSC10H12G-TR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
18AC0585
|
Newark | Sic Schottky Diode, 1.2Kv, 10A, To-263, Product Range:-, Diode Configuration:Single, Repetitive Peak Reverse Voltage:1.2Kv, Average Forward Current:10A, Total Capacitive Charge:57Nc, Diode Case Style:To-263 (D2Pak), No. Of Pins:3 Pinrohs Compliant: Yes |Stmicroelectronics STPSC10H12G-TR RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 1032 |
|
$3.7200 / $6.2300 | Buy Now |
|
DISTI #
497-17314-1-ND
|
DigiKey | DIODE SIL CARB 1200V 10A D2PAK Min Qty: 1 Lead time: 25 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
1031 In Stock |
|
$2.5443 / $5.1300 | Buy Now |
|
DISTI #
STPSC10H12G-TR
|
Avnet Americas | - Tape and Reel (Alt: STPSC10H12G-TR) COO: China RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 25 Weeks, 0 Days Container: Tape & Reel | 0 |
|
$2.0673 / $2.2051 | Buy Now |
|
DISTI #
STPSC10H12G-TR
|
Avnet Americas | - Tape and Reel (Alt: STPSC10H12G-TR) COO: China RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 25 Weeks, 0 Days Container: Tape & Reel | 0 |
|
$2.0673 / $2.2051 | Buy Now |
|
DISTI #
511-STPSC10H12G-TR
|
Mouser Electronics | SiC Schottky Diodes 1200 V, 10 A High Surge Silicon Carbide Power Schottky Diode RoHS: Compliant | 1739 |
|
$2.3900 / $5.0800 | Buy Now |
|
|
STMicroelectronics | 1200 V, 10 A High Surge Silicon Carbide Power Schottky Diode COO: Italy RoHS: Compliant Min Qty: 1 | 1739 |
|
$2.9500 / $4.9800 | Buy Now |
|
|
Future Electronics | STPSC10H12 Series 1200 V 10 A Surface Mount SiC Power Schottky Diode - D2PAK RoHS: Compliant pbFree: Yes Min Qty: 1000 Package Multiple: 1000 Lead time: 25 Weeks Container: Reel | 0Reel |
|
$2.1000 | Buy Now |
|
DISTI #
STPSC10H12G-TR
|
Avnet Silica | (Alt: STPSC10H12G-TR) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 17 Weeks, 0 Days | Silica - 1000 |
|
Buy Now | |
|
DISTI #
STPSC10H12G-TR
|
EBV Elektronik | (Alt: STPSC10H12G-TR) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 26 Weeks, 0 Days | EBV - 0 |
|
Buy Now | |
|
|
LCSC | 420A 1.2kV 1.5V10A 10A D2PAK Single Diodes RoHS | 1 |
|
$5.5698 / $5.8731 | Buy Now |
US Tariff Estimator: STPSC10H12G-TR by STMicroelectronics
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for STPSC10H12G-TR
STPSC10H12G-TR CAD Models
-

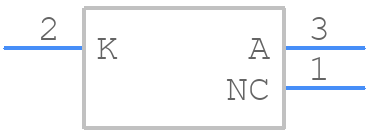

Part Symbol
-

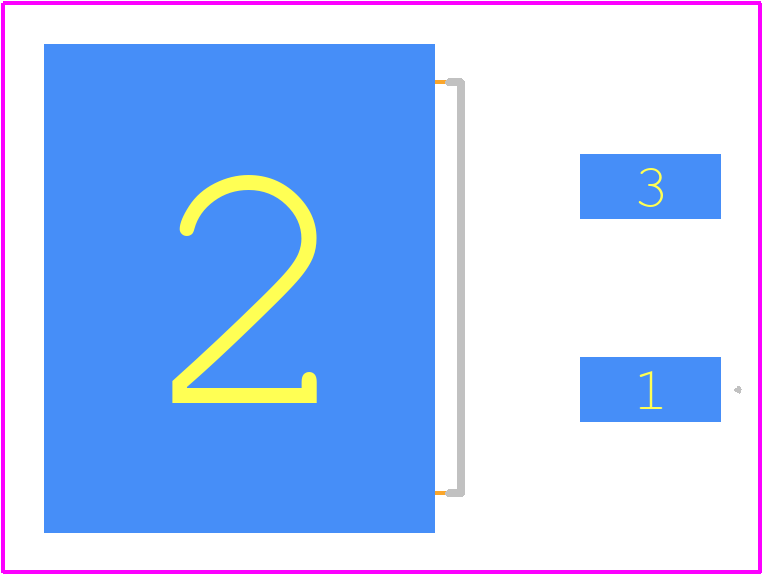

Footprint
